MTD 31550S (1985) Snow Thrower

Model: 31550S (1985)

Save Part Not Listed?
product name

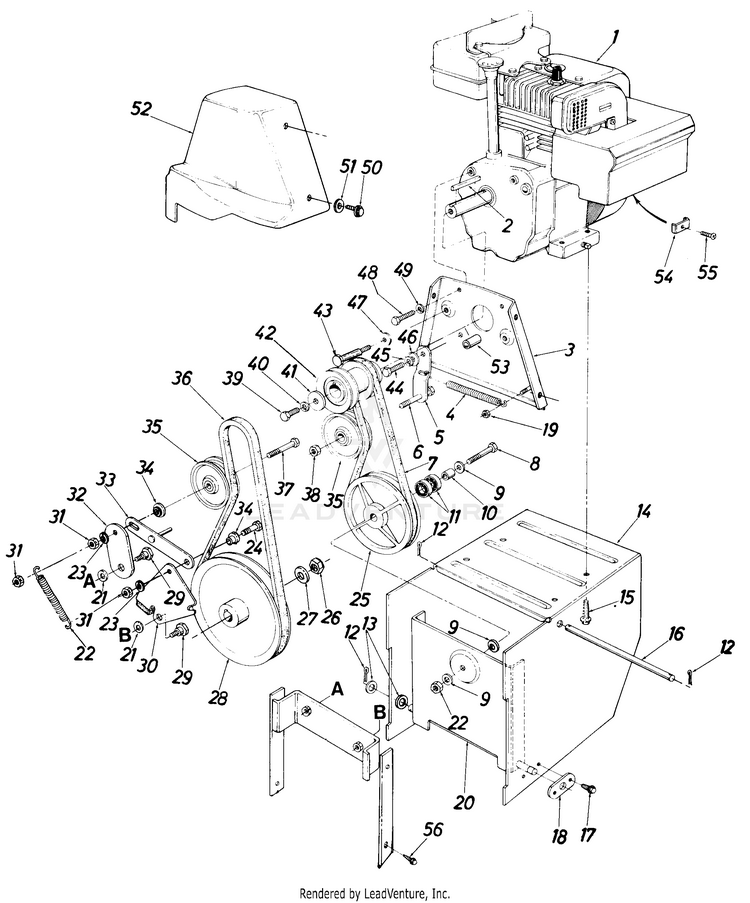

Parts

...
...
1
Engine MTD-NA
...
2
Sq. Key 3/16" x 1.50" Lg. MTD-714-0133
...
3
Engine Plate Ass'y. MTD-05872
...
4
Extension Spring 3.97" Lg. MTD-932-0429A
...
5
BRACKET-IDLR- MTD-05896
...
6
Hex Bolt 3/8-24 x 1.25" Lg.* MTD-710-0191
...
7
V"-Belt MTD-954-0256
...
8
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
9
Bell-Wash. .40" I.D. x .88" O.D. x .06 MTD-736-0105
...
10
Spacer .38" I.D. x .62" O.D. x .75" Lg. MTD-711-0396
...
11
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
12
Cotter Pin 3132" Dia. x .75" Lg.* MTD-714-0507
...
13
FLAT WASHER .510 x .995 MTD-736-0272
...
14
Frame Ass'y. MTD-05874
...
15
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A
...
16
Shaft .50" Dia. x 9.50" Lg. MTD-738-0497
...
17
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
18
BRACKET-AX MTD-05897
...
19
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
20
Drive Pulley Support Brk't. Ass 'y. MTD-05878
...
21
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
22
Extension Spring 3.97" Lg. MTD-932-0429A
...
23
L-Wash. 3/8" I.D. MTD-736-0169
...
24
Hex Scr. 3/8-16 x 1.25" Lg. MTD-710-0723
...
25
PULLEY-DRI (Incl. Ref. #11) MTD-05921
...
26
Hex Jam Cent. L-Nut 5/8-18 Thd. MTD-712-0923
...
27
Fl-Wash. .64" I.D. x .94" O.D. x .06 MTD-736-0116
...
28
1/2" V-Pulley .625" I.D. x 7.50" O.D. MTD-756-0344
...
29
Shld. Bolt .625" Dia. x .170" Lg. (3/8-16) MTD-738-0281
...
30
BRACKET-BRAKE MTD-784-5061
...
31
Jam Nut, 3/8-16 MTD-912-3008
...
32
BRACKET-ID MTD-05895
...
33
Brake Linkage Ass'y. MTD-05870
...
34
Shld. Spacer .625" I.D. MTD-938-0347
...
35
FLAT IDLER PULLEY-2 1/4 OD X MTD-756-0137
...
36
V-Belt MTD-954-0257
...
37
HEX SCREW MTD-710-0756
...
38
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
39
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
40
L-Wash. 3/8 I.D.* MTD-736-0169
...
41
Fl-Wash. .40" I.D. x 1.25" O.D. MTD-736-0247
...
42
PULLEY MTD-756-0421
...
43
Shld. Scr. .498" x 3.0" Lg. MTD-738-0215A
...
44
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
45
Lock Wash. 5/16" I.D. MTD-936-0119
...
46
Shld. Spacer.320" I.D. MTD-748-0234
...
47
Bell-Wash. .40" I.D. x .88" x .06 MTD-736-0105
...
48
Hex Bolt 5/16-24 x .62" Lg.* MTD-710-0237
...
49
Lock Wash. 5/16" I.D. MTD-936-0119
...
50
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
51
Fl-Wash. .28" I.D. x .75" O.D. x .06 MTD-736-0173
...
52
BELT COVER MTD-731-0642
...
53
UNKNOWN MTD-NA
...
54
Casing Clamp MTD-751B221535
...
55
Hex Sems Scr. #10-32 x .62" Lg. MTD-710-0899A
...
56
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
xx
Key (Not Shown) MTD-TC-35062

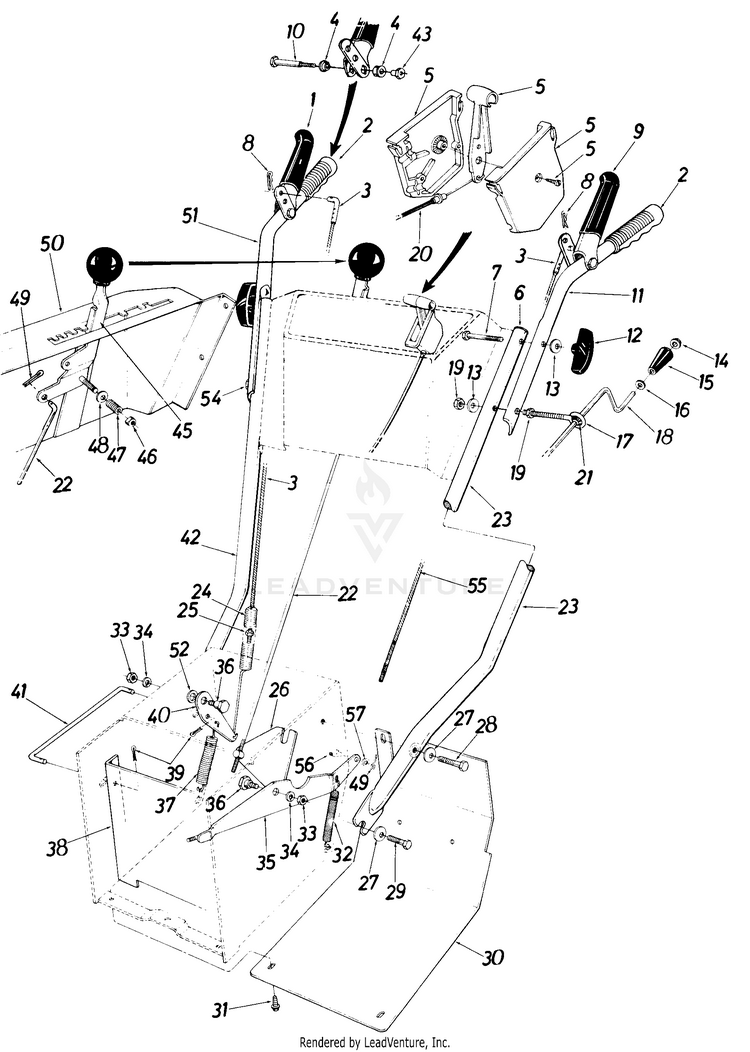

Snow

...
...
1
GRIP ASSEMBLY- MTD-05988
...
2
Grip MTD-720-04083
...
3
LOCKOUT CABLE MTD-946-0367
...
4
BEARING-FL MTD-741-0402
...
5
Throttle Control Box Ass'y. MTD-831-0796A
...
6
PLUG MTD-731-0496
...
7
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
8
Hairpin Cotter MTD-714-0111
...
9
Clutch Grip Ass'y. L.H. MTD-05987
...
10
Shoulder Bolt .374 Dia. x 1.53" Lg. MTD-938-0560
...
11
HANDLE-UPPER-LH MTD-749-0593
...
12
Star Knob MTD-720-04072A
...
13
Belleville Wash. 5/16" I.D. MTD-736-0242
...
14
Push Nut 3/8 Rod MTD-726-0100
...
15
Knob - Black MTD-920-0171
...
16
Fl-Wash. .40 I.D. x .62 O.D. x .060 MTD-736-0140
...
17
BOLT-EYE MTD-747-0416
...
18
CRANK ASSEMBLY MTD-05981
...
19
HEX NUT 5/16-18 MTD-712-3010
...
20
Throttle Control Wire MTD-946-0502
...
21
BUSHING .380 ID MTD-941-0475
...
22
Shifting Rod MTD-747-0348
...
23
LOWER HANDLE (LH) MTD-749-0343
...
24
Extension Spring .75" O.D. x 5.0" Lg. MTD-732-0184
...
25
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
26
5HIFTING LINKAGE BRACKET MTD-05898
...
27
Bellevi I le Wash. .40 I.D. x .88 O.D. x .060 MTD-736-0105
...
28
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
29
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
30
Frame Cover MTD-05899
...
31
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
32
Extension Spring .38" O.D. x 3.25" Lg. MTD-932-0320
...
33
Jam Nut, 3/8-16 MTD-912-3008
...
34
L-Wash. 3/8" l.D. MTD-736-0169
...
35
BRACKET-AUG CLUTCH MTD-784-5050
...
36
Shld. Bolt .625" Dia. x .170" Lg. (3/8-16) MTD-738-0281
...
37
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
38
Drive Pulley Support Brk't. Ass 'y. MTD-05878
...
39
Cotter Pin 3/32" Dia. x .75" Lg.* MTD-714-0507
...
40
BRACKET-DR MTD-05501
...
41
ROD-VAR SP MTD-10080
...
42
LOWER HANDLE (RH) MTD-749-0344
...
43
SHOULDER NUT MTD-938-0561
...
45
SHIFT HANDLE ASS'Y. MTD-05805
...
46
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
47
Compression Spring .38" O.D. x .88" Lg. MTD-732-0193
...
48
Bell-Wash. .40 I.D. x .88 O.D. x .060 MTD-736-0105
...
49
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
50
HANDLE PANEL MTD-784-5006
...
51
HANDLE-FOLDING-RH MTD-749-0594
...
52
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
54
Carriage Bolt 5/16-18 x 2.50" Lg. MTD-710-0572
...
55
AUGER CHUTE CABLE 36" MTD-946-0435
...
56
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
57
Fl-Wash. .33n l.D. x .63" O.D. MTD-736-0264

Snow

...
...
1
Frame Ass'y. MTD-05874
...
2
Spacer.50" I.D. x .75" O.D. x .78" Lg. MTD-750-0499
...
4
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
5
Friction Wheel Ass'y. MTD-05080AP
...
6
HEX SHAFT MTD-738-0496
...
7
PLATE ASSEMBLY MTD-05883
...
8
Snap Ring 1.00" Dia. Shaft MTD-716-0102
...
9
Fl-Wash 1.00" x 1.63" O.D. x .03 MTD-736-0163
...
10
BRACKET AS MTD-05880
...
12
#41 CHAIN 1/2" PITCH x 35 0 LINKS MTD-713-0285
...
13
#41 MASTER LINK 1/2 PITCH TYPEII MTD-913-0723
...
14
32 Teeth Sprocket Ass'y. MTD-713-0281
...
15
FLANGE BEARING MTD-941-0225
...
16
FLAT WASHER MTD-736-0290
...
17
Hex Lock Bolt 5/16-18 x .62" Lg.* MTD-710-0538
...
18
Cotter Pin 3/32" Dia. x .75" Lg.* MTD-714-0507
...
20
Flange Brg. w/Flats .75" I.D. MTD-941-0490
...
21
Fl-Wash. .34" I.D. x 1.12" O.D. x .125 MTD-736-0231
...
25
Jam Nut, 3/8-16 MTD-912-3008
...
26
L-Wash. 3/8" I.D. MTD-736-0169
...
27
5HIFTING LINKAGE BRACKET MTD-05898
...
29
Shld. Bolt .625" Dia. x .170" Lg. MTD-738-0281
...
30
ADJUSTMENT FERRULE MTD-711-0628
...
31
ROD-SHIFT MTD-747-0356
...
32
Fl-Wash. .34" I.D. x .64" O.D. x .06 MTD-736-0264
...
33
Cotter Pin 3132" Dia. x .75" Lg. MTD-714-0507
...
34
RETAINING RING MTD-716-0397
...
35
SPROCKET-7T MTD-713-0280
...
36
Shaft .50" Dia. x 9.50" Lg. MTD-738-0497
...
37
AXLE ASSEMBLY-WHEEL MTD-713-0323
...
38
SCREW 5/16-24 x .500 MTD-710-0600
...
39
CHAIN MTD-713-0287
...
40
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
41
CENTER SPROCKET #41-8T MTD-748-0204
...
42
Lock Wash. 5/16" I.D. MTD-936-0119
...
43
Bearing MTD-931-0374
...
44
FLANGE BEARING .630 ID MTD-748-0184
...
45
Fl-Wash. .76" I.D. x 1.49 O.D. MTD-736-0188
...
46
Wheel Ass'y. Comp. 13 x 5.0 MTD-734-1253
...
xx
WHEEL RIM MTD-734-1118
...
xx
TUBELESS TIRE-13 x 5.0-6 MTD-734-0298-0901
...
47
TUBELESS VALVE MTD-934-0255
...
48
Click Pin MTD-714-0143A
...
49
Snap Ring .75 Dia. MTD-716-0101
...
50
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
51
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
52
Bell-Wash. .50 I.D. x 1.0 O.D. x .075 MTD-736-0253
...
53
Sleeve Bearing .752" I.D. MTD-941-0401

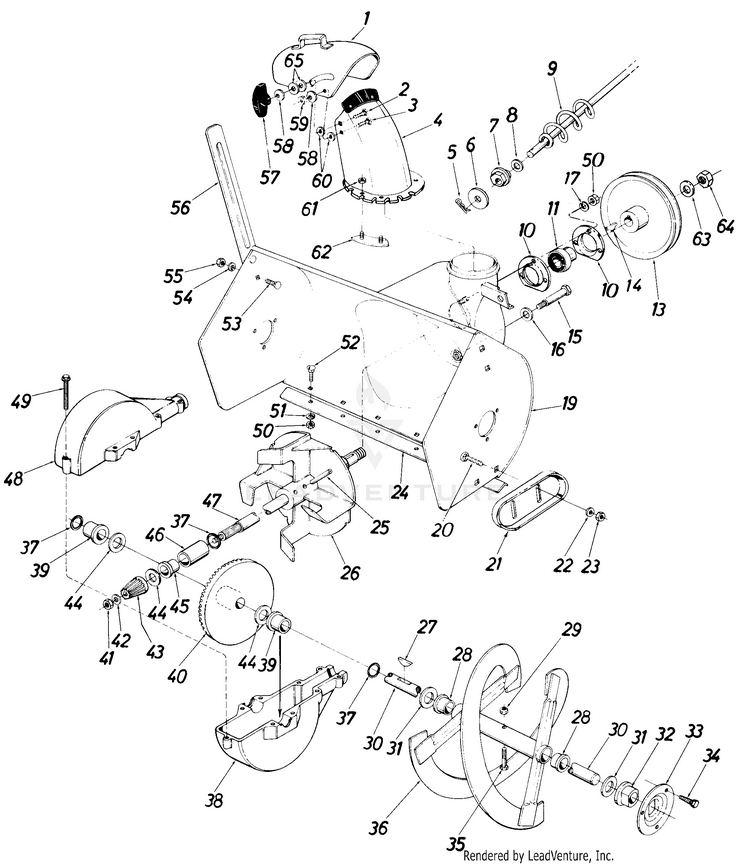

Snow

...
...
1
Top Chute Ass'y. MTD-05225
...
2
Carriage Bolt 5/16-18 x 1.00" Lg.* MTD-710-0276
...
3
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
4
Chute Ass'y. MTD-05996
...
5
Cotter Pin MTD-714-0507
...
6
Fl-Wash. .390 I.D. x 1.50" O.D. MTD-736-0234
...
7
BUSHING-HEX MTD-741-0403
...
8
Fl-Wash .385 I.D. x .62" O.D. MTD-736-0140
...
9
CRANK ASSEMBLY MTD-05981
...
10
Bearing Housing MTD-05931A
...
11
BEARING-BA MTD-741-0310
...
13
1/2" "V"-Pulley .625" I.D. x 7.50" O.D. MTD-756-0344
...
14
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
15
BOLT-AXLE MTD-738-0154
...
16
Bell-Wash. .40" I.D. x .88" O.D. x .06 MTD-736-0105
...
17
Lock Wash. 5/16" I.D. MTD-936-0119
...
19
Blower Housing Ass'y. MTD-784-5024
...
20
CARRIAGE BOLT 3/8-16 X .75 MTD-710-0389
...
21
Skid Shoe MTD-784-5038B-0637
...
22
Bell-Wash. 3/8 I.D. MTD-736-0105
...
23
Jam Nut, 3/8-16 MTD-912-3008
...
24
SHAVE PLATE MTD-05847
...
25
Spring Pin Spiral 1/4" Dia. x 1.50" Lg. MTD-715-0114
...
26
FAN ASSEMBLY-BLOW MTD-05865
...
27
#9 Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126
...
28
Flange Brg. .75" I.D. x .88" O.D. x .62 MTD-741-0321
...
29
Hex Ins. L-Nut 5/16-18 MTD-712-0429
...
30
SPIRAL AXLE MTD-738-0488A
...
31
Fl-Wash. .75" I.D. x 1.50" O.D. x .06 MTD-736-0188
...
32
Plastic Bearing w/Flats MTD-941-0300
...
33
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
34
SCREW 5/16-24 x .500 MTD-710-0600
...
35
Shear Bolt 5/16-18 x 1.5" Lg. MTD-710-0890A
...
36
Spiral Ass'y. L.H. MTD-05923
...
xx
Spiral Ass'y. R.H. (Not Shown) MTD-05924
...
37
O-Ring-3/4" I.D. MTD-921-0176
...
38
Bevel Gear Housing Lower Half MTD-717-0456
...
39
Plastic Flange Brg. .755" I.D. MTD-741-0293
...
40
BEVEL GEAR MTD-717-0457
...
41
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
42
Fl-Wash. .34" I.D. x .62" O.D. x .06 MTD-736-0264
...
43
Pinion Gear MTD-948-0237
...
44
Fl-Wash. .75" I.D. x 1.25" O.D. x .06 MTD-736-0287
...
45
Flange Brg. .755" I.D. MTD-748-0171
...
46
SLEEVE BEARING .752 ID MTD-748-0106
...
47
AXLE-BLOWER MTD-738-0546
...
48
Bevel Gear Housing Upper Half MTD-717-0455
...
49
Screw, Hex MTD-710-0788
...
50
HEX NUT 5/16-18 MTD-712-3010
...
51
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242
...
52
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
53
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
54
Lock Wash. 5/16" I.D. MTD-936-0119
...
55
HEX NUT 5/16-18 MTD-712-3010
...
56
Drift Cutter MTD-790-00181-0637
...
57
Star Knob MTD-720-04072A
...
58
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242
...
59
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
60
Fl-Wash. .53" I.D. x 1.25" O.D. x .100 MTD-736-0179
...
61
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
62
GUARD ASSEMBLY MTD-05783
...
63
Fl-Wash. .64" I.D. x .94" O.D. x .06 MTD-736-0116
...
64
Hex Jam Nut 5/8-18 Thd. MTD-712-0923
...
65
Fl-Wash. .344 I.D. x 1.125 O.D. MTD-736-0231
...
xx
Gear Box Complete MTD-717-0454
