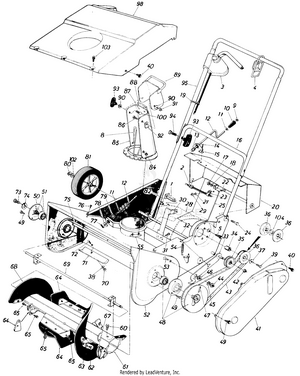

MTD 315-144-000 (1985) Snow Thrower

Model: 315-144-000 (1985)

Save
Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
Circuit Breaker 10 Amp MTD-725-1086

...
2
Cord Restraint MTD-725-0908

...
3
Control with Key MTD-725-1077

...
xx
Key (Service Only) MTD-731-0728

...
4
Restraint MTD-725-0899

...
5
Hex Bolt 5/16-18 x .50" Lg. MTD-710-3039

...
xx
Lock Wash. 5/16" I.D. MTD-936-0119

...
xx
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175

...
8
Chute Guard MTD-732-0484

...
9
Push Nut 3/8" Rod MTD-726-0100

...
10
Knob - Black MTD-920-0171

...
11
Fl-Wash. .385" I.D. x .62" O.D. MTD-736-0140

...
12
Chute Crank Ass'y. MTD-784-5179

...
13
BUSHING .380 ID MTD-941-0475

...
14
Hex Tap Scr. 1/4" x .75" Lg. MTD-710-0895

...
15
Upper Chute Crank Brkt. MTD-784-5178A

...
16
Lower Handle MTD-749-0604

...
17
HEX NUT 5/16-18 MTD-712-3010

...
18
Lock Wash. 5/16" I.D. MTD-936-0119

...
19
Insulatop Nut Plate MTD-926-0320

...
20
Dash Panel Ass'y. MTD-784-5184

...
21
UNKNOWN MTD-NA

...
22
Truss Mach. Scr. #10-24 x .50" Lg. MTD-710-0473

...
23
Cord Restraint MTD-725-1089

...
24
SCREW 5/16-18 x 1.5 LG MTD-710-0805A

...
25
Snow Guard MTD-784-5186

...
28
Motor Shroud with Hardware MTD-731-0727

...
29
Hex Nut #10-24 Thd. MTD-712-0121

...
30
Motor Support Brkt. MTD-784-5187

...
31
Hex L-Wash. Hd. AB Tap Scr. 1/4 x .62" Lg. MTD-710-0892

...
32
Wheel Axle MTD-749-0605

...
33
KIT-IDLER/BRAKE BRACKET MTD-753-05156

...
34

...
35
Fl-Idler 2.00" x 1" w/Flange MTD-756-0313

...
36
Pulley Half, .625 x 2.25 MTD-956-0416B

...
37
Bell-Wash. .345" I.D. x .88" MTD-736-0242

...
38
L-Wash. 1/4" I.D. MTD-936-0329

...
39
Hex Scr. 5/16-24 x .75" Lg. MTD-710-0157

...
40
Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62 MTD-710-0892

...
41
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637

...
42
Hex L-Nut 3/8-24 Thd. MTD-912-0296

...
43
V-Belt 1/2" x 34" Lg. MTD-954-0285

...
44
HEX NUT 5/16-18 MTD-712-3010

...
45
Lock Wash. 5/16" I.D. MTD-936-0119

...
46
Shld. Spacer 1.0" O.D. x .315 I.D. MTD-748-0234

...
47
Spring Pin Spir. 1/4" Dia. x 1.00" Lg. MTD-715-0151

...
48
Kit-Bearing, Cup and Pulley MTD-753-0398

...
49
Hex "B"-Tap Scr. 1/4-20 x .38" Lg. MTD-710-0352

...
50
Bearing Cup MTD-784-5174-0637

...
51
Kit-Bearing and Collar MTD-753-0374

...
52
Blower Housing Ass'y. MTD-784-5150

...
53
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323

...
54
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A

...
55
Chute Flange Keeper Ass'y. MTD-05783

...
60
Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-0892

...
61
Auger Half 21.0" Lg. MTD-784-5171

...
62
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599

...
63
Fl-Wash. .28" I.D. x .74" O.D. MTD-736-0173

...
64
Rubber Paddle Half MTD-731-0701

...
65
Hex B-Tap Scr. 1/4 x .62" Lg. MTD-710-0896

...
xx
Large Counterweight MTD-784-5188

...
67
Small Counterweight MTD-784-5189

...
68
8.5" Dia. Rubber Spiral MTD-731-0700

...
69
Auger Axle Ass'y. MTD-784-5172

...
70
Hex Nut 1/4-20 Thd. MTD-912-0287

...
71
Shave Plate MTD-731-1033

...
72
Carriage Bolt 1/4-20 x .75"* MTD-710-0703

...
73
Hex Wash. TT-Tap Scr. 1/4-20 x.75" Lg. MTD-710-0875

...
74
L-Wash. 1/4" I.D. MTD-936-0329

...
75
Thrower Housing Angle MTD-784-5159

...
76
Hex "B"-Tap Scr. 114" x .38" Lg. MTD-710-0352

...
77
Cotter Pin 3132" Dia. x .75" MTD-714-0507

...
78
Fl-Wash. .385" I.D. x 1.5" O.D. MTD-736-0234

...
79
Hex Bushing .385" I.D. MTD-741-0403

...
80
Cap Speed Nut 1/2" Rod MTD-726-0221

...
81
Wheel Ass'y. 6 x 1.50 MTD-734-0831

...
82
Part of Ref. No. 28 MTD-NA

...
84
Hex L-Nut 1/4-20 Thd MTD-912-0107

...
85
5.0" Dia. Chute Ass'y. MTD-784-5160

...
86
Carriage Bolt 5/16-18 x.62 MTD-710-0260A

...
87
Rivet.250" x.44" Lg. MTD-728-0481

...
88
Chute Seal MTD-721-0198

...
89
Top Chute Ass'y. MTD-784-5163

...
90
Bell-Wash. .345" I.D. x .88" MTD-736-0242

...
91
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158

...
92
Top Chute Stop MTD-784-5170

...
93
Star Knob MTD-720-04072A

...
94
Carriage Bolt 5/16-18 x 2 MTD-710-1174

...
95
Upper Handle MTD-749-0670

...
98

...
100
Carriage Bolt 5/16-18 x 1.00"* MTD-710-0276

...
102
Fl-Wash. .75" O.D. x .50" I.D. MTD-736-0108

...
103
Hex AB-Tap Scr. #10 x .50" MTD-710-0351

...
104
Fl-Wash. .635" I.D. x .93" O.D. MTD-736-0116

...
xx
Motor-B&S Model 748003 MTD-NA
...
...
...
