MTD 314-980I000 (1994) Snow Thrower

Model: 314-980I000 (1994)

Back To Assemblies

Save Part Not Listed?
product name

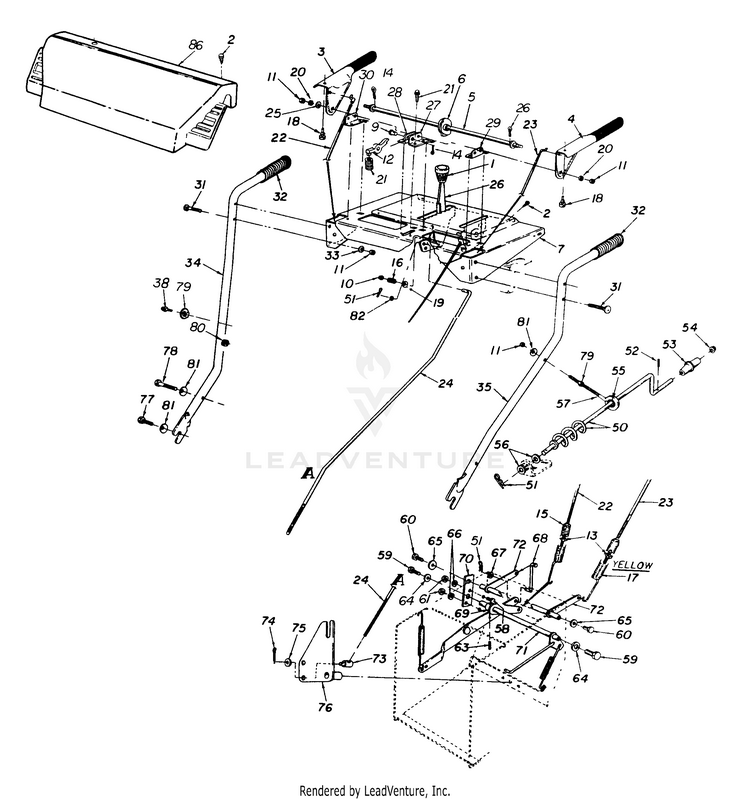

Engagement Handle Assembly

...
...
1
Knob MTD-920-0232
...
2
Truss Mach. B-Tap Scr. #10 x .50 MTD-710-0351
...
3
CLUTCH HANDLE(RH) MTD-705-5218
...
xx
Engagement Handle R.H. - Red MTD-705-5220
...
4
CLUTCH HANDLE(LH) MTD-705-5219
...
xx
Engagement Handle L.H. - Red MTD-705-5221
...
5
CAM ROD MTD-747-0817
...
6
Clutch Lock Cam MTD-748-0362
...
7
HANDLE PANEL SUPPORT MTD-684-0032
...
xx
HANDLE PANEL SUPPORT MTD-684-0033
...
?8
Hex Wash. SF-Tap Scr. 1/4-20 x .50" MTD-710-0599
...
9
Clevis Pin .81 Dia. x 1.0" Lg. MTD-711-0653
...
10
Hex Nut 3/8-24 MTD-712-0116
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Handle Lock Pawl MTD-948-0363
...
13
Hex Ins. Lock Nut 1/4-20 MTD-712-0324
...
14
Cotter Pin 3/32 Dia. x 1.00" Lg. MTD-714-0111
...
15
Extension Spring MTD-732-0184
...
16
Compression Spring .38" I.D. x .88" Lg. MTD-732-0193
...
17
Spring, Extension, .75 O.D. x 5.0 MTD-732-0463A
...
18
Rubber Bumper MTD-735-0199A
...
19
Bell-Wash .400" I.D. x .88" O.D. x .06 MTD-736-0105
...
20
Lock Wash. 5/16" I.D. MTD-936-0119
...
21
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
22
Lockout Cable x 28" Lg. MTD-746-0694
...
23
Lockout Cable x 25" Lg. MTD-746-0716
...
24
SHIFT ROD MTD-747-0821
...
25
Washer (Special) MTD-736-0509
...
26
HANDLE-SHI MTD-784-0297
...
27
BRACKET-HDL SUP (LH) MTD-784-5597
...
28
BRACKET-HDLE SUP (RH) MTD-784-5598
...
29
BRACKET-HDL SUP (LH) MTD-784-5597
...
30
BRACKET-HDLE SUP (RH) MTD-784-5598
...
31
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
32
Grip MTD-720-04083
...
33
Bell-Wash .400" I.D. x .88" O.p. x .06" MTD-736-0105
...
34
HANDLE (RH) MTD-749-0912
...
35
HANDLE (LH) MTD-749-0913
...
38
UNKNOWN MTD-NA
...
50
CHUTE CRANK ASS'Y. - 39.0" LG MTD-05944B
...
51
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
52
Rolled Pin, 1/8 x .63 MTD-915-0138
...
53
Knob MTD-720-0201A
...
54
Push Cap 3/8" Rod MTD-726-0100
...
55
Grommet MTD-735-0234
...
56
Flat Wash. 385" I D. x .62" O.D. x .06 MTD-736-0140
...
57
EYEBOLT MTD-747-0697
...
58
Hex Screw 1/4-20 x 62" MTD-710-0258
...
59
Hex L-Bolt 5/16-18 x .62" MTD-710-0538
...
60
Hex Scr 1/4-20 x 50 w/Patch MTD-710-0739
...
61
HEX NUT 1/4-20 MTD-912-0287
...
63
Roll Pin 3/16 x 1.25" MTD-915-0246
...
64
Flat Wash .344" I.D. x .875" 0 D. MTD-736-0159
...
65
Flat Wash 25" I.D. x .93" O.D. x 125 MTD-736-0176
...
66
L-Wash. 1/4" I.D. MTD-936-0329
...
67
Fl-Wash. 281" I D x .62" 0 D. x .051 MTD-736-0463
...
68
ROD-L MTD-747-0735
...
69
Drive Clutch Brkt 627 R.H Ass'y. MTD-784-5557
...
70
Pivot Bracket .63 Hole MTD-784-5562
...
71
SHAFT MTD-784-5563
...
72
Pivot Cross Shaft Ass'y. MTD-784-5565
...
73
ADJUSTMENT FERRULE MTD-711-0628
...
74
Cotter P(n 3/32 x .75 MTD-714-0507
...
75
Fl-Wash. 344" t D. x .625" O.D. x .063 MTD-736-0264
...
76
BRACKET ASSY MTD-784-5133
...
77
Hex Screw 3/8-16 x .75 MTD-710-0216
...
78
Hex Screw 3/8-16 x 1.75 MTD-710-0347
...
79
UNKNOWN MTD-NA
...
80
UNKNOWN MTD-NA
...
81
Bell-Wash. 400" I.D. x .88" O.D. x .06" MTD-736-0105
...
82
Fl-Wash .344" I D. x .625" O.D. x .063" MTD-736-0264
...
86
Handle Panel MTD-731-1391
