MTD 314-640F000 (1994) Snow Thrower

Model: 314-640F000 (1994)

Save Part Not Listed?
product name

Auger Housing Assembly

...
...
1
GEARBOX ASSEMBLY 24" W FITTING New Part; For model 610E MTD-918-0414B
...
xx
Gear Assembly: Auger 26" New Part; For model 640F MTD-918-0415B
...
xx
Gear Assembly: Auger 28" New Part; For model 660G MTD-918-0416B
...
2
REDUCER HOUSING (LH) MTD-719-0292
...
3
Oil Seal MTD-721-0179
...
4
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
5
REDUCER HOUSING (RH) MTD-719-0293
...
6
GREASE FITTING MTD-937-3000
...
7
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
8
24"AUGER SHAFT For model 610E MTD-711-0908A
...
xx
26"AUGER SHAFT For model 640F MTD-711-0909A
...
xx
Spiral Axle 28" For model 660G MTD-711-0910A
...
9
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
10
Spiral Pin 1.25" Lg. MTD-715-0143
...
11
IMPELLER SHAFT MTD-717P0526
...
12
WORM GEAR 20T MTD-917-04861
...
13
Thrust Collar MTD-718-0186
...
14
"O"-Ring (Special) New Part MTD-721-0327
...
15
Fl-Wash .76" I.D. x 1.5" O.D. MTD-736-0351
...
16
Fl-Wash .5" I.D. x 1" O.D. MTD-736-0369
...
17
Fl-Wash .76" I.D. x 1.49" O.D. MTD-736-0445
...
19
Bearing, Flange, .75" I.D. x .587" MTD-941-0376
...
20
Flange Bearing, .503 x .75 MTD-948-0108
...
21
KIT-BLOWER-HOUSING 24 For model 610E MTD-753-0615
...
xx
26" HOUSING ASSEMBLY For model 640F MTD-684-0040
...
xx
28" HOUSING ASSEMBLY For model 6606 MTD-684-0041D
...
22
Hex Bolt 5/16-24 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0157
...
23
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
24
Carriage Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
25
Hex Nut 5/16-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-3057
...
26
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
27
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
28
Bell-Wash .345" I.D. x .88" O.D. MTD-736-0242
...
29
Slide Shoe MTD-784-5580
...
30
Shave Plate 24" For model 610E MTD-790-00120-0637
...
xx
Shave Plate: Auger 26" For model 640F MTD-790-00121-0637
...
xx
Shave Plate: Auger 28" For model 660G MTD-790-00118-0637
...
31
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
32
HEX NUT 1/4-20 MTD-912-0287
...
33
Adapter Chute MTD-731-1379D
...
34
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
35
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
36
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
37
Hex ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
38
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
40
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
41
Ext. Spring 3.6" Lg. MTD-932-0611
...
42
Wave Washer MTD-936-0167
...
43
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
44
Shld. Bolt .625" Dia x .170" Lg. MTD-738-0281
...
45
Fl-Idler 2.75" O.D. MTD-756-0178
...
46
Auger Idler Brkt. MTD-984-0064-0637
...
47
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038
...
50
Flange Ball Bearing New Part MTD-941-0309
...
51
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
52
Spiral Pin 1.5" Lg MTD-715-0114
...
53
Shear Bolt 5/16-18 x 1.5" Lg. MTD-710-0890A
...
54
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
55
Fl-Wash. 76" I.D. x 1 49" MTD-736-0188
...
56
FLANGE BUSHING MTD-741-0493C
...
57
Chute Crank Ass'y MTD-984-0022
...
59
Hex Ins. L-Nut 5/16-18 Thd MTD-712-0429
...
60
Cotter Pin 3/32" Dia. x 75" MTD-714-0507
...
61
Rolled Pin, 1/8 x .63 MTD-915-0138
...
62
Chute Crank Knob MTD-720-0201A
...
63
Push Nut MTD-726-0100
...
64
Spiral 24" LH For model 610E MTD-684-04181-0637
...
xx
24" SPIRAL ASSEMBLY (RH) (POWDER BLACK) For model 610E; Not Shown MTD-684-04180-0637
...
xx
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) For model 640F MTD-684-04183-0637
...
xx
Spiral Assembly: RH 26" For model 640F; Not Shown MTD-684-04182-0637
...
xx
28" SPIRAL ASSEMBLY (LH) (POWDER BLACK) For model 660G MTD-684-04185-0637
...
xx
Spiral Assembly: RH 28" For model 660G; Not Shown MTD-684-04184-0637
...
65
Fl-Wash. 385" I.D x .62" O.D. MTD-736-0140
...
67
BRACKET MTD-784-5678
...
68
Chute Crank Bracket MTD-784-5647-0637
...
69
BUSHING .380 ID MTD-941-0475
...
70
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
75
Plastic Bearing w/Flats MTD-941-0300
...
76
Bearing Housing MTD-05931A
...
77
Chute Flange Keeper MTD-731-0851A
...
78
Star Knob MTD-720-04072A
...
79
Carriage Bolt 5/16-18 x 1" Lg. MTD-710-0276
...
82
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
83
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
84
Lower Chute MTD-731-1300E
...
85
Fl-Wash. 344" I.D x 1.125" MTD-736-0231
...
86
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
87
Fl-Wash. 1/4" I.D. MTD-736-0142
...
88
PLATE ASSEMBLY MTD-684-0045
...
89
PLATE REINFORCEMENT ASS'Y. - R H. MTD-684-0046
...
90
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
91
CHUTE REINFORCEMENT MTD-705-5225
...
92
Plug MTD-721-0325

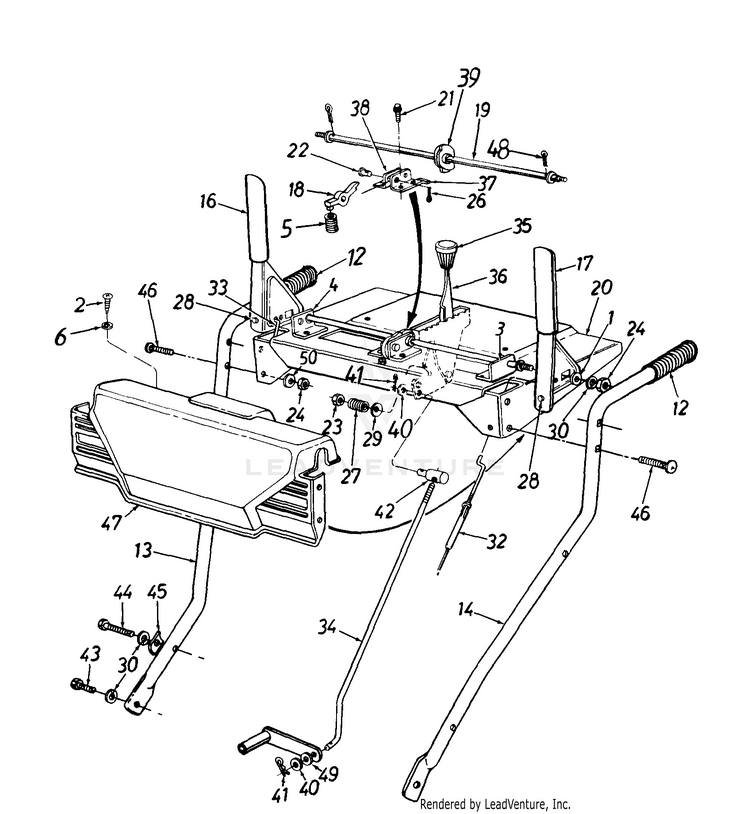

Engagement Handle Assembly

...
...
?1
Wash. (Special) .72" O.D. MTD-736-0509
...
2
Truss Mach. B-Tap Scr. #10 x .5 MTD-710-0351
...
3
Handle Support Brkt.- L.H. MTD-784-5681
...
4
Brkt., Handle Support - RH MTD-784-5682-0637
...
5
Compression Spring MTD-732-0145
...
6
Fl-Wash .188" I.D. x .43" O.D. MTD-736-3067
...
12
Grip MTD-720-0274
...
13
HANDLE (RH) MTD-749-0910C-0637
...
14
HANDLE (LH) MTD-749-0911
...
16
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
17
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
18
Handle Lock Pawl MTD-948-0363
...
19
Rod Cam MTD-747-0877
...
20
HANDLE PANEL SUPPORT MTD-684-0033A
...
21
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
22
CLEVIS PIN MTD-711-0946
...
23
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
24
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
26
Cotter Pin 3/32" Dia. x 1" Lg. MTD-714-0111
...
27
Compression Spring MTD-732-0193
...
28
Rubber Bumper MTD-735-0199A
...
29
Bell-Wash .38" I.D. x .88" O.D. MTD-736-0105
...
30
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
32
Cable-Auger Clutch MTD-946-0897
...
33
Cable-Drive Clutch MTD-946-0898
...
34
Shift Rod MTD-747-0798A
...
35
Knob MTD-920-0232
...
36
HANDLE-SHI MTD-784-0297
...
37
HANDLE BRACKET (LH) MTD-784-5679-0637
...
38
Brkt., Handle Support - RH MTD-784-5680-0637
...
39
BRACKET, BELT GUIDE MTD-784-0362
...
40
Fl-Wash .344" I.D. x 62" O.D. MTD-736-0264
...
41
Internal Cotter Pin 5/16" Dia MTD-714-0104
...
42
Engagement Ferru MTD-911-0677
...
43
Hex Bolt 5/16-18 x .62" Lg. (Special) MTD-710-0538
...
44
Hex Bolt 5/16-18 x 1.75" Lg. (Gr. 5) MTD-710-3180
...
45
Handle Tab MTD-984-5599
...
46
Curved Carr Bolt 5/16-18 x 1.5" MTD-710-1250
...
47
Handle Panel MTD-731-1391
...
48
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
49
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
50
Bell-Wash .325" I D. x .88" O.D. MTD-736-0242

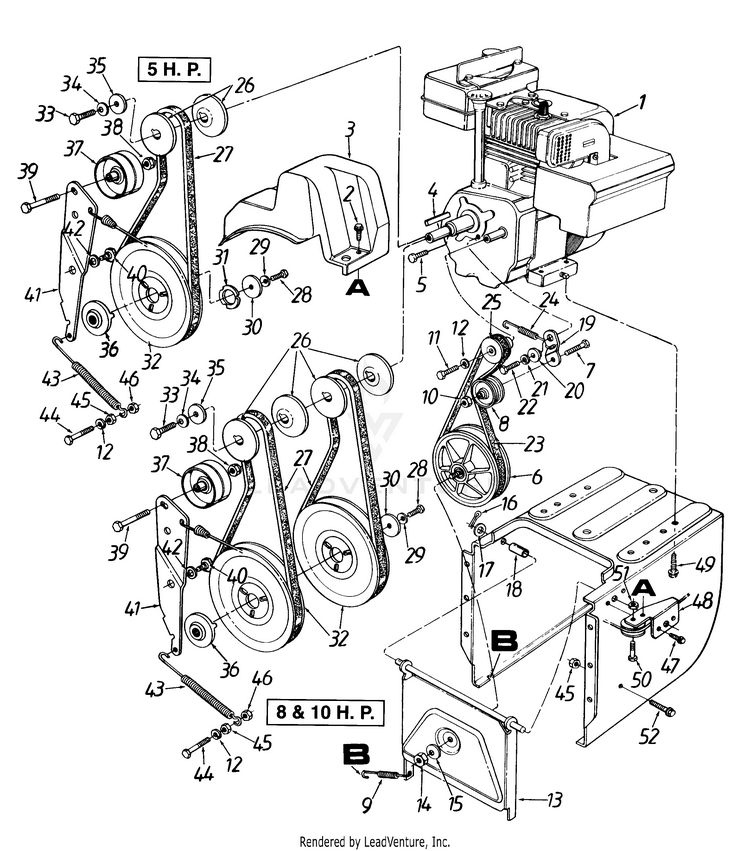

Engine And Pulley Assembly

...
...
1
Engine MTD-NA
...
2
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
3
Belt Cover MTD-731-1324
...
4
Sq.-Key 3/16 x 1.5" Lg. For models 640F & 660G MTD-714-0133
...
xx
Sq.-Key 3/16 x .75" Lg. For models 610E MTD-714-0122
...
5
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
6
Friction Wheel Disc Ass'y. MTD-956-0012A
...
7
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
8
Fl-Idler 2.12" O.D. MTD-756-0313
...
9
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
10
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
11
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
12
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
13
BRACKET ASSEMBLY MTD-984-0021-0637
...
14
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
15
Bell-Wash .38" I.D. x .88" O.D. MTD-736-0105
...
16
Cotter Pin 1/8" x .75" Lg. MTD-714-0474
...
17
Fl-Wash .531" I.D. x .93" O.D. MTD-736-0160
...
18
Spacer .508" I.D. x .75" 0 D. MTD-748-0190
...
19
BRACKET-IDLR- MTD-05896
...
20
Shld. Spacer .5" Dia. x .27" Lg. MTD-748-0234
...
21
Lock Wash. 5/16" I.D. For model 610E Only For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
22
Hex Bolt 5/16-24 x 1" Lg. For model 610E MTD-710-0888
...
xx
Screw, 5/16-18 x .625 For model 640F & 660G MTD-710-0604A
...
23
V-Belt For model 610E MTD-954-0343
...
xx
V - Belt For models 640F & 660G MTD-954-0346
...
24
SPRING For model 610E MTD-932-0339
...
xx
Extension Spring For models 640F & 660G MTD-932-0710
...
25
PULLEY MTD-956-0959
...
26
3/8 "V"-Pulley Half MTD-756-0569
...
27
BELT: 3V X 35.00 LG For model 610E MTD-954-0430C
...
xx
BELT: 3V X 35.00 LG For models 640F & 660G MTD-954-0430C
...
28
Hex Cap L-Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
29
Bell-Wash 345" I.D. x .88" O.D. MTD-736-0242
...
30
Fl-Wash .34" I.D. x 1.5" O.D. MTD-736-0505
...
31
Washer For models 610E Only MTD-936-0507
...
32
Auger Pulley MTD-756-0967
...
33
Hex Bolt 3/8-24 x .88" Lg. MTD-710-0696
...
34
Bell-Wash .39" I D. x 1.13" O.D. MTD-736-0331
...
35
Fl-Wash. 406" I.D. x 1.25" 0 D. MTD-736-0247
...
36
Adapter Pulley MTD-948-0360
...
37
Fl-Idler 2 75" 0 D MTD-756-0178
...
38
Hex Ins. L-Nut 3/8-24 Thd MTD-712-0116
...
39
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
40
Shld. Bolt .625" Dia x .170" Lg. MTD-738-0281
...
41
Auger Idler Brkt. MTD-984-0064-0637
...
42
Wave Wash .66" I.D. x 88" MTD-736-0174
...
43
Ext. Spring 3.6" Lg. MTD-932-0611
...
44
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
45
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
46
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
47
Torx Mach. AB-Tap Scr. 1/4 x 62" Lg. MTD-710-1017
...
48
SUPPORT BRACKET MTD-784-5658-0637
...
49
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A
...
50
SCREW, SHOULDER MTD-738-0870
...
51
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
52
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788

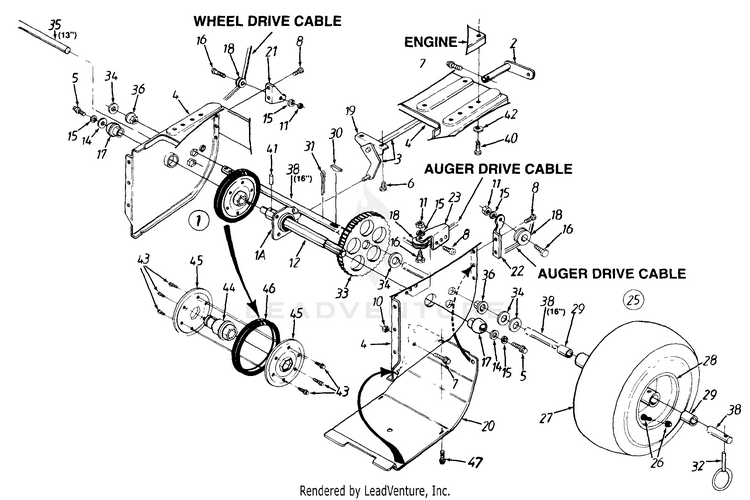

Wheel Assembly Complete

...
...
1
Wheel Assembly Friction MTD-984-0042C
...
1A
FRICTION WHEEL BEARING ASSEMBLY MTD-618-0063
...
2
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
3
SHAFT ASSEMBLY MTD-684-0013
...
4
FRAME MTD-684-0030
...
5
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
6
Hex Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
7
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788
...
8
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
10
HEX NUT 1/4-20 MTD-912-0287
...
11
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
12
SHAFT-GEAR MTD-717-1415
...
14
Fl-Wash .265" I.D. x .938" O.D. MTD-736-0176
...
15
L-Wash. 1/4" I.D. MTD-936-0329
...
16
SCREW, SHOULDER MTD-738-0870
...
17
BALL BEARING MTD-941-0563
...
18
Cable Roller Guide MTD-756-0625
...
19
Shift Bracket - Frame MTD-784-5590
...
20
FRAME COVER MTD-784-5638A
...
21
BRACKET-DR MTD-784-5644
...
22
AUGER CABLE GUIDE BRKT MTD-784-5646
...
23
SUPPORT BRACKET MTD-784-5658-0637
...
25
WHEEL ASSEMBLY 13 x 5 MTD-734-1714
...
xx
WHEEL ASSEMBLY 16X4.8 MTD-734-1709
...
xx
WHEEL ASSEMBLY 16 x 6.5 MTD-734-1712
...
26
TUBELESS VALVE MTD-934-0255
...
27
TIRE-SNOW HOG 13X5 TIRE-CODE MTD-734-1527
...
xx
Tire Only (16" x 4.8") MTD-734-1530
...
xx
TIRE-SNOW HOG-16X6 MTD-734-1525
...
28
RIM ASSEMBLY 6.0 x 3.25 MTD-734-1713
...
xx
RIM ASSEMBLY MTD-734-1708
...
xx
WHEEL RIM 8.0 x 5.38 x 7.30 MTD-734-1711
...
29
Sleeve Bearing .752" I.D. MTD-941-0401
...
30
#9 Hi-Pro Key 3/16" x 3/4" Dia. MTD-714-0126
...
31
Cotter Pin 5/32" x 1-1/4" Lg MTD-714-0162
...
32
Click Pin MTD-714-0143A
...
33
GEAR-79T MTD-717-1414
...
34
Fl-Wash .76" I.D. x 1.49" O.D. MTD-736-0188
...
35
Wheel Axle (Used w/13" Wheel Only) MTD-738-0869
...
36
Hex Flange Brg. .752" I.D. MTD-941-0598
...
38
AXLE .750X24.5 (Used w/16" Wheel Only) MTD-738-0830
...
40
Hex Bolt 3/8-16 x 1.25" MTD-710-0502A
...
41
Spring Roll Pin 1.12" Lg. MTD-915-0249
...
42
Fl-Wash .406" I D x 1" 0 D MTD-736-3052
...
43
Hex Wash Hd TT-Tap Scr. 1/4-20 x 5" Lg. MTD-710-0599
...
44
HUB-FRICTION WHEEL MTD-718-0240
...
45
FRICTION PLATE MTD-784-5677
...
46
Rubber Only MTD-935-0243B
...
47
Hex Wash. Tap Scr 3/8" Lg MTD-710-3007
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
