MTD 31340C (1986) Snow Thrower

Model: 31340C (1986)

Back To Assemblies

Save Part Not Listed?
product name

Snow

...
...
1
Carriage Bolt 5/16-18 x 1.0" Lg. MTD-710-0276
...
2
Fl-Wash. .344" I.D. x 1.125" O.D. MTD-736-0231
...
3
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
5
BLOWER CHUTE ASS'Y. MTD-731-0783
...
6
GUARD ASSEMBLY MTD-05783
...
7
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
8
Fl-Wash 531 I.D. x 1.25" 0.D. MTD-736-0179
...
9
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
10
Star Knob MTD-720-04072A
...
11
Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5) MTD-710-0376
...
12
Fl-Wash. .32" I.D. MTD-736-0362
...
13
Spiral Housing Plate L.H. MTD-784-5256
...
14
PIN-SHAFT MTD-748-0310
...
15
Tubing Support Brg. MTD-741-0477
...
16
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
17
Speed Clip 1/4-20 MTD-712-0377
...
18
AUGER ASSEMBLY-22IN (31340) MTD-784-5277
...
xx
Auger Ass'y. 24" x 6.0" Dia. (31350) MTD-784-5278
...
xx
AUGER ASSEMBLY-28IN (31380) MTD-784-5279
...
19
Part of Ref. No. 18 MTD-NA
...
20
FLAT WASHER MTD-736-0401
...
21
Spacer 1.25" I.D. x 1.50" O.D x .58" Thk. MTD-750-0678
...
22
22" SPIRAL HOUSING ASS'Y. (31340) MTD-784-5259
...
xx
HOUSING ASSEMBLY-SPIRAL 24 IN (31350) MTD-784-5261
...
xx
28" Spiral Housing Ass'y. (31380) MTD-784-5263
...
23
BALL BEARING MTD-741P0919B
...
24
Bearing Housing MTD-08253B
...
25
Sq. Key 3/16 x 1.50" Lg. MTD-714-0133
...
26
Bell-Wash. .630" I.D. x 1.25" O.D. MTD-736-0317
...
27
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
28
Drift Cutter MTD-790-00181-0637
...
29
HEX NUT 5/16-18 MTD-712-3010
...
30
Lock Wash. 5/16" I.D. MTD-936-0119
...
31
HEX JAM NUT 5/8-18 MTD-712-0318
...
32
FAN ASSEMBLY-BLOWER MTD-784-5274
...
33
BOLT-HEX 5/16-18X1 MTD-710-0736
...
34
Spiral Housing Plate R.H. MTD-784-5257
...
35
Hex Flange Bearing MTD-941-0245
...
36
PULLEY MTD-756-0477
...
37
Sq. Key 3116" X .75" Lg. MTD-714-0122
...
38
SPRING WASHER BELL MTD-736-0270
...
39
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
40
BELT COVER TOP (31340) MTD-784-5253
...
xx
Belt Cover Top (31350) MTD-784-5254
...
xx
Belt Cover Top (31380) MTD-784-5255
...
41
Belt Cover Side Ass'y. MTD-784-5290
...
42
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
43
Jam Nut, 3/8-16 MTD-912-3008
...
44
Bell-Wash. .400" I.D. x .88" O.D. MTD-736-0105
...
45
SLIDE SHOE MTD-05002-0637
...
46
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
47
Support Bracket MTD-784-5275
...
48
SCREW 5/16-18 x .50 GR5 MTD-710-3039
...
49
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
50
SHAVE PLATE-22IN (31340) MTD-784-5287
...
xx
SCRAPER BAR KIT 24" (31350) MTD-784-5288
...
xx
SHAVE PLATE-28IN (31380) MTD-784-5289
...
51
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
52
HEX NUT 5/16-18 MTD-712-3010
...
53
Part of Ref. No. 22 MTD-NA
...
54
Hex Nut 3/8-24 Thd. MTD-712-0241
...
55
HEX NUT 5/16-18 MTD-712-3010
...
56
Lock Wash. 5/16" I.D. MTD-936-0119
...
57
Extension Spring .620" O.D. x3" Lg. MTD-732-0494
...
58
IDLER BRACKET MTD-784-5286
...
59
HEX SCREW 3/8-24 x .75 GR5 MTD-710-0180
...
60
Shld. Spacer .625" I.D. MTD-938-0347
...
61
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
62
Idler Pulley MTD-756-1035A
...
63
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
64
BELT-3V-58 (31340) MTD-954-0296
...
xx
V-BELT 3/8 x 60 (31350) MTD-754-0297
...
xx
V-BELT 3V x 64" LG. (31380) MTD-754-0298
...
65
Hex Cent. L-Nut 5/8-18 Thd. MTD-712-0923
...
66
Sq. Key 3/16 x .75" Lg. MTD-714-0122
...
67
PULLEY MTD-756-0478
...
68
Pulley Half, .625 x 2.25 MTD-956-0416B
...
69
Fl-Wash. .635" I.D. x 1.12" 0. D. MTD-736-0156
...
70
HOUSING ASSEMBLY-BEARING MTD-15297A
...
71
SPINDLE-FAN MTD-738-0687
...
72
BALL BEARING MTD-741P0919B
...
73
Open Brg. Housing 1.85 I.D. MTD-15296A
...
74
Spacer .790" I.D. x 1.0" O.D. MTD-750-0674
...
75
HEX NUT 5/16-18 MTD-712-3010
...
76
Lock Wash. 5/16" I.D. MTD-936-0119
...
77
HEX NUT 5/16-18 MTD-712-3010
...
78
Lock Wash. 5/16" I.D. MTD-936-0119
...
79
CRANK ASSEMBLY MTD-05981
...
80
BUSHING .380 ID MTD-941-0475
...
81
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
82
Fl-Wash. .385" I.D. x .62" O.D. MTD-736-0140
...
83
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
84
Truss Mach. Scr. 1/4-20 X .50" Lg. MTD-710-0286
...
85
Carr. Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
86
CHUTE ASSEMBLY KIT MTD-753-0831
...
87
Push Nut MTD-726-0234
...
88
CHUTE HINGE PIN MTD-711-0787

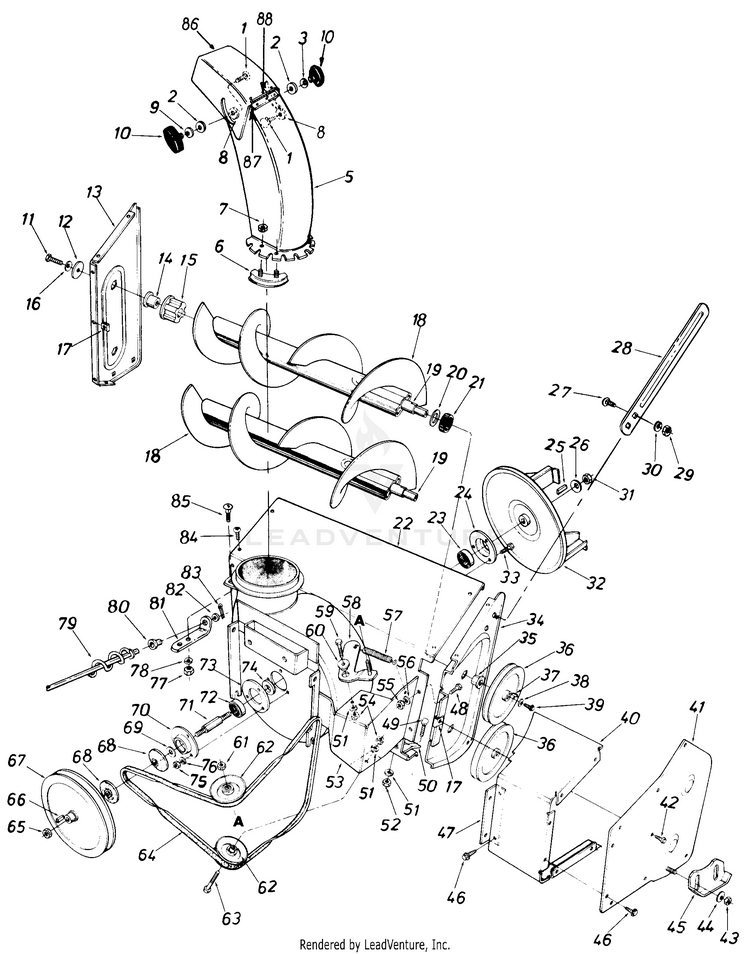

Schematic Image Zoomed
