MTD 313-612E205 (1993) Snow Thrower

Model: 313-612E205 (1993)

Save Part Not Listed?
product name

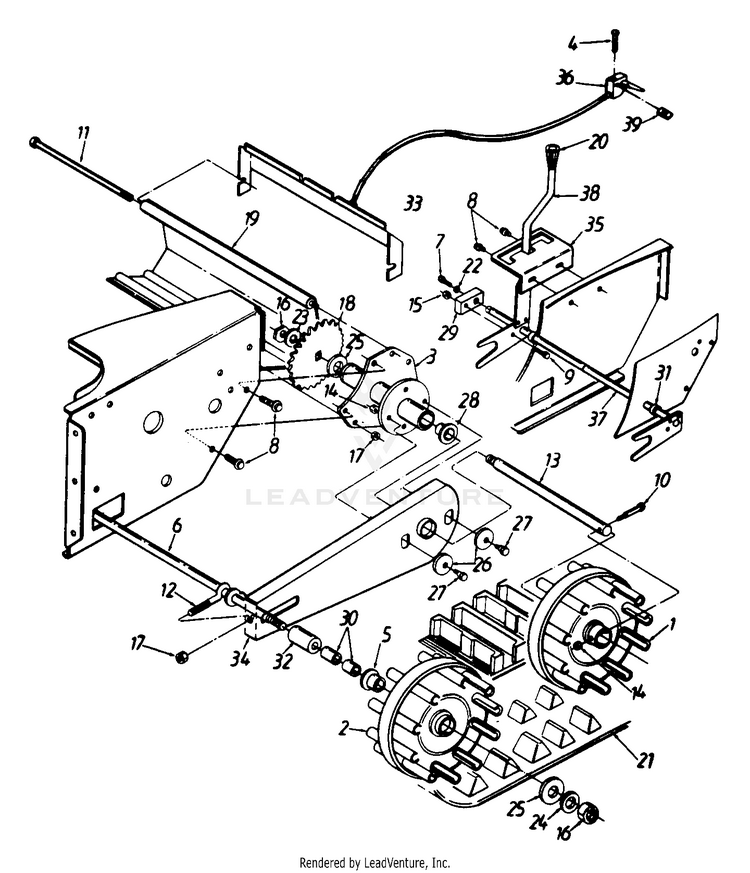

Drive Wheel Assembly

...
...
1
WHEEL ASSEMBLY-DRIVE MTD-631-0002
...
2
Wheel Assembly Idler MTD-631-0032A
...
3
Hub Assembly New Part MTD-683-0024-0637
...
4
Oval C-Sunk Hd. Scr. 10-24 x 1.375" Lg. MTD-710-1233
...
5
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
6
KIT-REPLACEMENT MTD-753-05977
...
7
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
8
Screw, 5/16-18 x .625 MTD-710-0604A
...
9
Hex Cap Screw 3/8-24 x 1.5 (Special) MTD-710-0459A
...
10
BOLT-SHLD 5/16-18X1.5LG MTD-710-1227
...
11
BOLT ASSEMBLY-HEX 5/16-18X9.81LG MTD-710-1230
...
12
EYEBOLT5/16-18 x 3.0 MTD-710-1231
...
13
AXLE-DRIVE MTD-711-0941
...
14
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
15
Hex Cent. L-Nut 3/8-24 Thd. MTD-712-0214
...
16
Hex Ins. Jam L-Nut 1/2-20 Thd. MTD-712-0346
...
17
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
18
SPROCKET-24T MTD-713-0115
...
19
TRACK HOUSING MTD-719-0295A
...
20
GRIP MTD-720-0143
...
21
SNOW TRACK MTD-731-1292
...
22
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
23
Bell-Wash. .515" I.D. x 1.14" O.D. MTD-736-0255
...
24
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
25
Fl-Wash. .793" I.D. x 1.24" O.D. MTD-736-0287
...
26
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
27
Shoulder Bolt MTD-938-0155
...
28
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
29
LIFT SHAFT DRIVE New Part MTD-748-0353A
...
30
Spacer .5" I.D. x .78" Lg. MTD-750-0499
...
31
Spacer .628" I.D. x .5" Lg. MTD-750-0547
...
32
SPACER-.51IDX1.34LG MTD-750-0909
...
33
STEERING BRACKET MTD-784-5609
...
34
TRACK SIDE PLATE MTD-784-5639
...
35
TRACK LOCKOUT PLATE MTD-784-5642
...
36
Cable with Trigger Lever MTD-753-0707
...
37
PIVOT ROD ASSEMBLY MTD-684-0009A
...
38
HANDLE ASSEMBLY MTD-684-0038
...
39
FLAT WELD NUT MTD-712-0127

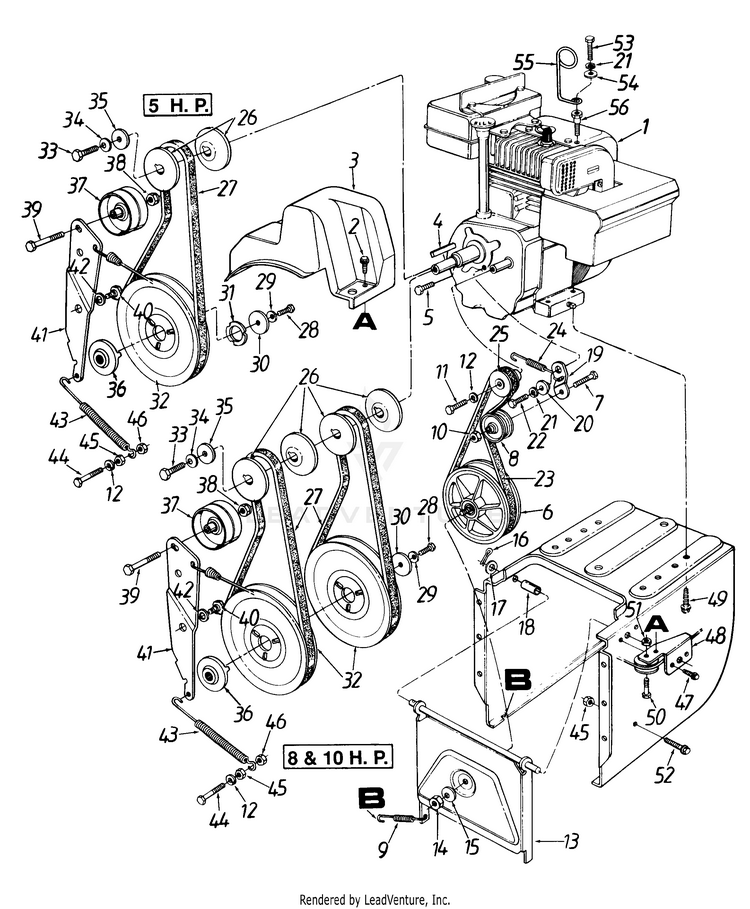

Engine And Pulley Assembly

...
...
1
Engine MTD-NA
...
2
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
3
Belt Cover MTD-731-1324
...
4
Sq.-Key 3/16 x 1.5" Lg. Model (642F) MTD-714-0133
...
xx
Sq.-Key 3/16 x .75" Lg. Model (612E) MTD-714-0122
...
5
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
6
Friction Wheel Disc Ass'y. MTD-956-0012A
...
7
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
8
Fl-Idler 2.12" O.D. MTD-756-0313
...
9
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
10
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
11
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
12
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
13
BRACKET ASSEMBLY MTD-984-0021-0637
...
14
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
15
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105
...
16
Cotter Pin 1/8" x .75" Lg. MTD-714-0474
...
17
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160
...
18
Spacer .508" I.D. x .75" O.D. MTD-748-0190
...
19
BRACKET-IDLR- MTD-05896
...
20
Shld. Spacer .5" Dia. x .27" Lg. MTD-748-0234
...
21
Lock Wash. 5/16" I.D. Model (612E Only) For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
22
Hex Bolt 5/16-24 x 1" Lg. Model (612E) MTD-710-0888
...
xx
Screw, 5/16-18 x .625 Model (642F) MTD-710-0604A
...
23
V-Belt Model (612E) MTD-954-0343
...
xx
V - Belt Model (642F) MTD-954-0346
...
24
SPRING Model (612E) MTD-932-0339
...
xx
Extension Spring Model (642F) MTD-932-0710
...
25
PULLEY MTD-956-0959
...
26
3/8 "V"-Pulley Half MTD-756-0569
...
27
BELT: 3V X 35.00 LG Model (612E) MTD-954-0430C
...
xx
BELT: 3V X 35.00 LG Model (642F) MTD-954-0430C
...
28
Hex 5/16-24 x .75" Lg. MTD-710-0627
...
29
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
30
Fl-Wash. .34" I.D. x 1.5" O.D. New Part MTD-736-0505
...
31
Washer Model (612E Only); New Part MTD-936-0507
...
32
Auger Pulley New Part MTD-756-0967
...
33
Hex Bolt 3/8-24 x .88" Lg. MTD-710-0696
...
34
Bell-Wash. .39" I.D. x 1.13" O.D. MTD-736-0331
...
35
Fl-Wash. .406" I D. x 1.25" O.D. MTD-736-0360
...
36
FLANGE BEARING MTD-748-0247
...
37
Fl-Idler 2.75" O.D. MTD-756-0178
...
38
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
39
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
40
Shld. Bolt .625" Dia. x .170" Lg. MTD-738-0281
...
41
Auger Idler Brkt. MTD-984-0064-0637
...
42
Wave Wash. .66" I.D. x .88" MTD-736-0174
...
43
Ext. Spring 3.6" Lg. MTD-932-0611
...
44
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
45
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
46
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
47
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
48
SUPPORT BRACKET MTD-784-5658-0637
...
49
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A
...
50
SCREW, SHOULDER MTD-738-0870
...
51
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
52
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788
...
53
Hex Bolt 5/16-18 x .88" Lg. - 650C Model (612E) MTD-710-3038
...
xx
Hex Wash. Hd. Tap Scr. 5/16-18 x 1" Lg. Model (642F) MTD-710-0602
...
54
Fl-Wash. .349" I.D. x .879" O.D. MTD-736-0159
...
55
Cable Control Wire MTD-732-0705
...
56
STUD-ENGINE Model (612E Only) MTD-711-0953

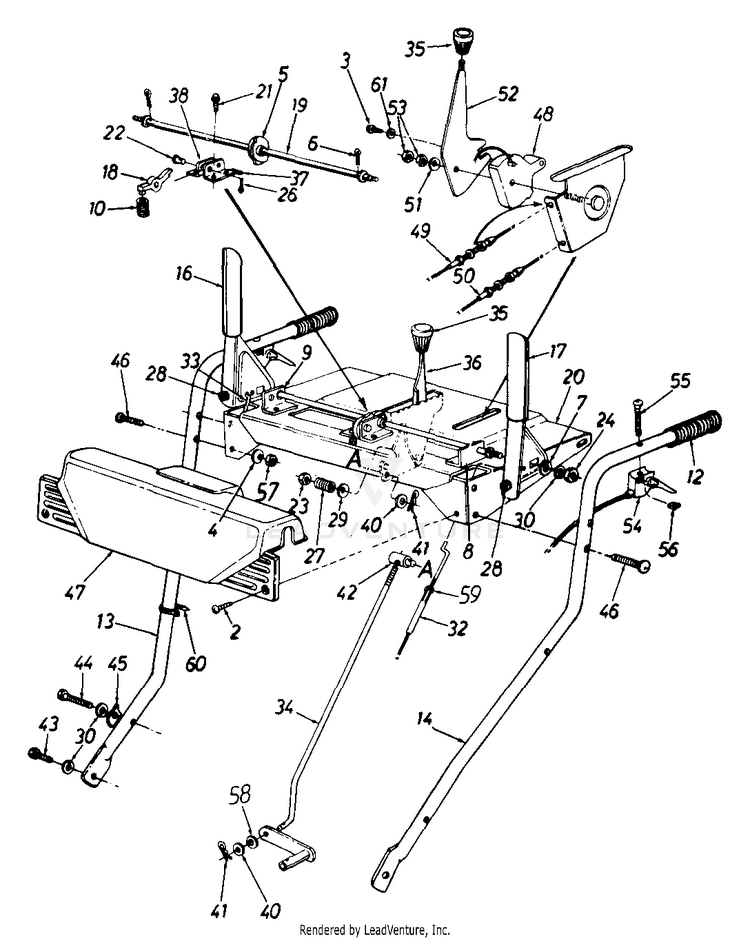

Handle Assembly

...
...
2
Truss Mach. B-Tap Scr. #10 x .5 MTD-710-0351
...
3
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
4
Bell-Wash. .325" I.D. x .88" O.D. MTD-736-0242
...
5
Cam Handle Lock New Part MTD-748-0362
...
6
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
7
Washer .72" O.D. (Special); New Part MTD-736-0509
...
8
Handle Support Brkt.- L.H. New Part MTD-784-5681
...
9
Brkt., Handle Support - RH New Part MTD-784-5682-0637
...
10
Compression Spring MTD-732-0437
...
12
Grip MTD-720-0274
...
13
HANDLE (RH) MTD-749-0910C-0637
...
14
HANDLE (LH) MTD-749-0911
...
16
HANDLE-ENGAGEMENT (RH) MTD-684-0036A
...
17
HANDLE-ENGAGEMENT (LH) MTD-684-0037B
...
18
Handle Lock Pawl New Part MTD-948-0363
...
19
Rod Cam New Part MTD-747-0877
...
20
HANDLE PANEL SUPPORT New Part MTD-684-0032A
...
21
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
22
CLEVIS PIN MTD-711-0946
...
23
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
24
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
?25
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
26
Cotter Pin 3/32" Dia. x 1" Lg. MTD-714-0111
...
27
Compression Spring MTD-732-0193
...
28
Rubber Bumper MTD-735-0199A
...
29
Bell-Wash..38" I.0. x.88" O.D. MTD-736-0105
...
30
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
?31
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
32
Cable-Auger Clutch MTD-946-0897
...
33
Cable-Drive Clutch MTD-946-0898
...
34
Shift Rod MTD-747-0798A
...
35
Knob MTD-920-0232
...
36
HANDLE-SHI MTD-784-0297
...
37
HANDLE BRACKET (LH) New Part MTD-784-5679-0637
...
38
Brkt., Handle Support - RH New Part MTD-784-5680-0637
...
40
Fl-Wash..344" I.D. x .62" O.D. MTD-736-0264
...
41
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
42
Engagement Ferru MTD-911-0677
...
43
Hex Bolt 5/16-18 x .62" Lg. (Special) MTD-710-0538
...
44
Hex Bolt 5/16-18 x 1.75" Lg. (Gr. 5) MTD-710-3180
...
45
Handle Tab MTD-984-5599
...
46
Curved Carr. Bolt 5/16-18 x 1.5" Lg. MTD-710-1250
...
47
Handle Panel New Part MTD-731-1391
...
48
Cbl. Guide, Chute Tilt MTD-731-1313C
...
49
Chute Deflector Control Cable MTD-946-0896
...
50
Chute Deflector Cable w/ Clip MTD-946-0901
...
51
Bell-Wash. .325" I.D. x .93" O.D. MTD-736-0425
...
52
Handle, Chute Tilt MTD-784-5604A-0637
...
53
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
54
Cable with Trigger Lever MTD-753-0707
...
55
Oval C-Sunk Hd. Scr. 10-24 x 1.375" Lg. MTD-710-1233
...
56
FLAT WELD NUT MTD-712-0127
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
59
Hex Nut #10-24 Thd. (Incl. w/Ref. 32 & 33) MTD-712-0121
...
60
Cable Tie MTD-725-0157
...
61
SPECIAL WASHER (Special) MTD-736-0506A

Shift Rod And Dog Assembly

...
...
2
DOG ASSEMBLY (RH) MTD-618-0043
...
3
L.H. Dog Ass'y. MTD-618-0044
...
4
Carrier MTD-918-0576A
...
5
5/16" Dowel Pin MTD-741-0542
...
6
Drive Shaft MTD-711-0912
...
7
SPROCKET-12T MTD-713-0411
...
8
SPRING PIN MTD-715-0247
...
9
Snap Ring .56" Dia. MTD-916-0114
...
10
SNAP RING FOR .625 DIA SHAFT MTD-916-0115
...
11
GEAR-12T MTD-717-1209A
...
12
Gear 18-Tooth MTD-717-1210A
...
13
RING GEAR MTD-717-1211B
...
14
FLAT WASHER MTD-936-0336
...
15
Fl-Wash. .57" I.D. x 1.12" O.D. MTD-936-0502
...
17
FRICTION WHEEL BEARING ASSEMBLY MTD-618-0063
...
18
Retaining Ring 1.375" Dia. Shaft MTD-716-0185
...
19
Wheel Assembly Friction New Part MTD-984-0042C
...
20
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
21
SHAFT ASSEMBLY (POWDER BLACK) MTD-684-0014B-0637
...
22
FRAME ASSEMBLY MTD-984-0031
...
23
Hex Bolt 5/16-18 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0118
...
24
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A
...
25
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
26
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
27
Hex Wash. TT-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788
...
28
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017
...
30
ACTUATOR SHAFT MTD-711-0911
...
31
DRIVE SHAFT MTD-711-0944
...
33
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
34
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
35
#420 CHAIN 1/2 PIT MTD-713-0267
...
36
11 TOOTH SPROCKET MTD-713-0415
...
37
#420 Chain - 32 Links (Endless) MTD-713-0437
...
39
Spring MTD-932-0209
...
40
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
41
Fl-Wash. 1/4" I.D. x .93" O.D. MTD-736-0176
...
42
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
43
SCREW, SHOULDER MTD-738-0870
...
44
BALL BEARING MTD-941-0563
...
45
HEX FLANGE BEARING MTD-941-0597
...
46
Shld. Spacer .5" Dia. x .27" Lg. MTD-748-0234
...
47
SPLIT SPACER MTD-750-0903B
...
48
Split Shld. Spacer 1.77" Lg. MTD-756-0904
...
49
Cable Roller MTD-756-0625
...
50
Shift Brkt. Frame MTD-784-5590
...
51
BRACKET-DR MTD-784-5644
...
52
AUGER CABLE GUIDE BRKT MTD-784-5646
...
53
TRACK FRAME COVER (POWDER BLACK) MTD-784-5648A-0637
...
54
SUPPORT BRACKET MTD-784-5658-0637
...
55
Cable-Auger Clutch MTD-946-0897
...
56
BRACKET-INSTR PANEL MTD-683-0023
...
57
Cable-Drive Clutch MTD-946-0898
...
58
Cable with Trigger Lever MTD-753-0707
...
59
Fl-Wash. .406" I.D. x 1" O.D. New Part MTD-736-3052
...
60
SPACER New Part MTD-950-0920
...
61
Snap Ring MTD-716-0102
...
62
Hex Wash Hd. TT - Tap Screw 1/4-20 x .5" Lg. MTD-710-0599
...
63
FRICTION PLATE New Part MTD-784-5677
...
64
HUB-FRICTION WHEEL New Part MTD-718-0240
...
65
Rubber Only New Part MTD-935-0243B

Worm Drive Assembly

...
...
1
GEARBOX ASSEMBLY 24" W FITTING Model (612E) MTD-918-0414B
...
xx
Gear Assembly: Auger 26" Model (642F) MTD-918-0415B
...
2
REDUCER HOUSING (LH) MTD-719-0292
...
3
Oil Seal MTD-721-0179
...
4
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
5
REDUCER HOUSING (RH) MTD-719-0293
...
6
GREASE FITTING MTD-937-3000
...
7
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
8
24"AUGER SHAFT Model (612E) MTD-711-0908A
...
xx
26"AUGER SHAFT Model (642F) MTD-711-0909A
...
9
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
10
Spiral Pin 1.25" Lg. MTD-715-0143
...
11
IMPELLER SHAFT MTD-717P0526
...
12
WORM GEAR 20T MTD-917-04861
...
13
Thrust Collar MTD-718-0186
...
14
O-RING-SPECIAL (Special) MTD-721-0255
...
15
Fl-Wash. .76" I.D. x 1.5" O.D. MTD-736-0351
...
16
Fl-Wash. .5" I.D. x 1" O.D. MTD-736-0369
...
xx
Fl-Wash. .76" I.D. x 1.49" O.D. MTD-736-0445
...
17
UNKNOWN MTD-NA
...
19
Bearing, Flange, .75" I.D. x .587" MTD-941-0376
...
20
Flange Bearing, .503 x .75 MTD-948-0108
...
21
KIT-BLOWER-HOUSING 24 Model (612E); New Part MTD-753-0615
...
xx
26" HOUSING ASSEMBLY Model (642F); New Part MTD-684-0040
...
22
Hex Bolt 5/16-24 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0157
...
23
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
24
Carriage Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
25
Hex Nut 5/16-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-3057
...
26
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
27
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
28
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
29
Slide Shoe MTD-784-5580
...
30
Shave Plate 24" Model (612E) MTD-790-00120-0637
...
xx
Shave Plate: Auger 26" Model (642F) MTD-790-00121-0637
...
31
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
32
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
33
Adapter Chute New Part MTD-731-1379D
...
34
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
35
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
36
SCREW 1/4-20X.75 GR5 MTD-710-0812
...
37
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
38
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
40
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
41
Ext. Spring 3.6" Lg. MTD-932-0611
...
42
Wave Washer MTD-936-0167
...
43
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
44
Shld. Bolt .625" Dia. x .170" Lg. MTD-738-0281
...
45
Fl-Idler 2.75" O.D. MTD-756-0178
...
46
Auger Idler Brkt. MTD-984-0064-0637
...
47
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038
...
50
Flange Ball Bearing MTD-941-0309
...
51
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
52
Spiral Pin 1.5" Lg. MTD-715-0114
...
53
Shear Bolt 5/16-18 x 1.5" Lg. MTD-710-0890A
...
54
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
55
Fl-Wash. .76" I.D. x 1.49" MTD-736-0188
...
56
FLANGE BUSHING New Part MTD-741-0493C
...
57
Chute Crank Ass'y MTD-984-0022
...
59
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
60
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
61
Rolled Pin, 1/8 x .63 MTD-915-0138
...
62
Chute Crank Knob MTD-720-0201A
...
63
Push Nut MTD-726-0100
...
64
Spiral 24" LH Model (612E) MTD-684-04181-0637
...
xx
24" SPIRAL ASSEMBLY (RH) (POWDER BLACK) Model (612E); New Part MTD-684-04180-0637
...
xx
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) Model (642F) MTD-684-04183-0637
...
xx
Spiral Assembly: RH 26" Model (642F) MTD-684-04182-0637
...
65
Fl-Wash. .385" I.D. x .62" O.D. MTD-736-0140
...
67
BRACKET MTD-784-5678
...
68
Chute Crank Bracket MTD-784-5647-0637
...
69
BUSHING .380 ID MTD-941-0475
...
70
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
75
Plastic Bearing w/Flats MTD-941-0300
...
76
Bearing Housing MTD-05931A
...
77
Chute Flange Keeper MTD-731-0851A
...
79
Carriage Bolt 5/16-18 x 1.5" Lg. MTD-710-0262
...
82
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
83
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
84
Lower Chute MTD-731-1300E
...
85
Fl-Wash. .344" I.D. x 1.125" MTD-736-0231
...
86
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
87
Fl-Wash. 1/4" I.D. MTD-736-0142
...
88
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
89
Cbl. Guide, Chute Tilt MTD-731-1313C
...
90
Cable Bracket MTD-784-5594
...
91
Chute Deflector Control Cable MTD-946-0896
...
92
Chute Deflector Cable w/ Clip MTD-946-0901
...
93
PLATE ASSEMBLY New Part MTD-684-0045
...
94
PLATE REINFORCEMENT ASS'Y. - R H. New Part MTD-684-0046
...
95
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
96
UNKNOWN MTD-NA

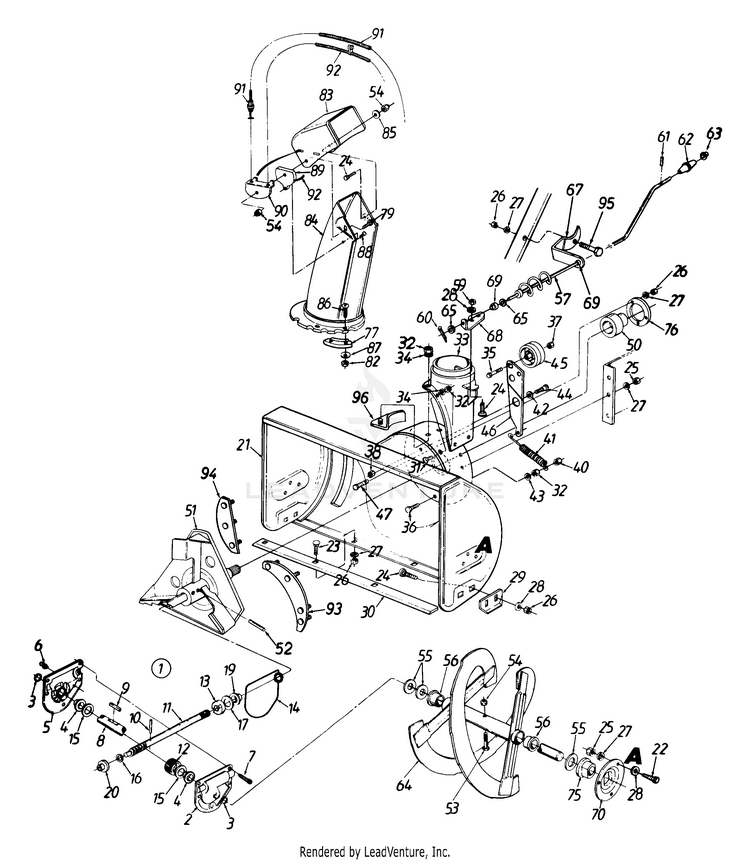

Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
