MTD 312-980I000 (1992) Snow Thrower

Model: 312-980I000 (1992)

Save
Part Not Listed?Part Not Listed?
product name

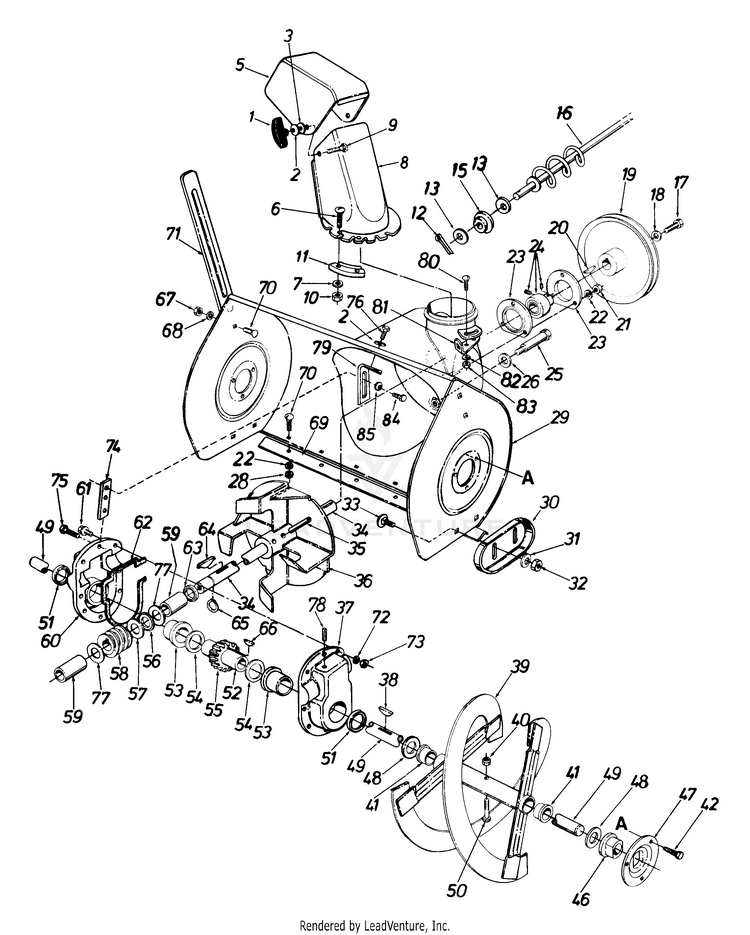

Chute Assembly

...
...
1
Star Knob MTD-720-04072A

...
2
Bell-Wash. .345 I.D. x.88 O.D. x .060 MTD-736-0242

...
3
Fl. Wash. .312 I.D. x 1.125 O.D. x .125 MTD-736-0231

...
5
Chute, Upper, 6.0 MTD-731-0846C

...
6
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924

...
7
Fl-Wash. 1/4" I.D. MTD-736-0142


...
9
Carr. Bolt 5/16-18 x 1.00" Lg. MTD-710-0276

...
10
Hex L-Nut 1/4-20 Thd MTD-912-0107

...
11
Chute Flange Keeper MTD-731-0851A

...
12
Cotter Pin MTD-714-0507

...
13
Fl-Wash. .385" I.D. x.62" MTD-736-0140

...
15
BUSHING .380 ID MTD-941-0475

...
16
Chute Crank Ass'y. MTD-05980

...
17
SCREW 5/16-18 x .750 MTD-710-1880

...
18
Bell-Wash. .345 I.D. x .88 MTD-736-0242

...
19
V-Pulley .875 I.D. x 10.12 MTD-756-0243

...
20
49 Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126

...
21
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
22
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
23
Bearing Hsg.-Self Aligning Brg. MTD-05244B

...
24
Self Aligning Brg. .875 I.D. MTD-941-0185

...
25
Stud 3/8-16 x 2.75" Lg. MTD-711-0640

...
26
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105

...
28
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
29
Blower Hsg. Ass'y. MTD-784-5011

...
30

...
31
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105

...
32
Jam Nut, 3/8-16 MTD-912-3008

...
33
CARRIAGE BOLT 3/8-16 X .75 MTD-710-0389

...
34
Blower Axie MTD-738-0276

...
35
Spring Pin Spiral 5/16" Dia. x 1.75" Lg. MTD-715-0118

...
36
Blower Fan Ass'y. MTD-05812

...
37
Complete Gear Hsg. Half- 0 L.H. (Incl. Bearing) MTD-753-0889

...
38
#91 Woodruff Key 1/4" x 3/4" Dia. MTD-714-0135

...
39
Spiral Ass'y.- L.H. MTD-05461

...
xx
Spiral Ass'y.- R.H. MTD-05462

...
40
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429

...
41
Plastic Bushing MTD-741-0494

...
42
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .62" Lg. MTD-710-0726

...
46
Flange Bearing w/ Flats MTD-941-0170

...
47
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637

...
48
Fl-Wash. 1.06 I.D. x 1.75" O.D. x .100 MTD-736-0250

...
49
Spiral Axle MTD-738-0491

...
50
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-0891

...
51
Oil Seal 1.50" I.D. MTD-921-0146

...
52
Worm Gear Shaft MTD-738-0275

...
53
Flange Brg. 1.503 I.D. MTD-741-0182

...
54
Fl-Wash. 1.5 I.D. x 2.0 O.D. MTD-736-0266

...
55
Double Threaded Worm Gear MTD-917-1425

...
56
Thrust Brg. .88 I.D. x 1.44 O.D. x .078 MTD-741-0184

...
57
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291

...
58
Double Threaded Worm-L.H. MTD-917-0299

...
59
Sleeve Brg. .875 I.D. MTD-941-0217

...
60
Complete Gear Hsg. Half- 0 L.H. (Incl. Ref. Nos. 51 & 53) MTD-753-0889

...
61
Hex Bolt 5/16-18 x 1.0" Lg. MTD-710-0376

...
62

...
63
Oil Seal .875" I.D. MTD-921-0145

...
64
#9 Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126

...
65
Snap Ring -.875" Dia. MTD-716-0111

...
66
#91 Woodruff Key 1/4 x 3/4" Dia. MTD-714-0135

...
67
HEX NUT 5/16-18 Optional Parts For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
68
Lock Wash. 5/16" I.D. Optional Parts For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
69
Shave Place MTD-05378-0637

...
70
Carriage Bolt 5/16-18 x.62 Optional Parts MTD-710-0260A

...
71
Drift Cutter Optional Parts MTD-790-00181-0637

...
72
SPRING WASHER .317 X .625 X .020 MTD-936-0271

...
73
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429

...
74
Gear Hsg. Support Plate MTD-784-5075

...
75
Hex Bolt 5/16-18 x 1.25" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0528

...
76
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726

...
77
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291

...
78
Filler Plug MTD-737-0175

...
79
Gear Hsg. Support Brkt. MTD-784-5076-0637

...
80
Carr. Bolt 5/16-18 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0451

...
81
BRACKET-CHUTE CRAN MTD-784-5123-0637

...
82
Bell-Wash. .345 I.D. x.88" MTD-736-0242

...
83
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
84
Hex Bolt 1/4-28 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0412

...
85
SPRING WASHER BELL MTD-736-0270

...
xx
Gear Box Ass'y. Comp. MTD-717-0296

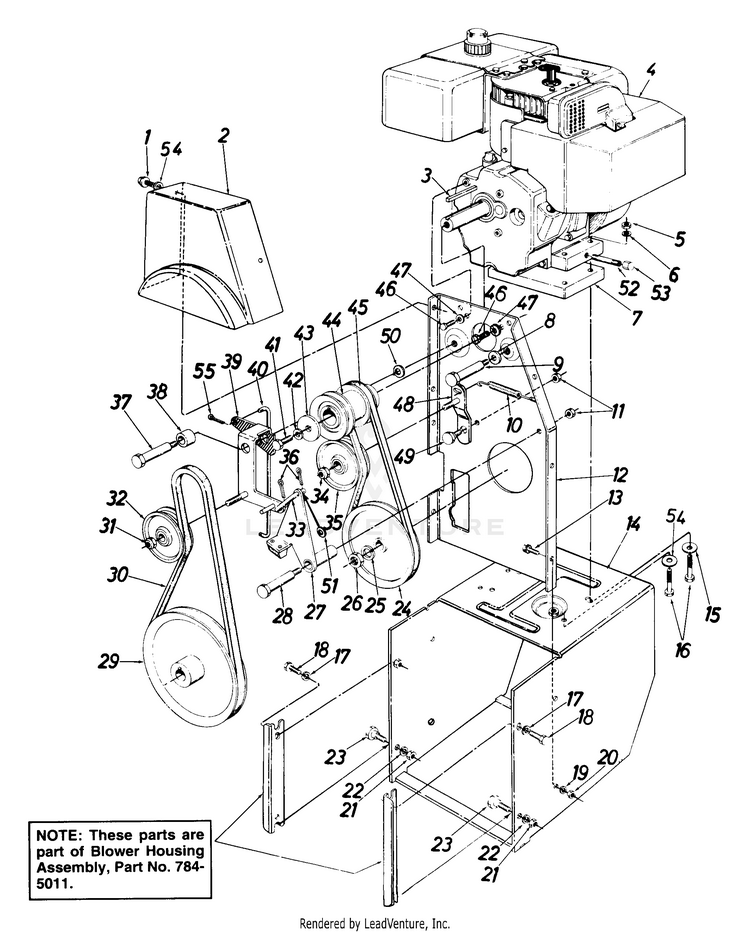

Frame Assembly

...
...
1
Hex AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726

...
2
Belt Cover MTD-931-2531

...
3
Sq. Key 1/4" x 1.50" Lg. MTD-714-0118

...
4
Engine MTD-NA

...
5
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
6
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
7
Engine Spacer .560 Thick (for 10 & 11 HP) MTD-717-0882A

...
8
Bell-Wash. .40 I.D. x.88 O.D. MTD-736-0105

...
9
Shld. Bolt .498" Dia. x 3.00" Lg. MTD-738-0215A

...
10
Spring .38" O.D. x 3.18" Lg. MTD-932-0303

...
11
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375

...
12
Engine Brkt. Ass'y. MTD-05491A

...
13
Hex Sems Bolt 5/16-18 x .75" 4. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-910-0198

...
14
Frame Ass'y. MTD-784-5129B

...
15
Fl-Wash. .344" I.D. x 1.125" O.D. x .12" MTD-736-0231

...
16
Hex Bolt 5/16-18 x 2.25" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0395

...
17
L-Wash. 3/8" I.D. H.D. MTD-736-0217

...
18
Hex Screw, 3/8-16 x.75 MTD-710-0216

...
19
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
20
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
21
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798

...
22
L-Wash. 3/8" I.D. H.D. MTD-736-0217

...
23
SHOULDER SCREW .498 DIA x .340 MTD-738-0143

...
24
V-Pulley .628 I.D. x 7.50 O.D. MTD-756-0344

...
25
L-Wash. for 5/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0158

...
26
Hex Ins. Jam L-Nut 5/8-18 Thd. MTD-712-0221

...
27
Brake Brkt. Ass'y. MTD-05510A

...
28
Shld. Bolt .498" Dia. x 2.00" Lg. MTD-738-0129

...
29
V-Pulley .875 I.D. x 10.12 O.D. MTD-756-0243

...
30
V-Belt 1/2" X 45.0" Lg. MTD-954-0194

...
31
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116

...
32
Fl-Idler w/Flanges 3.0 O.D. MTD-756-0240

...
33
Brake Linkage Ass'y. MTD-05531

...
34
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116

...
35
3.0" O.D. Fl-Idler w/Flanges MTD-756-0240

...
36
Int. Cot. Pin 3/32" Dia. MTD-714-0507

...
37
Shld. Bolt .625" Dia x 2.750" Lg. MTD-738-0282

...
38
Spacer .75 O.D. x 1.00" Lg. MTD-750-0227

...
39
Blower Idler Brkt. Ass'y. MTD-05493

...
40
Auger Clutch Rod .31" Dia. x 10.62" Lg. MTD-747-0149

...
41
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191

...
42
L-Wash. 3/8" I.D. H.D. MTD-736-0217

...
43
Fl-Wash. MTD-07386

...
44
Double Groove Engine Pulley MTD-756-0241B

...
45
V-Belt 3/8 x 35.5 Lg. MTD-954-0131

...
46
Hex Bolt 5/16-24 x .62" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0237

...
47
Bell-Wash. .345 I.D. x .88 O.D. x .060 MTD-736-0242

...
48
Drive Idler Brkt. Ass'y. MTD-05495

...
49
Shld. Bolt - .625" Dia. x .170" Lg. MTD-738-0281

...
50
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219

...
51
Fl-Wash. MTD-936-0117

...
52
Oil Drain Pipe MTD-737-0298

...
53
Hex Hd. Cap 1/4-18 Pipe Thd. MTD-737-0132

...
54
Fl-Wash. .344" I.D. x .62" O.D. x .63" MTD-736-0264

...
55
Int. Cot. Pin 5/16" Dia. MTD-714-0104

...
xx
Key (Not Shown) MTD-TC-35062

...
xx
Electric Start Kit (Not Shown); Optional Parts MTD-390-987

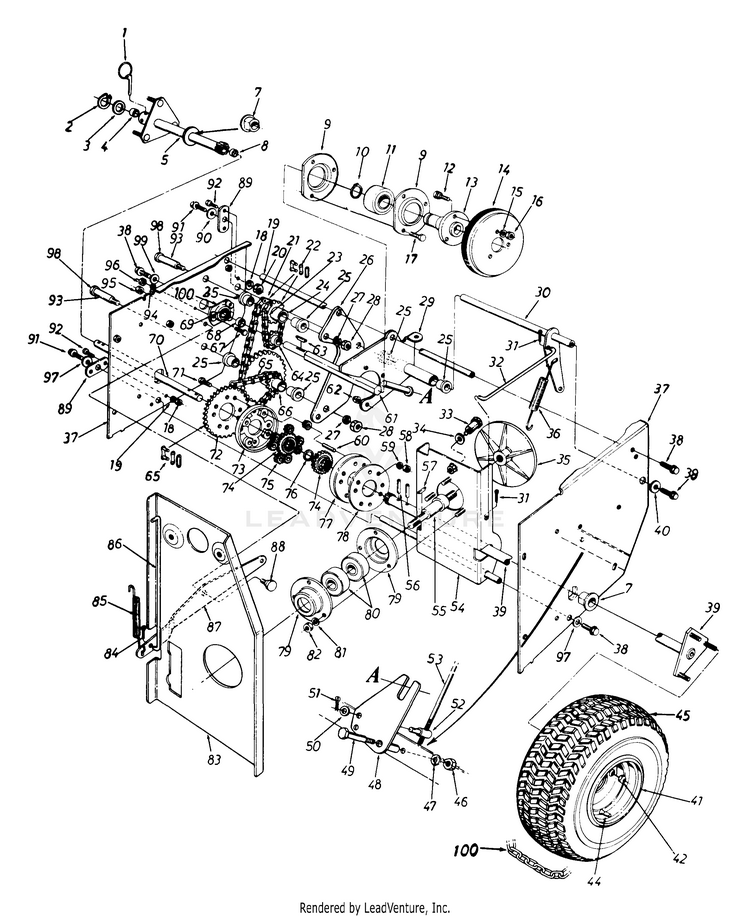

Gearbox

...
...
1
Click Pin MTD-714-0143A

...
2
Snap Ring .625" Shaft MTD-916-0115

...
3
Fl-Wash. .62" I.D. x 1.25" MTD-736-0187

...
4
Sleeve Brg. (Must Be Drilled After Press Fit) MTD-741-0305

...
5
Differential Tubing Ass'y.- R.H. MTD-05637

...
7
Flange Bearing w/ Flats MTD-941-0170

...
8
Sleeve Brg. MTD-741-0305

...
9
Bearing Housing MTD-05794

...
10
Snap Ring - 1.00" Dia. MTD-716-0102

...
11
Ball Brg. .25MM x 52MM x 15MM Thk. MTD-941-0301

...
12
Hex Sems Bolt 5/16-18 x .75" 4. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-910-0198

...
13
Friction Wheel Adapter MTD-748-0281

...
14
WHEEL ASSEMBLY-FRICTIO MTD-05080AP

...
15
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
16
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
17
Hex Bolt 1/4-28 x 50" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-910-0195

...
18
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329

...
19
Sliding Support Axle MTD-738-0278

...
20
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287

...
21
#41 Chain - 1/2" Pitch x 43 Links MTD-713-0270

...
22
Master Link for #41 Chain MTD-913-0723

...
23
#41 Chain - 1/2" Pitch x 19 Links MTD-713-0199

...
xx
Master Link for #41 Chain MTD-913-0723

...
24
9 and 14 Teeth Sprocket Hub Ass'y. MTD-913-0193

...
25
Flange Brg. .630" I.D. MTD-748-0184

...
26
Chain Support Brkt. MTD-05520

...
27
L-Wash. 3/8" I.D. - H.D. MTD-736-0217

...
28
Hex L-Jam Nut 3/8-24 Thd. MTD-712-0116

...
29
Sliding Brkt. Ass'y. MTD-784-5137

...
30
Drive Clutch Brkt. Ass'y. MTD-05500

...
31
Inter. Cot. Pin 5/16" Dia. MTD-714-0104

...
32
Drive Clutch Rod 7.38" Lg. MTD-747-0150

...
33
Shld. Bolt MTD-738-0144

...
34
Bell-Wash. .44" I.D. x.88" MTD-736-0105

...
35
Plate, Drive MTD-917-0302

...
36
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121

...
37
Frame Ass'y. MTD-784-5129B

...
38
Hex L-Bolt 5/16-18 x .62" MTD-710-0538

...
39
Differential Shaft Ass'y. MTD-05820B

...
40
Fl-Wash. .345" I.D. x .75" MTD-736-0264

...
41
Rim Only - 16" MTD-09262

...
42
Cone Nut 3/8-24 Thd. MTD-712-0193

...
44
TUBELESS VALVE MTD-934-0255

...
45
Wheel Ass'y. Comp. 16 x 6.5 MTD-734-1526

...
xx
Tire Only 16 x 6.5 MTD-734-1525

...
46
Jam Nut, 3/8-16 MTD-912-3008

...
47
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169

...
48
Shift Linkage Brkt. Ass'y. MTD-784-5133

...
49
Shld. Bolt .498" Dia. x 2.005" Lg. MTD-738-0129

...
50
Fl-Wash. .344" I.D. x.62" MTD-736-0264

...
51
Cotter Pin 3/32" Dia. x .75" For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-714-0507

...
52
Adjustment Ferrule MTD-711-0628A

...
53
Shifting Rod MTD-747-0356

...
54
Drive Plate Mtg. Brkt. Ass'y. MTD-05497

...
55
Drive Plate Spindle MTD-738-0279

...
56
H-Spring Pin Spiral 3/16" Dia. x 1.25" Lg. MTD-715-0136

...
57
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388

...
58
Hex Nut 1/4-28 Thd. MTD-712-0138

...
59
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329

...
60
Differential Pin MTD-738-0304

...
61
Hex Shaft MTD-738-0280

...
62
Hex L-Nut 1/4-28 Thd. MTD-712-0896

...
63
#4 Hi-Pro Key 3/32 x 5/8" Dia. MTD-914-0129

...
64
8 Teeth Sprocket MTD-748-0204

...
65
Chain #420 1/2" Pitch x 37 Links MTD-913-0269

...
xx
Master Link for #420 Chain MTD-913-0154

...
66
9 and 32 Teeth Sprocket Hub Ass'y. MTD-913-0194

...
67
Hex Bolt 1/4-20 x .62" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0258

...
68
Spacer .51" I.D. x .69" O.D. MTD-750-0277

...
69
Ball Bearing MTD-741-0133

...
70
Differential Connecting Shaft MTD-738-0284

...
71
Hex Bolt 1/4-28 x 1.75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0559

...
72
28 Teeth Sprocket MTD-713-0198

...
73
Differential Housing MTD-748-0222

...
74
20 Tooth Spur Gear MTD-748-0224

...
75
9 Tooth Spur Gear MTD-748-0223

...
76
Fl-Wash. .62" I.D. x 1.25" MTD-736-0187

...
77
Differential Housing MTD-748-0222

...
78
Differential Hsg. Support Plate MTD-05484

...
79
Bearing Housing MTD-082538

...
80
BALL BEARING MTD-941-0919B

...
81
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
82
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
83
Engine Brkt. Ass'y. MTD-05491A

...
84
Inter. Cotter Pin 5/16" Dia. MTD-714-0104

...
85
Spring .38" O.D. x 3.18" Lg. MTD-932-0303

...
86
Auger Clutch Rod .31" Dia. x 10.62" Lg. MTD-747-0149

...
87
Auger Clutch Brkt. MTD-05518B

...
88
Shld. Bolt .625" Dia. x .170" MTD-738-0281

...
89
Pivot Axle Brkt. MTD-05523

...
90
Fl-Wash. .345" I.D. x.75" MTD-736-0264

...
91
Hex L-Bolt 5/16-18 x .62" MTD-710-0538

...
92
Hex Bolt 1/4-20 x .62" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0258

...
93
Sprocket Hub Tubing 1.88" MTD-750-0275

...
94
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329

...
95
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375

...
96
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287

...
97
Fl-Wash. .344" I.D. x .875" MTD-736-0159

...
98
Hex Bolt 3/8-24 x 2.75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0629

...
99
Bell-Wash. .345" I.D. x .88" MTD-736-0242

...
100
Tire Chain (Optional) MTD-390-0146

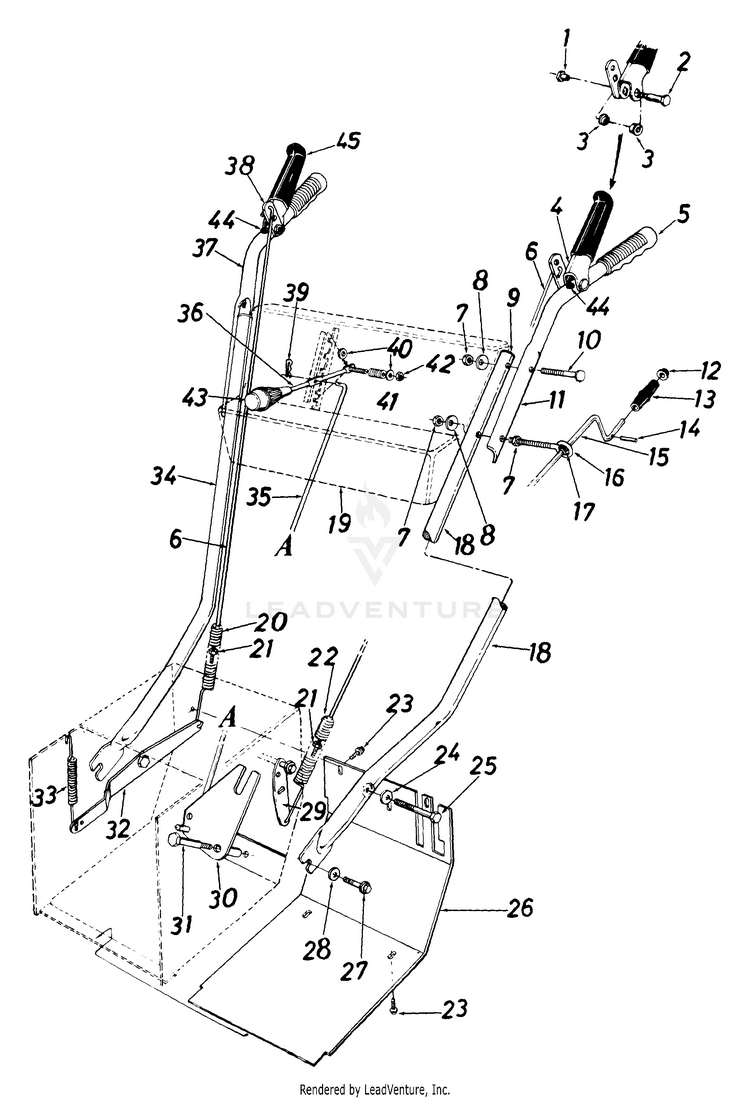

Handle And Chute Assembly

...
...
1
Shoulder Nut 1/4-20 Thd. MTD-938-0561

...
2
Shoulder Bolt .374 Dia. x 1.53" Lg. MTD-938-0560

...
3
Hex Flange Plastic Bearing .38" I.D. MTD-741-0402

...
4
Clutch Grip Ass'y. - L.H. MTD-05987

...
5
Grip - Red MTD-720-0220


...
6
Lockout Rod MTD-747-0461

...
7
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
8
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242

...
9
Plastic Plug MTD-731-0496

...
10
Curved Carriage Bolt 5/16-18 x 2.0" Lg. MTD-710-0487

...
11
Upper Handle - L.H. MTD-749-0595

...
12
Push Nut 3/8" Rod MTD-726-0100

...
13
Knob 3/8" Rod MTD-720-0201A

...
14
Rolled Pin, 1/8 x .63 MTD-915-0138

...
15
Chute Crank Ass'y. MTD-05980

...
16
Eye Bolt 5/16-18 x 5.0" Lg. MTD-747-0416A

...
17
BUSHING .380 ID MTD-941-0475

...
18
Lower Handle - L.H. MTD-749-0405

...
19
Handle Panel Ass'y. Code 638 MTD-784-5451

...
20
Spring, Extension, .75 O.D. x 5.0 MTD-732-0463A

...
21
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324

...
22
Extension Spring .75" O.D. x 5.0" L MTD-732-0184

...
23
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg. MTD-710-0600

...
24
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105

...
25
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-3144

...
26
Frame Cover Code 638 MTD-784-5131B

...
27
Hex Screw, 3/8-16 x.75 MTD-710-0216

...
28
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105

...
29
Drive Clutch Brkt. Ass'y. MTD-05500

...
30
Shifting Linkage Brkt. Ass'y. MTD-784-5133

...
31
Shld. Bolt .498 Dia. x 2.0" Lg. MTD-738-0129

...
32
Auger Clutch Brkt. MTD-05518B

...
33
Spring .38" O.D. x 3.18" Lg. MTD-932-0303

...
34
Lower Handle - R.H. MTD-749-0406

...
35
Shifting Rod MTD-747-0356A

...
36
Shift Handle MTD-747-0696

...
37
Upper Handle - R.H. MTD-749-0596

...
38
Clutch Grip Ass'y.- R.H. MTD-05988

...
39
Int. Cotter Pin 5/16" Dia. MTD-714-0104

...
40
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0264

...
41
Compression Spring MTD-732-0193

...
42
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429

...

...
44
Bumper, Rubber MTD-735-0199A

...
...
...
...
Processing
