product name

MTD 312-642F054 (1992) Snow Thrower

Model: 312-642F054 (1992)

Save
Part Not Listed?Part Not Listed?
product name

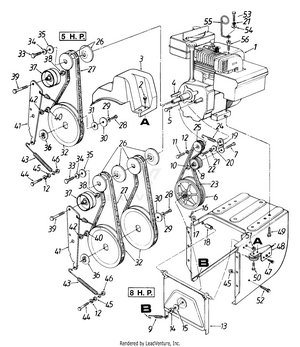

Belts And Pulleys

...
...
1
Engine MTD-NA

...
2
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
3
Belt Cover New Part MTD-731-1324

...
4
Sq.-Key 3/16 x 1.5" Lg. For model (642F) MTD-714-0133

...
xx
Sq.-Key 3/16 x .75" Lg. For model (612E) MTD-714-0122

...
5
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0627

...
6
Friction Wheel Disc Ass'y. New Part MTD-956-0012A

...
7
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005

...
8
Fl-Idler 2.12" O.D. MTD-756-0313

...
9
Ext. Spring .38n O.D. x 2.5" MTD-932-0264

...
10
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181

...
11
Hex Bolt 1/4-28 x .5" Lg. MTD-710-0230

...
12
L-Wash. 1/4" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329

...
13
Friction Wheel Support Brkt. Ass'y. New Part MTD-984-0021-0637

...
14
Hex Jam Nut 3/8-24 Thd. MTD-712-0711

...
15
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105

...
16
Cotter Pin 1/8" x .75" Lg. MTD-714-0474

...
17
Fl-Wash. .531" I.D. x .93" O.D. MTD-736-0160

...
18
Spacer .508" I.D. x .75" O.D. MTD-748-0190

...
19
Drive Clutch Idler Bracket MTD-05896

...
20
Shld. Spacer .5" Dia. x .27" Lg. MTD-748-0234

...
21
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
22
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888

...
23
V-Belt For model (612E) MTD-954-0343

...
xx
V - Belt For model (642F) MTD-954-0346

...
24
Spring For model (612E) MTD-932-0339

...
xx
Extension Spring For model (642F); New Part MTD-932-0710

...
25
2" Dia. Pulley New Part MTD-956-0959

...
26
3/8 "V"-Pulley Half MTD-756-0569

...
27
BELT: 3V X 35.00 LG For model (612E) MTD-954-0430C

...
xx
BELT: 3V X 35.00 LG For model (642F) MTD-954-0430C

...
28
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157

...
29
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242

...
30
Fl-Wash. .34" I.D. x 2.25" O.D. MTD-736-0418A

...
31
Brg. Retaining Washer For model (612E Only) MTD-736-0312

...
32
KIT-AUGER PULLEY R New Part MTD-753-0901

...
33
Hex Bolt 3/8-24 x .88" Lg. MTD-710-0696

...
34
Bell-Wash. .39" I.D. x 1.13" O.D. MTD-736-0331

...
35
Fl-Wash. 3/8" I.D. x 1.37" O.D. MTD-736-0320

...
36
Adapter Pulley MTD-748-0351

...
37
Fl-Idler 2.75" O.D. MTD-756-0178

...
38
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116

...
39
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A

...
40
Shld. Bolt .625" Dia. x .170" Lg. MTD-738-0281

...
41
Auger Idler Brkt. New Part MTD-984-0064-0637

...
42
Wave Wash. .66" I.D. x .88" MTD-736-0174

...
43
Ext. Spring 3.6" Lg. MTD-932-0611

...
44
Hex Bolt 1/4-20 x .75" Lg. (Gr. 5) MTD-710-0812

...
45
Hex Nut 1/4-20 Thd. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287

...
46
Hex L-Nut 1/4-20 Thd. MTD-712-0291

...
47
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017

...
48
Front Support Brkt. Guide New Part MTD-784-5658-0637

...
49
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A

...
50
Shld. Bolt 5/16" Dia. x .35" Lg. MTD-738-0870

...
51
Hex Jam Nut 1/4-20 Thd. MTD-912-0298

...
52
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788

...
53
Hex Bolt 5/16-18 x .88" Lg. - 650C For model (612E) MTD-710-3038

...
xx
Hex Wash. Hd. Tap Scr. 5/16-18 x 1" Lg. For model (642F) MTD-710-0602

...
54
Fl-Wash. .349" I.D. x .879" O.D. MTD-736-0159

...
55
Cable Control Wire New Part MTD-732-0705

...
56
Engine Stud For model (612E Only); New Part MTD-711-0953

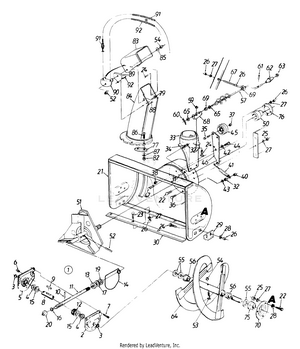

Chute Assembly

...
...
1
Gear Assembly Complete, 24" For model (612E); New Part MTD-918-0414B

...
xx
Gear Assembly: Auger 26" For model (642F); New Part MTD-918-0415B

...
2
Reducer Housing - L.H. New Part MTD-719-0292

...
3
Oil Seal MTD-721-0179

...
4
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339

...
5
Reducer Housing - R.H. New Part MTD-719-0293

...
6
GREASE FITTING New Part MTD-937-3000

...
7
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642

...
8
Spiral Axle 24" For model (612E); New Part MTD-711-0908A

...
xx
Axle, Spiral 26" For model (642F); New Part MTD-711-0909A

...
9
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388

...
10
Spiral Pin 1.25" Lg. MTD-715-0143

...
11
IMPELLER SHAFT New Part MTD-717P0526

...
12
WORM GEAR 20T New Part MTD-917-04861

...
13
Thrust Collar New Part MTD-718-0186

...
14
"O"-Ring (Special) New Part MTD-721-0255

...
15
Fl-Wash. .76" I.D. x 1.5" O.D. MTD-736-0351

...
16
Fl-Wash. .5" I.D. x 1" O.D. MTD-736-0369

...
17
Fl-Wash. .76" I.D. x 1.49" O.D. MTD-736-0445

...
19
Bearing, Flange, .75" I.D. x .587" MTD-941-0376

...
20
Flange Bearing, .503 x .75 MTD-948-0108

...
21
24" Auger Housing Ass'y. For model (612E); New Part MTD-684-0027

...
xx
26" Auger Housing Ass'y. For model (642F); New Part MTD-684-0028

...
22
Hex Bolt 5/16-24 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0157

...
23
Carriage Bolt 5/16-18 x.62 MTD-710-0260A

...
24
Carriage Bolt 5/16-18 x .75" Lg. MTD-710-0451

...
25
Hex Nut 5/16-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-3057

...
26
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
27
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
28
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242

...
29
Slide Shoe New Part MTD-784-5580

...
30
Shave Plate For model (612E); New Part MTD-790-00120-0637

...
xx
Shave Plate: Auger 26" For model (642F); New Part MTD-790-00121-0637

...
31
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286

...
32
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287

...
33
CHUTE ADAPTER KIT New Part MTD-753-0720

...
34
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175

...
35
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A

...
36
Hex Bolt 1/4-20 x .75" Lg. (Gr. 5) MTD-710-0812

...
37
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116

...
38
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181

...
40
Hex L-Nut 1/4-20 Thd. MTD-712-0291

...
41
Ext. Spring 3.6" Lg. MTD-932-0611

...
42
Wave Wash..66" I.D. x .88" MTD-736-0174

...
43
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329

...
44
Shld. Bolt .625" Dia. x .170" Lg. MTD-738-0281

...
45
Fl-Idler 2.75" O.D. MTD-756-0178

...
46
Auger Idler Brkt. New Part MTD-984-0064-0637

...
47
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038

...
50
Flange Ball Bearing MTD-941-0309

...
51
12" IMPELLER (3 BLADE) (POWDER BLACK) New Part MTD-684-06276-0637

...
52
Spiral Pin 1.5" Lg. MTD-715-0114

...
53
Shear Bolt 5/16-18 x 1.5" Lg. MTD-710-0890A

...
54
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158

...
55
Fl-Wash. .76" I.D. x 1.49" MTD-736-0188

...
56
Flange Bushing .8" I.D. MTD-741-0493

...
57
Chute Crank Ass'y New Part MTD-984-0022

...
59
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429

...
60
Cotter Pin 3/32" Dia. x .75" MTD-714-0507

...
61
Rolled Pin, 1/8 x .63 MTD-915-0138

...
62
Chute Crank Knob MTD-720-0201A

...
63
Push Nut MTD-726-0100

...
64
Spiral 24" LH For model (612E); New Part MTD-684-04181-0637

...
xx
Spiral, 24" R.H. For model (612E - Not Shown); New Part MTD-684-04180-0637

...
xx
Spiral Assembly: LH 26" For model (642F); New Part MTD-684-04183-0637

...
xx
Spiral Assembly: RH 26" For model (642F - Not Shown); New Part MTD-684-04182-0637

...
65
Fl-Wash. .385" I.D. x .62" O.D. MTD-736-0140

...
67
Eye Bolt 5/16-18 x 3" Lg. MTD-747-0481A

...
68
Chute Crank Bracket New Part MTD-784-5647-0637

...
69
BUSHING .380 ID MTD-941-0475

...
70
Bearing Hsg.-Spiral Hsg. New Part MTD-05845C-0637

...
75
Plastic Bearing w/Flats MTD-941-0300

...
76
Bearing Housing MTD-05931A

...
77
Chute Flange Keeper MTD-731-0851A

...
79
Carriage Bolt 5/16-18 x 1.5" Lg. MTD-710-0262

...
82
Hex L-Nut 1/4-20 Thd MTD-912-0107

...
83
UPPER REMOTE CHUTE WITH LABEL New Part MTD-731-04427B

...
84
Lower Chute New Part MTD-731-1300E

...
85
Fl-Wash. .344" I.D. x 1.125" MTD-736-0231

...
86
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924

...
87
Fl-Wash. 1/4" I.D. MTD-736-0142

...
88
Hex Screw, 1/4-14 x 0.625" MTD-710-0896

...
89
Cbl. Guide, Chute Tilt New Part MTD-731-1313C

...
90
Cable Bracket New Part MTD-784-5594

...
91
Chute Deflector Control Cable New Part MTD-946-0896

...
92
Chute Deflector Cable w/ Clip New Part MTD-946-0901

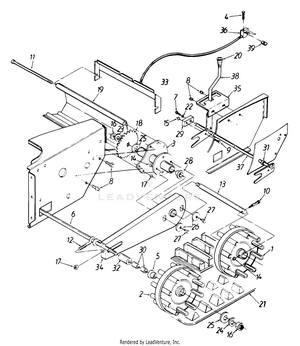

Drive And Idler Wheel Assembly

...
...
1
Drive Wheel Ass'y. New Part MTD-631-0002

...
2
Wheel Assembly Idler New Part MTD-631-0032A

...
3
Track Hub Ass'y. (Incl. Ref. 28); New Part MTD-683-0023

...
4
Oval C-Sunk Hd. Scr. 10-24 x 1.375" Lg. New Part MTD-710-1233

...
5
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339

...
6
UNKNOWN MTD-NA

...
7
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157

...
8
Screw, 5/16-18 x .625 MTD-710-0604A

...
9
Hex Bolt 5/16-24 x .75" Lg. (Special) MTD-710-0624

...
10
Bolt 5/16-18 x 1.5" Lg. New Part MTD-710-1227

...
11
Hex Bolt Ass'y. 5/16-18 x 9.81" New Part MTD-710-1230

...
12
Eyebolt 5/16-18 x 3" Lg. New Part MTD-710-1231

...
13
Drive Axle New Part MTD-711-0941

...
14
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158

...
15
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237

...
16
Hex Ins. Jam L-Nut 1/2-20 Thd. MTD-712-0346

...
17
Hex L-Nut 5/16-18 Thd. MTD-712-0429

...
18
24 Tooth Sprocket New Part MTD-713-0115

...
19
Housing Track New Part MTD-719-0295A

...

...
21
Snow Track New Part MTD-731-1292

...
22
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
23
Bell-Wash. .515" I.D. x 1.14" MTD-736-0255

...
24
UNKNOWN MTD-NA

...
25
Fl-Wash. .793" I.D. x 1.24" O.D. MTD-736-0287

...
26
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406

...
27
Shoulder Bolt MTD-938-0155

...
28
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339

...
29
Lift Shaft Drive New Part MTD-748-0353

...
30
Spacer .5" I.D. x .78" Lg. MTD-750-0499

...
31
Spacer .628" I.D. x .5" Lg. MTD-750-0547

...
32
Spacer .51" I.D. x 1.34" Lg. New Part MTD-750-0909

...
33
Steering Cable Brkt. New Part MTD-784-5609

...
34
Track Side Plate New Part MTD-784-5639

...
35
Track Lockout Plate New Part MTD-784-5642

...
36
Cable with Trigger Lever New Part MTD-753-0707

...
37
Track Pivot Rod Assembly New Part MTD-684-0009A

...
38
HANDLE ASSEMBLY New Part MTD-684-0038

...
39
Flat Weld Nut #10-24 Thd. New Part MTD-712-0127

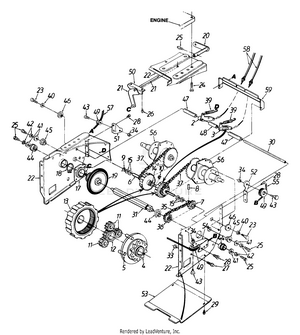

Gearbox

...
...
2
R.H. Dog Ass'y. New Part MTD-618-0043

...
3
L.H. Dog Ass'y. New Part MTD-618-0044

...
4
Carrier New Part MTD-918-0576A

...
5
5/16" Dowel Pin New Part MTD-741-0542

...
6
Drive Shaft New Part MTD-711-0912

...
7
12 Tooth Sprocket New Part MTD-713-0411

...
8
Spring Pin 3/16" Dia. x 1" Lg. MTD-715-0247

...
9
Snap Ring .56" Dia. MTD-916-0114

...
10
Snap Ring .625" Shaft MTD-916-0115

...
11
GEAR-12T New Part MTD-717-1209A

...
12
Gear 18-Tooth New Part MTD-717-1210A

...
13
Gear Ring New Part MTD-717-1211B

...
14
FLAT WASHER MTD-936-0336

...
15
Fl-Wash. .57" I.D. x 1.12" O.D. MTD-936-0502

...
17
Friction Wheel Brg. Ass'y. New Part MTD-618-0063

...
18
Retaining Ring 1.375" Dia. Shaft New Part MTD-716-0185

...
19
FRICTION WHEEL KIT New Part MTD-753-0628

...
20
Shift Arm Assembly New Part MTD-684-0008A-0637

...
21
Rod Shift Assembly New Part MTD-684-0014B-0637

...
22
Frame Assembly New Part MTD-984-0031

...
23
Hex Bolt 5/16-18 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0118

...
24
Hx Wash Hd. Scr. 3/8-16 x 1.25" MTD-710-0502A

...
25
Hex TT-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642

...
26
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653

...
27
Hex Wash. TT-Tap Scr. 1/4-20 x 1" Lg. MTD-710-0788

...
28
Torx Mach. AB-Tap Scr. 1/4 x .62" Lg. MTD-710-1017

...
29
Hex Wash. Hd. Tap Scr. #12 x .38" Lg. New Part MTD-710-3007

...
30
Actuator Shaft New Part MTD-711-0911

...
31
Drive Shaft New Part MTD-711-0944

...
33
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287

...
34
Hex Jam Nut 1/4-20 Thd. MTD-912-0298

...
35
#420 Chain - 1/2 Pitch x 30 Link (Endless) MTD-713-0267

...
36
11 Tooth Sprocket New Part MTD-713-0415

...
37
#420 Chain - 32 Links (Endless) New Part MTD-713-0437

...
39

...
40
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
41
Fl-Wash. 1/4" I.D. x .93" O.D. MTD-736-0176

...
42
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329

...
43
Shld. Bolt 5/16" Dia. x .35" Lg. New Part MTD-738-0870

...
44
BALL BEARING New Part MTD-941-0563

...
45
Bearing-Hex Flange New Part MTD-941-0597

...
46
Shld. Spacer .5" Dia. x .27" Lg. MTD-748-0234

...
47
Spacer-Split New Part MTD-750-0903B

...
48
Split Shld. Spacer 1.77" Lg. New Part MTD-756-0904

...
49
Cable Roller New Part MTD-756-0625

...
50
Shift Brkt. Frame New Part MTD-784-5590

...
51
Drive Cable Roller Brkt. New Part MTD-784-5644

...
52
Auger Cable Guide Brkt. New Part MTD-784-5646

...
53
Track Frame Cover New Part MTD-784-5648A-0637

...
54
Front Support Brkt. Guide New Part MTD-784-5658-0637

...
55
Cable-Auger Clutch New Part MTD-946-0897

...
56
Track Hub Ass'y. New Part MTD-683-0023

...
57
Cable-Drive Clutch New Part MTD-946-0898

...
58
Cable with Trigger Lever New Part MTD-753-0707

...
59
UNKNOWN MTD-NA

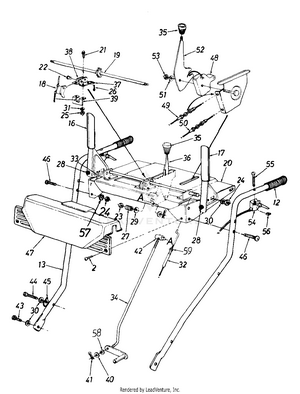

Handle Assembly

...
...
2
Truss Mach. B-Tap Scr. #10 x .5 MTD-710-0351

...
12
Grip New Part MTD-720-0274

...
13
Handle - RH New Part MTD-749-0910C-0637

...
?14
Handle - L.H. New Part MTD-749-0911

...
16
HANDLE-ENGAGEMENT (RH) New Part MTD-684-0036A

...
17
HANDLE-ENGAGEMENT (LH) New Part MTD-684-0037B

...
18
Pawl & Spring Ass'y. MTD-748-0315

...
19
Control Rod Cam Ass'y. MTD-684-0010

...
20
HANDLE PANEL SUPPORT MTD-684-0032

...
21
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599

...
22
Clevis Pin .437" Dia. x .65" Lg. MTD-711-0946

...
23
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116

...
24
HEX NUT 5/16-18 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
25
Hex Nut 1/4-20 Thd. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287

...
26
Cotter 9 in 3/32" Dia. x 1" Lg. MTD-714-0111

...
27
Compression Spring MTD-732-0193

...
28
Rubber Bumper New Part MTD-735-0199A

...
29
Bell-Wash. .38" I.D. x .88" O.D. MTD-736-0105

...
30
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
31
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175

...
32
Cable-Auger Clutch New Part MTD-946-0897

...
33
Cable-Drive Clutch New Part MTD-946-0898

...
34
Shift Rod New Part MTD-747-0798A

...

...
36
Shift Handle New Part MTD-784-0297

...
37
Handle Brkt.- L.H. New Part MTD-784-5597

...
38
Handle Support Brkt.- R.H. New Part MTD-784-5598

...
39
Spring Support Brkt. New Part MTD-784-5610

...
40
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0264

...
41
Internal Cotter Pin 5/16" Dia. MTD-714-0104

...
42
Engagement Ferru MTD-911-0677

...
43
SCREW 5/16-18 x .75 GR5 MTD-710-3008

...
44
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180

...
45
Handle Tab New Part MTD-984-5599

...
46
Curved Carr. Bolt 5/16-18 x 1.38" MTD-710-0671

...
47
Handle Panel New Part MTD-731-1391

...
48
Cbl. Guide, Chute Tilt New Part MTD-731-1313C

...
49
Chute Deflector Control Cable New Part MTD-946-0896

...
50
Chute Deflector Cable w/ Clip New Part MTD-946-0901

...
51
Bell-Wash. .325" I.D. x .93" O.D. MTD-736-0425

...
52
Handle, Chute Tilt New Part MTD-784-5604A-0637

...
53
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158

...
54
Cable with Trigger Lever New Part MTD-753-0707

...
55
Oval C-Sunk Hd. Scr. 10-24 x 1.375" Lg. New Part MTD-710-1233

...
56
Flat Weld Nut #10-24 Thd. New Part MTD-712-0127

...
57
Self-Wash. 5/16" I.D. MTD-736-0425

...
58
SPRING WASHER .317 X .625 X .020 MTD-936-0271

...
59
Hex Nut #10-24 Thd. (Incl. w/Ref. 32 & 33) MTD-712-0121
...
...
...
Processing
