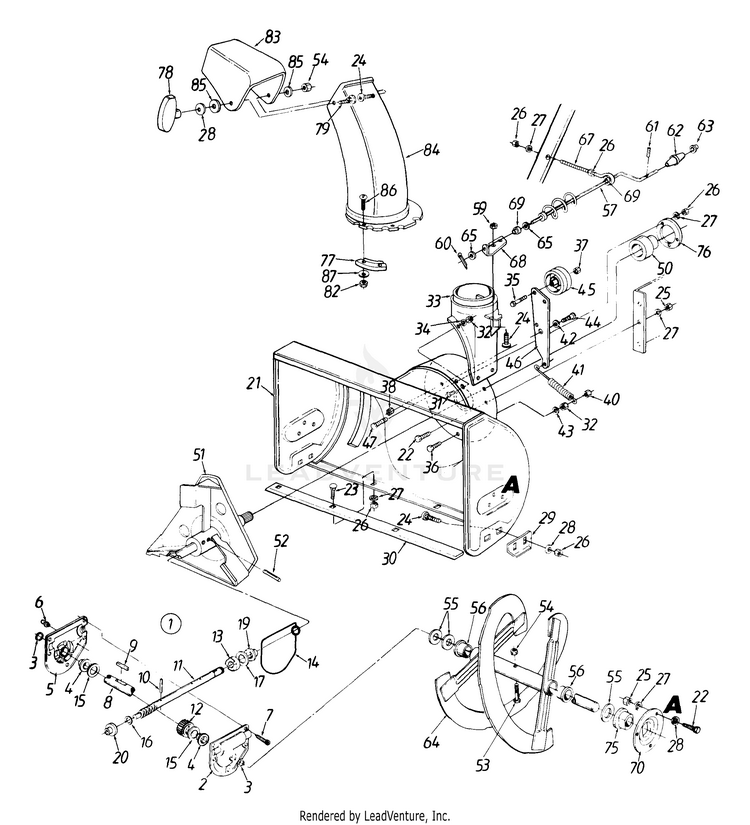

24" AUGER HOUSING For model (610E); New Part
MTD-684-0027
xx
26" AUGER HOUSING For model (640F); New Part
MTD-684-0028
xx
28" AUGER HOUSING For model (660G); New Part
MTD-684-0029
22
Hex Bolt 5/16-24 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-710-0157
Hex Nut 5/16-24 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-912-3057
26
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-712-3010
27
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0119
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-912-0287
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0329
HEX NUT 5/16-18 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-712-3010
25
HEX NUT 1/4-20 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-912-0287
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0119
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0329
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-936-0119
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-912-0287
HEX NUT 1/4-20 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-912-0287
11
Hex Jam Nut 1/4-20 Thd. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list.
MTD-912-0298
