MTD 311355 (1991) Snow Thrower

Model: 311355 (1991)

Save Part Not Listed?
product name

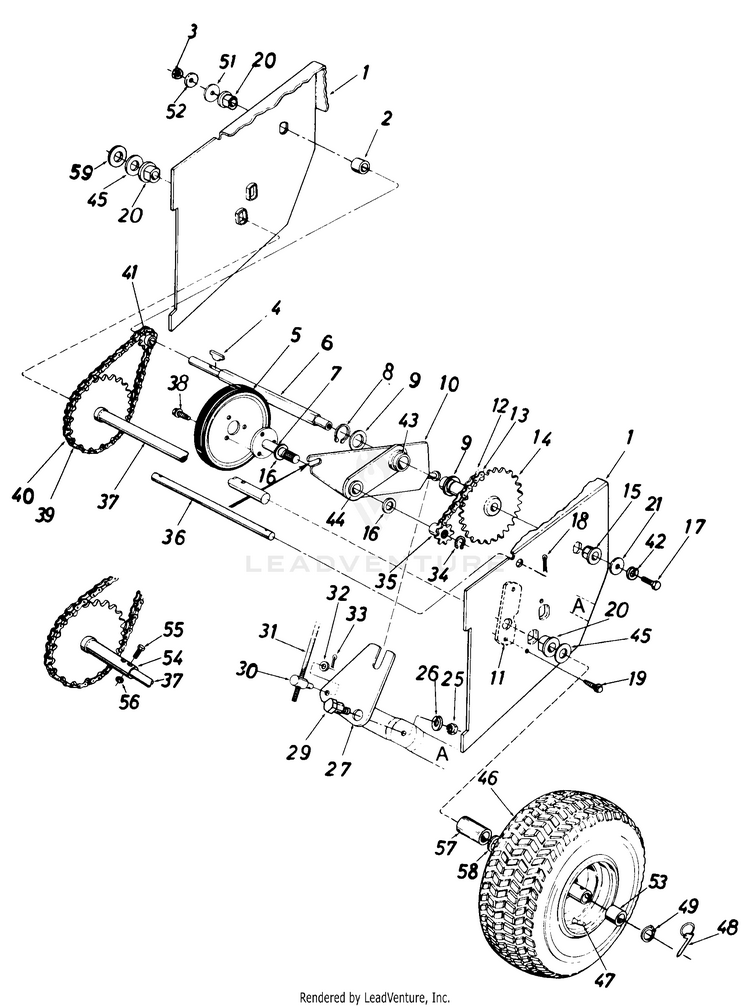

Chain Drive And Wheel

...
...
1
Frame Ass'y. MTD-784-5266
...
2
Spacer.50" I.D. x .75" O.D. x.78" Lg. MTD-750-0499
...
3
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
4
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
5
Friction Wheel Ass'y. MTD-05080AP
...
6
HEX SHAFT MTD-738-0496A
...
7
PLATE ASSEMBLY MTD-05883
...
8
Snap Ring 1.00" Dia. Shaft MTD-716-0102
...
9
Fl-Wash. 1.00" x 1.63" O.D. x .03 MTD-736-0163
...
10
BRACKET AS MTD-05880
...
11
Axle Plate 1.75" x 3/16" MTD-784-5250
...
12
#41 CHAIN 1/2" PITCH x 35 0 LINKS MTD-713-0285
...
13
#41 MASTER LINK 1/2 PITCH TYPEII MTD-913-0723
...
14
32 Teeth Sprocket Ass'y. MTD-713-0281
...
15
FLANGE BEARING MTD-941-0225
...
16
FLAT WASHER MTD-736-0290
...
17
Hex Lock Bolt 5/16-18 x .62" Lg. MTD-710-0538
...
18
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
19
SCREW 5/16-24 x .500 MTD-710-0600
...
20
Hex Flange Bearing MTD-941-0245
...
21
Fl-Wash. .34" I.D. x 1.12" O.D. x .125 MTD-736-0231
...
25
Jam Nut, 3/8-16 MTD-912-3008
...
26
L-Wash. 3/8" I.D. MTD-736-0169
...
27
BRACKET-LINKAGE MTD-05898A
...
29
Shld. Bolt .625" Dia. x .170" Lg. MTD-738-0281
...
30
Engagement Ferru MTD-911-0677
...
31
ROD-SHIFT MTD-747-0356
...
32
Fl-Wash. .34" I.D. x .64" O.D. x .06 MTD-736-0264
...
33
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
34
RETAINING RING MTD-716-0397
...
35
SPROCKET-7T MTD-713-0280
...
36
Shaft .50" Dia. x 9.50" Lg. MTD-738-0497
...
37
AXLE ASSEMBLY-WHL-32T (31345 & 31355) MTD-713-0373
...
xx
AXLE-WHEEL (31385) MTD-738-0713
...
38
SCREW 5/16-24 x .500 MTD-710-0600
...
39
Chain MTD-713-0374
...
40
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
41
CENTER SPROCKET #41-8T MTD-748-0204
...
42
Lock Wash. 5/16" I.D. MTD-936-0119
...
43
Bearing MTD-741-04488
...
44
FLANGE BEARING .630 ID MTD-748-0184
...
45
Fl-Wash. .76" I.D. x 1.49 O.D. MTD-736-0188
...
46
Wheel Assembly MTD-NA
...
xx
Wheel Ass'y. Comp. 13 x 5.0 (31345 & 31355) MTD-734-1528
...
xx
WHEEL ASSEMBLY-SNOW HOG 13X6.50 (31385) MTD-734-1521
...
47
TUBELESS VALVE MTD-934-0255
...
48
Click Pin MTD-714-0143A
...
49
Snap Ring .75 Dia. MTD-716-0101
...
51
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
52
Bell-Wash. .50 I.D. x 1.0 O.D. x .075 MTD-736-0253
...
53
Sleeve Bearing .752" I.D. MTD-941-0401
...
54
30 Teeth Sprocket Hub Ass'y. (31385) MTD-713-0389
...
55
SCREW 1/4-28 x 1.50 GR5 (31385) MTD-710-0698
...
56
Hex L-Nut 1/4-28 Thd. (31385) MTD-712-0896
...
57
SPACER (31385) MTD-750-0506
...
58
Fl-Wash. .793" I.D. (31385) MTD-736-0287
...
59
Fl-Wash. .76" I.D. x 1.49" O.D. (31385) MTD-736-0188

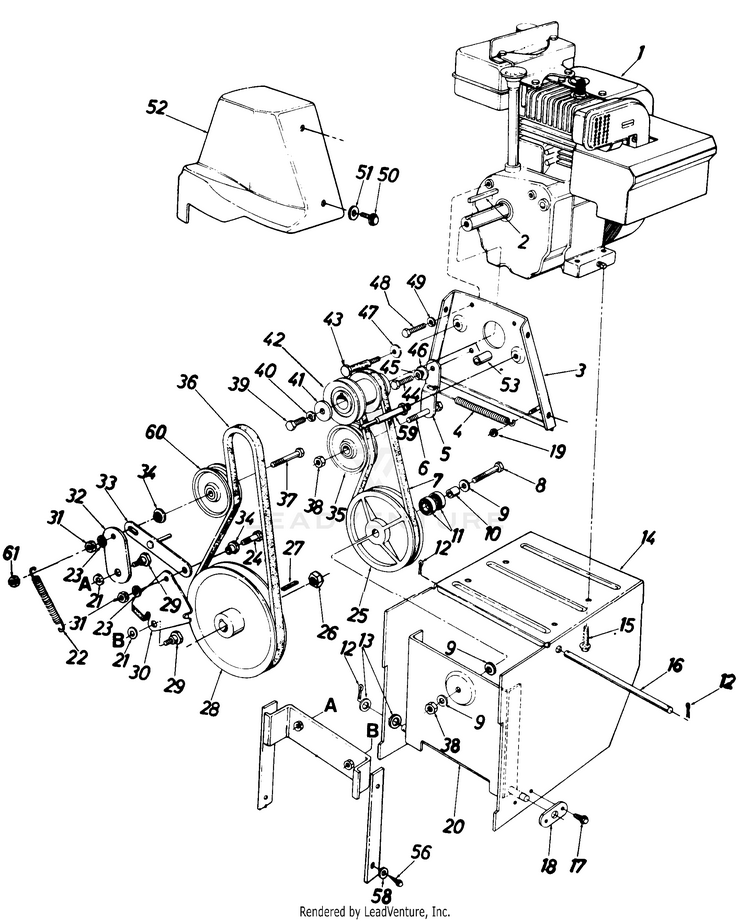

Frame And Engine Mounting

...
...
1
Engine MTD-NA
...
2
Sq. Key 3/16" x 1.5" Lg. (31345 & 31355) MTD-714-0133
...
xx
Sq. Key 1/4" x 1/4" x 2.00" (31385) MTD-914-0114
...
3
Engine Plate Ass'y. MTD-05872A
...
4
Extension Spring 3.97" Lg. MTD-932-0429A
...
5
BRACKET-IDLR- MTD-05896
...
6
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
7
V"-Belt MTD-954-0256
...
8
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
9
Bell-Wash. .40" I.D. x .88" O.D. x .06 MTD-736-0105
...
10
Spacer .38" I.D. x .62" O.D. x.75" Lg. MTD-711-0396
...
11
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
12
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
13
FLAT WASHER .510 x .995 MTD-736-0272
...
14
Frame Ass'y. MTD-784-5266
...
15
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x 1.25" Lg. MTD-710-0502A
...
16
Shaft .50" Dia. x 9.50" Lg. MTD-738-0497
...
17
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
18
BRACKET-AX MTD-05897
...
19
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
20
Drive Pulley Support Brkt. Ass'y. MTD-05878
...
21
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
22
EXTENSION SPRING .5 O.D. X MTD-732-0550
...
23
L-Wash. 3/8" I.D. MTD-736-0169
...
24
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-0723
...
25
PULLEY-DRI (Incl. Ref. #11) MTD-05921
...
26
Hex Jam Cent. L-Nut 5/8-18 Thd. MTD-712-0923
...
27
Sq. Key 3/16 x .75" Lg. MTD-714-0122
...
28
PULLEY MTD-756-0478
...
29
Shld. Bolt .625" Dia. x .170" Lg. (3/8-16) MTD-738-0281
...
30
BRAKE BRACKET ASSEMBLY MTD-784-5048
...
31
Jam Nut, 3/8-16 MTD-912-3008
...
32
BRACKET-ID MTD-05895
...
33
LINKAGE ASSEMBLY-BRAKE MTD-784-5245
...
34
Shld. Spacer .625" I.D. MTD-938-0347
...
35
FLAT IDLER PULLEY-2 1/4 OD X MTD-756-0137
...
36
V-Belt MTD-954-0282
...
37
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
38
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
39
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
40
L-Wash. 3/8 I.D. MTD-736-0169
...
41
Bell-Wash. .40 I.D. x 1.25" O.D. (31345 & 31355) MTD-736-0247
...
xx
Bell-Wash. .345" I.D. x .89" O.D. (31385) MTD-736-0242
...
42
PULLEY (31345 & 31355) MTD-756-0421
...
xx
Engine Pulley (31385) MTD-756-0241B
...
43
Shld. Scr. .498" x 3.0" Lg. (31345 & 31355) MTD-738-0215A
...
xx
STUD (31385) MTD-711-0769
...
44
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
45
Lock Wash. 5/16" I.D. MTD-936-0119
...
46
Shld. Spacer .320 I.D. MTD-748-0234
...
47
Bell-Wash. .40" I.D. x .88" MTD-736-0105
...
48
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
49
Lock Wash. 5/16" I.D. MTD-936-0119
...
50
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
51
Fl-Wash. .28" I.D. x .75" O.D. x .06 MTD-736-0173
...
52
BELT COVER MTD-731-0642
...
53
Spacer (31345 & 31355) MTD-750-0456
...
56
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75' Lg. MTD-710-0623
...
xx
Key (Not Shown) MTD-TC-35062
...
58
L-Wash. 3/8 I.D. H.D. MTD-736-0217
...
59
STUD MTD-711-0769
...
60
FLAT IDLER PULLEY W/FLANGES MTD-756-0225
...
61
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375

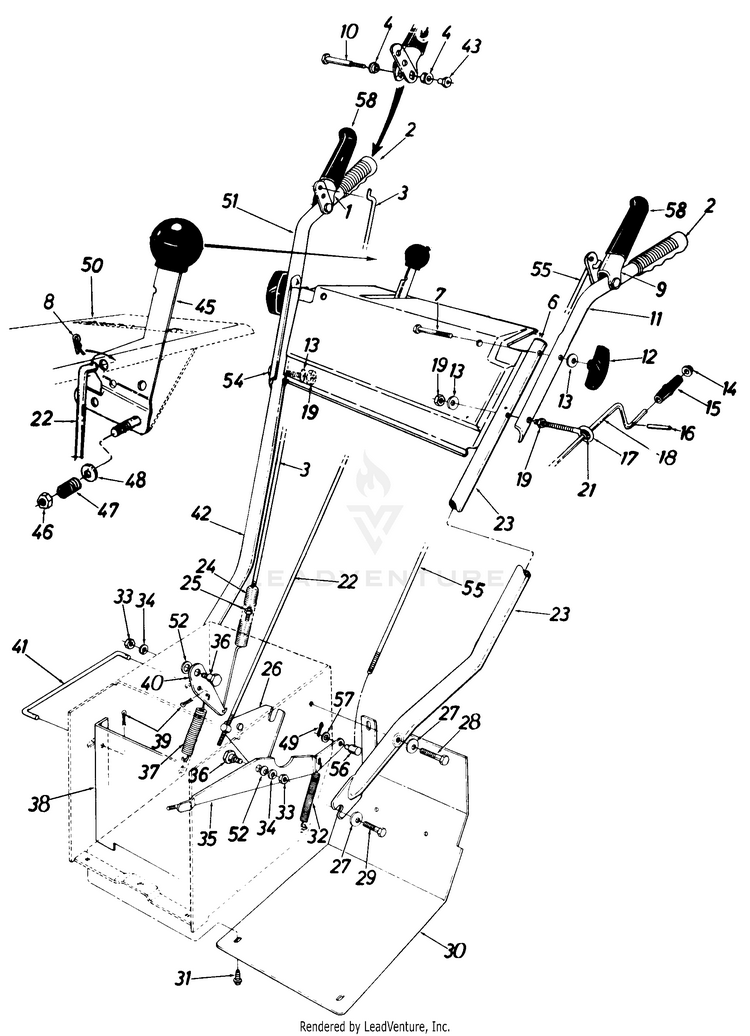

Handle And Control

...
...
1
GRIP ASSEMBLY- MTD-05988
...
2
GRIP MTD-720-0220
...
3
LOCKOUT CABLE MTD-946-0367
...
4
BEARING-FL MTD-741-0402
...
6
PLUG MTD-731-0496
...
7
Carriage Bolt 5/16-18 x 2.0" Lg. MTD-710-0487
...
8
Internal Cotter Pin MTD-714-0104
...
9
Clutch Grip Ass'y. L.H. MTD-05987
...
10
Shoulder Bolt .374 Dia. x 1.53" Lg. MTD-938-0560
...
11
HANDLE-FOLDING (LH) MTD-749-0595
...
12
Star Knob MTD-720-04072A
...
13
Belleville Wash. 5/16" I.D. MTD-736-0242
...
14
Push Nut 3/8" Rod MTD-726-0100
...
15
Knob 3/8" I.D. MTD-720-0201A
...
16
Rolled Pin, 1/8 x .63 MTD-915-0138
...
17
EYE-BOLT MTD-747-0416A
...
18
CHUTE CRANK ASS'Y. MTD-05980
...
19
HEX NUT 5/16-18 MTD-712-3010
...
21
BUSHING .380 ID MTD-941-0475
...
22
SHIFT ROD MTD-747-0356A
...
23
LOWER HANDLE (LH) PA MTD-749-0417
...
24
Extension Spring .75" O.D. x 5.0" Lg. MTD-732-0184
...
25
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
26
5HIFTING LINKAGE BRACKET MTD-05898
...
27
Belleville Wash. .40 I.D. x .88 O.D. x .060 MTD-736-0105
...
28
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
29
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg. MTD-710-0623
...
30
Frame Cover MTD-05899
...
31
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
32
Extension Spring .38" O.D. x 3.25" Lg. MTD-932-0320
...
33
Jam Nut, 3/8-16 MTD-912-3008
...
34
L-Wash. 3/8" I.D. MTD-736-0169
...
35
BRACKET-AUG CLUTCH MTD-784-5050
...
36
Shld. Bolt .625" Dia. x .170" Lg. (3/8-16) MTD-738-0281
...
37
Extension Spring .38" O.D. x 3.25" Lg. MTD-932-0320
...
38
Drive Pulley Support Brkt. Ass'y. MTD-05878
...
39
Cotter Pin 3/32" Dia. x 75" Lg. MTD-714-0507
...
40
BRACKET-DR MTD-05501
...
41
ROD-VAR SP MTD-10080
...
42
LOWER HANDLE MTD-749-0418
...
43
SHOULDER NUT MTD-938-0561
...
45
HANDLE ASSEMBLY-SHIFT MTD-05805A
...
46
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
47
Compression Spring .38" O.D. x .88" Lg. MTD-732-0193
...
48
Bell-Wash. .40 I.D. x .88 O.D. x .060 MTD-736-0105
...
49
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
50
HANDLE PANEL ASSEMBLY MTD-784-5139
...
51
HANDLE-FOLDING-RH MTD-749-0596
...
52
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
54
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
55
AUGER CHUTE CABLE 36" MTD-946-0435
...
56
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
57
Fl-Wash. .33" I.D. x .63" O.D. MTD-736-0264
...
58
GRIP MTD-731-0473

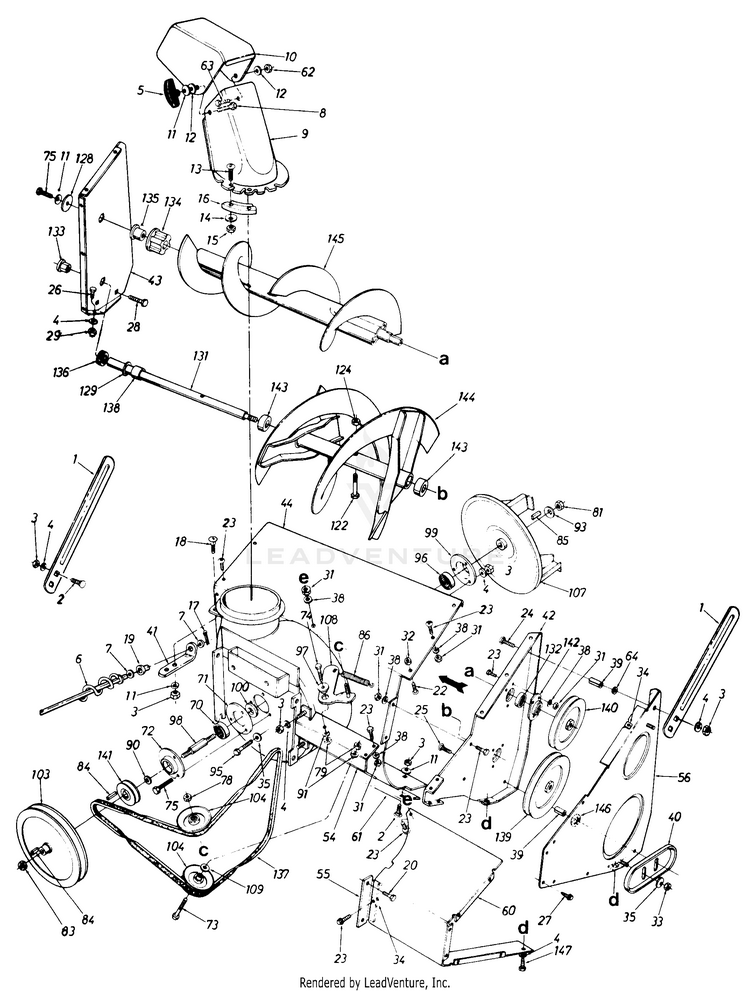

Snow

...
...
1
Drift Cutter MTD-790-00181-0637
...
2
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
3
HEX NUT 5/16-18 MTD-712-3010
...
4
Lock Wash. 5/16" I.D. MTD-936-0119
...
5
Star Knob MTD-720-04072A
...
6
CHUTE CRANK ASS'Y. MTD-05980
...
7
Fl-Wash. .385" I.D. x .62" MTD-736-0140
...
8
Carriage Bolt 5/16-18 x 1.0" MTD-710-0276
...
9
Chute MTD-931-0840B
...
10
Chute, Upper, 6.0 MTD-731-0846C
...
11
Bell-Wash. .345" I.D. x .88" O.D. x 06" MTD-736-0242
...
12
Fl-Wash. .344" I.D. x .125 O.D. x .125" MTD-736-0231
...
13
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
14
Fl-Wash. 1/4" I.D. MTD-736-0142
...
15
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
16
Chute Flange Keeper MTD-731-0851A
...
17
Cotter Pin MTD-714-0507
...
18
Carriage Bolt 5/16-18 x .75" MTD-710-0451
...
19
BUSHING .380 ID MTD-941-0475
...
20
SCREW 5/16-24 x .500 MTD-710-0600
...
22
Truss Mach. Scr. 1/4-20 x .5" MTD-710-0286
...
23
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
24
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
25
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
26
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
27
Hex Self-Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
28
Carriage Bolt 3/8-16 x .75" MTD-710-0389
...
29
HEX NUT 5/16-18 MTD-712-3010
...
31
HEX NUT 1/4-20 MTD-912-0287
...
32
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
33
Jam Nut, 3/8-16 MTD-912-3008
...
34
Speed Clip MTD-712-0377
...
35
Bell-Wash. 3/8" I.D. MTD-736-0105
...
38
L-Wash. 1/4" I.D. MTD-936-0329
...
39
Spacer.375" I.D. x 1" Lg. MTD-750-0434
...
40
Skid Shoe MTD-784-5038B-0637
...
41
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
42
PLATE-SPIRAL HSG (RH) MTD-784-5350
...
43
SPIRAL HOUSING PLATE L.H. MTD-784-5351
...
44
HOUSING ASSEMBLY-24IN (31355) MTD-784-5352
...
xx
26" Spiral Hsg. Ass'y. (31385) MTD-784-5353
...
54
V-Channel (31355) MTD-784-5362
...
xx
CHANNEL-V (31385) MTD-784-5363A
...
55
Support Bracket MTD-784-5360A
...
56
Side Cover Ass'y. MTD-784-5373
...
60
BELT COVER 6.42" (31355) MTD-784-5378
...
xx
BELT COVER (31385) MTD-784-5379
...
61
SHAVE PLATE (31355) MTD-705-5036
...
xx
SHAVE PLATE (31385) MTD-705-5037
...
62
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
63
Truss Mach. Scr. 5/16-18 x .75" MTD-710-0323
...
64
Push Speed Nut MTD-726-0201
...
70
BALL BEARING MTD-741P0919B
...
71
PLATE-REIN MTD-14249A
...
72
HOUSING ASSEMBLY-BEARING (Incl. Ref. 70) MTD-15297A
...
73
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
74
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
75
Hex Bolt 5/16-18 x 1" Lg. (Grade 5) MTD-710-0376
...
78
Hex Ins. L-Nut 3/8-24 MTD-712-0116
...
79
Hex Nut 3/8-24 Thd. MTD-712-0241
...
81
HEX JAM NUT 5/8-18 MTD-712-0318
...
83
Hex L-Nut 5/8-18 Thd. MTD-712-0923
...
84
Sq. Key 3/16" x 75" MTD-714-0122
...
85
Sq. Key 3/16" x 1.5" MTD-714-0133
...
86
EXTENSION SPRING MTD-732-0549
...
90
Fl-Wash. 635" I.D. MTD-736-0156
...
91
L-Wash. 3/8" I.D. MTD-736-0169
...
93
Bell-Wash. .630" I.D. MTD-736-0317
...
95
BOLT-AXLE MTD-738-0154A
...
96
BALL BEARING MTD-741P0919B
...
97
Shld. Spacer .625" I.D. MTD-938-0347
...
98
SPINDLE-FAN MTD-738-0687
...
99
BEARING HOUSING ASSEMBLY (Incl. Ref. 96) MTD-741-0163A
...
100
Spacer.790" I.D. MTD-750-0674
...
103
PULLEY MTD-756-0478
...
104
Idler Pulley MTD-956-0399
...
107
11" Dia. Blower Fan Ass'y. MTD-784-5367
...
108
IDLER BRACKET ASS'Y. MTD-784-5377
...
109
Fl-Wash. .40" I.D. MTD-736-0320
...
122
Shear Bolt 5/16-18 x 1.5" Lg. MTD-710-0890A
...
124
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
128
Flat Washer .32" I.D. MTD-736-0362
...
129
FLAT WASHER MTD-736-0401
...
131
Spindle Shaft (31355) MTD-738-0715
...
xx
Spindle Shaft (31385) MTD-738-0716
...
132
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
133
Hex Flange Bearing MTD-941-0245
...
134
Tubing Support Brg. MTD-741-0477
...
135
PIN-SHAFT MTD-748-0310
...
136
Spacer 1.25" I.D. x 1.5" MTD-750-0678
...
137
Belt (31355) MTD-954-0338
...
xx
V-BELT 1/2 x 79 (31385) MTD-954-0339A
...
138
SPACER (31385 Only) MTD-750-0696
...
139
1/2 V-Pulley 9" O.D. MTD-756-0497
...
140
PULLEY MTD-756-0498
...
141
PULLEY MTD-756-0500
...
xx
PULLEY (31385) MTD-756-0495
...
142
HOUSING-BRG MTD-784-0211
...
143
Sleeve Bearing .752" I.D. MTD-941-0401
...
144
10" Spiral Ass'y. R.H. MTD-784-5370
...
xx
10" Spiral Ass'y. L.H. (Not Shown) MTD-784-5369
...
145
24" Auger Ass'y. (31355) MTD-784-5374
...
xx
AUGER ASSEMBLY-26IN (31385) MTD-784-5375
...
146
Push Nut Bolt Retainer MTD-712-0229
...
147
Hex Wash. AB-Tap Scr. 5/16-18 x.75" Lg. MTD-710-0726
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
