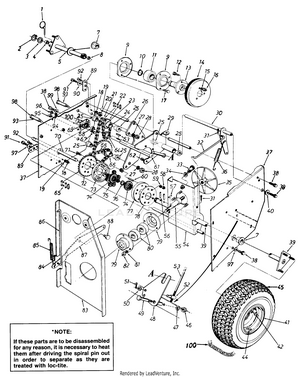

1

Click Pin MTD-714-0143A

2

Snap Ring .625" Shaft MTD-916-0115

3

Fl-Wash. .62" I.D. x 1.25" MTD-736-0187

4

Sleeve Brg. (Must Be Drilled After Press Fit) MTD-741-0305

5

Differential Tubing Ass'y.-R.H. MTD-05637

7

Flange Bearing w/ Flats MTD-941-0170

8

Sleeve Brg. MTD-741-0305

9

Bearing Housing MTD-05794

10

Snap Ring-1.00" Dia. MTD-716-0102

11

Ball Brg. .25MM x 52MM x 15MM Thk. MTD-941-0301

12

Hex Sems Bolt 5/16-18 x .75" 4. MTD-910-0198

13

Friction Wheel Adapter MTD-748-0281

14

Friction Wheel Ass'y. MTD-05080AP

15

Lock Wash. 5/16" I.D. MTD-936-0119

16

HEX NUT 5/16-18 MTD-712-3010

17

Hex Bolt 1/4-28 x 50" Lg. MTD-910-0195

18

L-Wash. 1/4" I.D. MTD-936-0329

19

Sliding Support Axle MTD-738-0278

20

Hex Nut 1/4-20 Thd. MTD-912-0287

21

#41 Chain-1/2" Pitch x 43 Links MTD-713-0270

22

Master Link for #41 Chain MTD-913-0723

23

#41 Chain-1/2" Pitch x 19 Links MTD-713-0199

xx

Master Link for #41 Chain MTD-913-0723

24

9 and 14 Teeth Sprocket Hub Ass'y. MTD-913-0193

25

Flange Brg. .630" I.D. MTD-748-0184

26

Chain Support Brkt. MTD-05520

27

L-Wash. 3/8" I.D.-H.D. MTD-736-0217

28

Hex L-Jam Nut 3/8-24 Thd. MTD-712-0116

29

Sliding Brkt. Ass'y. MTD-784-5137

30

Drive Clutch Brkt. Ass'y. MTD-05500

31

Inter. Cot. Pin 5/16" Dia. MTD-714-0104

32

Drive Clutch Rod 7.38" Lg. MTD-747-0150

33

Shld. Bolt MTD-738-0144

34

Bell-Wash. .44" I.D. x .88" MTD-736-0105

35

Plate, Drive MTD-917-0302

36

Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121

37

Frame Ass'y. MTD-784-5129B

38

Hex L-Bolt 5/16-18 x .62" MTD-710-0538

39

Differential Shaft Ass'y. (NOTE: If these parts are to be disassembled for any reason, it is necessary to heat them after driving the spiral pin out in order to separate as they are treated with loc-tite. MTD-05820B

40

Fl-Wash. .345" I.D. x .75" MTD-736-0264

41

Rim Only-16" MTD-09262

42

Cone Nut 3/8-24 Thd. MTD-712-0193

44

TUBELESS VALVE MTD-934-0255

45

Wheel Ass'y. Comp. 16 x 6.5 MTD-734-0748

xx

Tire Only 16 x 6.5 MTD-734-0275

46

Jam Nut, 3/8-16 MTD-912-3008

47

L-Wash. 3/8" I.D. MTD-736-0169

48

Shift Linkage Brkt. Ass'y. MTD-784-5133

49

Shld. Bolt .498" Dia. x 2.005" Lg. MTD-738-0129

50

Fl-Wash. .344" I.D. x .62" MTD-736-0264

51

Cotter Pin 3132" Dia. x .75"* MTD-714-0507

52

Adjustment Ferrule MTD-711-0628A

53

Shifting Rod MTD-747-0356

54

Drive Plate Mtg. Brkt. Ass'y. MTD-05497

55

Drive Plate Spindle MTD-738-0279

56

H-Spring Pin Spiral 3/16" Dia. x 1.25" Lg. (NOTE: If these parts are to be disassembled for any reason, it is necessary to heat them after driving the spiral pin out in order to separate as they are treated with loc-tite. MTD-715-0136

57

#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388

58

Hex Nut 1/4-28 Thd. MTD-712-0138

59

L-Wash. 1/4" I.D. MTD-936-0329

60

Differential Pin MTD-738-0304

61

Hex Shaft MTD-738-0280

62

Hex L-Nut 1/4-28 Thd. MTD-712-0896

63

#4 Hi-Pro Key 3/32 x 5/8" Dia. MTD-914-0129

64

8 Teeth Sprocket MTD-748-0204

65

Chain #420 1/2" Pitch x 37 Links MTD-913-0269

xx

Master Link for #420 Chain MTD-913-0154

66

9 and 32 Teeth Sprocket Hub Ass'y. MTD-913-0194

67

Hex Bolt 1/4-20 x .62" Lg.* MTD-710-0258

68

Spacer .51 I.D. x .69" O.D. MTD-750-0277

69

Ball Bearing MTD-741-0133

70

Differential Connecting Shaft (NOTE: If these parts are to be disassembled for any reason, it is necessary to heat them after driving the spiral pin out in order to separate as they are treated with loc-tite. MTD-738-0284
