MTD 310965 (1990) Snow Thrower

Model: 310965 (1990)

Save
 Part Not Listed?Part Not Listed?
product name

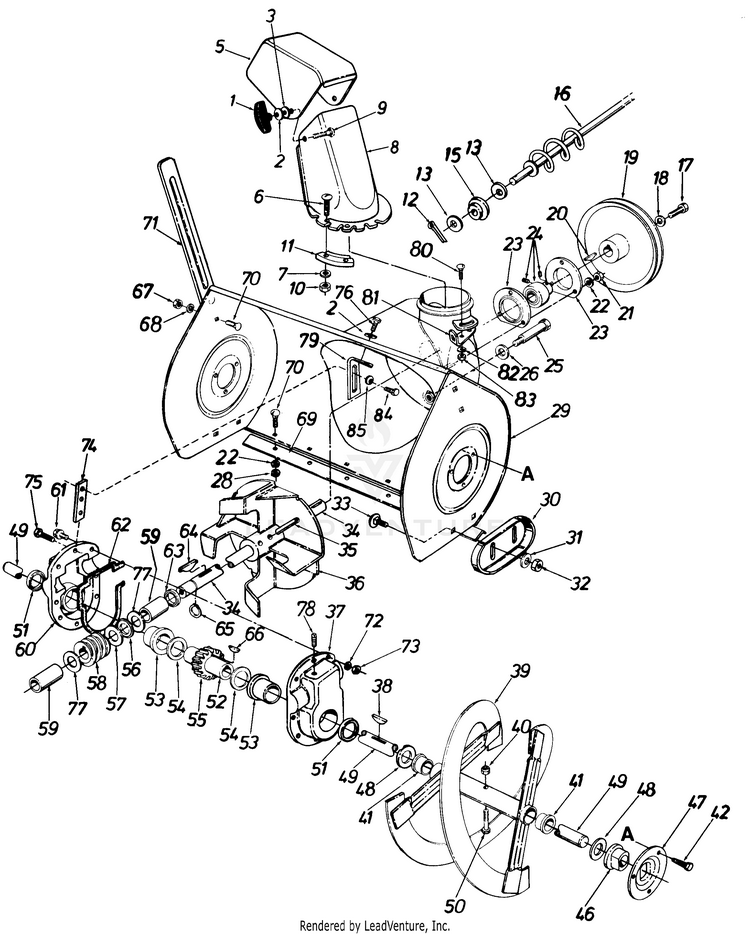

Snow

...
...
1
Star Knob MTD-720-04072A
...
2
Bell-Wash. .345 I.D. x .88 O.D. x .060 MTD-736-0242
...
3
Fl. Wash. .312 I.D. x 1.125 O.D. x .125 MTD-736-0231
...
5
Chute, Upper, 6.0 MTD-731-0846C
...
6
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
7
Fl-Wash. 1/4" I.D. MTD-736-0142
...
8
Chute MTD-931-0840B
...
9
Carr. Bolt 5/16-18 x 1.00" Lg. MTD-710-0276
...
10
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
11
Chute Flange Keeper MTD-731-0851A
...
12
Cotter Pin MTD-714-0507
...
13
Fl-Wash. .385" I.D. x .62" MTD-736-0140
...
15
BUSHING .380 ID MTD-941-0475
...
16
Chute Crank Ass'y. MTD-05981
...
17
SCREW 5/16-18 x .750 MTD-710-1880
...
18
Bell-Wash. .345 I.D. x .88 MTD-736-0242
...
19
V-Pulley .875 I.D. x 10.12 MTD-756-0243
...
20
#9 Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Lock Wash. 5/16" I.D. MTD-936-0119
...
23
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
24
Self Aligning Brg. .875 I.D. MTD-941-0185
...
25
Stud 3/8-16 x 2.75" Lg. MTD-711-0640
...
26
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
Blower Hsg. Ass'y. MTD-784-5011
...
30
Skid Shoe MTD-784-5038B-0637
...
31
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105
...
32
Jam Nut, 3/8-16 MTD-912-3008
...
33
CARRIAGE BOLT 3/8-16 X .75 MTD-710-0389
...
34
Blower Axle MTD-738-0276
...
35
Spring Pin Spiral 5/16" Dia. x 1.75" Lg. MTD-715-0118
...
36
Blower Fan Ass'y. MTD-05812
...
37
Complete Gear Hsg. Half- 0 L.H. (Incl. Bearing) MTD-753-0889
...
38
#91 Woodruff Key 1/4" X 3/4" Dia. MTD-714-0135
...
39
Spiral Ass'y. L.H. MTD-05461
...
xx
Spiral Ass'y. R.H. MTD-05462
...
40
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
41
Plastic Bushing MTD-741-0494
...
42
Hex Wash. Hd. Tap Scr. 5/16-24 x .62" Lg. MTD-710-0726
...
46
Flange Bearing w/ Flats MTD-941-0170
...
47
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
48
Fl-Wash. 1.06 I.D. x 1.75 O.D. x .100 MTD-736-0250
...
49
Spiral Axle MTD-738-0491
...
50
Hex Bolt 5/16-18 x 1.75 Lg. MTD-710-0891
...
51
Oil Seal 1.50" I.D. MTD-921-0146
...
52
Worm Gear Shaft MTD-738-0275
...
53
Flange Brg. 1.503 I.D. MTD-741-0182
...
54
Fl-Wash. 1.5 I.D. x 2.0 O.D. MTD-736-0266
...
55
Double Threaded Worm Gear MTD-917-1425
...
56
Thrust Brg. .88 I.D. x 1.44 O.D. x .078 MTD-741-0184
...
57
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291
...
58
Double Threaded Worm-L.H. MTD-917-0299
...
59
Sleeve Brg. .875 I.D. MTD-941-0217
...
60
Complete Gear Hsg. Half- 0 L.H. (Incl. Ref. Nos. 51 & 53) MTD-753-0889
...
61
Hex Bolt 5/16-18 x 1.0" Lg. MTD-710-0376
...
62
Gasket MTD-921-0144
...
63
Oil Seal .875" I.D. MTD-921-0145
...
64
#9 Hi-Pro Key 3/16 x 3/4 Dia. MTD-714-0126
...
65
Snap Ring 375" Dia. MTD-716-0111
...
66
#91 Woodruff Key 1/4 x 3/4 Dia. MTD-714-0135
...
67
HEX NUT 5/16-18 MTD-712-3010
...
68
Lock Wash. 5/16" I.D. MTD-936-0119
...
69
Shave Place MTD-05378-0637
...
70
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
71
Drift Cutter MTD-790-00181-0637
...
72
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
73
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
74
Gear Hsg. Support Plate MTD-784-5075
...
75
Hex Bolt 5/16-18 x 1.25 MTD-710-0528
...
76
Hex Wash. Hd. Self-Tap Scr. 5/1 6-1 8 x .75 Lg. MTD-710-0726
...
77
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291
...
78
Filler Plug MTD-737-0175
...
79
Gear Hsg. Support Brkt. MTD-784-5076-0637
...
80
Carr. Bolt 5/16-18 x ,75" Lg. MTD-710-0451
...
81
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
82
Bell-Wash. .345 I.D. x .88" MTD-736-0242
...
83
HEX NUT 5/16-18 MTD-712-3010
...
84
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
85
SPRING WASHER BELL MTD-736-0270

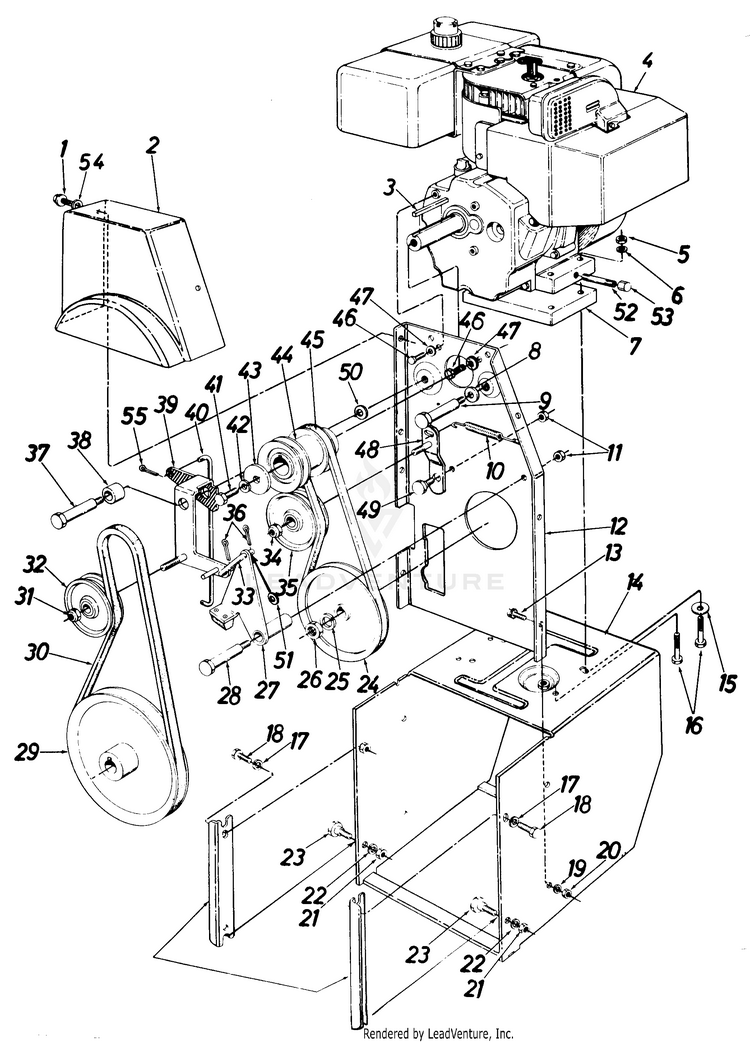

Snow

...
...
1
Hex AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
2
Belt Cover MTD-931-2531
...
3
Sq. Key 1/4" X 1.50" Lg. MTD-714-0118
...
4
Engine MTD-NA
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
Lock Wash. 5/16" I.D. MTD-936-0119
...
7
Engine Spacer Ass'y. MTD-717-0522
...
8
Bell-Wash. .40 I.D. x .88 O.D. MTD-736-0105
...
9
Shld. Scr. .498" x 3.0" Lg. MTD-738-0215A
...
10
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
11
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
12
Engine Brkt. Ass'y. MTD-05491A
...
13
Hex Sems Bolt 5/16-18 x .75" 4. MTD-910-0198
...
14
Frame Ass'y. MTD-784-5129B
...
15
Fl-Wash. .345 I.D. x .75 O.D. x .060 MTD-736-0264
...
16
Hex Bolt 5/16-18 x 2.50" Lg. MTD-710-0378
...
17
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
18
Hex Screw, 3/8-16 x.75 MTD-710-0216
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Hex Nut 3/8-16 Thd. MTD-712-0798
...
22
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
23
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
24
V-Puiley .628 I.D. x 7.50 O.D. MTD-756-0344
...
25
L-Wash. for 5/8" I.D. MTD-736-0158
...
26
Hex Ins. Jam L-Nut 5/8-18 Thd. MTD-712-0221
...
27
Brake Brkt. Ass'y. MTD-05510A
...
28
Shld. Bolt .498" Dia. x 2.00" Lg. MTD-738-0129
...
29
V-Pulley .875 I.D. x 10.12 O.D. MTD-756-0243
...
30
V-Belt 1/2" X 45.0" Lg. MTD-954-0194
...
31
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
32
Fl-Idler w/Flanges 3.0 O.D. MTD-756-0240
...
33
Brake Linkage Ass'y. MTD-05531
...
34
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
35
3.0" O.D. Fl-Idler w/Flanges MTD-756-0240
...
36
Int. Cot. Pin 3/32" Dia. MTD-714-0507
...
37
Shld. Bolt .625" Dia. x 2.750" Lg. MTD-738-0282
...
38
Spacer .75 O.D. x 1.00" Lg. MTD-750-0227
...
39
Blower Idler Brkt. Ass'y. MTD-05493
...
40
Auger Clutch Rod .81" Dia. x 10.62" Lg. MTD-747-0149
...
41
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
42
L-Wash. 818" I.D. H.D. MTD-736-0217
...
43
Fl-Wash. MTD-07386
...
44
Engine Pulley Double Groove MTD-756-0241B
...
45
V-Belt 3/8 x 35.5 Lg. MTD-954-0131
...
46
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
47
Bell-Wash. .345 I.D. x .88 O.D. x .060 MTD-736-0242
...
48
Drive Idler Brkt. Ass'y. MTD-05495
...
49
Shld. Bolt .625" Dia. x 1.70" Lg MTD-738-0281
...
50
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
51
Fl-Wash. MTD-936-0117
...
52
Oil Drain Pipe MTD-737-0298
...
53
Hex Hd. Cap 1/4-18 Pipe Thd. MTD-737-0132
...
54
Fl-Wash. .340 I.D. x .62 O.D. x .62 MTD-736-0264
...
55
Int. Cot. Pin 5/16" Dia. MTD-714-0104
...
xx
Key (Not Shown) MTD-TC-35062

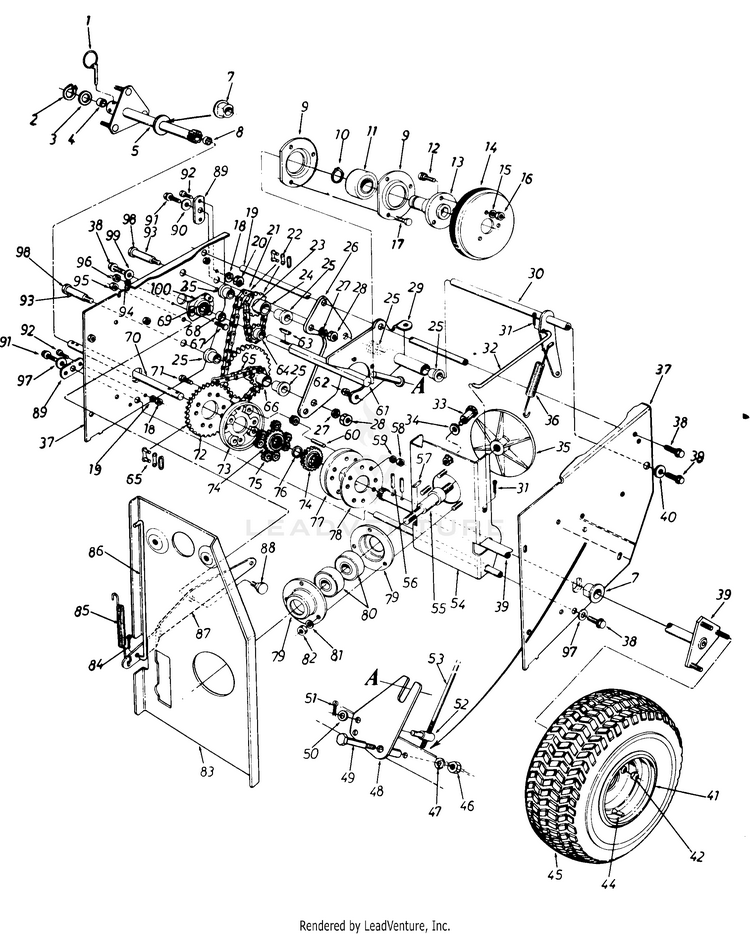

Snow

...
...
1
Click Pin MTD-714-0143A
...
2
Snap Ring .625" Shaft MTD-916-0115
...
3
Fl-Wash. .62" I.D. x 1.25 MTD-736-0187
...
4
Sleeve Brg. (Must Be Drilled Atter Press Fit) MTD-741-0305
...
5
Differential Tubing Ass y. R.H. MTD-05637
...
7
Flange Bearing w/ Flats MTD-941-0170
...
8
Sleeve Brg. MTD-741-0305
...
9
Bearing Housing MTD-05794
...
10
Snap Ring 1.00" Dia. MTD-716-0102
...
11
Ball Brg. .25MM x 52MM x 15MM Thk. MTD-941-0301
...
12
Hex Sems Bolt 5/16-18 x .75" 4. MTD-910-0198
...
13
Friction Wheel Adapter MTD-748-0281
...
14
Friction Wheel Ass'y. MTD-05080AP
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Hex Bolt 1/4-28 x 50" Lg. MTD-910-0195
...
18
L-Wash. 1/4" I.D. MTD-936-0329
...
19
Sliding Support Axle MTD-738-0278
...
20
Hex Nut 1/4-20 Thd. MTD-912-0287
...
21
#41 Chain 1/2" Pitch x 43 Links MTD-713-0270
...
22
Master Link for #41 Chain MTD-913-0723
...
23
#41 Chain 1/2" Pitch x 19 Links MTD-713-0199
...
xx
Master Link for #41 Chain MTD-913-0723
...
24
9 and 14 Teeth Sprocket Hub Ass'y. MTD-913-0193
...
25
Flange Brg. .630" I.D. MTD-748-0184
...
26
Chain Support Brkt. MTD-05520
...
27
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
28
Hex L-Jam Nut 3/8-24 Thd. MTD-712-0116
...
29
Sliding Brkt. Ass'y. MTD-784-5137
...
30
Drive Clutch Brkt. Ass'y. MTD-05500
...
31
Inter. Cot. Pin 5/16" Dia. MTD-714-0104
...
32
Drive Clutch Rod 7.38" Lg. MTD-747-0150
...
33
Shld. Bolt MTD-738-0144
...
34
Bell-Wash. .44" I.D. x .88" MTD-736-0105
...
35
Plate, Drive MTD-917-0302
...
36
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
37
Frame Ass'y. MTD-784-5129B
...
38
Hex L-Bolt 5/16-18 x .62" MTD-710-0538
...
39
Differential Shaft Ass'y. (If this part is to be disassembled for any reason, it is necessary to heat them after driving the spiral pin out in order to seperate as they are treated with loc-tite) MTD-05820B
...
40
Fl-Wash. .345" I.D. x .75" MTD-736-0264
...
41
Rim Only 16" MTD-09262
...
42
Cone Nut 3/8-24 Thd. MTD-712-0193
...
44
TUBELESS VALVE MTD-934-0255
...
45
Wheel Ass'y. Comp. 16 x 6.5 MTD-734-1526
...
xx
Tire Only 16 x 6.5 MTD-734-1525
...
46
Jam Nut, 3/8-16 MTD-912-3008
...
47
L-Wash. 3/8" I.D. MTD-736-0169
...
48
Shift Linkage Brkt. Ass'y. MTD-784-5133
...
49
Shld. Bolt .498" Dia. x 2.005" Lg. MTD-738-0129
...
50
Fl-Wash. .344" I.D. x .62" MTD-736-0264
...
51
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
52
Adjustment Ferrule MTD-711-0628
...
53
Shifting Rod MTD-747-0356
...
54
Drive Plate Mtg. Brkt. Ass'y. MTD-05497
...
55
Drive Plate Spindle MTD-738-0279
...
56
H-Spring Pin Spiral 3/16" Dia. x 1.25" Lg. (If this part is to be disassembled for any reason, it is necessary to heat them after driving the spiral pin out in order to seperate as they are treated with loc-tite) MTD-715-0136
...
57
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
58
Hex Nut l/4-28 Thd. MTD-712-0138
...
59
L-Wash. 1/4" I.D. MTD-936-0329
...
60
Differential Pin MTD-738-0304
...
61
Hex Shaft MTD-738-0280
...
62
Hex L-Nut l/4-28 Thd. MTD-712-0896
...
63
#4 Hi-Pro Key 3/32 x 5/8" Dia. MTD-914-0129
...
64
8 Teeth Sprocket MTD-748-0204
...
65
Chain #420 1/2" Pitch x 37 Links MTD-913-0269
...
xx
Master Link for #420 Chain MTD-913-0154
...
66
9 and 32 Teeth Sprocket Hub Ass'y. MTD-913-0194
...
67
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
68
Spacer .51" I.D. x 69" O.D. MTD-750-0277
...
69
Ball Bearing MTD-741-0133
...
70
Differential Connecting Shaft (If this part is to be disassembled for any reason, it is necessary to heat them after driving the spiral pin out in order to seperate as they are treated with loc-tite) MTD-738-0284
...
71
Hex Bolt 1/4-28 x l.75" Lg. MTD-710-0559
...
72
28 Teeth Sprocket MTD-713-0198
...
73
Differential Housing MTD-748-0222
...
74
20 Tooth Spur Gear MTD-748-0224
...
75
9 Tooth Spur Gear MTD-748-0223
...
76
Fl-Wash. .62" I.D. x 1.25" MTD-736-0187
...
77
Differential Housing MTD-748-0222
...
78
Differential Hsg. Support Plate MTD-05484
...
79
Bearing Housing MTD-08253B
...
80
BALL BEARING MTD-941-0919B
...
81
Lock Wash. 5/16" I.D. MTD-936-0119
...
82
HEX NUT 5/16-18 MTD-712-3010
...
83
Engine Brkt. Ass'y. MTD-05491
...
84
Inter. Cotter Pin 5/16" Dia. MTD-714-0104
...
85
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
86
Auger Clutch Rod .3l" Dia. x 10.62" Lg. MTD-747-0149
...
87
Auger Clutch Brkt. MTD-05518
...
88
Shld. Bolt .625" Dia. x .170 MTD-738-0281
...
89
Pivot Axle Brkt. MTD-05523
...
90
Fl-Wash. 345" I.D. x 75" MTD-736-0264
...
91
Hex L-Bolt 5/16-18 x .62" MTD-710-0538
...
92
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
93
Sprocket Hub Tubing 1.88" MTD-750-0275
...
94
L-Wash. 1/4" I.D. MTD-936-0329
...
95
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
96
Hex Nut 1/4-20 Thd. MTD-912-0287
...
97
Fl-Wash. .344" I.D. x 875" MTD-736-0159
...
98
Hex Bolt 3/8-24 x 2,75" Lg. MTD-710-0629
...
99
Bell-Wash. 345" I.D. x .88" MTD-736-0242
...
100
Bearing Housing MTD-05034A

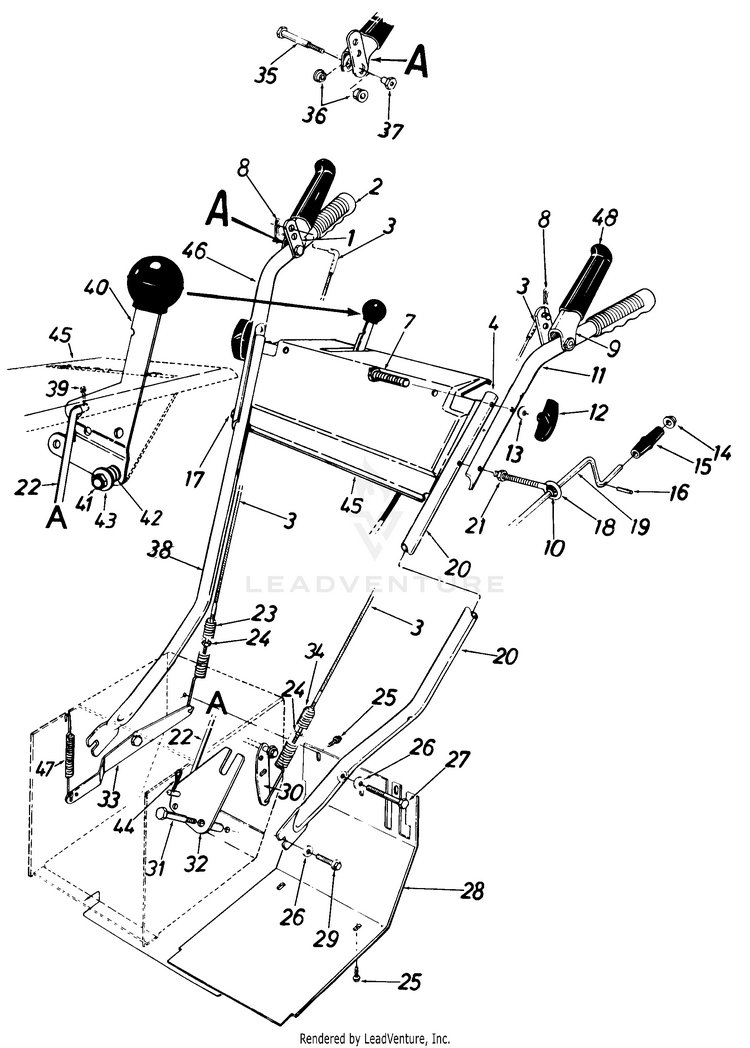

Snow

...
...
1
Clutch Grip Ass'y. R.H. MTD-05988
...
2
Grip MTD-720-0220
...
3
LOCKOUT CABLE MTD-946-0367
...
4
Plastic Plug MTD-731-0496
...
7
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
8
Hairpin Cotter MTD-714-0104
...
9
Clutch Grip Ass'y. L.H. MTD-05987
...
10
BUSHING .380 ID MTD-941-0475
...
11
Upper Handle Half L.H. MTD-749-0595
...
12
Star Knob MTD-720-04072A
...
13
Bell-Wash. .345a I.D. x .88" O.D. x .060 MTD-736-0242
...
14
Cap Speed Nut for 3/8" Rod MTD-726-0100
...
15
Knob 3/8" Rod MTD-720-0201A
...
16
Rolled Pin, 1/8 x .63 MTD-915-0138
...
17
Carr. Bolt 5/16-18 x 2" Lg. MTD-710-0487
...
18
Eyebolt MTD-747-0416A
...
19
Chute Crank Ass'y. MTD-05980
...
20
Lower Handle Half L.H. MTD-749-0405
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Shift Rod MTD-747-0356A
...
23
Spring, Extension, .75 O.D. x 5.0 MTD-732-0463A
...
24
Hex Ins. L-Nut1/4-20 Thd. MTD-712-0324
...
25
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg. MTD-710-0600
...
26
Bell-Wash. .401" I.D. x .88" O.D. x .060 MTD-736-0105
...
27
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
28
Frame Cover MTD-784-5131
...
29
Hex Screw, 3/8-16 x.75 MTD-710-0216
...
30
Drive Clutch Brkt. Ass'y. MTD-05500
...
31
Shld. Bolt .498 Dia. x 2.005 MTD-738-0129
...
32
Shift Linkage Brkt. Ass'y. MTD-784-5133
...
33
Auger Clutch Brkt. MTD-05518
...
34
Spring MTD-732-0184
...
35
Shoulder Bolt .374 Dia. x 1.53" Lg. MTD-938-0560
...
36
Hex Flange Brg. Plastic .38" I.D. MTD-741-0402
...
37
Shoulder Nut 1/4-20 Thd. MTD-938-0561
...
38
Lower Handle Half R.H. MTD-749-0406
...
39
Hairpin Cotter MTD-714-0104
...
40
Shift Handle Ass'y. MTD-05805A
...
41
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
42
Comp. Spring .60" O.D. x 88" Lg. MTD-732-0193
...
43
Bell-Wash. .401" I.D. x .88" O.D. x .060 MTD-736-0105
...
44
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
45
Handle Panel Ass'y. MTD-784-5139
...
46
Upper Handle Half R.H. MTD-749-0596
...
47
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
48
GRIP MTD-731-0473
...
...
...
Processing
