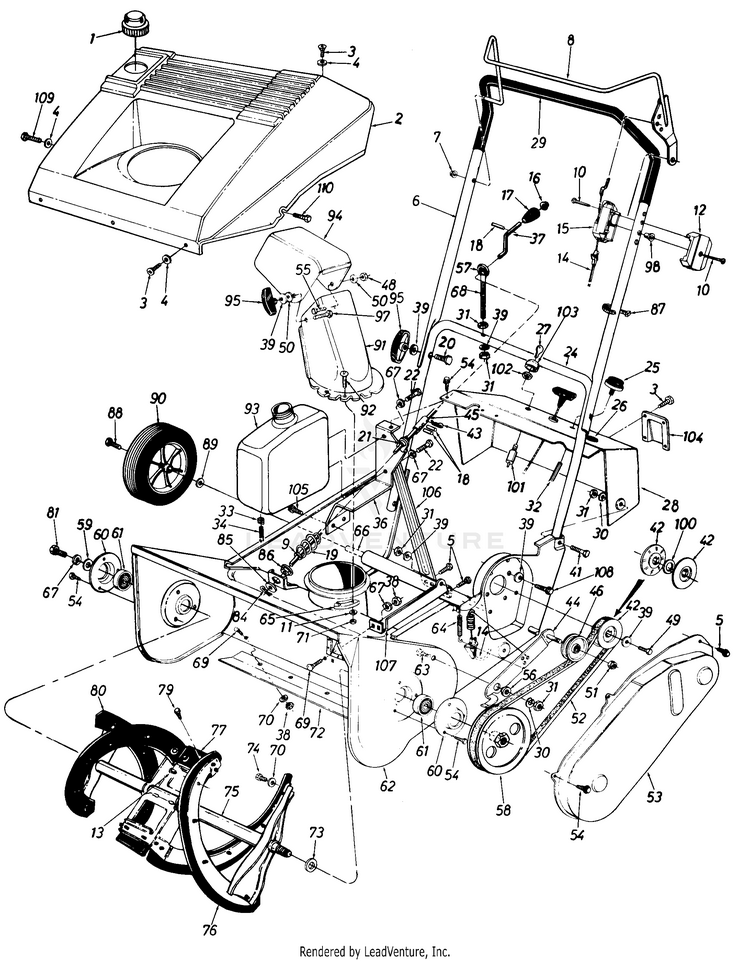

MTD 310193 (1990) Snow Thrower

Model: 310193 (1990)

Save Part Not Listed?
product name

Snow

...
...
1
TANK CAP MTD-751-0603B
...
2
SHROUD MTD-731-1088
...
3
Hex B-Tap Scr. #10 x .5" Lg. MTD-710-0351
...
4
Fl-Wash. .203" I.D. x .41" MTD-736-0931
...
5
SCREW 1/4-14 x .625 MTD-710-0892
...
6
UPPER HANDLE MTD-749-0711A
...
7
Cap Speed Nut MTD-726-0135
...
8
HANDLE ASSEMBLY CONT (LH) MTD-784-5346A
...
9
Fl-Wash. .385" I.D. x .62" MTD-736-0140
...
10
Truss Mach. Hi-B Tap Scr. #12 x 1.5" Lg. MTD-710-0796
...
11
Fl-Wash. .281" I.D. x .5" O.D. MTD-736-0142
...
12
PANEL MTD-731-0815
...
13
Pop Rivet .188 Dia. MTD-928-0123
...
14
Clutch Cable 35" Lg. MTD-946-0506
...
15
CIUTCH PANEL HALF MTD-731-0816
...
16
Push Cap 3/8" Rod MTD-726-0100
...
17
Knob 3/8" Dia. Hole MTD-720-0201A
...
18
Rolled Pin, 1/8 x .63 MTD-915-0138
...
19
CHUTE CRANK ASSEMBLY MTD-784-5497
...
20
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
21
Chute Crank Grommet MTD-735-0234
...
22
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
24
LOWER HANDLE MTD-749-0796
...
25
Primer MTD-TC-570682A
...
26
SPARK PLUG CAP MTD-731-1133C
...
27
Key MTD-925-0201
...
28
DASH MTD-784-5572
...
29
Grip Foam MTD-720-0295
...
30
Lock Wash. 5/16" I.D. MTD-936-0119
...
31
HEX NUT 5/16-18 MTD-712-3010
...
32
LINE-PRIMER MTD-TC-32180C
...
33
Hose Clamp 1/2" O.D. MTD-726-0205
...
34
FUEL HOSE 1/4-24" MTD-751-22813-24
...
36
BRACKET-TANK SUPPORT MTD-705-5139
...
37
Upper Chute Crank MTD-747-0737-0637
...
38
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
39
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
41
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
42
Pulley Half, .625 x 2.25 MTD-956-0416B
...
43
Hairpin Clip 3/8" Dia. MTD-714-0145
...
44
KIT-IDLER/BRAKE BRACKET MTD-753-05156
...
45
SPACER-.38IDX.500 x 2.50LG MTD-950-0785
...
46
Fl-Idler w/Flanges 2.12" O.D. MTD-756-0313
...
48
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
49
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
50
Fl-Wash. .344" I.D. x 1.25" MTD-736-0231
...
51
HEX LOCK NUT 3/8-2 MTD-912-0296
...
52
V-Belt 1/2 x 35.0" Lg. MTD-954-0101A
...
53
BELT COVER SINGLE (POWDER BLACK) MTD-790-00045C-0637
...
54
Hex B-Tap Scr. 1/4" x .38" Lg. MTD-710-0352
...
55
Carriage Bolt 5/16-18 x .75" MTD-710-0451
...
56
Shld. Spacer .50" Dia. x .27" MTD-748-0234
...
57
BUSHING .380 ID MTD-941-0475
...
58
1/2" "V"-Pulley 1/2-20 L.H. x 6" MTD-756-0475
...
59
Fl-Wash. 1/4" I.D. x .93" O.D. MTD-736-0176
...
60
BEARING CUP (POWDER BLACK) MTD-784-5174-0637
...
61
BALL BEARING MTD-941-0600
...
62
21" BLOWER HOUSING MTD-784-5325C
...
63
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
64
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
65
Chute Flange Keeper MTD-731-0851A
...
66
AXLE-WHEEL 20.6 IN LG MTD-749-0810
...
67
L-Wash. 1/4" I.D. MTD-936-0329
...
68
EYEBOLT MTD-747-0697
...
69
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
70
Fl-Wash. .281 I.D. x .73" MTD-736-0173
...
71
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
72
Shave Plate MTD-731-1033
...
73
Fl-Wash. .510" I.D. x 1.0" O.D. MTD-736-0326
...
74
Hex Wash. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
75
AUGER ASSEMBLY MTD-984-04027A
...
76
Rubber Spiral - L.H. MTD-931-0780A
...
77
Rubber Paddle MTD-931-0782A
...
79
Special Screw, #10-16 x .625 MTD-710-04669
...
80
Rubber Spiral - L.H. MTD-931-0780A
...
81
Hex Wash. TT-Tap Cl-Scr. 1/4-20 x .75" Lg. MTD-710-0875
...
84
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
85
Fl-Wash. .406" I.D. x 1.25" MTD-736-0133
...
86
BUSHING-HEX MTD-741-0403
...
87
Cable Tie MTD-725-0157
...
88
HEX SCREW WASH HD 3/8-24X7/8 MTD-710-0649
...
89
Fl-Wash. .510" I.D. x .75" MTD-736-0108
...
90
WHEEL ASSEMBLY W/TIRE MTD-734-1176
...
91
LOWER CHUTE MTD-731-0915
...
92
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
93
FUEL TANK 2 QT. MTD-751-0540
...
94
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
95
Star Knob MTD-720-04072A
...
97
Carriage Bolt 5/16-18 x 1" MTD-710-0276
...
98
CONROL DISC PIN MTD-731-0524
...
100
Fl-Wash. .635" I.D. x .93" O.D. x .06" MTD-736-0116
...
101
Ignition Switch MTD-925-1425
...
102
IGNITION SWITCH NUT MTD-925-1346
...
103
Ignition Switch Cap MTD-725-1347
...
104
COVER MTD-731-1089
...
105
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
106
BRACE - FUEL TANK MTD-784-5603
...
107
SUPPORT-ENGINE MTD-784-5495
...
108
SCREW 5/16-18 x .625 GR5 MTD-710-0759
...
109
SCREW-PAN HEAD TAPP MTD-710-1056
...
110
Screw, Hex MTD-710-0788
...
xx
120V Electric Starter Kit (Optional) MTD-390-996
