MTD 310-960-327 Snow Thrower

Model: 310-960-327

Save Part Not Listed?
product name

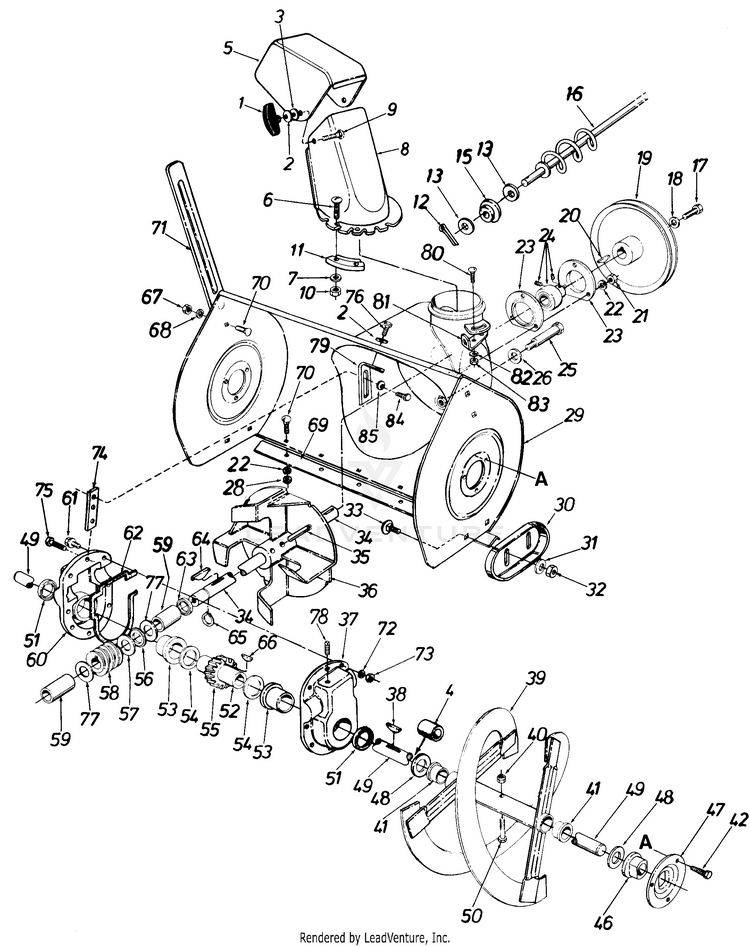

Parts

...
...
1
Star Knob MTD-720-04072A
...
2
Bell-Wash. .345 I.D. x .88 O.D. x.060 MTD-736-0242
...
3
Fl. Wash. .312 I.D. x 1.125 O.D. x .125 MTD-736-0231
...
4
Spacer (840,850) MTD-750-0653
...
5
Chute, Upper, 6.0 MTD-731-0846C
...
6
Truss Mach. Scr. 1/4-20 x.75" Lg. MTD-710-0924
...
7
Fl-Wash. 1/4" I.D. MTD-736-0142
...
8
Chute MTD-931-0840B
...
9
Carr Bolt 5/16-18 x 1.00" Lg. MTD-710-0276
...
10
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
11
Chute Flange Keeper MTD-731-0851A
...
12
Cotter Pin MTD-714-0507
...
13
Fl-Wash. .385" I.D. x .62" MTD-736-0140
...
15
BUSHING .380 ID MTD-941-0475
...
16
CHUTE CRANK ASS'Y. MTD-05980
...
17
SCREW 5/16-18 x .750 MTD-710-1880
...
18
Bell-Wash. .345 I.D. x .88 MTD-736-0242
...
19
V-Pulley .875 I.D. x 10.12 MTD-756-0243
...
20
#9 Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Lock Wash. 5/16" I.D. MTD-936-0119
...
23
Bearing Hsg.-Self Aligning Brg. MTD-05244B
...
24
Self Aligning Brg. .875 I.D. MTD-941-0185
...
25
Stud 3/8-16 x 2.75" Lg. MTD-711-0640
...
26
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105
...
28
HEX NUT 5/16-18 MTD-712-3010
...
29
Blower Hsg. Ass'y. (840, 850) MTD-705-5082
...
xx
BLOWER HOUSING ASSEMBLY (960) MTD-784-5011
...
30
Skid Shoe MTD-784-5038B-0637
...
31
Bell-Wash. .400 I.D. x .88 O.D. x .060 MTD-736-0105
...
32
Jam Nut, 3/8-16 MTD-912-3008
...
33
CARRIAGE BOLT 3/8-16 X .75 MTD-710-0389
...
34
Blower Axle MTD-738-0276
...
35
Spring Pin Spiral 5/16" Dia. x 1.75" Lg. MTD-715-0118
...
36
BLOWER FAN ASS'Y. MTD-05812
...
37
GEAR BOX HOUSING KIT MTD-753-0889
...
38
#91 Woodruff Key 1/4" x 3/4" Dia. MTD-714-0135
...
39
26" SPIRAI ASS'Y. L.H. (840, 850) MTD-05463
...
xx
2" SPIRAL ASS'Y. R.H. (840, 850) MTD-05464
...
xx
SPIRAL ASSEMBLY (960) MTD-05461
...
xx
SPIRAL ASSEMBLY (960) MTD-05462
...
40
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
41
Plastic Bushing MTD-741-0494
...
42
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .62" Lg. MTD-710-0726
...
46
Flange Bearing w/ Flats MTD-941-0170
...
47
Bearing Hsg.-Spiral Hsg. MTD-05845C-0637
...
48
Fl-Wash. 1.06 I.D. x 1.75" O.D. x .100 MTD-736-0250
...
49
SPIRAL AXLE (840, 850) MTD-738-0493
...
xx
SPIRAL AXLE (960) MTD-738-0491
...
50
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-0891
...
51
Oil Seal 1.50" I.D. MTD-921-0146
...
52
Worm Gear Shaft MTD-738-0275
...
53
BEARING, FLANGE MTD-741-0182
...
54
FLAT WASHER MTD-736-0266
...
55
Double Threaded Worm Gear MTD-917-1425
...
56
Thrust Brg. .88 I.D. x 1.44 O.D. x .078 MTD-741-0184
...
57
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291
...
58
Double Threaded Worm-L.H. MTD-917-0299
...
59
Sleeve Brg. .875 I.D. MTD-941-0217
...
60
GEAR BOX HOUSING KIT (Incl. Ref. Nos. 51 & 53) MTD-753-0889
...
61
Hex Bolt 5/16-18 x 1.0" Lg. MTD-710-0376
...
62
Gasket MTD-921-0144
...
63
Oil Seal .875" I.D. MTD-921-0145
...
64
#9 Hi-Pro Key 3/16 x 3/4" Dia. MTD-714-0126
...
65
Snap Ring .875" Dia. MTD-716-0111
...
66
#91 Woodruff Key 1/4 x 3/4" Dia. MTD-714-0135
...
67
HEX NUT 5/16-18 (Optional Part) MTD-712-3010
...
68
Lock Wash. 5/16" I.D. (Optional Part) MTD-936-0119
...
69
Shave Plate-28" (840, 850) MTD-705-5084-0637
...
xx
Shave Place (960) MTD-05378-0637
...
70
Carriage Bolt 5/16-18 x.62 (Optional Part) MTD-710-0260A
...
71
Drift Cutter (Optional Part) MTD-790-00181-0637
...
72
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
73
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
74
SUPPORT PLATE-GEAR MTD-784-5075
...
75
Hex Bolt 5/16-18 x 1.25"* MTD-710-0528
...
76
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726
...
77
Fl-Wash. .88 I.D. x 1.40 O.D. MTD-736-0291
...
78
Filler Plug MTD-737-0175
...
79
Gear Hsg. Support Brkt. MTD-784-5076-0637
...
80
Carr. Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
81
BRACKET-CHUTE CRAN MTD-784-5123-0637
...
82
Bell-Wash. .345 I.D. x .88" MTD-736-0242
...
83
HEX NUT 5/16-18 MTD-712-3010
...
84
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
85
SPRING WASHER BELL MTD-736-0270
...
xx
KIT MTD-717-0296

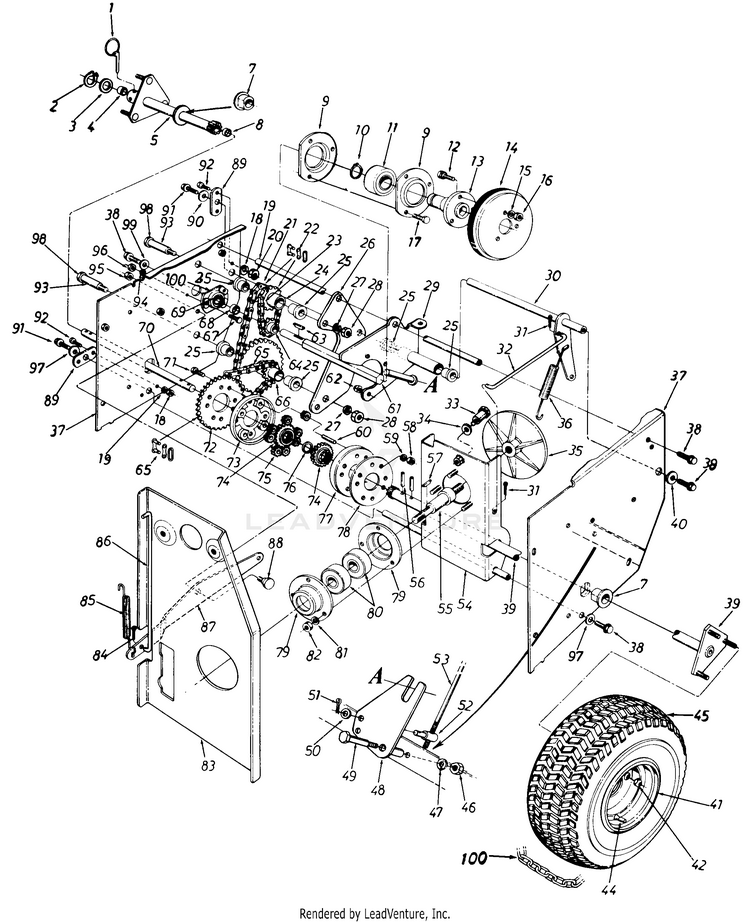

Parts

...
...
1
Click Pin MTD-714-0143A
...
2
SNAP RING FOR .625 DIA SHAFT MTD-916-0115
...
3
Fl-Wash. .62" I.D. x 1.25" MTD-736-0187
...
4
SLEEVE BEARING (Must Be Drilled After Press Fit) MTD-741-0305
...
5
Differential Tubing Ass'y. R.H. MTD-05637
...
7
Flange Bearing w/ Flats MTD-941-0170
...
8
SLEEVE BEARING MTD-741-0305
...
9
HOUSING-BR MTD-05794
...
10
Snap Ring 1.00" Dia. MTD-716-0102
...
11
Ball Brg. .25MM x 52MM x 15MM Thk. MTD-941-0301
...
12
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
13
ADAPTER-FRICTION WHL MTD-748-0281
...
14
Friction Wheel Ass'y. MTD-05080AP
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
18
L-Wash. 1/4" I.D. MTD-936-0329
...
19
AXLE-SLIDING SUP MTD-738-0278
...
20
HEX NUT 1/4-20 MTD-912-0287
...
21
#41 CHAIN MTD-713-0270
...
22
#41 MASTER LINK 1/2 PITCH TYPEII MTD-913-0723
...
23
#41 CHAIN MTD-713-0199
...
xx
#41 MASTER LINK 1/2 PITCH TYPEII MTD-913-0723
...
24
SPROCKET & HUB ASSEMBLY 9 &14T MTD-913-0193
...
25
FLANGE BEARING .630 ID MTD-748-0184
...
26
BRACKET-CHAIN SUP MTD-05520
...
27
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
28
Hex L-Jam Nut 3/8-24 Thd. MTD-712-0116
...
29
BRACKET ASSEMBLY-SLIDING MTD-784-5137
...
30
Drive Clutch Brkt. Ass'y. MTD-05500
...
31
Inter. Cot. Pin 5/16" Dia. MTD-714-0104
...
32
CLUTCH ROD-DR MTD-747-0150
...
33
SHOULDER SCREW .498 MTD-738-0144
...
34
Bell-Wash. .44" I.D. x .88" MTD-736-0105
...
35
Plate, Drive MTD-917-0302
...
36
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
37
Frame Ass'y. MTD-784-5129B
...
38
Hex L-Bolt 5/16-18 x .62" MTD-710-0538
...
39
SHAFT ASSEMBLY MTD-05820B
...
40
Fl-Wash. .345" I.D. x .75" MTD-736-0264
...
41
RIM ONLY MTD-09262
...
42
NUT-CONE-3 MTD-712-0193
...
44
TUBELESS VALVE MTD-934-0255
...
45
WHEEL ASSEMBLY W/TIRE MTD-734-0748
...
xx
TUBELESS TIRE-16 x 6.5 x 8.0 MTD-734-0275
...
46
Jam Nut, 3/8-16 MTD-912-3008
...
47
L-Wash. 3/8" I.D.* MTD-736-0169
...
48
BRACKET ASSY MTD-784-5133
...
49
Shld. Bolt .498" Dia. x 2.005" Lg. MTD-738-0129
...
50
Fl-Wash. .344" I.D. x .62" MTD-736-0264
...
51
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
52
FERRULE-ADJ MTD-711-0628A
...
53
ROD-SHIFT MTD-747-0356
...
54
452 DRIVE PLATE MTG. BRKT. ASS'Y. MTD-05497
...
55
Drive Plate Spindle MTD-738-0279
...
56
SPRING PIN MTD-715-0136
...
57
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
58
Hex Nut 1/4-28 Thd. MTD-712-0138
...
59
L-Wash. 1/4" I.D. MTD-936-0329
...
60
PIN-DIFFERENTIAL MTD-738-0304
...
61
HEX SHAFT MTD-738-0280
...
62
Hex L-Nut 1/4-28 Thd. MTD-712-0896
...
63
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
64
CENTER SPROCKET #41-8T MTD-748-0204
...
65
#420 CHAIN 1/2 PITCH x 37 LINKS MTD-913-0269
...
xx
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
66
9 and 32 Teeth Sprocket Hub Ass'y. MTD-913-0194
...
67
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
68
SPACER MTD-750-0277
...
69
Ball Bearing MTD-741-0133
...
70
SHAFT-DIFF CONNECTING MTD-738-0284
...
71
SCREW 1/4-28 x 1.75 GR5 MTD-710-0559
...
72
28 Teeth Sprocket MTD-713-0198
...
73
DIFFERENTIAL HOUSING MTD-748-0222
...
74
20 TOOTH SPUR GEAR MTD-748-0224
...
75
SPUR GEAR-9T MTD-748-0223
...
76
Fl-Wash. .62" I.D. x 1.25" MTD-736-0187
...
77
DIFFERENTIAL HOUSING MTD-748-0222
...
78
PLATE-DIFF MTD-05484
...
79
Bearing Housing MTD-08253B
...
80
BALL BEARING MTD-741P0919B
...
81
Lock Wash. 5/16" I.D. MTD-936-0119
...
82
HEX NUT 5/16-18 MTD-712-3010
...
83
BRACKET ASSEMBLY-ENG MTD-05491A
...
84
Inter. Cotter Pin 5/16" Dia. MTD-714-0104
...
85
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
86
Auger Clutch Rod .31" Dia. x 10.62" Lg. MTD-747-0149
...
87
AUGER CLUTCH BRACKET MTD-05518
...
88
Shld. Bolt .625" Dia. x .170" MTD-738-0281
...
89
BRACKET-PIVOT AXLE MTD-05523
...
90
Fl-Wash. .345" I.D. x .75" MTD-736-0264
...
91
Hex L-Bolt 5/16-18 x .62" MTD-710-0538
...
92
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
93
HUB-SPROCKET MTD-750-0275
...
94
L-Wash. 1/4" I.D. MTD-936-0329
...
95
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
96
HEX NUT 1/4-20 MTD-912-0287
...
97
Fl-Wash. .344" I.D. x .875" MTD-736-0159
...
98
SCREW 3/8-24 x 2.75 GR.5 MTD-710-0629
...
99
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
100
Tire Chain (Optional) MTD-390-0146

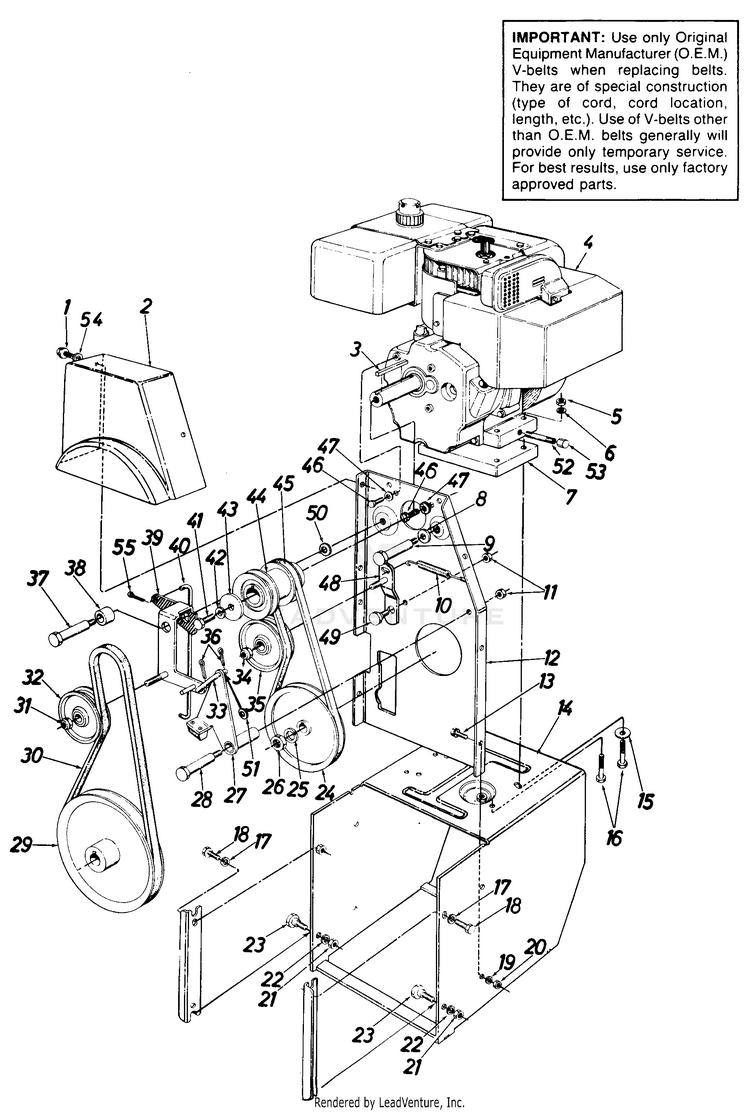

Parts

...
...
1
Hex AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
2
Belt Cover MTD-931-2531
...
3
Sq. Key 1/4" x 1.50" Lg. MTD-714-0118
...
4
Engine MTD-NA
...
5
HEX NUT 5/16-18 MTD-712-3010
...
6
Lock Wash. 5/16" I.D. MTD-936-0119
...
7
ENGINE BLOCK SPACER MTD-717-0522
...
8
Bell-Wash. .40 I.D. x .88 O.D. MTD-736-0105
...
9
Shld. Bolt .498" Dia. x 3.00" Lg. MTD-738-0215A
...
10
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
11
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
12
BRACKET ASSEMBLY-ENG MTD-05491A
...
13
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
14
Frame Ass'y. MTD-784-5129B
...
15
Fl-Wash. .345 I.D. x .75 O.D. x .060 MTD-736-0264
...
16
Hex Bolt 5/16-18 x 2.50" Lg. MTD-710-0378
...
17
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
18
Hex Screw, 3/8-16 x.75 MTD-710-0216
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
HEX NUT 5/16-18 MTD-712-3010
...
21
Hex Nut 3/8-16 Thd. MTD-712-0798
...
22
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
23
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
24
V-Pulley .628 I.D. x 7.50 O.D. MTD-756-0344
...
25
L-Wash. for 5/8" I.D. MTD-736-0158
...
26
HEX NUT MTD-712-0221
...
27
BRACKET-ASSEMBLY BRAKE MTD-05510A
...
28
Shld. Bolt .498" Dia. x 2.00" Lg. MTD-738-0129
...
29
V-Pulley .875 I.D. x 10.12 O.D. MTD-756-0243
...
30
V-Belt 1/2" X 45.0" Lg. (Belts listed by part number are of special construction and should be used when replacement is necessary) MTD-954-0194
...
31
Hex Ins. Jam L-Nut 3/8-24 Thd MTD-712-0116
...
32
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
33
BRAKE LINKAGE ASS'Y. MTD-05531
...
34
Hex Ins. Jam L-Nut 3/8-24 Thd. MTD-712-0116
...
35
FLAT IDLER PULLEY-3.00 MTD-756-0240
...
36
Int. Cot. Pin 3/32" Dia. MTD-714-0507
...
37
SHOULDER SCREW .625 DI MTD-738-0282
...
38
Spacer .75 O.D. x 1.00" Lg. MTD-750-0227
...
39
BLOWER IDLER BRACKET. ASS'Y. MTD-05493
...
40
Auger Clutch Rod .31" Dia. x 10.62" Lg. MTD-747-0149
...
41
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
42
L-Wash. 3/8" I.D. H.D. MTD-736-0217
...
43
FLAT WASHER .395ID 1 MTD-07386
...
44
Engine Pulley Double Groove MTD-756-0241B
...
45
V-Belt 3/8 x 35.5 Lg. (Belts listed by part number are of special construction and should be used when replacement is necessary) MTD-954-0131
...
46
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
47
Bell-Wash. .345 I.D. x .88 O.D. x .060 MTD-736-0242
...
48
Drive Idler Brkt. Ass'y. MTD-05495
...
49
Shld. Bolt .625" Dia. x .170" Lg. MTD-738-0281
...
50
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
51
Fl-Wash. MTD-936-0117
...
52
PIPE DRAIN 1/4 NPT MTD-737-0298
...
53
Hex Hd. Cap 1/4-18 Pipe Thd. MTD-737-0132
...
54
Fl-Wash. .340 I.D. x .62 O.D. x .62 MTD-736-0264
...
55
Int. Cot. Pin 5/16" Dia. MTD-714-0104
...
xx
Key (Not Shown) MTD-TC-35062
...
xx
Electric Start Kit (Not Shown) (Optional Part) MTD-390-0987

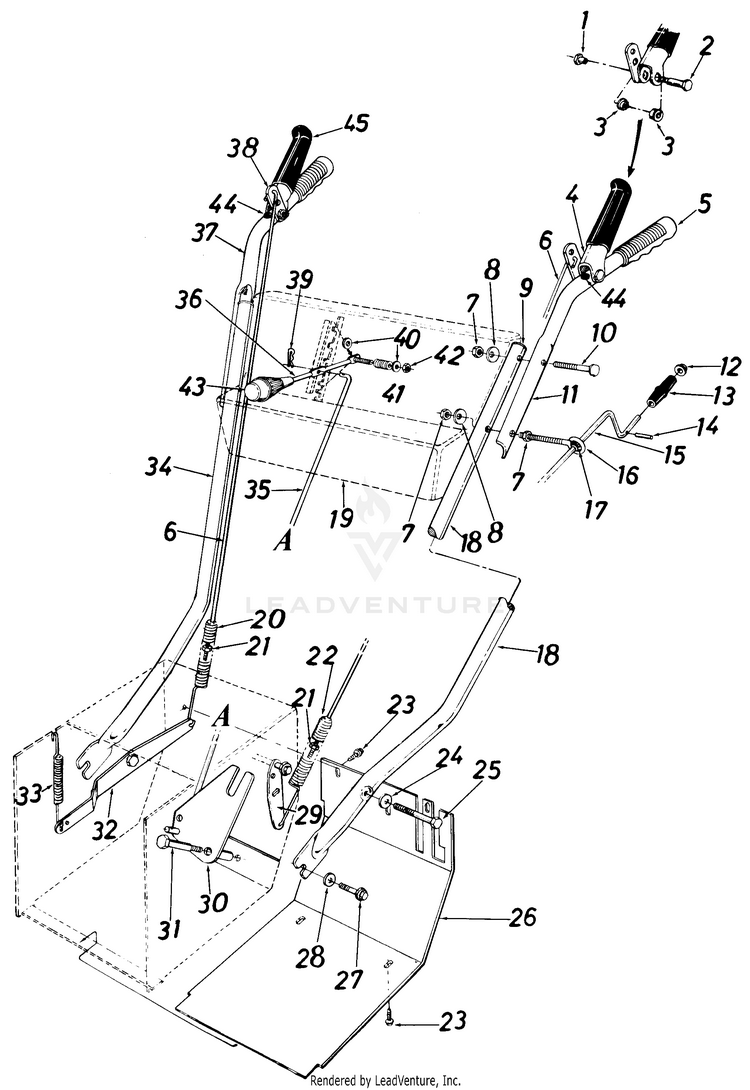

Parts

...
...
1
SHOULDER NUT MTD-938-0561
...
2
Shoulder Bolt .374 Dia. x 1.53" Lg. MTD-938-0560
...
3
BEARING-FL MTD-741-0402
...
4
Clutch Grip Ass'y. L.H. MTD-05987
...
5
GRIP MTD-720-0220
...
xx
Grip MTD-720-04083
...
6
LOCK RODOU MTD-747-0461
...
7
HEX NUT 5/16-18 MTD-712-3010
...
8
Bell-Wash. .34" I.D. x .88" O.D. MTD-736-0242
...
9
PLUG MTD-731-0496
...
10
Curved Carriage Bolt 5/16-18 x 2.0" Lg. MTD-710-0487
...
11
HANDLE-FOLDING (LH) MTD-749-0595
...
12
Push Nut 3/8" Rod MTD-726-0100
...
13
Knob 3/8" Rod MTD-720-0201A
...
14
Rolled Pin, 1/8 x .63 MTD-915-0138
...
15
CHUTE CRANK ASS'Y. MTD-05980
...
16
EYE-BOLT MTD-747-0416A
...
17
BUSHING .380 ID MTD-941-0475
...
18
Lower Handle L.H. MTD-749-0405
...
19
HANDLE PANEL ASSEMBLY MTD-784-5451
...
20
Spring, Extension, .75 O.D. x 5.0 MTD-732-0463A
...
21
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
22
Extension Spring .75" O.D. x 5.0" Lg. MTD-732-0184
...
23
SCREW 5/16-24 x .500 MTD-710-0600
...
24
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105
...
25
Hex Bolt 3/8-16 x 2" Lg. (Gr. 5) MTD-710-3144
...
26
Frame Cover MTD-784-5131B
...
27
Hex Screw, 3/8-16 x.75 MTD-710-0216
...
28
Bell-Wash. .40" I.D. x .88" O.D. MTD-736-0105
...
29
Drive Clutch Brkt. Ass'y. MTD-05500
...
30
BRACKET ASSY MTD-784-5133
...
31
Shld. Bolt .498 Dia. x 2.0" Lg. MTD-738-0129
...
32
BRACKET-AU MTD-05518B
...
33
Spring .38" O.D. x 3.18" Lg. MTD-932-0303
...
34
Lower Handle R.H. MTD-749-0406
...
35
SHIFT ROD MTD-747-0356A
...
36
SHIFT HANDLE MTD-747-0696
...
37
HANDLE-FOLDING-RH MTD-749-0596
...
38
GRIP ASSEMBLY- MTD-05988
...
39
Int. Cotter Pin 5/16" Dia. MTD-714-0104
...
40
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0264
...
41
Compression Spring MTD-732-0193
...
42
Hex Ins. L-Nut 5/16-18 Thd. MTD-712-0429
...
43
Knob MTD-720-0218
...
44
Bumper, Rubber MTD-735-0199A
...
45
GRIP MTD-731-0473
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
