MTD 310-552-098 Snow Thrower

Model: 310-552-098

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
FRAME ASSEMBLY MTD-784-5197
...
2
Spacer .50" I.D. x .75" O.D. x.78" Lg. MTD-750-0499
...
4
KEY-HI-PRO #4-3/32X5/8 DIA MTD-914-0129
...
5
Friction Wheel Ass'y. MTD-05080AP
...
6
HEX SHAFT MTD-738-0496A
...
7
PLATE ASSEMBLY MTD-05883
...
8
Snap Ring 1.00" Dia. Shaft MTD-716-0102
...
9
Fl-Wash. 1.00" x 1.63 O.D. x .03 MTD-736-0163
...
10
BRACKET AS MTD-05880
...
12
#41 CHAIN 1/2" PITCH x 35 0 LINKS MTD-713-0285
...
13
#41 MASTER LINK 1/2 PITCH TYPEII MTD-913-0723
...
14
32 Teeth Sprocket Ass'y. MTD-713-0281
...
15
FLANGE BEARING MTD-941-0225
...
16
FLAT WASHER MTD-736-0290
...
17
Hex Lock Bolt 5/16-18 x .62" Lg. MTD-710-0538
...
18
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
20
Flange Brg. w/Flats .75" I.D. MTD-941-0490
...
21
Fl-Wash. .34" I.D. x 1.12" O.D. x .125 MTD-736-0231
...
25
Jam Nut, 3/8-16 MTD-912-3008
...
26
L-Wash. 3/8" I.D. MTD-736-0169
...
27
BRACKET-LINKAGE MTD-05898A
...
29
Shld. Bolt .625" Dia. x .170" Lg. MTD-738-0281
...
30
Engagement Ferru MTD-911-0677
...
31
ROD-SHIFT MTD-747-0356
...
32
Fl-Wash. .34" I.D. x .64" O.D. x .06 MTD-736-0264
...
33
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
34
RETAINING RING MTD-716-0397
...
35
SPROCKET-7T MTD-713-0280
...
36
Shaft .50" Dia. x 9.50" Lg. MTD-738-0497
...
37
AXLE ASSEMBLY-WHEEL MTD-713-0323
...
38
SCREW 5/16-24 x .500 MTD-710-0600
...
39
CHAIN MTD-713-0287
...
40
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
41
CENTER SPROCKET #41-8T MTD-748-0204
...
42
Lock Wash. 5/16" I.D. MTD-936-0119
...
43
Bearing MTD-741-04488
...
44
FLANGE BEARING .630 ID MTD-748-0184
...
45
Fl-Wash. .76" I.D. x 1.49 O.D. MTD-736-0188
...
46
SHAFT-WHEEL MTD-738-0684
...
47
Flange Bearing .632 ID MTD-741-0487C
...
48
Snow Track 5" x 48" MTD-731-0775
...
49
Drive Wheel Ass'y. MTD-784-5310
...
50
#420 CHAIN 1/2 PITCH x 37 LINKS MTD-913-0269
...
51
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
52
Spring Pin Spir. 1/4" Dia. x 1.50" Lg. MTD-715-0114
...
53
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
54
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
55
FLANGE BEARING MTD-741-0382
...
56
Fl-Wash. .510" I.D. x 1.0" O.D. MTD-736-0326
...
57
PLATE ASSEMBLY-OUTER (LH) MTD-784-5305
...
xx
PLATE ASSEMBLY-OUTER (RH) (Not Shown) MTD-784-5306
...
58
Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
59
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
60
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
61
TRACK ADJUSTER MTD-784-5312A
...
62
SKID SHOE MTD-784-5301
...
63
IDLER ASSEMBLY- MTD-784-5311
...
64
Inner Plate Ass'y. L.H. MTD-784-5453
...
66
Spring Pin 1/4" x 1.25" Lg. MTD-715-0143
...
69
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
70
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
71
Bell-Wash. .50 I.D. x 1.0 O.D. x .075 MTD-736-0253
...
72
17 T SPROCKET HUB ASS'Y. MTD-713-0366
...
73
PLATE ASSEMBLY-INNER (RH) MTD-784-5454
...
74
Track Lock Axle MTD-738-0734
...
75
FLAT WASHER MTD-736-0290
...
76
Hex L-Nut 3/8-16 Thd. MTD-712-0375
...
77
Pivot Arm Ass'y. L.H. MTD-784-5422
...
78
LINK-SLOTTED MTD-784-5424
...
79
Shoulder Screw, .625 Dia. x .21 MTD-738-0322A
...
80
Hex Wash. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
81
PLATE-POS SELECTOR MTD-784-5450
...
82
HANDLE ASSEMBLY-LOCK MTD-784-5421A
...
83
GRIP MTD-720-0143
...
84
Hex Bolt 5/16-24 x 1.25" Lg. Grade 5 MTD-710-0672
...
85
Spacer.325" I.D. MTD-950-0589

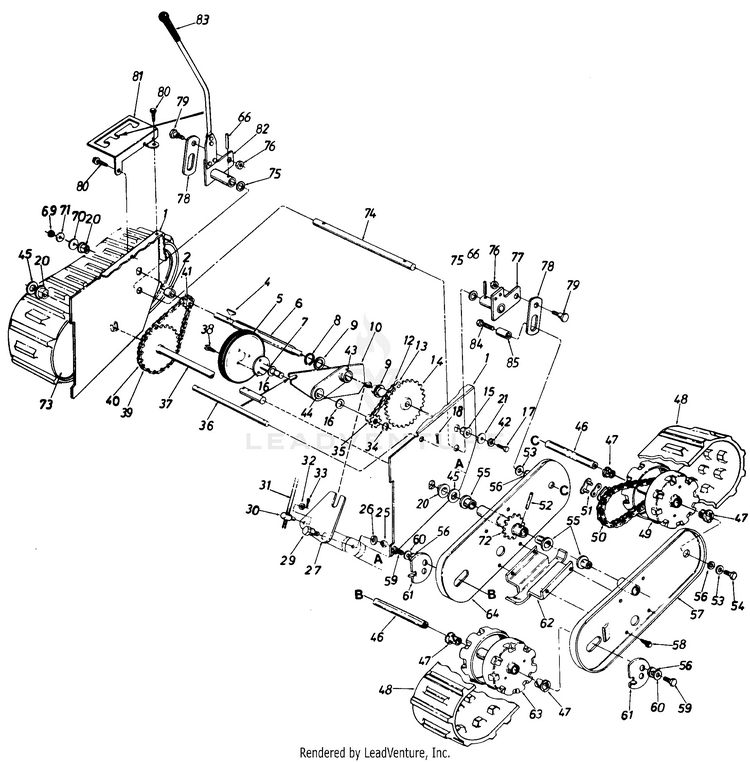

Schematic Image Zoomed
