product name

MTD 254-587B118 (1994) Edger

Model: 254-587B118 (1994)

Save
Part Not Listed?Part Not Listed?

product name

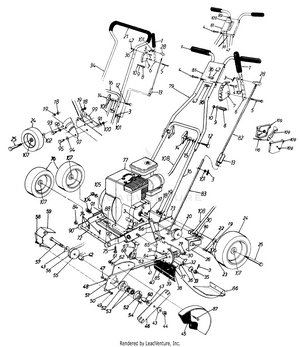

General Assembly

...
...
1
Foam Grip MTD-720-0283

...
?2
Hex L-Nut 1/4-20 Thd MTD-912-0107

...
3
Cotter Pin 5/16" Dia. MTD-714-0104

...
4
Hex Bolt 1/4-20 x 1.25" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0106

...
5
Hex Bolt 5/16-18 x 2.00" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-3103

...
6
Engagement Handle MTD-749-0666-0637

...
7
Adjustment Bracket MTD-781-0081

...
8

...
9
Fl-Wash..344" I.D. MTD-736-0264

...
10
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158

...
12
Curv. Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174

...
13
Rod-Clutch Lock MTD-950-0963

...
14
Star Knob MTD-720-04072A

...
15
Saddle Wash. .32" I.D. x .937" MTD-736-0451

...
16
Lower Handle MTD-749-0937-0637

...
17
Sq. Key 3/16" x .75" Lg. MTD-714-0122

...
18
Hex Nut 3/8-16 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0798

...
19
L-Wash. 3/8" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169

...
20
Engine Pulley MTD-756-0327A

...
21
Foam Grip For models 596 & 598 MTD-720-0280

...
xx
Rear Wheel Ass'y For models 596 & 598 MTD-734-1268

...
22
Fl-Wash..385" I.D. MTD-736-0258

...
23
Hex Bolt 3/8-24 x 1" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-1039

...
24
Rear Wheel Ass'y.- Bar Tread For models 586, 587B & 588 MTD-734-1781

...
xx
Rear Wheel Ass'y.- Waffle Tread For models 586 & 588 MTD-734-0894

...
xx
Rear Wheel Ass'y. For models 596 & 598 MTD-734-1268

...
25
Shoulder Bolt .498" Dia. MTD-938-0108

...
26
Belt Guard Ass'y. MTD-687-0100

...
27
Compression Spring MTD-732-0187

...
28
Engagement Ferru MTD-911-0677

...
29
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
30
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
31
Spring Pin Spir. 1/4" Dia. MTD-715-0143

...
32
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287

...
33
Bell-Wash. .535" I.D. MTD-736-0112

...
34
Upper Loop Handle For models 596 & 598 MTD-749-0936

...
xx
Wave Washer.510 ID x.750 OD For models 596 & 598 MTD-936-0504

...
xx
BALL BEARING For models 596 & 598 MTD-941-0484

...
35
Hex Slotted Nut 1/2-20 Thd. MTD-912-0114

...
36
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329

...
37
Flap Bracket MTD-781-0087

...
38
Fl-Wash..25" I.D. MTD-736-0342

...
39
Hex Bolt 1/4-20 x .62" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0258

...

...
41
Hex Bolt 5/16-18 x 4.5" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0402

...
42
Spacer 1.030" Lg. MTD-750-0229

...
43
Bell-Washer. .63" I.D. MTD-736-0317

...
44
Hex Jam L-Nut 5/8-18 Thd. MTD-712-0413

...
45
Guard Ass'y. MTD-781-0076

...
46
Blade (Edger) MTD-781-0080-0637

...
47
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287

...
48
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329

...
49
Hex Nut 1/4-20 Thd. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287

...
50
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329

...
51
Spindle Plate Ass'y. MTD-781-0078

...
52
Bearing Housing MTD-15319B

...
53
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155

...
54
Hex Bolt 1/4-20 x .62" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0258

...
55
3/8" "V"-Pulley MTD-956-0449

...
56

...
57
Hex Bolt 5/8-18 x 4.5" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-3151A

...
58
Hex Bolt 1/4-20 x .625" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0258

...
59

...
60
Sleeve .90" Lg. MTD-950-0118

...
61
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
62
Bell-Wash. .345" I.D. MTD-736-0242

...
63
Spring Pin Spir. 1/4" Dia. MTD-715-0121

...
64
Pivot Bracket Ass'y. MTD-781-0090

...
65
Hex Wash. Hd. Self-Tap Scr. 5/16-24 x .50" Lg. MTD-710-0600

...
66
Arm Extension MTD-781-0075

...
67
Adjustment Lever Ass'y. MTD-981-0093

...
68
Torsion Spring MTD-732-0188A

...
?69
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010

...
?70
Lock Wash. 5/16" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

...
72
Axle 8.20" Lg. (Front) MTD-738-0898

...
73
Base Ass'y. MTD-681-0044

...
74
Hairpin Cotter 1/2" Dia. MTD-714-0101

...
75
Hex L-Wash. TT-Tap Scr. 3/8-16 x 1" Lg. MTD-710-0654A

...
76
Front Wheel Ass'y.- Bar Tread For models 586, 587B & 588 MTD-734-1797

...
xx
Front Wheel Ass'y.- Waffle Tread For models 586 & 588 MTD-734-0892

...
xx
Front Wheel Ass'y. For model 598 MTD-734-1264

...
77
Engine MTD-NA

...
79
Upper Handle For models 586 & 588 MTD-749-0938

...
80
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237

...
81
Handle Support Plate For models 586 & 588 MTD-781-0091A

...
xx
Handle Support Plate For models 587B MTD-781-0092A

...
82
Upper Clutch Rod MTD-747-0907

...
83
Lower Clutch Rod MTD-747-0908

...
84
Push Cap 1/2" Dia. MTD-726-0221

...
85
Spacer 3.765" Lg. MTD-711-0386

...
86
Debris Deflector MTD-781-0095

...
87
Hex Bolt 5/16-18 x .75" Lg. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0118

...
88
Ribbed Neck Bolt 3/8-24 x .8" Lg. MTD-710-0793

...
89
Self-Tap Scr. #10 x .5" Lg. For model 587B MTD-710-0779A

...
90
Axle Arm MTD-781-0580

...
91
Bell-Wash. .40" I.D. MTD-736-0105

...
?92
Flat Washer, .395 x 1.12 x .14 MTD-736-04005

...
93
Shld. Bolt .5" Dia. For models 587B, 596 and 598. MTD-938-0258

...
94
Bell-Wash. .515" I.D. For models 587B, 596 and 598. MTD-736-0255

...
95
Shld. Bolt .50" Dia. For models 587B, 596 and 598. MTD-738-0183

...
96
Fl-Wash. .51" I.D. x .94" For models 587B, 596 and 598. MTD-736-0192

...
97
Curb Height Adjuster For models 587B, 596 and 598. MTD-781-0100

...
99
Spring Adj. Lever For models 587B, 596 and 598. MTD-932-0552

...
100
JAM LOCK NUT For models 587B, 596 and 598. MTD-712-0266A

...
101
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0264

...
102
Wave Washer.510 ID x.750 OD For models 587B, 596 and 598. MTD-936-0504

...
103
Fl-Wash. .406" I.D. x .81" O.D. MTD-736-3050

...
104
Hex Nut 3/8-24 Thd. MTD-712-0241

...
105
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452

...
106
Bell-Wash. .38" I.D. x .88" O.D. For models 586, 587B & 588 MTD-736-0105

...
xx
Wave Washer.510 ID x.750 OD For models 596 & 598 MTD-936-0504

...
107
Plastic Bearing (Used w/Waffle Tread); For models 586, 587B & 588 MTD-741-0262

...
xx
BALL BEARING For models 596 & 598 MTD-941-0484

...
108
Strut 15.91" Lg. MTD-749-0941-0637

...
109
Throttle Control Box Ass'y. For model 587B MTD-831-0796A

...
110
Throttle Control Wire 39" Lg. For model 587B MTD-946-0630A
...
...
...
