MTD 252-512-352 (1992) Edger

Model: 252-512-352 (1992)


product name

Popular Parts

Popular Parts


Choke Control Assembly

...
...
1
HOUSING-SWITCH-UPPER T-HNDL90 New Part MTD-725-1585

...
2
SWITCH-ENGINE KILL New Part MTD-725-1586

...
3
WIRE-KILL SWITCH GROUND New Part MTD-729-0254

...
4
Ground Clip New Part MTD-725-1588

...
5
SCREW-PAN HD New Part MTD-710-1153

...
6
Hex Lock Nut 1/4-20 Thd. MTD-712-0324

...
7
Throttle Control Ass'y. Comp. New Part MTD-946-0645A

...
8
Cable Tie New Part MTD-726-0197

...
9
Rope Guide Eyebolt New Part MTD-710-1162

...
10
TUBE-LOWER HANDLE (MACH) New Part MTD-750-0839

...
11
SCREW #10-24 x 1.25 New Part MTD-710-1156

...
12
Hex Ins. E-Nut #10-24 Thd. MTD-712-0161

...
13
LOWER HANDLE TUBE New Part MTD-750-0838

...
14
DEFLECTOR-BRACKET New Part MTD-787-0118

...
15
WIRE-KILL SWITCH New Part MTD-729-0253

...
16
Hex Bolt 1/4-20 x .50" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-910-0289

...
17
CLIP-THROTTLE CABLE New Part MTD-787-0115

...
18
Hex L-Nut 1/4-20 Thd. New Part MTD-712-0324

...
19
HEX SCREW #10-24X1.5 New Part MTD-710-1106

...
20
TUBE-AXLE New Part MTD-750-0840

...
21
WHEEL-5" REAR New Part MTD-634-0007

...
22
WHEEL-3 3/4" FRONT New Part MTD-634-0008

...
23
Push Nut MTD-726-0100

...
24
SCREW .250-20X0.500 New Part MTD-710-1161

...
25
BASE-EDGER New Part MTD-787-0116

...
26
SCREW New Part MTD-710-1132

...
27
BRACKET-NOSE WHEEL New Part MTD-787-0117

...
28
SPRING-NOSE WHEEL New Part MTD-732-0686

...
29
FRAME-NOSE WHEEL WIRE FORM New Part MTD-747-0603

...
30
Fl-Wash. 318" I.D. x .875" O.D. New Part MTD-736-3004

...
31
SPACER-601 New Part MTD-750-0837

...
32
BLADE GUARD MTD-731-1193

...
33
GUIDE-EDGE New Part MTD-787-0101

...
34
SCREW-PH PAN TCS-10-32X1.0 New Part MTD-710-1073

...
35
9 REPLACEMENT BLADE New Part MTD-742-0554

...
36
Bell-Wash. 3/8" I.D. MTD-736-0105

...
37
L-Wash. 3/8" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0217

...
38
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A

...
39
Hex Nut 3/8-24 Thd. MTD-712-0241

...
40
HOUSING-SWITCH-LOWER T-HNDL 9 New Part MTD-725-1584

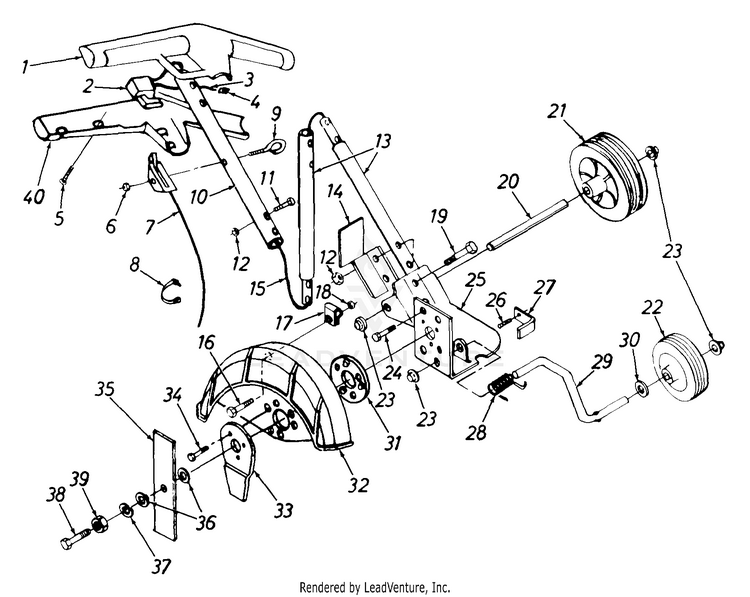

Schematic Image Zoomed
