MTD 251-536-134 Edger

Model: 251-536-134

Save
Part Not Listed?Part Not Listed?

product name

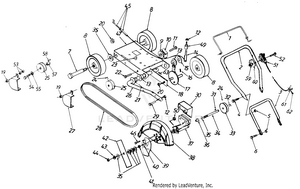

Parts

...
...
1
Lever-Depth Control MTD-747-0748

...
2
Upper Handb MTD-749-0832

...
3
Lower Handle MTD-749-0833

...
4
SCREW 5/16-18 x 1.5 LG MTD-710-0805A

...
5
Hex L-Nut 5/16-18 Thd. MTD-712-0429

...
6
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038

...
7
Wheel Bolt MTD-738-0856

...
8
Wheel - 6" MTD-734-1690

...
9
Idler Pulley MTD-756-0591

...
10
Bracket-Idler Pulley MTD-787-0105

...
11
Bolt (Special) MTD-710-1213

...
12
Hex L-Nut 5/16-18 Thd. MTD-712-0429

...
13

...
14
Arrn-Pivot Rod MTD-747-0602

...
15
Flat Washer 5/8-1.D. MTD-736-0237

...
16
Cotter Pin 1/8 x 3/4 MTD-714-0474

...
17
Adjustor Assembly (Depth) MTD-682-0500

...
18
Arrn-Front Wheel MTD-787-0102

...
19
Hex L-Nut 1/4-20 Thd. (534) MTD-712-0324

...
xx
Hex L-Nut 1/4-20 Thd (536) MTD-912-0107

...
20
Flange Lock Nut 3/8-16 MTD-912-0431

...
21
Spring-Cutterhead MTD-732-0660

...
22
Hex Bolt 5/16-18 x 1" MTD-710-1088

...
23
TT Screw, 3/8-16 x 1.00 (Special) MTD-710-0654A

...
24
Set Screw 5/16-18 x 3/8" Lg. (534) MTD-710-3006

...
25
Engine Pulley (534) MTD-756-0589

...
xx
Engine Pulley (536) MTD-756-0629

...
26
Rod-CuKerhead MTD-747-0804

...
27
Belt Guard (B&S) MTD-787-0134

...
xx
Belt Guard (Tec.) MTD-787-0103

...
28

...
29
SCREW 5/16-18 x 1.5 LG MTD-710-0805A

...
30
Belt Guard (Cutterhead) MTD-787-0104

...
31
Transmission Key MTD-914-0112

...
32
Retaining Ring MTD-916-0182

...
33
Pulley-Cutterhead MTD-756-0590

...
34
Shaft - Cutterhead MTD-911-0855

...
35
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101

...
36
Bushing-Cutterhead MTD-741-0576

...
37
Housing-Cutterhead Shaft MTD-719-0289

...
38
Blade Guard MTD-731-1193

...
39
Edge Guide MTD-787-0101

...
40
Fl-Wash. MTD-936-0117

...
41
Hex Jam Nut, 3/8-24 MTD-912-3001

...
42
9 Replacement Blade MTD-742-0554

...
43
Spring L-Wash. 3/8 I.D. MTD-736-0217

...
44
Hex Nut 3/8 24 Thd. MTD-712-0241

...
45
DEPTH CONTROL CABLE 45.75" MTD-946-0591

...
46
Hex Wash. Hd. Scr. #10-24 MTD-710-1105

...
47
Base-Edger Frame MTD-787-0111

...
49
Spacer-Pivot Arm MTD-HH-11-03527

...
50
Nylok Nut #10-24 MTD-712-0161

...
51
Throttle Control (B&S) MTD-746-0800A

...
xx
Throttle Control (Tec.) MTD-746-0747

...
52
Hex Bolt 1/4-20 x 1.75 MTD-710-0136

...
53
Hex Nut 1/4-20 Thd. MTD-912-0287

...
54
Hex Bolt 3/8-24 x 1.75 (536) MTD-710-0539

...
55
Bell-Wash. 3/8" I.D. (536) MTD-736-0452

...
57
Spacer (536) MTD-750-0841

...
58
Sq. Key 3/16" x .75" (536) MTD-714-0122

...
59
Hex L-Nut 1/4-20 Thd. MTD-712-0324

...
60
Stop Bracket MTD-787-0110

...
61
Cable Clamp (536) MTD-726-0316

...
62
Hex Tap Scr. #8 x 3/8 MTD-710-3090

...
63
Spiral Pin MTD-715-0144
...
...
...
