MTD 250534 (1990) Edger

Model: 250534 (1990)

Save
Part Not Listed?Part Not Listed?

product name

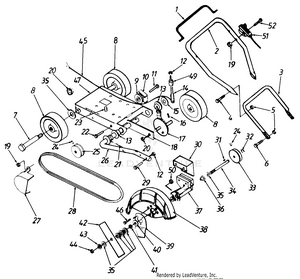

Edger

...
...
1
Lever-Depth Control MTD-706-15632-01-91

...
2

...
3

...
4
SCREW 5/16-18 x 1.5 LG MTD-710-0805A

...
5
Hex Keps L-Nut 5/16-18 Thd. MTD-706-10003-02

...
6
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038

...
7

...
8

...
9
Idler Pulley MTD-706-10668

...
10
Bracket-Idler Pulley MTD-706-10693-00-05

...
11
Bolt (Special) MTD-706-14387-15

...
12
Hex L-Nut 5/16-18 Thd. MTD-712-0429

...
13

...
14
Arm-Pivot Rod MTD-706-15856

...
15
Flat Washer, 5/8 MTD-736-0237

...
16
Cotter Pin .75" Lg. MTD-714-0474

...
17
Adjustor Assembly (Depth) MTD-706-10076-01

...
18
Arm-Front Wheel MTD-706-15806-00-05

...
19
Hex L-Nut 1/4-20 Thd. MTD-712-0324

...
20
Flange Lock Nut 3/8-16 MTD-912-0431

...
21
Spring-Cutterhead MTD-706-15804

...
22
Hex Bolt 5/16-18 x 1" MTD-710-0376

...
23
TT Screw, 3/8-16 x 1.00 (Special) MTD-710-0654A

...
24
Set Screw 5/16-18 x 3/8" Lg. MTD-710-3006

...
25
Pulley Engine MTD-706-18870-03-05

...
26
Rod Cutterhead MTD-706-15803-00-05

...
27
Belt Guard MTD-706-15807

...
28

...
29
SCREW 5/16-18 x 1.5 LG MTD-710-0805A

...
30
Belt Guard (Cutterhead) MTD-706-18723-00-91

...
31
Transmission Key MTD-914-0112

...
32
Retaining Ring MTD-916-0182

...
33
Pulley Cutterhead MTD-706-18870-02-05

...
34
Shaft - Cutterhead MTD-911-0855

...
35
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101

...
36
Bushing Cutterhead MTD-706-18796

...
37
Housing Cutterhead Shaft MTD-706-18721-01

...
38

...
39

...
40
Fl-Wash. MTD-936-0117

...
41
Hex Jam Nut, 3/8-24 MTD-912-3001

...
42
9 Replacement Blade MTD-706-16746-00-90

...
43
Spring L-Wash. 3/8" I.D. MTD-736-0217

...
44
Hex Nut 3/8-24 Thd. MTD-712-0241

...
45
DEPTH CONTROL CABLE 45.75" MTD-946-0591

...
46
Hex Bolt #10-24 x .75' MTD-710-0941

...
47
Base Edger Frame MTD-706-14405-00-14

...
49
Spacer Pivot Arm MTD-706-13884

...
50
Nylok Nut #10-24 MTD-712-0161

...
51
Throttle Control MTD-746-0800A

...
52
Hex Bolt 1/4-20 x 1.5" MTD-710-0606
...
...
...
