MTD 24A-02MP706 (2013) Chipper-Shredder Vac

Model: 24A-02MP706 (2013)

Back To Assemblies

Save Part Not Listed?
product name

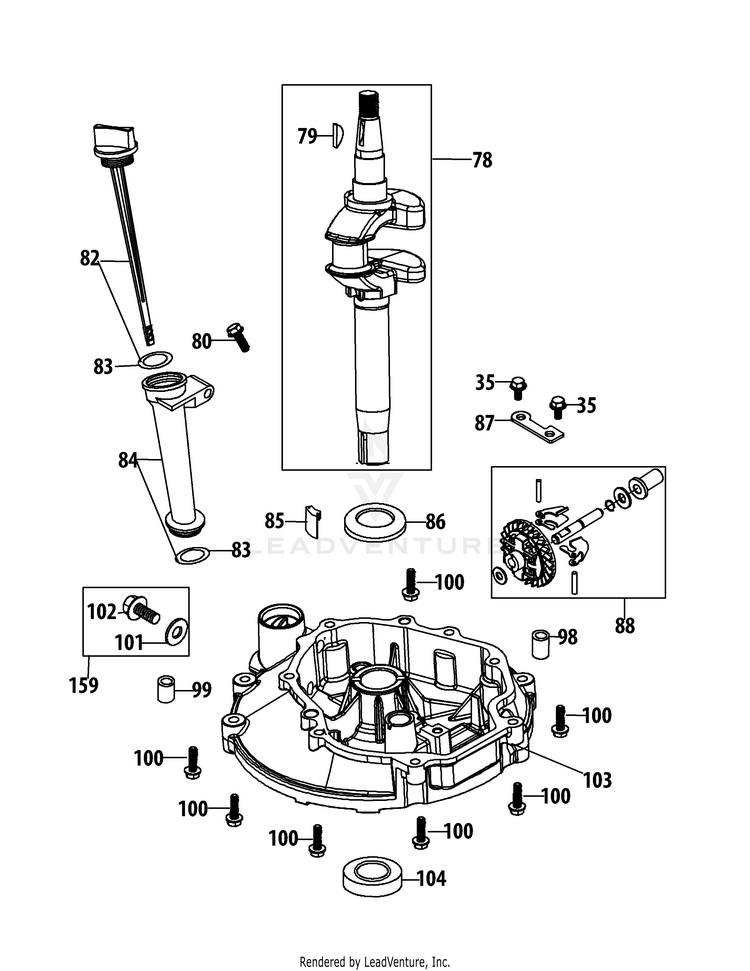

1X65CU Crankshaft & Crankcase Cover

...
...
35
Bolt M6X14 Multi-Purpose MTD-710-04916
...
78
Crankshaft Assembly MTD-951-14607
...
79
WOODRUFF KEY MTD-751P10307A
...
80
Bolt M6X35 Af Base/Brake/Dipstick MTD-710-04980
...
82
Oil Dipstick Assembly MTD-951-14440
...
83
OIL FILL TUBE O-RING MTD-951-11547
...
84
Oil Fill Tube Assembly MTD-951-14613
...
85
Oil Return Seal MTD-951-11733
...
86
Crankshaft Thrust Washer MTD-736-04491
...
87
Governor Gear Mounting Plate MTD-951-11609
...
88
GOVERNOR GEAR/SHAFT ASSEMBLY MTD-951-11549
...
98
DOWEL PIN 9 X 14 MTD-715-04096A
...
99
DOWEL PIN MTD-715-04089
...
100
Bolt M6X28 X65/P65 Crankcase MTD-710-04931
...
101
FLAT WASHER MTD-736-04440A
...
102
OIL DRAIN PLUG MTD-710-04906
...
103
CRANKCASE COVER MTD-951-14418A
...
104
LOWER CRANKSHAFT SEAL MTD-951-11545A
...
159
Oil Drain Plug & Washer Ass'Y MTD-951-10370
