MTD 24A-02MP706 (2013) Chipper-Shredder Vac

Model: 24A-02MP706 (2013)

Back To Assemblies

Save Part Not Listed?
product name

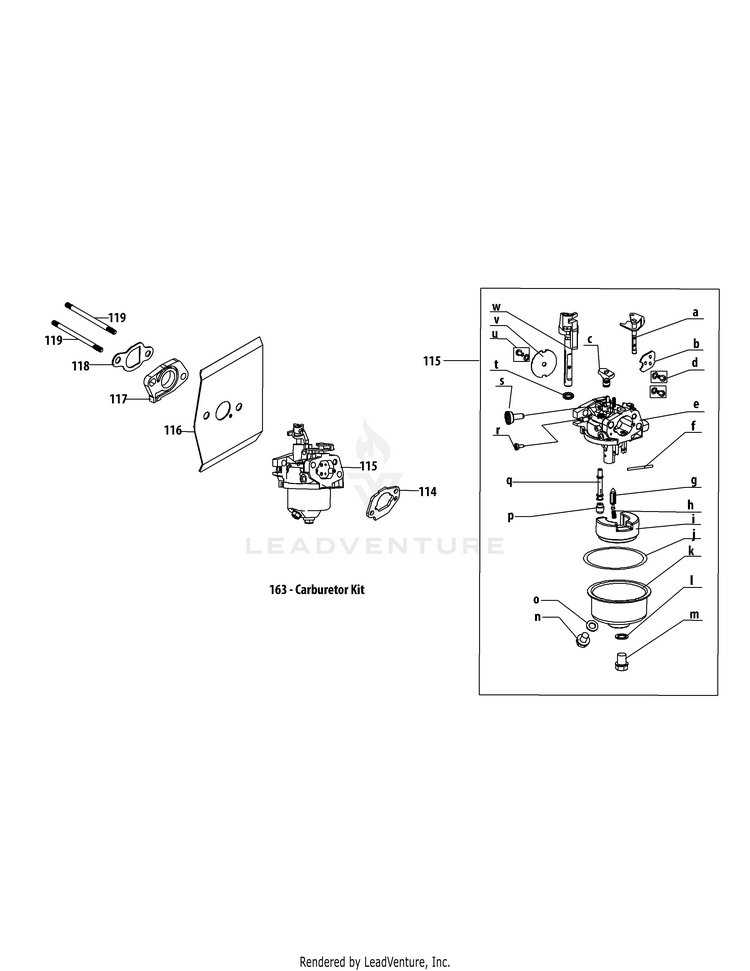

1X65CU Carburetor

...
...
114
AIR FILTER BASE GASKET MTD-951-14419A
...
115
Carburetor Assembly MTD-951-14608
...
116
Carburetor Gasket MTD-951-14424
...
117
CARBURETOR INSULATOR MTD-951-11738A
...
118
Carburetor Insulator Gasket MTD-951-11528
...
119
Carb Stud M6×87 MTD-951-14425
...
163
Carburetor Kit (Incl.d,g,h,I,j,m,p,q,r,s,u) MTD-951-14616
...
a
Choke Shaft MTD-NA
...
b
Choke Plate MTD-NA
...
c
Idle Jet MTD-NA
...
d
Bolt M3×5 MTD-NA
...
e
Carburetor Body MTD-NA
...
f
Float Pin MTD-NA
...
g
Needle Valve MTD-NA
...
h
Needle Valve Spring MTD-NA
...
i
Float MTD-NA
...
j
O-Ring, Float Bowl MTD-NA
...
k
Float Bowl MTD-NA
...
l
Gasket, Drain Bolt MTD-NA
...
m
Drain Bolt MTD-NA
...
n
Bolt, Float Bowl MTD-NA
...
o
O-Ring, Float Bowl MTD-NA
...
p
Idle Jet MTD-NA
...
q
Nozzle Tube MTD-NA
...
r
Mixture Screw MTD-NA
...
s
Idle Speed Adjusting Screw MTD-NA
...
t
Gasket MTD-NA
...
u
Bolt M3×6 MTD-NA
...
v
Throttle Plate MTD-NA
...
w
Throttle Plate MTD-NA
