MTD 24A-02MP706 (2013) Chipper-Shredder Vac

Model: 24A-02MP706 (2013)

Back To Assemblies

Save Part Not Listed?
product name

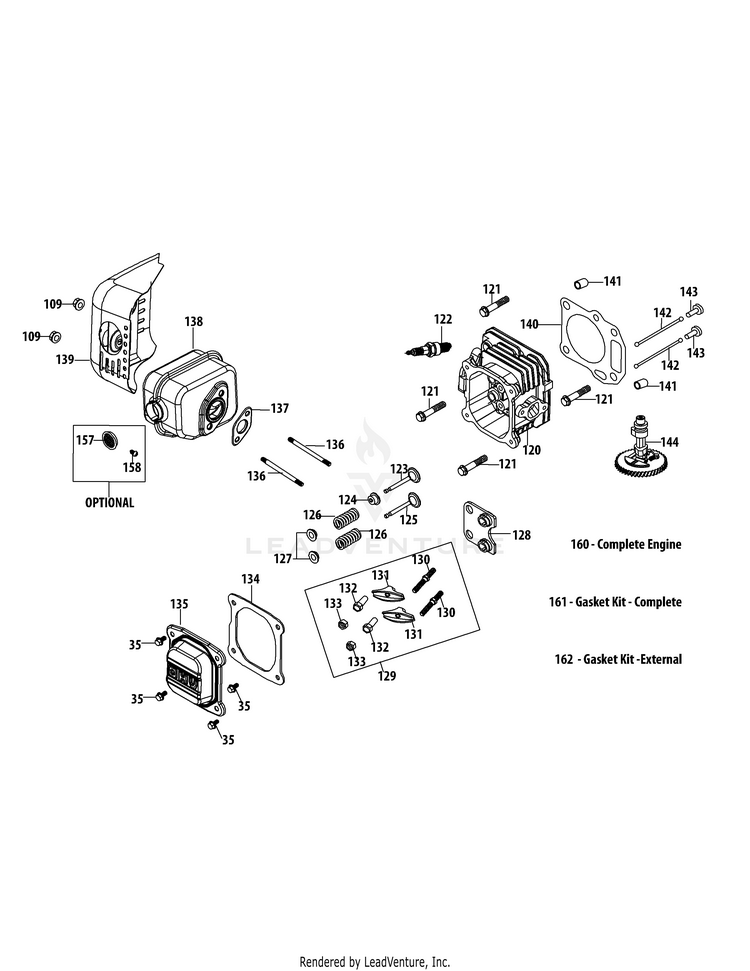

1X65CU Cylinder Head & Muffler

...
...
35
Bolt M6X14 Multi-Purpose MTD-710-04916
...
109
Nut M6X10Mm Starter/Carb/Muff MTD-712-05015
...
120
Cylinder Head Asm (Incl.117,118,120,123-134,137,140) MTD-951-14448
...
120
Cylinder Head Service Kit (Incl.121,124,134,140) MTD-951-14445
...
121
Bolt M8X54 Cylinder Head MTD-710-04982
...
122
Spark Plug/F5Rtc MTD-951-14437
...
1212
GENUINE FACTORY PARTS® Walk Spark Plug 951-14437 Retail Packaged Part MTD-490-250-F014
...
123
Valve Kit MTD-951-10313
...
124
VALVE SEAL MTD-951-11818
...
125
Valve Kit MTD-951-10313
...
126
VALVE SPRING MTD-751P12004A
...
127
Valve Spring Retainer MTD-951-11977
...
128
PUSH ROD GUIDE MTD-951-11687A
...
129
ROCKER ARM MTD-951-11606A
...
130
Rocker Arm Stud MTD-710-04902
...
131
Rocker Arm MTD-951-12001
...
132
Fulcrum Nut MTD-751-11123
...
133
Jam Nut MTD-751-11124
...
134
VALVE COVER GASKET MTD-951-11551
...
135
VALVE COVER MTD-951-14609A
...
136
Muffler Stud Assy MTD-951-10342
...
137
MUFFLER GASKET MTD-951-14427A
...
138
Muffler Assembly MTD-951-10403
...
139
MUFFLER SHIELD MTD-951-15072
...
140
Cylinder Head Gasket MTD-951-14431
...
141
Cylinder Head Dowel Pin 10×16 MTD-715-04108
...
142
Push Rod Kit MTD-951-10314
...
143
TAPPET MTD-951-14432A
...
144
Camshaft Assembly MTD-951-11741
...
157
SPARK ARRESTOR MTD-951-10351A
...
158
Spark Arrestor Screw MTD-710-04983
...
160
Complete Engine MTD-952Z1X65CU
...
161
GASKET KIT (COMPLETE) (Incl.37,38,60,75,83,101,104,114,116,117,118,134,137,140) MTD-951-14614
...
162
GASKET KIT (EXTERNAL) (Incl.37,83,101,114,116,117,118,134,137) MTD-951-14615
