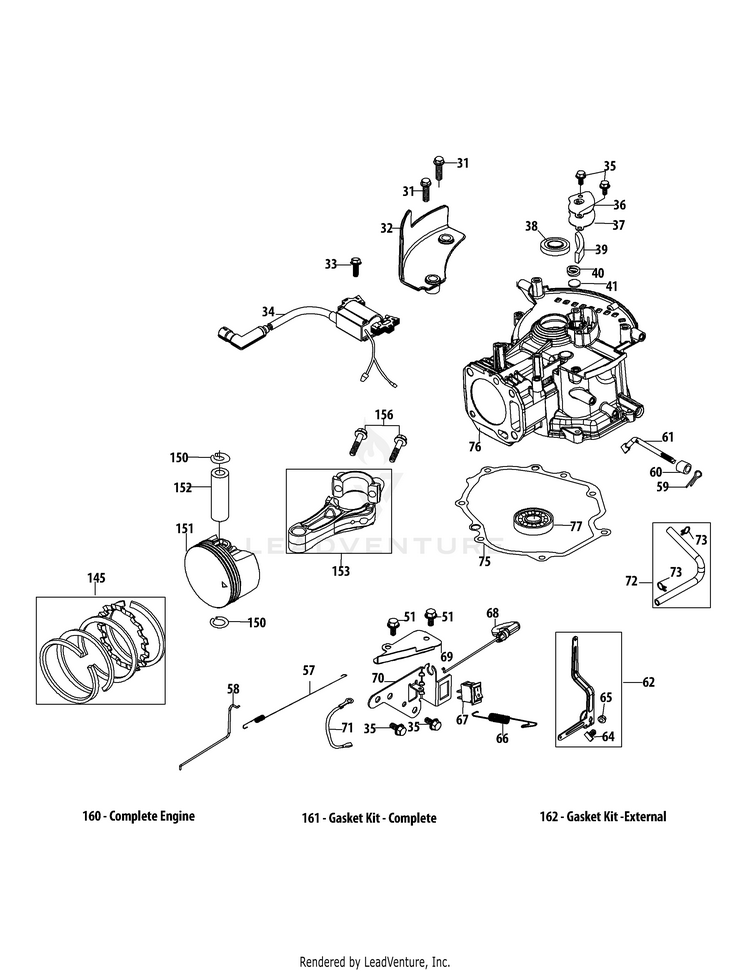

MTD 24A-02MP706 (2013) Chipper-Shredder Vac

Model: 24A-02MP706 (2013)

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

1X65CU Crankcase

...
...
31
Bolt M6×25 Cover Plate MTD-710-04919
...
32
ENGINE BRAKE COVER PLATE MTD-951-14597A
...
33
Bolt M6×20 Ignition Coil MTD-710-04918
...
34
Ignition Coil Assembly MTD-951-14598
...
35
Bolt M6X14 Multi-Purpose MTD-710-04916
...
36
Breather Cover Plate MTD-951-14404
...
37
Breather Gasket MTD-951-14405
...
38
UPPER CRANKSHAFT SEAL MTD-951-11596A
...
39
Breather Screen MTD-951-11730
...
40
Breather Valve Spring MTD-732-04718
...
41
Breather Valve MTD-951-11614
...
51
Bolt M6X12 Multi-Purpose MTD-710-04915
...
57
Throttle Linkage Spring MTD-951-14409
...
58
Throttle Linkage MTD-951-14410
...
59
COTTER PIN MTD-714-04078A
...
60
OIL SEAL MTD-951-11902A
...
61
Governor Arm Shaft MTD-951-14416
...
62
Governor Arm Assembly MTD-951-14412
...
64
Governor Arm Bolt MTD-710-04908
...
65
Governor Arm Nut M6 MTD-712-05015
...
66
Governor Spring MTD-951-14411
...
67
Ignition Switch MTD-951-14603
...
68
CHOKE CONTROL MTD-951-14604
...
69
Air Vane Cover Plate MTD-951-14605
...
70
Component Bracket MTD-951-14413
...
71
IGNITION SWITCH GROUND WIRE MTD-951-14606
...
72
Breather Hose Assembly MTD-951-11520
...
73
Breather Hose Clamp MTD-726-04101
...
75
Crankcase Cover Gasket MTD-951-14415
...
76
SHORTBLOCK (Incl.35-41,59-61,75-79,83,85-88,98,99,101-104,114,117,118,134,137,140,141,143-145,150-153,156) MTD-951-14617
...
77
Main Bearing MTD-951-11369
...
145
PISTON RING SET MTD-951-14433A
...
150
Piston Pin Snap Ring MTD-951-11603
...
151
PISTION MTD-951-14434A
...
152
Piston Pin MTD-951-14435
...
153
CONNECTING ROD MTD-951-14436A
...
156
Connecting Rod Bolt MTD-710-05115
...
160
Complete Engine MTD-952Z1X65CU
...
161
GASKET KIT (COMPLETE) (Incl.37,38,60,75,83,101,104,114,116,117,118,134,137,140) MTD-951-14614
...
162
GASKET KIT (EXTERNAL) (Incl.37,83,101,114,116,117,118,134,137) MTD-951-14615
