MTD 24A-02MP706 (2013) Chipper-Shredder Vac

Model: 24A-02MP706 (2013)

Back To Assemblies

Save Part Not Listed?
product name

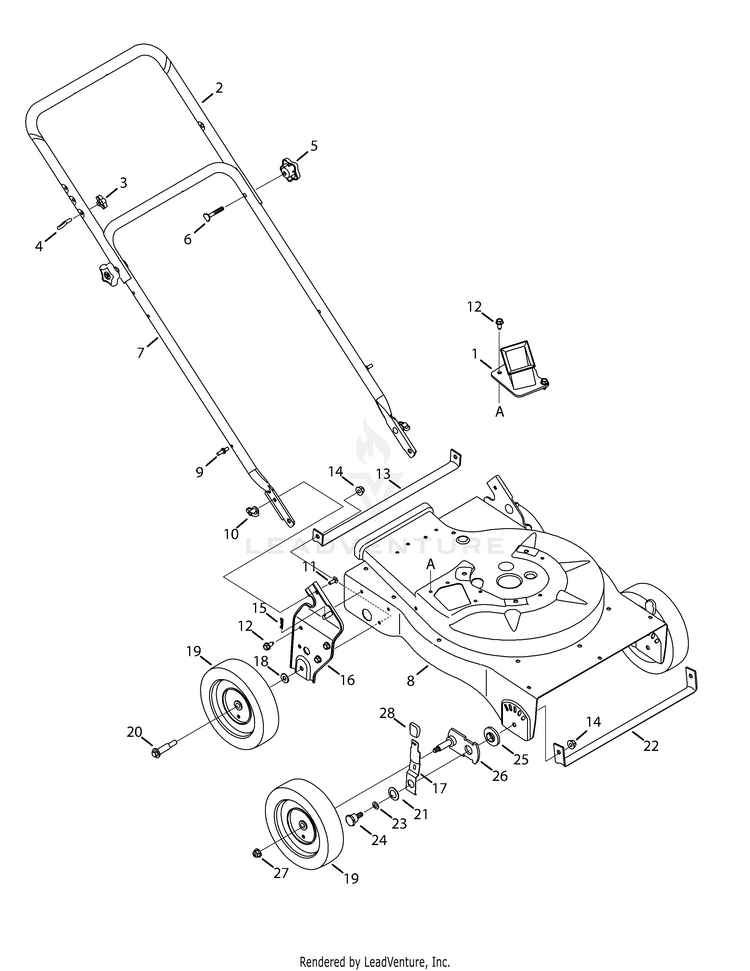

Handle & Wheels

...
...
1
Chipper Chute Assembly MTD-681-04088-0638
...
2
Upper Handle MTD-749-04172-0637
...
3
Knob MTD-720-0279
...
4
Eye Bolt MTD-710-1205
...
5
Star Knob, 5/16-18 MTD-720-04072A
...
6
Carriage Bolt MTD-710-1174
...
7
Lower Handle MTD-749-04165-0637
...
8
UPPER FLAIL HOUSING (BLACK JACK) MTD-781-04251-0691
...
9
Studs MTD-711-1293
...
10
Wing Nut 1/4-20 MTD-712-0397A
...
11
Carriage Screw 1/4-20 x.75 MTD-710-0703
...
12
Screw, 5/16-12 x.750 MTD-710-0726
...
13
Rear Wheel Support Brace MTD-781-04081-0637
...
14
Flange Lock Nut, 3/8-16 MTD-712-04065
...
15
Hairpin Clip MTD-714-0104
...
16
Handle Bracket Assy. LH MTD-981-0155A-0638
...
16
Handle Bracket Assy. RH (Not Shown) MTD-981-0156A-0638
...
17
Spring Lever MTD-732-1026
...
18
Bell Washer.401 ID x.870 OD MTD-736-0105
...
19
Wheel, 8 x 1.8, Bar MTD-734-04563
...
20
SHOULDER SCREW .496X1.605 3/8-16 MTD-738-04523
...
21
Bell Washer.760 ID x.25OD MTD-736-0741
...
22
Front Wheel Support Brace MTD-781-04082-0637
...
23
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
24
Shoulder Screw, .750 ID x .500 MTD-738-1172
...
25
Height Adjustment Bearing MTD-741-04242
...
26
Pivot Arm Assembly MTD-681-04195
...
27
Flange Lock Nut, 3/8-16 MTD-912-0431
...
28
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
