MTD 24A-02MP706 (2013) Chipper-Shredder Vac

Model: 24A-02MP706 (2013)

Back To Assemblies

Save Part Not Listed?
product name

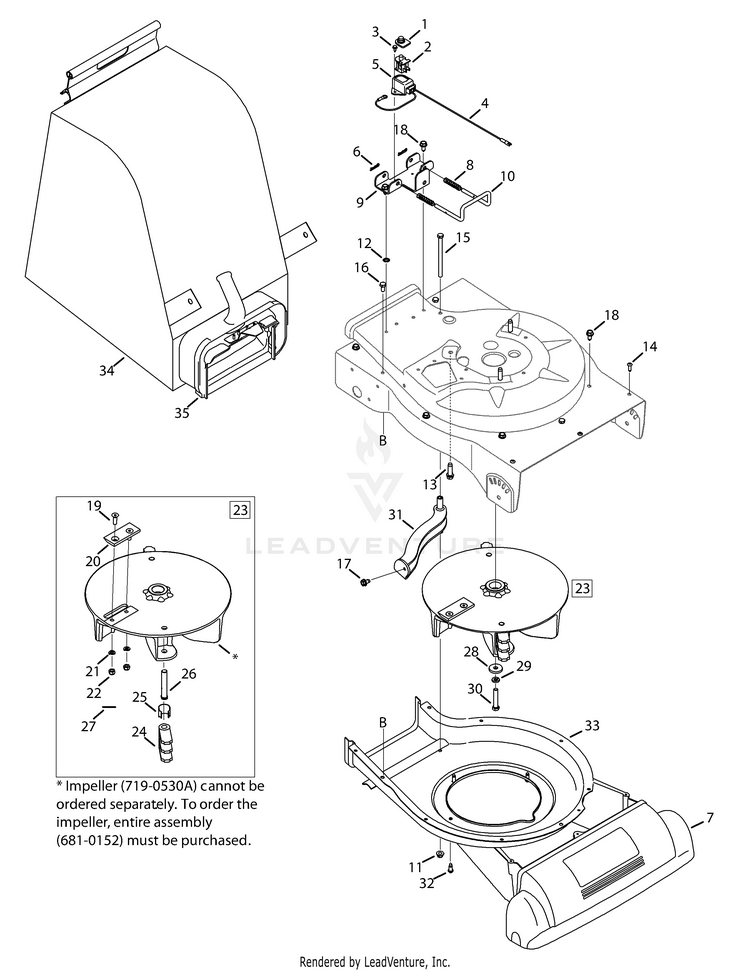

Impeller & Bag

...
...
1
Switch Cover MTD-925-1700
...
2
Safety Switch MTD-925-3166
...
3
Hex Washer Screw, #10-16 x.50 MTD-910-0224
...
4
Wire Harness MTD-629-0920A
...
5
Safety Switch Cover MTD-931-1613
...
6
Hairpin Clip MTD-714-0104
...
7
Nozzle Cover MTD-731-1905A
...
8
Compression Spring MTD-732-0962
...
9
Mounting Bracket MTD-781-0778A-0637
...
10
Lock Rod MTD-747-1153
...
11
Flange Lock Nut, 5/16-18 MTD-712-04063
...
12
External Lock Washer 5/16 MTD-736-0607
...
13
Hex Washer Screw 3/8-16 x 1.25 MTD-710-0654A
...
14
Screw, #12-16 x .750 MTD-710-1220
...
15
Hex Cap Screw 5/16-18 x 4.5 MTD-710-3195
...
16
Hex Cap Screw 5/16-18 x.625 MTD-710-3025
...
17
Screw, 5/16-18 x.500 MTD-710-0607
...
18
Screw, 5/16-12 x.75 MTD-710-0726
...
19
Hex Screw 5/16-24 x 1.0 MTD-710-1054
...
20
Chipper Blade MTD-981-0490
...
21
Lock Washer 5/16 MTD-936-0119
...
22
Hex L-Nut 5/16-24 Thd. MTD-712-0411
...
23
Impeller Assembly MTD-981-0152
...
24
Flail Blade MTD-719-0329
...
25
Pin Clip MTD-781-0735
...
26
Clevis Pin MTD-711-1401
...
27
Spiral Pin MTD-715-0166
...
28
Flat Washer.375 ID x 1.25 OD MTD-736-0247
...
29
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
30
Hex Cap Screw 3/8-24 x 2.0 MTD-710-0818
...
31
Screen Assembly MTD-681-0154-0637
...
32
Shoulder Screw, .30 x .46 MTD-710-1650
...
33
Lower Housing MTD-781-0721B-0638
...
34
Bag Assembly MTD-664-04040
...
35
CHUTE DISCHARGE ASSEMBLY MTD-631P0083A
...
xx
Safety Glasses (Not Shown) MTD-723-0400
