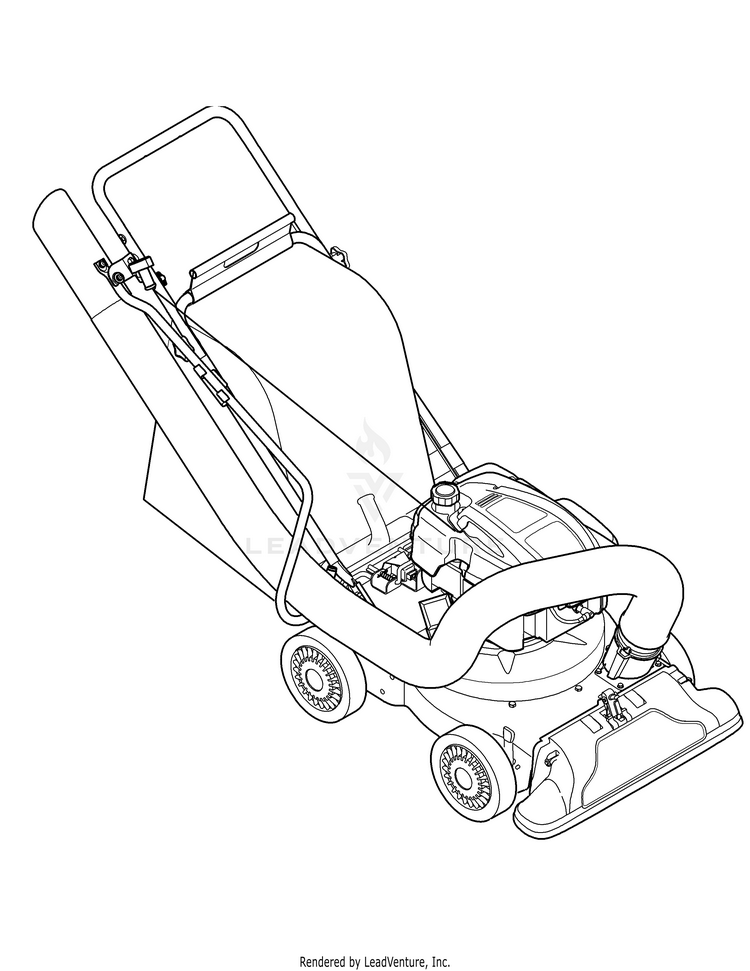

MTD 24A-020C706 (2012) Chipper-Shredder Vac

Model: 24A-020C706 (2012)

Save Part Not Listed?
product name

.Quick Reference CSV

...
...
xx
Spark Plug MTD-BS-591868
...
xx
Pre Filter MTD-BS-493537S
...
xx
AIR FILTER MTD-BS-491588S
...
xx
Fuel Filter MTD-BS-298090S
...
xx
Impeller Assembly MTD-981-0152
...
xx
Chipper Blade MTD-981-0490
...
xx
Flail Blade MTD-719-0329
...
xx
Screen Assembly MTD-681-0154-0637
...
xx
Chipper Chute MTD-681-04088-0638
...
xx
Safety Switch MTD-925-3166
...
xx
Handle Knob MTD-720-0279
...
xx
Wheels (Front) MTD-734-04563
...
xx
Wheels (Rear) MTD-734-04563
...
xx
Grassbag MTD-664-04040
...
xx
CHUTE DISCHARGE ASSEMBLY MTD-631P0083A

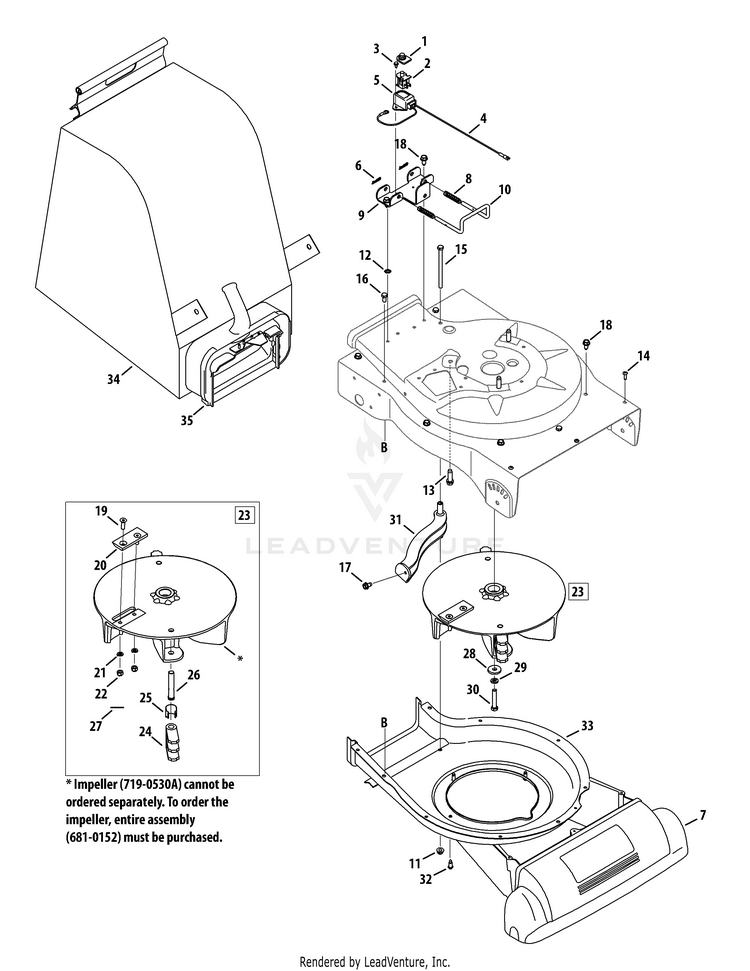

CSV Bag & Impeller Assembly

...
...
1
Switch Cover MTD-925-1700
...
2
Safety Switch MTD-925-3166
...
3
Hex Washer Screw, #10-16 x.50 MTD-910-0224
...
4
Wire Harness MTD-629-0920A
...
5
Safety Switch Cover MTD-931-1613
...
6
Hairpin Clip MTD-714-0104
...
7
Nozzle Cover MTD-731-1905A
...
8
Compression Spring MTD-732-0962
...
9
Mounting Bracket MTD-781-0778A-0637
...
10
Lock Rod MTD-747-1153
...
11
Flange Lock Nut, 5/16-18 MTD-712-04063
...
12
External Lock Washer 5/16 MTD-736-0607
...
13
Hex Washer Screw 3/8-16 x 1.25 MTD-710-0654A
...
14
Screw, #12-16 x .750 MTD-710-1220
...
15
Hex Cap Screw 5/16-18 x 4.5 MTD-710-3195
...
16
Hex Cap Screw 5/16-18 x.625 MTD-710-3025
...
17
Screw, 5/16-18 x.500 MTD-710-0607
...
18
Screw, 5/16-12 x.75 MTD-710-0726
...
19
Hex Screw 5/16-24 x 1.0 MTD-710-1054
...
20
Chipper Blade MTD-981-0490
...
21
Lock Washer 5/16 MTD-936-0119
...
22
Hex L-Nut 5/16-24 Thd. MTD-712-0411
...
23
Impeller Assembly MTD-981-0152
...
24
Flail Blade MTD-719-0329
...
25
Pin Clip MTD-781-0735
...
26
Clevis Pin MTD-711-1401
...
27
Spiral Pin MTD-715-0166
...
28
Flat Washer.375 ID x 1.25 OD MTD-736-0247
...
29
L-Wash. 3/8" I.D. (H.D.) MTD-736-0217
...
30
Hex Cap Screw 3/8-24 x 2.0 MTD-710-0818
...
31
Screen Assembly MTD-681-0154-0637
...
32
Shoulder Screw, .30 x .46 MTD-710-1650
...
33
Lower Housing MTD-781-0721B-0638
...
34
Bag Assembly MTD-664-04040
...
35
CHUTE DISCHARGE ASSEMBLY MTD-631P0083A
...
xx
Safety Glasses (not shown) MTD-723-0400

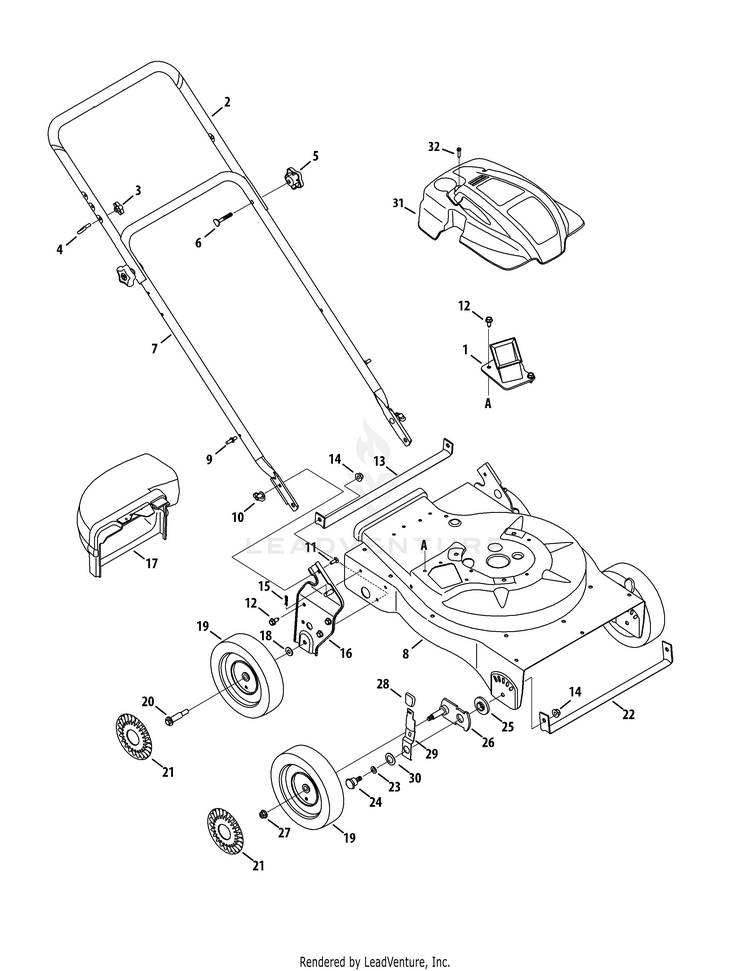

CSV General Assembly

...
...
1
Chipper Chute Assembly MTD-681-04088-0638
...
2
Upper Handle MTD-749-04172-0637
...
3
Knob MTD-720-0279
...
4
Eye Bolt MTD-710-1205
...
5
Star Knob, 5/16-18 MTD-720-04072A
...
6
Carriage Bolt MTD-710-1174
...
7
Lower Handle MTD-749-04165-0637
...
8
UPPER FLAIL HOUSING (BLACK JACK) MTD-781-04251-0691
...
9
Studs MTD-711-1293
...
10
Wing Nut 1/4-20 MTD-712-0397A
...
11
Carriage Screw 1/4-20 x.75 MTD-710-0703
...
12
Screw, 5/16-12 x.750 MTD-710-0726
...
13
Rear Wheel Support Brace MTD-781-04081-0637
...
14
Flange Lock Nut, 3/8-16 MTD-712-04065
...
15
Hairpin Clip MTD-714-0104
...
16
Handle Bracket Assy. LH MTD-981-0155A-0638
...
16
Handle Brkt Assy. RH (not shown) MTD-981-0156A-0638
...
17
BLOWER KIT-YARD VA MTD-OEM-290-012
...
18
Bell Washer.401 ID x.870 OD MTD-736-0105
...
19
Wheel, 8 x 1.8, Bar MTD-734-04563
...
19
Wheels - Front MTD-753-08093
...
20
SHOULDER SCREW .496X1.605 3/8-16 MTD-738-04523
...
21
Hub Cap If Equipped MTD-731-0981C
...
22
Front Wheel Support Brace MTD-781-04082-0637
...
23
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
24
Shoulder Screw, .750 ID x .500 MTD-738-1172
...
25
Height Adjustment Bearing MTD-741-04242
...
26
Pivot Arm Assembly MTD-681-04195
...
27
Flange Lock Nut, 3/8-16 MTD-912-0431
...
28
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
29
Spring Lever MTD-732-1026
...
30
Bell Washer.760 ID x.25OD MTD-736-0741
...
31
ENGINE SHROUD ASSEMBLY (OYSTER GRAY) If Equipped MTD-931-04471
...
32
Screw, #12-16 x 1.00 If Equipped MTD-710-04744

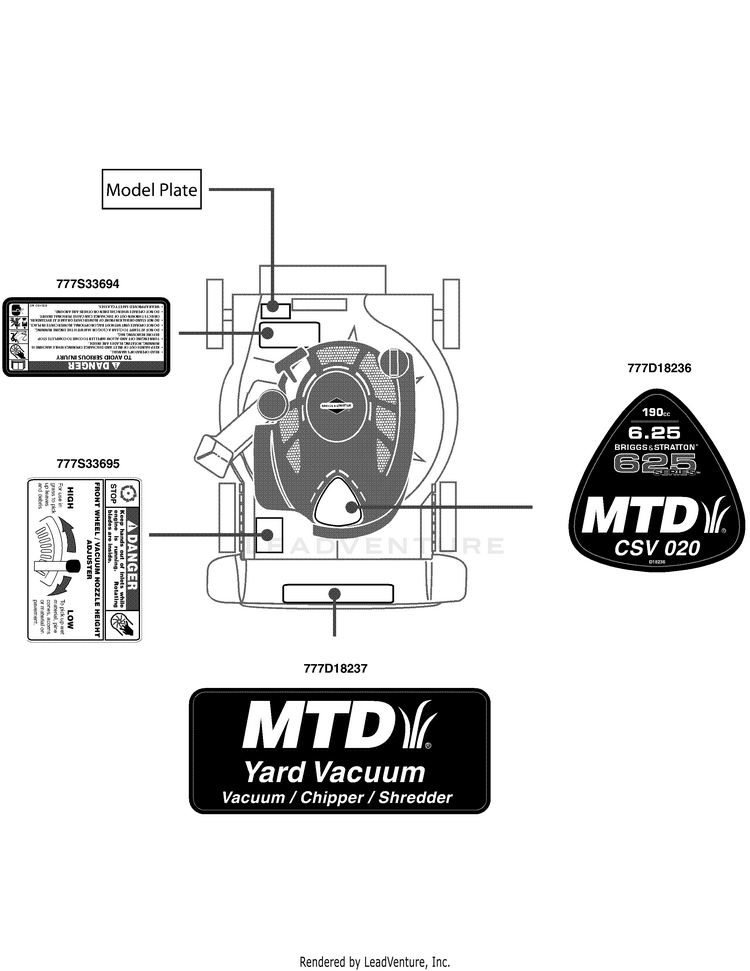

Label Map CSV

...
...
777S33694
Label-Danger/Warning MTD-777S33694
...
777S33695
Label-Danger/Hght Ad MTD-777S33695
...
777D18237
LABEL- NOZZLE YARD VAC MTD LOGO MTD-777D18237
...
777D18236
LABEL-XRZ SHROUD 190CC MTD 020 MTD-777D18236
