MTD 24695S (1985) Blower

Model: 24695S (1985)

Save
 Don't See Your Part Listed?
product name

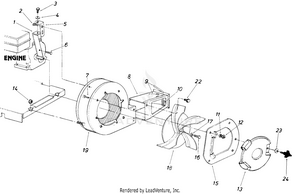

Blower

...
...
1
Housing - Engine Brace Ass'y. MTD-14539-0637
...
2
Hex Self Tap Scr. 5/16" x .50" Lg. MTD-710-0600
...
3
Hex Bolt 5/16-18 x .75" Lg.* MTD-710-0118
...
4
Lock Wash. 5/16" I.D. MTD-936-0119
...
5
Right Angle Bracket MTD-14541
...
6
Hex Locking Bolt 5/16-24 x .75" MTD-710-0627
...
7
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
8
Directional Discharge Ass'y. MTD-14479
...
9
UNKNOWN MTD-NA
...
10
UNKNOWN MTD-NA
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
Blower Guard MTD-731-0608
...
14
Hex Shoulder Nut .50 I.D. MTD-911-0758
...
15
Nozzle Plate Assembly MTD-14563A
...
16
Hex Bolt 3/8-24 x 1.25" Lg.* MTD-710-0191
...
17
L.-Wash. 3/8" I.D. HD. MTD-736-0217
...
18
Air Vane Plate Ass'y. MTD-14536
...
19
Blower Housing Assembly MTD-14496B
...
22
Hex Sems Bolt 5/16-18 x .62" Lg.* MTD-710-0259
...
23
Belleville Wash. 34" 1 .D. x .87" O.D. MTD-736-0242
...
24
3-Arm Thumb Scr. 5/16-18 x .75" Lg. MTD-720-0170

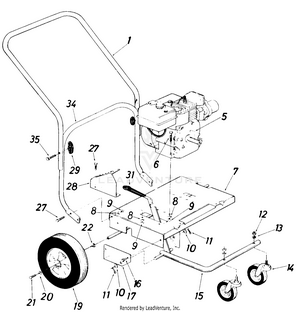

Handles & Deck

...
...
1
Upper Handle (Painted) MTD-749-0784-0637
...
5
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
6
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
7
Engine Mounting Frame Ass'y. MTD-14526
...
8
Lock Wash. 5/16" I.D. MTD-936-0119
...
9
HEX NUT 5/16-18 MTD-712-3010
...
10
Fl.-Wash. .63" I.D. x 1.25" O.D. MTD-736-0187
...
11
Cotter Pin 5/32" Dia. x 1.25" Lg.* MTD-1544-009
...
12
HEX NUT MTD-712-0206
...
13
L.-Wash. 1/2" I.D.* MTD-736-0921
...
14
Swivel Caster Wheel 5" Dia. x 1.25" MTD-734-1036
...
15
Caster Arm Ass'y. MTD-14571
...
16
Hex Wash. Hd. "AB" Tap Scr. 5/16" x .75" MTD-710-0726
...
17
Caster Arm Brk't . MTD-14529
...
19
Wheel Ass'y. Comp. 12" x 3.5" (Plastic) (692 only) (Incl. Bearings) MTD-734-1035
...
xx
Wheel Ass'y. Comp. 10.5" x 4" (677) Tire only 734-1185, Rim only 734-1183 MTD-634-0147
...
xx
Flange Bearing .632 ID (For Steel Wheel) MTD-741-0487C
...
20
Fl.-Wash. 34" I.D. x .87" O.D. MTD-736-0159
...
21
Hex Locking Bolt 5/16-24 x .62" Lg. MTD-710-0170
...
22
Fl.-Wash. (692 only) MTD-736-0162
...
27
Hex Bolt 5/16-18 x .75" Lg.* MTD-710-0118
...
28
Index Plate MTD-14561
...
29
Star Knob MTD-720-04072A
...
31
Fl.-Grip Vinyl MTD-720-0142
...
34
Lower Handle (Painted) I MTD-749-0785
...
35
Carriage Bolt 5/16-18 x 2.0" Lg. MTD-710-0487
...
...
...
...
