MTD 24677S (1985) Chipper-Shredder Vac

Model: 24677S (1985)

Save Part Not Listed?
product name

Power

...
...

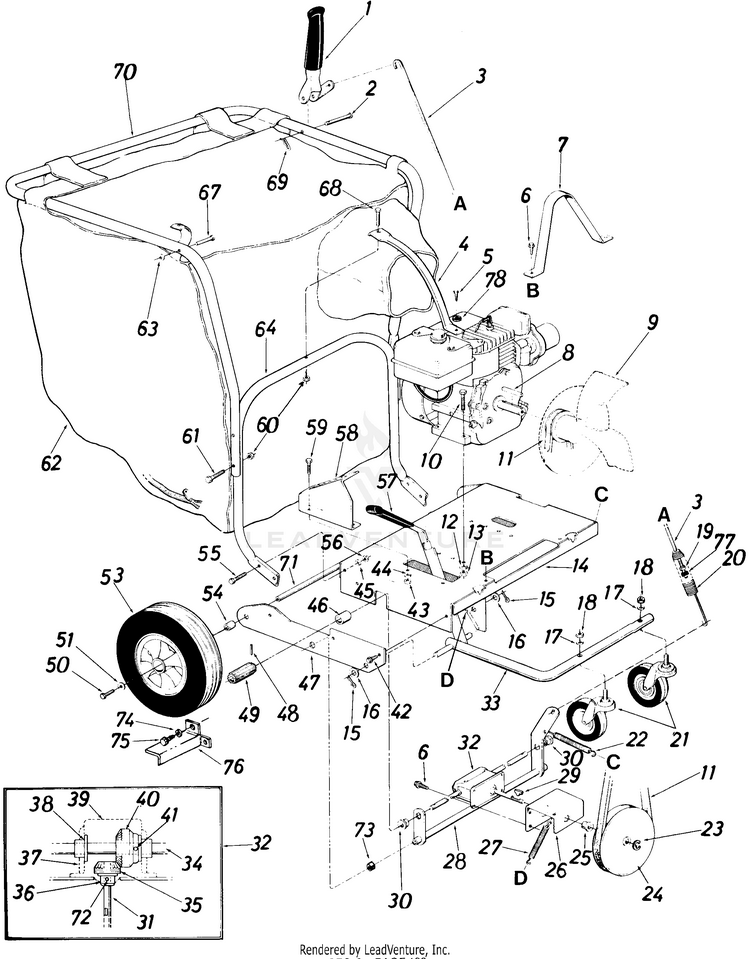

1
GRIP ASSEMBLY-CLUTCH [Parts for self-propelled units (Models 685,689, and 24687) only MTD-05778
...
2
Clevis Pin .375" Dia. x 1.88" [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-711-0679A
...
3
LOCKOUT ROD [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-747-0154
...
4
HANDLE BRACE MTD-749-0482
...
5
Part of Engine MTD-NA
...
6
Hex Screw, 1/4-14 x 0.625" [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-710-0896
...
7
BELT GUARD [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-14558
...
8
Sq. Key 1/4" x 1/4" x 2.00" MTD-914-0114
...
9
AIR VANE PLATE ASS Y. (675 and 677) MTD-14536
...
xx
PLATE ASSEMBLY-VANE [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-14557
...
10
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
11
V-Belt [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-954-0219
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
HEX NUT 5/16-18 MTD-712-3010
...
14
Engine Mounting Frame Ass'y. MTD-14527
...
15
Cotter Pin 1/8" Dia. x 1.0" MTD-714-0115
...
16
Fl.-Wash. .63" I.D. x 1.25" O.D. MTD-736-0187
...
17
L.-Wash. 1/2" I.D.* MTD-736-0921
...
18
HEX NUT MTD-712-0206
...
19
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
20
SPRING [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-732-0411
...
21
Swivel Caster Wheel 5" Dia. x 1.25" MTD-734-1036
...
22
EXTENSION SPRING [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-932-0409
...
23
E-RING FOR .500 [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-916-0104
...
24
PULLEY [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-756-0367
...
25
FLANGE BEARING [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-748-0142
...
26
BRACKET-GEAR BOX [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-14570
...
27
TENSION SPRING [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-932-0376
...
28
Clutch Bracket Ass'y. [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-14565
...
29
WOODRUFF KEY #2-3/32X1/2 DIA- [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-714-0229
...
30
Hex Flange Bearing Bronze .625" I.D. [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-948-0227A
...
31
SHAFT-PINION [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-738-0516
...
32
Gear Box Ass'y. Comp. [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-717-0493
...
33
Caster Arm Ass'y. MTD-14571
...
34
SHAFT-DRIV [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-08348
...
35
PINION-14T MTD-748-0136
...
36
Flange Bearing, .503 x .75 [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-948-0108
...
37
GEAR BOX ASSEMBLY KIT [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-08189
...
38
Flange Bearing .630" I.D. [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-748-0110
...
39
Gear Box Cover [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-08187
...
40
BEVEL GEAR-.62 ID [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-748-0135
...
41
Roll Pin 3/16 x 1.25" [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-915-0246
...
42
Hex Wash. Hd. "AB" Tap Scr. 5/16" x .75" Lg. MTD-710-0726
...
43
HEX NUT 5/16-18 MTD-712-3010
...
44
Lock Wash. 5/16" I.D. MTD-936-0119
...
45
Lock Wash. 5/16" I.D. MTD-936-0119
...
46
SPACER [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-948-0201
...
47
PLATE-SIDE (RH) MTD-14530
...
48
SPRING PIN [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-715-0247
...
49
Drive Pinion [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-748-0288
...
50
Hex Locking Bolt 5/16-24 x .62" Lg. MTD-710-0170
...
51
Fl. ash. .34" I.D. x 87" O.D. MTD-736-0159
...
53
WHEEL ASSEMBLY W/TIRE 12 x 3 (Incl. Ball Bearings) MTD-734-1035
...
xx
WHEEL ASSEMBLY (11 x 4-4) (677 Only) MTD-634-0147
...
xx
Flange Bearing .632 ID (677 Only) MTD-741-0487C
...
54
Spacer .63" I.D. x 1.00" O.D. x .94" Lg. (675,685,687) MTD-750-0194
...
xx
Spacer .63" I.D. x .878" O.D. x .79" Lg. (677) MTD-748-0192
...
55
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
56
HEX NUT 5/16-18 MTD-712-3010
...
57
Flat Grip Vinyl MTD-720-0142
...
58
Index Plate MTD-14561
...
59
Hex Bolt 5/16-18 x .75" Lg.* MTD-710-0118
...
60
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
61
Hex Bolt 1/4-20 x 1.75" Lg. MTD-710-0136
...
62
BAG-VACUUM FELT MTD-764-0162
...
63
Push Speed Nut .25" Dia. Stud MTD-1539-019
...
64
LOWER HANDLE MTD-749-0785
...
67
Stud Pin .250" Dia. x 1.75" MTD-911-0737
...
68
Hex Bolt 1/4-20 x 1.75" Lg.* MTD-710-0136
...
69
Internal Cotter Pin 3/8" Dia. MTD-714-0145
...
70
Upper Handle MTD-749-0480
...
71
REAR AXLE MTD-738-0185
...
72
Spring Roll Pin 1.12" Lg. [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-915-0249
...
73
SPACER [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-950-0142
...
74
Spring Wash. .265 I.D. x .562 O.D. [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-936-0175
...
75
Hex Self Tap Scr. 1/4" x 3/8" Lg. [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-710-0352
...
76
GUARD-PINION-RH [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-14556
...
xx
GUARD-PINION-LH (Not Shown) MTD-14555
...
77
Hex Jam Nut 1/4-20 Thd. [Parts for self-propelled units (Models 685,689, and 24687)] only MTD-912-0298
...
78
Belleville Washer MTD-736-0242

Power

...
...
1

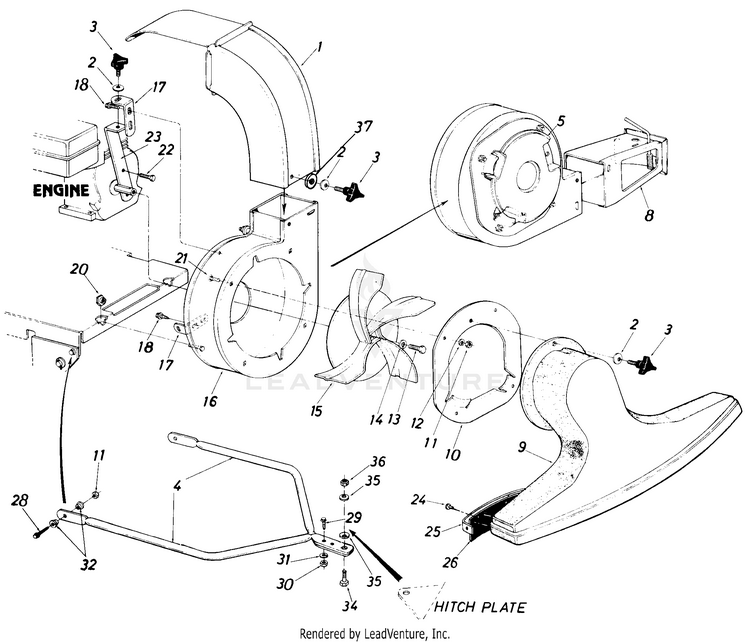

AIR DUCT ASSEMBLY MTD-14532
...
2
Belleville Wash. 34" I.D. x .87" O.D. MTD-736-0242
...
3
Arm Thumb Scr. 5/16-18 x .75" Lg. MTD-720-0170
...
4
TOW 8AR HALF MTD-749-0501
...
5
BLOWER GUARD MTD-731-0608
...
8
DISCHARGE ASSEMBLY MTD-14479
...
9
NOZZLE MTD-14562
...
10
PLATE ASSEMBLY-NOZZLE MTD-14563A
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
Hex Bolt 3/8-24 x 1.25" Lg.* MTD-710-0191
...
14
L.-Wash. 3/8" I.D. H.D. MTD-736-0217
...
15
AIR VANE PLATE ASS Y. (675 and 24677) MTD-14536
...
xx
PLATE ASSEMBLY-VANE (685, 689 and 4687) MTD-14557
...
16
BLOWER HOUSING ASSEMBLY MTD-14496B
...
17
BRACKET-RIGHT ANGLE MTD-14541
...
18
SCREW 5/16-24 x .500 MTD-710-0600
...
20
Hex Shoulder Nut .50 I.D. MTD-911-0758
...
21
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
22
Hex Locking Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
23
HOUSING-ENG BRACE MTD-14539-0637
...
24
POP RIVET MTD-928-0180
...
25
WIPER RETAIN STRIP MTD-14569
...
26
WIPER NOZZLE MTD-735-0214
...
28
Hex Bolt 5/16-18 x 1.00" Lg.* Optional parts MTD-710-0602
...
29
Truss Mach. Scr. 1/4-20 x.75" Lg. Optional parts MTD-710-0924
...
30
HEX NUT 1/4-20 Optional parts MTD-912-0287
...
31
L-Wash. 1/4" I.D. Optional parts MTD-936-0329
...
32
Shoulder Spacer Optional parts MTD-748-0234
...
34
SHOULDER SCREW .498 DIA x .340 Optional parts MTD-738-0143
...
35
Bell-Wash. .400" I.D. x 1.13" O.D. Optional parts MTD-936-0219
...
36
Hex Jam L-Nut 3/8-16 Thd. Optional parts MTD-712-0181
...
37
Fl-Wash. 5/16" I.D. MTD-736-0231
