MTD 24638-8 (1988) Log Splitter

Model: 24638-8 (1988)

Save Part Not Listed?
product name

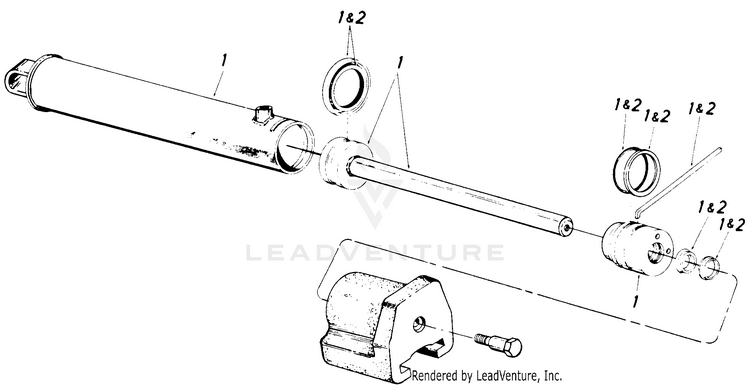

2-1/2"

...
...
1
CYLINDER-HYDRO MTD-717-0816
...
2
2-1/2" Cyl. Kit "O"-Ring Set MTD-753-0392

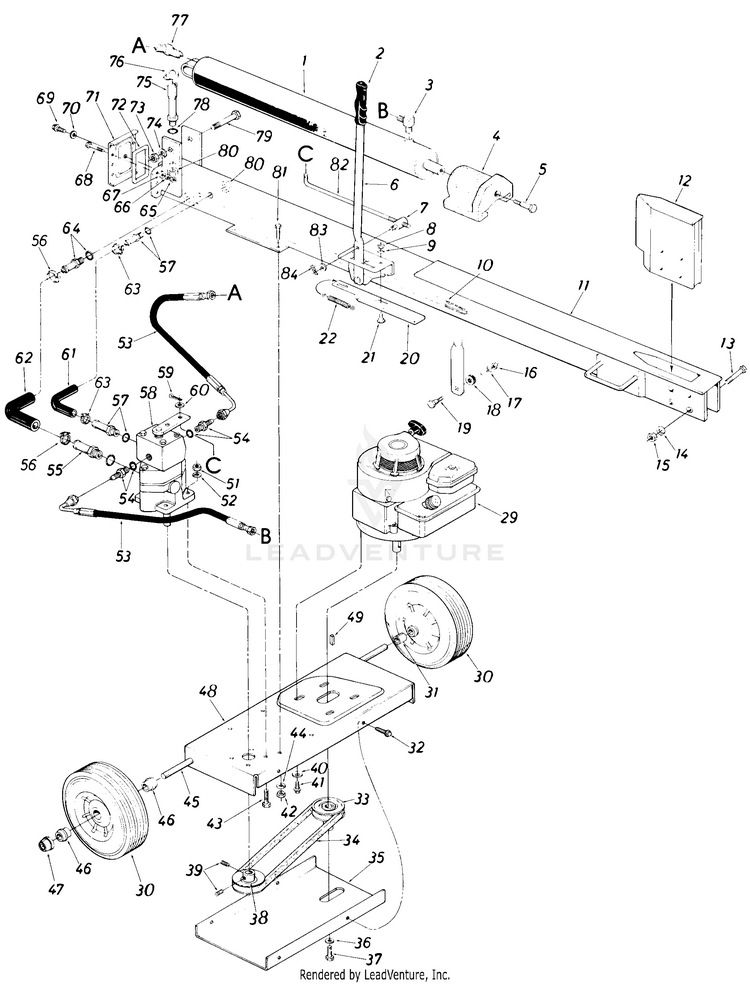

Log

...
...
1
CYLINDER-HYDRO MTD-717-0816
...
2
LIFT HANDLE GRIP MTD-720-0157
...
3
ADAPTER-90 DEGREE MTD-737-0196
...
4
Pusher Plate MTD-719-0270
...
5
SHOULDER SCREW .62X.475 MTD-738-0601
...
6
HANDLE MTD-749-0663
...
7
ADJUSTMENT FERRULE MTD-711-0628
...
8
HEX NUT 5/16-18 MTD-712-3010
...
9
Lock Wash. 5/16" I.D. MTD-936-0119
...
10
TUBE ASSEMBLY-STRAINER MTD-781-0021
...
11
Oil Tank Ass'y. Comp MTD-781-0069
...
12
WEDGE ASSEMBLY MTD-781-0038
...
13
HEX SCREW 5/8-18 x 3.50 GR5 MTD-710-0298
...
14
L.-Wash. 5/8" I.D. MTD-736-0158
...
15
HEX NUT 5/8-18 MTD-712-0337
...
16
Hex Nut 3/8-16 Thd. MTD-712-0798
...
17
L.-Wash. 3/8" I.D. MTD-736-0169
...
18
RUBBER WASHER MTD-735-0144
...
19
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
20
Engagement Brkt. MTD-781-0024
...
21
Shoulder Bolt .437" Dia. x .180" Lg. MTD-738-0140
...
22
EXTENSION SPRING MTD-732-0352
...
29
Engine - B & S MTD-NA
...
30
WHEEL ASS'Y. 10.0 x 2.75 MTD-734-0736
...
31
SLEEVE MTD-950-0118
...
32
Hex Wash. Hd. Self Tap. Scr. 1/4- 20 x . 50 " Lg. MTD-710-0599
...
33
PULLEY MTD-756-0425
...
34
V-BELT (4L) 1/2" V x 30" LG. MTD-754-0278
...
35
Belt Cover MTD-781-0008
...
36
Lock Wash. 5/16" I.D. MTD-936-0119
...
37
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
38
PULLEY MTD-756-0426
...
39
SCREW-SET 1/4-28 x .25 MTD-710-0938
...
40
Bell.-Wash..40" I.D. x.88" 0. D. MTD-736-0105
...
41
HEX SCREW WASH HD 3/8-24X7/8 MTD-710-0649
...
42
Hex Nut 5/16-24 Thd. MTD-912-3057
...
43
Hex Bolt 5/16-18 x 1.00" Lg. MTD-710-0376
...
44
Lock Wash. 5/16" I.D. MTD-936-0119
...
45
AXLE SHAFT MTD-747-0458
...
46
FLANGE BEARING MTD-741-0116
...
47
Push Cap 5/8" Dia. Rod MTD-726-0214
...
48
FRAME - ENGINE MTD-781-0002
...
49
Sq. Key 3/16" x 3/16" x 1.50" Lg. MTD-714-0133
...
51
HEX NUT 5/16-18 MTD-712-3010
...
52
Lock Wash. 5/16" I.D. MTD-936-0119
...
53
High Pressure Hose MTD-727-0302
...
54
Adapter - or Boss to MJIC 9/16-18 to 7/16-20 MTD-737-0183
...
55
Adapter 3/4" Tubing to 3/4 -16 M-Boss MTD-737-0182
...
56
Hose Clamp 5/8" I.D. MTD-726-0132
...
57
Adapter 1/2" Tube 9/16-18 or M-Boss MTD-737-0184
...
58
Valve Ass'y. MTD-717-0803
...
59
Cotter Pin 3/32" Dia. x .75" Lg. MTD-714-0507
...
60
Fl.-Wash. 344" I.D. x .62" O.D. x .063 MTD-736-0264
...
61
HOSE-RETURN-90 DEG MTD-727-0301
...
62
HOSE-SUCTION-90 DEG MTD-727-0300
...
63
HOSE CLAMP 1/4 ID MTD-726-0146
...
64
ADAPTER MTD-737-0191
...
65
HEX NUT 5/16-18 MTD-712-3010
...
66
Lock Wash. 5/16" I.D. MTD-936-0119
...
67
FLAT WASHER MTD-736-0275
...
68
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
69
Screw, 5/16-18 x .625 MTD-710-0604A
...
70
GASKET MTD-721-0205
...
71
PLATE-END MTD-781-0023
...
72
GASKET MTD-721-0203
...
73
Hex Jam Nut 3/4-10 Thd. MTD-712-0301
...
74
WASHER MTD-936-0364
...
75
Filler Tube Ass y. MTD-781-0036
...
76
CAP ASSEMBLY-GAS MTD-745-0174
...
77
ADAPTER-45 DEGREE MTD-737-0197
...
78
O-RING MTD-721-0204
...
79
Hex Bolt 3/4" x 4.0" Lg. MTD-710-0920
...
80
HEX NUT 1 1/16-12 MTD-712-0338
...
81
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
82
Engagement Rod 16.75" Lg. MTD-747-0493
...
83
Fl.-Wash. .344" I.D. x.62" O.D. x .063 MTD-736-0264
...
84
Hair Pin Cotter 5/16" Dia. MTD-714-0104
