product name

MTD 24596-8 (1988) Edger

Model: 24596-8 (1988)

Save
Don't See Your Part Listed?
product name

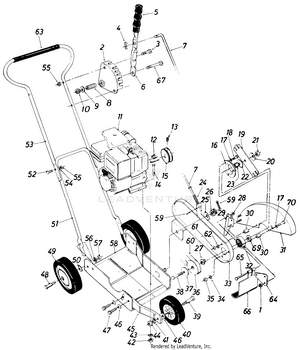

Edger

...
...
1
Hex L-Nut 1/4-20 Thd MTD-912-0107

...
2
Clutch Plate MTD-781-0081

...
3
Hex Bolt 1/4 20 x 1.25" Lg. MTD-710-0106

...
4
CotterPin 1/8" Dia. x 1.0" Lg. MTD-714-0115

...
5
Black Grip MTD-07071

...
6
Engagement Handle MTD-749-0666-0637

...
7
Clutch Rod MTD-747-0358

...
8

...
9
Fl.-Wash. .34" I.D. x .62" O.D. x.063 MTD-736-0264

...
10
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158

...
11
Engine MTD-NA

...
12
KEY, SPINDLE MTD-914-0105

...
13
Set Scr. 1/4-28 x 1/4" Lg. MTD-710-0938

...
14
SCREW 5/16-18 x 1.5 LG MTD-710-0805A

...
15
Engine Pulley MTD-711-0421

...
16
Bearing Housing MTD-08253B

...
17
Bell.-Wash. .34" I.D. x 88" O.D. x .060 MTD-736-0242

...
18
Hex Bolt 5/16-18 x 1.25" Lg. MTD-710-0528

...

...
20
Bell. Wash. .535" I.D. x 1.50" O.D. x.052 MTD-736-0112

...
21
Hex Cent. L.-Nut 1/2-20 Thd. MTD-712-0239

...
22
Bell.-Wash. .535" I.D. x 1.50" O.D. x .052 MTD-736-0112

...
23
Flail Spacer MTD-911-0564

...
24
Comp. Spring 2" Lg. MTD-932-0330

...
25
Bell.-Wash. .535" I.D. x 1.50" O.D. x .052 MTD-736-0112

...
26
Hex Slotted Nut 1/2-20 Thd. MTD-912-0114

...
27
Shoulder Spacer MTD-711-0716

...
28
Push Cap MTD-726-0111

...
29

...
30
Spacer.354" I.D. x .635" O.D. x .510" Lg. MTD-748-0298

...
31
Blade Guard Ass'y. MTD-14341

...
32
BALL BEARING MTD-941-0919B

...
33
Spindle Bracket Ass'y. MTD-13333

...
34
Lock Wash. 5/16" I.D. MTD-936-0119

...
35
HEX NUT 5/16-18 MTD-712-3010

...
36
1 Pulley Half MTD-756-0361

...
37
Bell.-Wash. .535" I.D. x 1.50" O.D. x .052 MTD-736-0112

...
38
Hex Bolt 1/2-20 x 3.50" Lg. MTD-710-0515

...
39
Shoulder Bolt .498" Dia. MTD-938-0108

...
40
Wheel Ass'y. Comp. 6" Dia. x 1.50 MTD-734-1175

...
41
L.-Wash. 3/8" I.D. MTD-736-0169

...
42
HEX NUT 5/16-18 MTD-712-3010

...
43
Lock Wash. 5/16" I.D. MTD-936-0119

...
44
Hex Nut 3/8-16 Thd. MTD-712-0798

...
45
Front Wheel Support MTD-13332

...
46
Bell.-Wash. .400" I.D. x 88" 0. D. x .060 MTD-736-0105

...
47
Hex Wash. Hd. Self Tap Scr. 3/8- 1 6 x .75" Lg. MTD-710-0623

...
48
Shoulder Bolt .498" Dia. MTD-938-0108

...
49
Wheel Ass y. Comp. 7" Dia. x 1.50 MTD-734-1176

...
50
Bell.-Wash. .400" I.D. x 88" 0. D. MTD-736-0105

...
51
Lower Handle MTD-749-0453

...
52
Carriage Bolt 1/4-20 x 1.25" Lg. MTD-710-0111

...
53
Upper Handle MTD-749-0452

...
54
L-Wash. 1/4" I.D. MTD-936-0329

...
55
Hex Nut 1/4-20 Thd. MTD-912-0287

...
56
L.-Wash. 3/8" I.D. MTD-736-0169

...
57
Hex Nut 3/8-16 Thd. MTD-712-0798

...
58
Base Ass'y. MTD-13330

...
59
Cotter Pin 1/8" Dia. x 1.0" Lg. MTD-714-0115

...
60

...
61
HEX NUT 5/16-18 MTD-712-3010

...
62
Lock Wash. 5/16" I.D. MTD-936-0119

...
63
Grip (Optional) MTD-718-0144

...
64
Flap Bracket MTD-14427

...
65
Hinge Pin MTD-711-0720

...
66
Debris Deflector MTD-731-0532

...
67
Hex Bolt 5/16-18 x 1.75" Lg. MTD-710-3180

...
69
FLAT WASHER .510 x .995 MTD-736-0272

...
70
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
...
...
...
