MTD 245-635-000 (1985) Log Splitter

Model: 245-635-000 (1985)

Save Part Not Listed?
product name

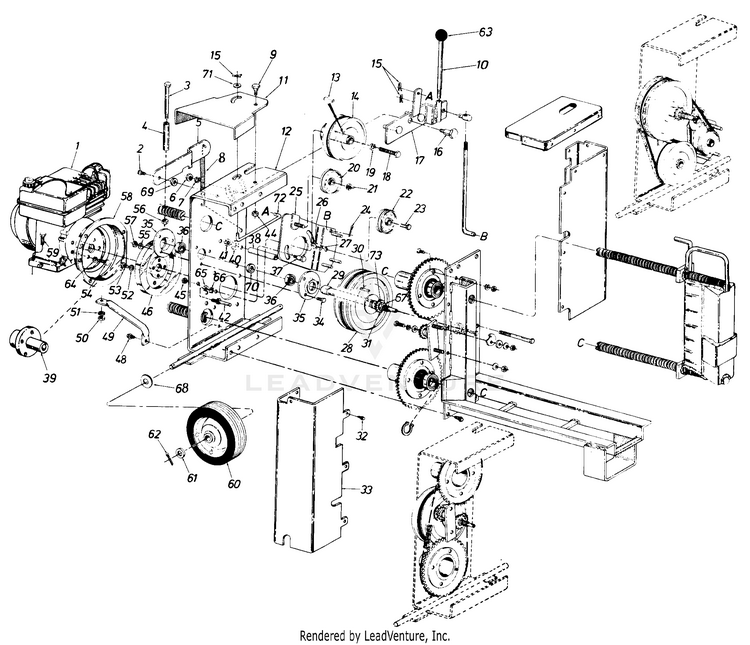

Parts

...
...
1
Engine MTD-NA
...
2
HEX SCREW WASH HD 3/8-24X7/8 MTD-710-0649
...
3
Hex Bolt 3/8-16 x 4.5" Lg. MTD-710-0693
...
4
Spacer 3/8 I.D. x 5/8 O.D. x 2-5/8 Lg. MTD-750-0537
...
5
Spring Retainer Bracket MTD-14822
...
6
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
7
L.-Wash. 3/8 I.D.* MTD-736-0169
...
8
Extension Spring .73" O.D. x 4.31 0 Lg. MTD-932-0121
...
9
SHOULDER SCREW .500 DIA x .170 MTD-738-0147
...
10
Engagement Handle MTD-747-0389
...
11
Lever Return Bracket MTD-14896
...
12
Motor Mounting Plate Ass'y. MTD-14809
...
13
Sq. Key 3/16 x 2.0" Lg. MTD-714-0139
...
14
Step Pulley MTD-756-0382
...
15
Internal Cotter Pin 1/8" Dia. MTD-714-0104
...
16
Shoulder Screw, .625 Dia. x .21 MTD-738-0322A
...
17
Engagement Handle Brkt. Ass'y. MTD-14716
...
18
HEX SCREW 3/8-24 x 3.0 LG MTD-710-0830
...
19
L.-Wash. 3/8 I.D.* MTD-736-0169
...
20
FLAT IDLER PULLEY W/FLANGES MTD-756-0225
...
21
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
22
FLAT IDLER PULLEY W/FLANGES MTD-756-0225
...
23
Hex Bolt 3/8-16 x 1.5" Lg.* MTD-710-0344
...
24
Cotter Pin 1/8" Dia. x 3/4" Lg. * MTD-714-0474
...
25
Engagement Bracket Ass'y. MTD-14811
...
26
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
27
L-Wash. 3/8" I.D.* MTD-736-0169
...
28
Engine Pulley MTD-756-0381
...
29
JACKSHAFT MTD-738-0525
...
30
Sq. Key 3/16 x 2.0 Lg.* MTD-714-0139
...
31
Sprocket 12T #20 Chain MTD-713-0298
...
32
SCREW 5/16-24 x .500 MTD-710-0600
...
33
Belt Cover R.H. MTD-14721
...
34
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
35
Bearing Housing MTD-08253B
...
36
BALL BEARING MTD-741P0919B
...
37
SHOULDER SCREW MTD-738-0183
...
38
Spacer .38 I.D. x 62 O.D. 4.5 Lg. MTD-750-0531
...
39
Fly Wheel Mtg. Hub MTD-711-0743
...
40
Fl.-Wash. 3/8 I.D. x 1.25 O.D. x .10 MTD-736-0133
...
41
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
42
Stud 1/4" x 2-7/8" Lg. MTD-711-0735
...
44
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
45
HEX NUT 1/4-20 MTD-912-0287
...
46
Flywheel MTD-719-0258
...
xx
SPACER MTD-950-0528
...
48
HEX SCREW WASH HD 3/8-24X7/8 MTD-710-0649
...
49
Engine Brace MTD-749-0493
...
50
HEX NUT 5/16-18 MTD-712-3010
...
51
Lock Wash. 5/16" I.D. MTD-936-0119
...
52
L-Wash. 1/4" I.D. MTD-936-0329
...
53
SCREW-SOC HD CAP I/4-28X1.50 MTD-710-0849
...
54
Hex Bolt 5/16-24 x 5/8" Lg.* MTD-710-0237
...
55
Lock Wash. 5/16" I.D. MTD-936-0119
...
56
Hex Cent. L.-Nut 3/8-16 Thd. MTD-712-0375
...
57
HEX NUT 5/16-18 MTD-712-3010
...
58
Motor Mount Cup MTD-14700
...
59
Hex Bolt 5/16-18 x 1.25" Lg. * MTD-710-0528
...
60
WHEEL ASS'Y. 10.0 x 2.75 MTD-734-0736
...
61
Fl.-Wash. 5/8 I.D. x 93 O.D. x .06 MTD-736-0116
...
62
CotterPin 1/8" x 1.0" Lg.* MTD-714-0115
...
63
Shfter Knob MTD-931-0009A
...
64
Lock Wash. 5/16" I.D. MTD-936-0119
...
65
Hex Cent. L.-Nut 3/8-16 Thd. MTD-712-0375
...
66
Bell.-Wash. MTD-736-0105
...
67
HEX JAM NUT 5/8-18 MTD-712-0318
...
68
Fl.-Wash. .62" I.D. x 1.25"O.D. MTD-736-0237
...
69
SPACER MTD-950-0528
...
70
Spacer.79" I.D. x 1.00" O.D. x.177" Lg. MTD-750-0540
...
71
Fl.-Wash. 5/16" I.D. x 3/8" O.D. MTD-736-0159
...
72
Rod Lever Return MTD-747-0407
...
73
L.-Wash. 5/8" I.D.* MTD-736-0158

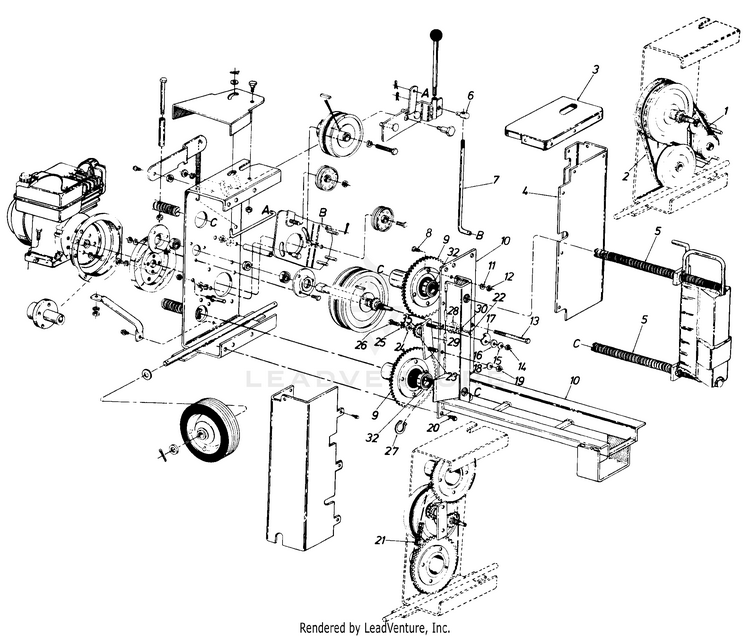

Parts

...
...
1
VBelt 1/2 x 40" Lg. (Kevlar) (Reverse) MTD-954-0244
...
2
V-BELT 1/2 X 35 (Forward) MTD-754-0235
...
3
End Cover MTD-14719
...
4
L.H. Belt Cover MTD-14720
...
5
Comp. Wedge & Screw Ass'y. MTD-14722
...
6
Ferrule MTD-911-0198
...
7
Lever Rod MTD-747-0388
...
8
Hex Bolt 5/16-18 x 1.00" Lg.* MTD-710-0376
...
9
Sprocket Hub Ass'y. MTD-14714
...
10
Frame Weldment Ass'y. MTD-14707
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
SCREW 3/8-16 x 5.5" GR5 MTD-710-0831
...
14
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
15
L.-Wash. 3/8" I.D. MTD-736-0169
...
16
Fl.-Wash. 3/8 I.D. x 1.0 O.D. x 13 MTD-736-0258
...
17
Chain Adjuster MTD-06605
...
18
Bell Wash. 3/8" I.D. MTD-736-0105
...
19
Hex Nut 3/8-16 Thd. * MTD-712-0798
...
20
TT Screw, 3/8-16 x 1.00 MTD-710-0654A
...
21
131 Link Chain #420 MTD-713-0302
...
xx
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
22
BOLT 1/4-28 X .625 GR8 MTD-710-0513A
...
23
10 Tooth Sprocket Ass'y. MTD-14715
...
24
Fl.-Wash. 3/8 I.D. x 1.25 O.D. x 10 Thd. MTD-736-0133
...
25
L.-Wash . 3/8" I.D. * MTD-736-0169
...
26
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
27
SNAP RING MTD-716-0134
...
28
Ball Bearing .50 I.D. x 1.38 O.D. x .437 MTD-741-0133
...
29
Idler Bracket Ass'y. Comp. MTD-14709
...
30
Fl.-Wash. 1/4 I.D. x 3/4 O.D. x.063 MTD-736-0173
...
xx
Hex Bolt 1/4-24 x 3/4" Lg. MTD-710-0412
...
32
Ball Bearing MTD-741-0355
...
xx
Hex Wash. SF Tapp Scr. 5/16 x 7/8 MTD-710-0650
...
xx
SCREW 5/16-24 x .500 MTD-710-0600
...
35
SPACER-.375X.625X1 (Goes inside of Ref. No. 23) MTD-750-0543
