MTD 241695 (1991) Blower

Model: 241695 (1991)

Back To Assemblies

Save Part Not Listed?
product name

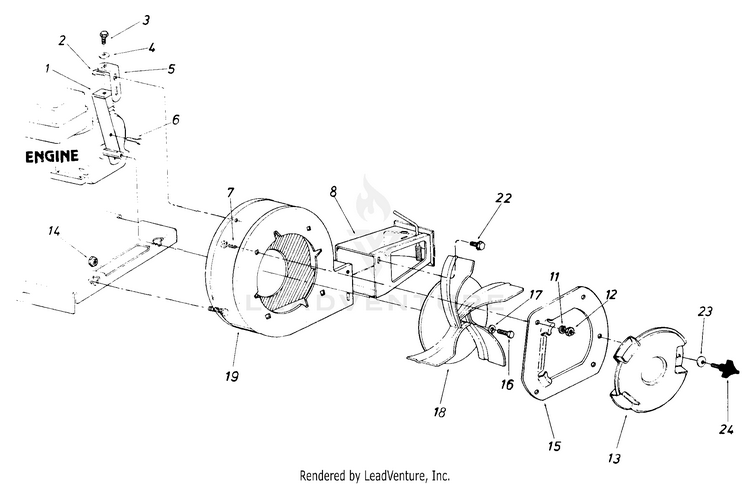

Air Duct Assembly

...
...
1
HOUSING-ENG BRACE MTD-14539-0637
...
2
SCREW 5/16-24 x .500 MTD-710-0600
...
3
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
4
Lock Wash. 5/16" I.D. MTD-936-0119
...
5
BRACKET-RIGHT ANGLE MTD-14541
...
6
Hex Locking Bolt 5/16-24 x .75" MTD-710-0627
...
7
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
8
DISCHARGE ASSEMBLY MTD-14479
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
BLOWER GUARD MTD-731-0608
...
14
Hex Shoulder Nut .50 I.D. MTD-911-0758
...
15
PLATE ASSEMBLY-NOZZLE MTD-14563A
...
16
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
17
L.-Wash. 3/8" I.D. HD. MTD-736-0217
...
18
AIR VANE PLATE ASS'Y. MTD-14535
...
19
BLOWER HOUSING ASSEMBLY MTD-14496B
...
22
HEX SCREW SEMS 5/16-18 x .62 MTD-710-0259
...
23
Belleville Wash. .34" I.D. x .87" O.D. MTD-736-0242
...
24
3-Arm Thumb Scr. 5/16-18 x .75" Lg. MTD-720-0170
