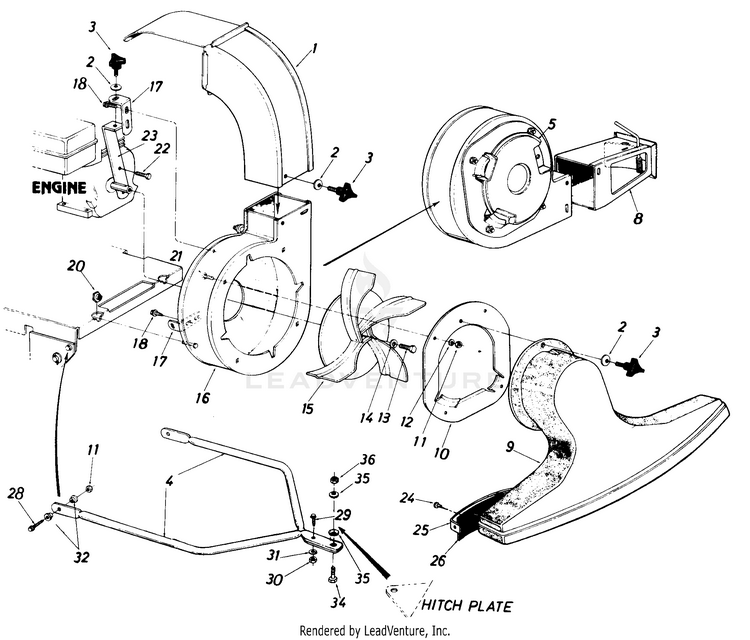

MTD 240677 (1990) Chipper-Shredder Vac

Model: 240677 (1990)

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
AIR DUCT ASSEMBLY MTD-14532
...
2
Belleville Wash. 34" I.D. x .87" O.D. MTD-736-0242
...
3
3-Arm Thumb Scr. 5/16-18 x .75" Lg. MTD-720-0170
...
4
TOW 8AR HALF MTD-749-0501
...
5
BLOWER GUARD MTD-731-0608
...
8
DISCHARGE ASSEMBLY MTD-14479
...
9
NOZZLE MTD-14562B
...
10
PLATE ASSEMBLY-NOZZLE MTD-14563A
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
14
L.-Wash. 3/8" I.D. H.D. MTD-736-0217
...
15
AIR VANE PLATE ASS Y. (24677) MTD-14536
...
xx
PLATE ASSEMBLY-VANE (24687) MTD-14557
...
16
BLOWER HOUSING ASSEMBLY MTD-14496B
...
17
BRACKET-RIGHT ANGLE MTD-14541
...
18
SCREW 5/16-24 x .500 MTD-710-0600
...
20
Hex Shoulder Nut .50 I.D. MTD-911-0758
...
21
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
22
Hex Locking Bolt 5/16-24 x .75" Lg. MTD-710-0627
...
23
HOUSING-ENG BRACE MTD-14539-0637
...
24
Rivet MTD-928-0173
...
25
WIPER RETAIN STRIP MTD-14569
...
26
WIPER NOZZLE MTD-735-0214
...
28
Hex Bolt 5/16-18 x 1.00" Lg.* (Optional parts) MTD-710-0602
...
29
Truss Mach. Scr. 1/4-20 x.75" Lg. (Optional parts) MTD-710-0924
...
30
HEX NUT 1/4-20 (Optional parts) MTD-912-0287
...
31
L-Wash. 1/4" I.D. (Optional parts) MTD-936-0329
...
32
Shoulder Spacer (Optional parts) MTD-748-0234
...
34
SHOULDER SCREW .498 DIA x .340 (Optional parts) MTD-738-0143
...
35
Bell-Wash. .400" I.D. x 1.13" O.D. (Optional parts) MTD-936-0219
...
36
Hex Jam L-Nut 3/8-16 Thd. (Optional parts) MTD-712-0181
