MTD 21AA144R978 Tiller

Model: 21AA144R978

Back To Assemblies

Save Part Not Listed?
product name

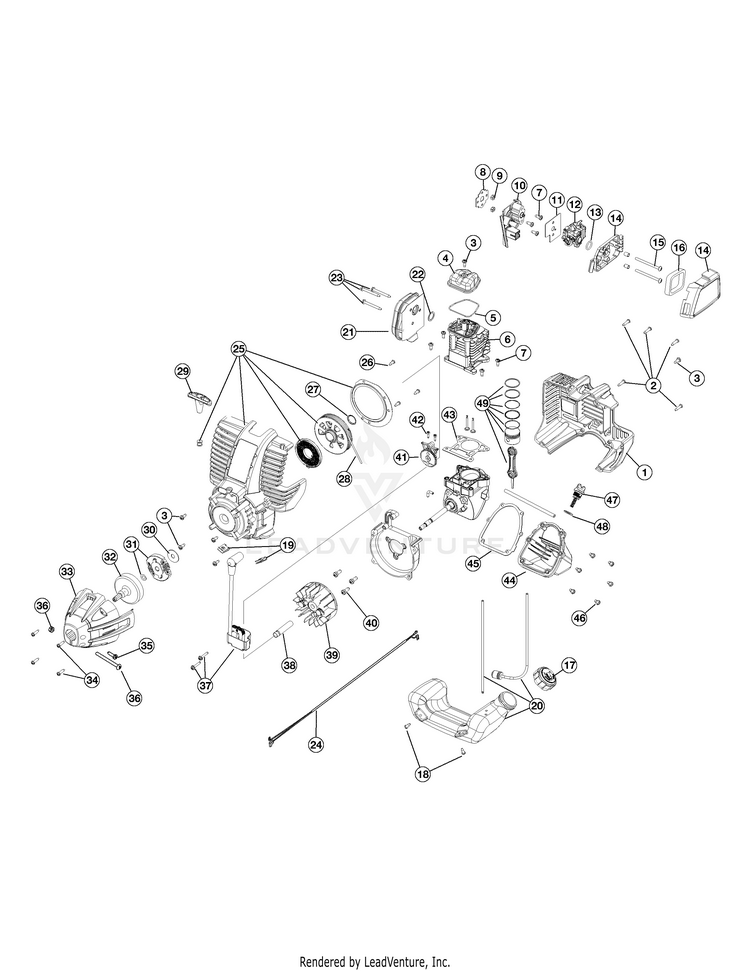

Engine Assembly

...
...
1
REAR ENGINE COVER MTD-753-05998
...
2
Screw MTD-791-181345
...
3
SCREW M5X0.8 MTD-710-04604A
...
4
ROCKER COVER MTD-753-05209
...
5
O-RING MTD-721-04132
...
6
CYLINDER ASSEMBLY (Incl. Ref No. 5, 7 & 43) MTD-753-05438
...
7
SCREW, M5 X18 MTD-9052-1
...
8
GASKET/INSULATOR MTD-753-05247
...
9
Nut MTD-712-04099
...
10
Insulator (Incl. Ref No. 11) MTD-753-05452
...
11
CARB GASKET AC2.2 MTD-753-05439
...
12
Carburetor w/Primer MTD-753-1225
...
13
Carburetor O-Ring MTD-791-181751
...
14
AIR CLNR COVER (Incl. Ref No. 16) MTD-753-06020
...
15
Screw MTD-710-04517
...
16
Air Filter MTD-753-05996
...
17
Fuel Cap MTD-753-05289
...
18
Screw MTD-791-181930
...
19
Clip Nut MTD-791-182366
...
20
FUEL TANK ASSEMBLY (Incl. Ref No. 17) MTD-753-05443
...
21
MUFFLER ASSEMBLY AC2.2 (Incl. Ref No. 22 & 23) MTD-753-05997
...
22
Muffler Gasket MTD-753-05244
...
23
Screw MTD-710-04809
...
24
WIRE HARNESS MTD-753-04039
...
25
Starter Housing Assembly (Incl. Ref No. 3 & 26-29) MTD-753-06058
...
26
Screw, 10-9 x .50 MTD-1755
...
27
PUSH NUT MTD-712-04096
...
28
STARTER PULLEY ASSEMBLY MTD-753-06051
...
29
Pull Handle MTD-631-04164B
...
30
Washer MTD-9162-1
...
31
Clutch Assembly MTD-753-1238
...
32
Clutch Drum MTD-791-153592
...
33
CLUTCH COVER ASSEMBLY (Incl. Ref No. 34-36) MTD-753-05446
...
34
Cover Screw MTD-791-181345
...
35
Anti-Rotation Screw MTD-791-182519
...
36
SCREW:CLMPNG W/NUT MTD-753-04291
...
37
Module Assembly MTD-753-05301
...
38
Spacer MTD-750-04434
...
39
Flywheel Shroud MTD-753-05240
...
40
SCREW, 1/4-20X.562 F MTD-791-181861
...
41
Cam Bracket Assembly (Incl. Ref No. 42) MTD-753-04919
...
42
SCR, CAM BRACKET MTD-791-181012
...
43
GASKET, CYLINDER B (Incl. Ref No. 45 & 46) MTD-791-182374
...
44
PAN, OIL W/ GASKET MTD-791-182377
...
45
GASKET, OIL PAN MTD-791-181018
...
46
Screw MTD-9054
...
47
Dipstick Assembly (Incl. Ref No. 48) MTD-791-182378
...
48
O-Ring MTD-791-182290
...
49
PISTON/ROD ASSEMBLY MTD-753-05458
...
xx
Spark Plug Not Shown MTD-794-00082
...
xx
SHORT BLOCK Not Shown(Incl. Ref No. 3-7 & 37-49) MTD-753-05450
