product name

MTD 21AA144R978 Tiller

Model: 21AA144R978

Save
 Part Not Listed?Part Not Listed?
product name

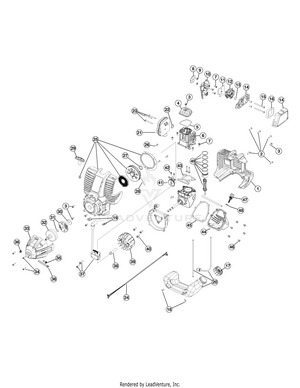

Engine Assembly

...
...
1
Engine Cover MTD-753-05998
...
2
Screw MTD-791-181345
...
3
Screw MTD-710-04604
...
4
Valve Cover MTD-753-05209
...
5
Valve Cover Gasket MTD-721-04132
...
6
Cylinder Assembly (Incl. Ref No. 5, 7 & 43) MTD-753-05438
...
7
SCREW, M5 X18 MTD-9052-1
...
8
Insulator Gasket MTD-753-05247
...
9
Nut MTD-712-04099
...
10
Insulator (Incl. Ref No. 11) MTD-753-05452
...
11
Carburetor Gasket MTD-753-05439
...
12
Carburetor w/Primer MTD-753-1225
...
13
Carburetor O-Ring MTD-791-181751
...
14
AIR CLNR COVER (Incl. Ref No. 16) MTD-753-06020
...
15
Screw MTD-710-04517
...
16
Air Filter MTD-753-05996
...
17
Fuel Cap MTD-753-05289
...
18
Screw MTD-791-181930
...
19
Clip Nut MTD-791-182366
...
20
Fuel Tank Assembly (Incl. Ref No. 17) MTD-753-05443
...
21
Muffler Assembly (Incl. Ref No. 22 & 23) MTD-753-05997
...
22
Muffler Gasket MTD-753-05244
...
23
Screw MTD-710-04809
...
24
Lead Wire MTD-753-04039
...
25
Starter Housing Assembly (Incl. Ref No. 3 & 26-29) MTD-753-06058
...
26
Screw, 10-9 x .50 MTD-1755
...
27
Push Nut MTD-712-04096
...
28
Rope MTD-753-06051
...
29
Pull Handle MTD-631-04164B
...
30
Washer MTD-9162-1
...
31
Clutch Assembly MTD-753-1238
...
32
Clutch Drum MTD-791-153592
...
33
Clutch Cover Assembly (Incl. Ref No. 34-36) MTD-753-05446
...
34
Cover Screw MTD-791-181345
...
35
Anti-Rotation Screw MTD-791-182519
...
36
Clamping Screw Assembly MTD-753-04291
...
37
Module Assembly MTD-753-05301
...
38
Spacer MTD-750-04434
...
39
Flywheel Shroud MTD-753-05240
...
40
Screw MTD-791-181861
...
41
Cam Bracket Assembly (Incl. Ref No. 42) MTD-753-04919
...
42
Cam Bracket Screw MTD-791-181012
...
43
Cylinder Gasket Oil Pan (Incl. Ref No. 45 & 46) MTD-791-182374
...
44
Oil Pan MTD-791-182377
...
45
Gasket MTD-791-181018
...
46
Screw MTD-9054
...
47
Dipstick Assembly (Incl. Ref No. 48) MTD-791-182378
...
48
O-Ring MTD-791-182290
...
49
Piston Assembly MTD-753-05458
...
xx
Spark Plug Not Shown MTD-794-00082
...
xx
Shortblock Assembly Not Shown(Incl. Ref No. 3-7 & 37-49) MTD-753-05450

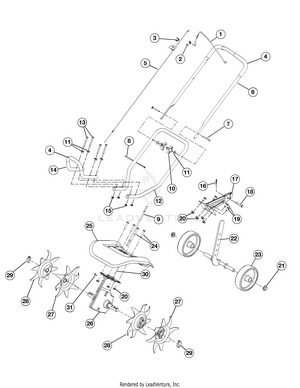

General Assembly

...
...
1
Throttle Control MTD-753-04042
...
2
Torsion Spring MTD-753-05940
...
3
On/Off Switch MTD-791-182673
...
4
FOAM GRIP - 9" MTD-720-0294A
...
5
Throttle Cable MTD-753-06050
...
6
Handle MTD-753-06319
...
7
Bolt MTD-791-182899
...
8
Cable Tie MTD-725-0157
...
9
Flex Shaft MTD-753-04499
...
10
Knob MTD-791-182677
...
11
Saddle Wash. .32" I.D. MTD-736-0451
...
12
Lower Handle MTD-749-1295A-0637
...
13
Hex Bolt 5/16-18 x 2.25" Lg. MTD-710-0395
...
14
Front Handle MTD-753-04055
...
15
Lock Nut MTD-753-04056
...
16
Hairpin Clip MTD-714-0104
...
17
Tailpiece Bracket Assembly MTD-753-04058
...
18
Clevis Pin MTD-711-1017
...
19
Hex Bolt 1/4-20 x .5" Lg. MTD-710-3013
...
20
LOCK NUT 1/4 MTD-912-3027
...
21
Push Cap MTD-726-0299
...
22
Wheel Support Bracket Assembly MTD-753-04063
...
23
Wheel MTD-734-04261
...
24
Bolt MTD-6109
...
25
Tine Shield MTD-753-06059
...
26
Gear Box Assembly MTD-753-06063
...
27
Tine (Right Outer/ Left Inner) MTD-753-05986
...
28
Tine (Right Inner/ Left Outer) MTD-753-05987
...
29
Click Pin MTD-753-06064
...
30
Drive Shaft Housing MTD-753-05469
...
31
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
...
...
