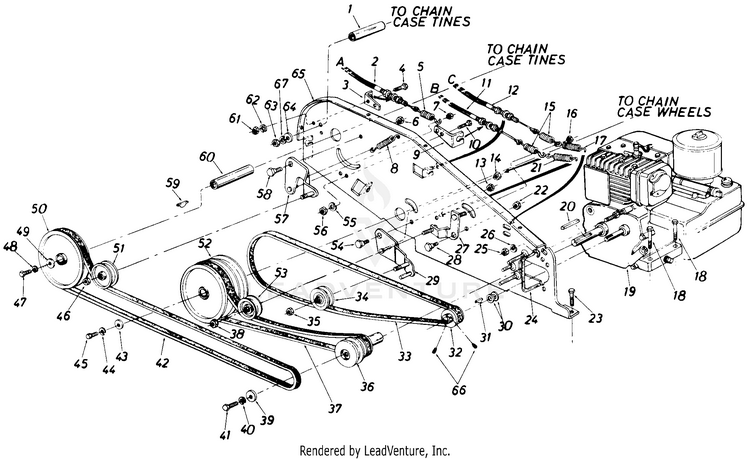

MTD 21406S (1985) Tiller

Model: 21406S (1985)

Back To Assemblies

Save Part Not Listed?
product name

Tiller

...
...
1
Spacer.375" I.D. x .500" O.D. x 2.00" Lg. MTD-750-0219
...
2
Clutch Control Cable (Tines) MTD-946-0535
...
3
BRACKET-CL MTD-15093
...
4
Hex Bolt 5/16-18 x .75" Lg.* MTD-710-0118
...
5
EXTENSION SPRING MTD-732-0387
...
6
JAM LOCK NUT MTD-712-0266A
...
7
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
8
EXTENSION SPRING MTD-732-0445
...
9
BRACKET-CL MTD-15093
...
10
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
11
Clutch Control Cable 42" Lg. (Forward) MTD-946-0571
...
12
CLUTCH CABLE 41" (Reverse) MTD-946-0572
...
13
JAM LOCK NUT MTD-712-0266A
...
14
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
15
Springs (Part of Ref. No. 11 and 12) MTD-NA
...
16
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
17
EXTENSION SPRING MTD-732-0486
...
18
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
19
H.P. Engine B&S 130292-1785-01 MTD-NA
...
20
KEY, SPINDLE MTD-914-0105
...
21
TENSION SPRING MTD-732-0433
...
22
JAM LOCK NUT MTD-712-0266A
...
23
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
24
Belt Keeper MTD-747-0507
...
25
HEX NUT 1/4-20 MTD-912-0287
...
26
SPRING WASHER BELL MTD-736-0270
...
27
IDLER BRACKET. ASS'Y. (Wheel Reverse) MTD-784-0131
...
28
SHOULDER SCREW .500 DIA x .170 MTD-738-0147
...
29
IDLER BRACKET. ASS'Y. (Wheel Forward) MTD-784-0127
...
30
Fl-Wash. .510" I.D. x 1.0" O.D. MTD-736-0326
...
31
KEY-HI-PRO #5-1/8X5/8 DIA MTD-714-0131
...
32
1/2 V-PULLEY 2 1/4 O.D. x 50N 1 D MTD-756-0386
...
33
V-Belt 1/2" X 43.0" Lg. MTD-954-0109
...
34
Idler Pulley MTD-756-1035A
...
35
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
36
1/2" "V "-PULLEY ASS'Y. MTD-756-0465
...
37
V-Belt 1/2" X 39.0" Lg. MTD-954-0190
...
38
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
39
Fl-Wash. .344" I.D. x 1.125" O.D. MTD-736-0231
...
40
Lock Wash. 5/16" I.D. MTD-936-0119
...
41
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
42
V-Belt 1/2" X 54.0" Lg. MTD-954-0195A
...
43
Fl-Wash. 1/4" I.D. x .93" O.D. MTD-736-0176
...
44
L-Wash. 1/4" I.D. MTD-936-0329
...
45
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
46
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
47
Hex Bolt 1/4-28 x .75" Lg. MTD-710-0412
...
48
L-Wash. 1/4" I.D. MTD-936-0329
...
49
Fl-Wash. 1/4" I.D. x .93" O.D. MTD-736-0176
...
50
PULLEY MTD-756-0389A
...
51
Fl-Idler w/Flanges 3.75" O.D. MTD-756-0405
...
52
DOUBLE PULLEY MTD-756-0464
...
53
Fl-Idler with Flanges 2.12" O.D. MTD-756-0313
...
54
SHOULDER SCREW .500 DIA x .170 MTD-738-0147
...
55
Lock Wash. 5/16" I.D. MTD-936-0119
...
56
HEX NUT 5/16-18 MTD-712-3010
...
57
ID LER BRKT. ASS'Y.-TINES MTD-784-0129
...
58
SHOULDER SCREW MTD-738-0183
...
59
#61 Hi-Pro Key 3/16 x 5/8 0 Dia. MTD-914-0388
...
60
SPACER-.647 ID x 2.9 MTD-750-0551
...
61
HEX NUT 5/16-18 MTD-712-3010
...
62
Lock Wash. 5/16" I.D. MTD-936-0119
...
63
HEX NUT 5/16-18 MTD-712-3010
...
64
Fl-Wash. .406" I.D. x .750" O.D. MTD-736-0185
...
65
PLATE ASSY-SIDE MTD-14991
...
66
SCREW-SET 1/4-28 x .25 MTD-710-0938
...
67
Lock Wash. 5/16" I.D. MTD-936-0119
