MTD 213-340-352 (1993) Tiller

Model: 213-340-352 (1993)

Back To Assemblies

Save Part Not Listed?
product name

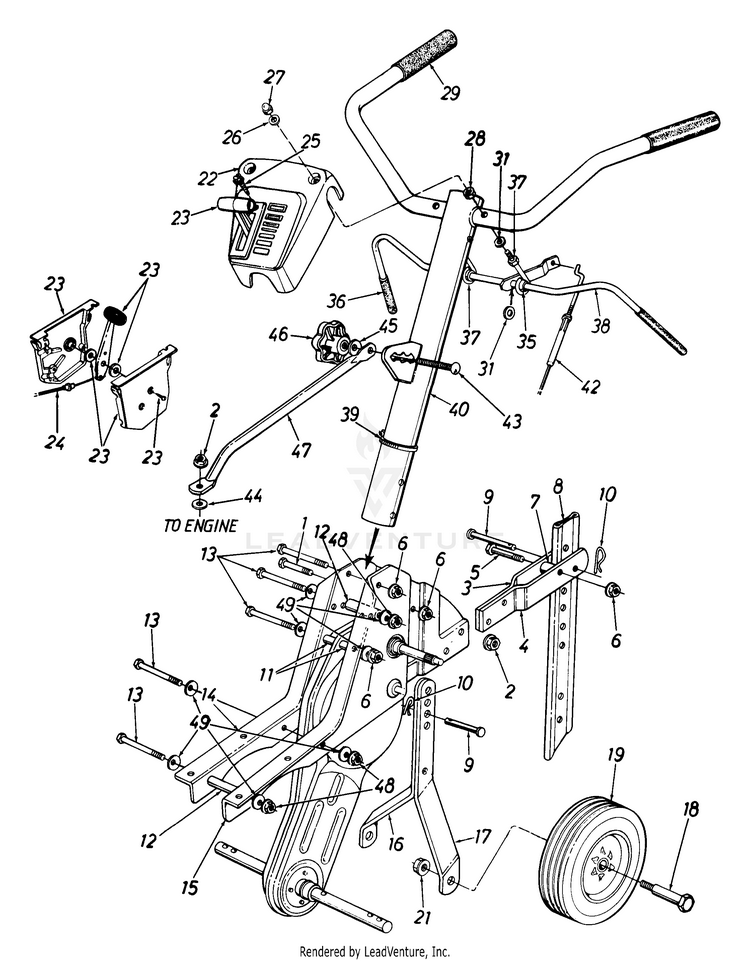

Handle And Wheel Assembly

...
...
1
Hex Bolt 5/16-18 x 1.25" Lg. MTD-710-0874
...
2
HEX FLANGE NUT MTD-712-3004A
...
3
Tail Piece Brkt. (R.H.) MTD-786-0004-0637
...
4
Tail Piece Brkt. (L.H.) MTD-786-0003-0637
...
5
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
6
HEX FLANGE NUT MTD-712-3004A
...
7
Spacer .32" I.D. x .75" O.D. MTD-750-0890
...
8
Depth Bar MTD-786-0005-0637
...
9
Clevis Pin .375" Dia. x 1.88" MTD-711-0679A
...
10
Internal Cotter Pin MTD-714-0149B
...
11
Spacer .326" I.D. x .47" O.D. MTD-750-0470
...
12
Spacer .322 Dia. MTD-750-0885A
...
13
Hex Bolt 5/16-18 x 2. T5" Lg. MTD-710-0176
...
14
FRAME (RH) MTD-786-0028
...
15
FRAME (LH) MTD-786-0029
...
16
WHEEL HANGER BRKT. (RH) MTD-786-0002
...
17
WHEEL HANGER BRKT. (LH) MTD-786-0001
...
18
SCREW:SHLDR:0.498X1.630:3/8-16 MTD-738-0533
...
19
Wheel, 8" MTD-734-04585
...
?20
Hex Bolt 3/8-16 x 1" Lg. (Gr. 8) MTD-710-3094A
...
21
Hex Flange L-Nut 3/8-16 Thd. (Gr. 5) MTD-712-3005
...
22
HANDLE COVER MTD-731-1286
...
23
Throttle Control Box Ass'y. MTD-831-0823A
...
24
THROTTLE CABLE MTD-946-0891
...
25
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
26
Fl-Wash..266" I.D. x .625" O.D. MTD-736-3020
...
27
Hex L-Stop Nut 1/4-28 Thd. MTD-712-0392
...
28
Hex Nut 1/4-28 Thd. MTD-712-0138
...
29
GRIP-HANDLE MTD-720-0268
...
31
Fl-Wash..385" I.D. x .62" O.D. MTD-736-0140
...
35
BUSHING .380 ID MTD-941-0475
...
36
Grip - Clutch MTD-720-0269
...
37
EYE-BOLT MTD-747-0815
...
38
CLUTCH HANDLE ASSEMBLY MTD-686-0008
...
39
Cable Tie 9" Lg. MTD-726-0317
...
40
HANDLE ASSEMBLY MTD-649-0022A
...
42
FORWARD CLUTCH CABLE MTD-746-0879
...
43
Carr, Bolt 5/16-18 x 1" Lg. (Special) MTD-710-1236
...
44
WASHER-FL NLAUD MTD-936-0123
...
45
Bell-Wash..345" 1.0. x .88" 0.0. MTD-736-0242
...
46
Hand Knob MTD-720-0195
...
47
ENGINE TUBING BRACE MTD-749-0915
...
48
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
49
Bell-Wash..345" I.D. x .88" O.D. MTD-736-0242
