MTD 210-381-192 Tiller

Model: 210-381-192

Save Part Not Listed?
product name

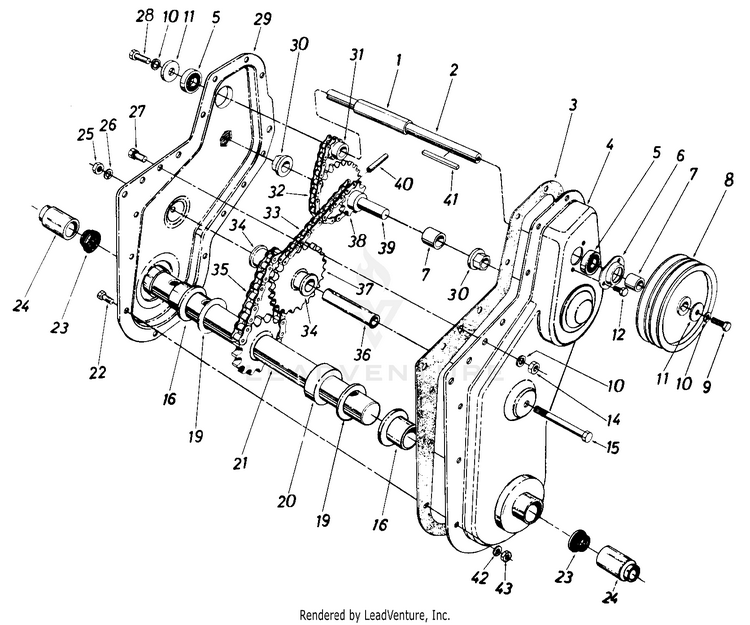

Chain Case

...
...
1
SPACER MTD-750-0315
...
2
JACK SHAFT MTD-938-0182
...
3
GASKET MTD-921-0132
...
4
CHAIN CASE MTD-15276
...
5
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
6
BEARING HOUSING MTD-05034A
...
7
SPACER .635 ID X.88 OD x 1.030 MTD-750-0229
...
8
Chain Case Pulley 6.0" Dia. MTD-756-0262
...
9
Hex Bolt 5/16-18 x 1.0" Lg. (Special) MTD-710-0643
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
Fl-Wash. .344" I.D. x 1.125 O.D. MTD-736-0231
...
12
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Hex Bolt 3/8-16 x 3.25" Lg. (Grade 8) MTD-710-3130
...
16
Bearing MTD-931-0374
...
19
Flat Thrust Wash. MTD-736-0163
...
20
SPACER MTD-750-0314
...
21
SHAFT-TINE MTD-784-0090
...
22
HEX SCREW 1/4-28 x .62 MTD-910-0195
...
23
SEAL MTD-721-0175
...
24
Dust Cap MTD-931-0487
...
25
Hex Nut 3/8-16 Thd. MTD-712-0798
...
26
L-Wash. 3/8" I.D. MTD-736-0169
...
27
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
28
Hex Bolt 5/16-18 x .62" Lg. (Special) MTD-710-0538
...
29
CHAIN CASE MTD-15274
...
30
HEX FLANGE BEARING MTD-948-0229
...
31
SPROCKET ASSEMBLY-10T MTD-713-0206
...
32
#41 CHAIN MTD-713-0131
...
33
#420 CHAIN 1/2 PITCH x 48 LIN MTD-913-0186
...
34
FLANGE BEARING .626 ID MTD-748-0855
...
35
#50 CHAIN 5/8 PITCH x 28 LINKS MTD-713-0187
...
36
SHAFT-SPROCKET MTD-738-0320
...
37
SPROCKET SLEEVE ASSEMBLY MTD-713-0182
...
38
SPROCKET SLEEVE ASSEMBLY MTD-713-0181
...
39
Sprocket Shaft MTD-738-0308
...
40
Spring Pin Spiral 1/4" Dia. x 1.5" Lg. MTD-715-0114
...
41
Square Key 3/16 x 3/16 x 1.50" Lg. MTD-714-0133
...
42
L-Wash. 1/4" I.D. MTD-936-0329
...
43
Hex Nut 1/4-28 Thd. MTD-712-0138

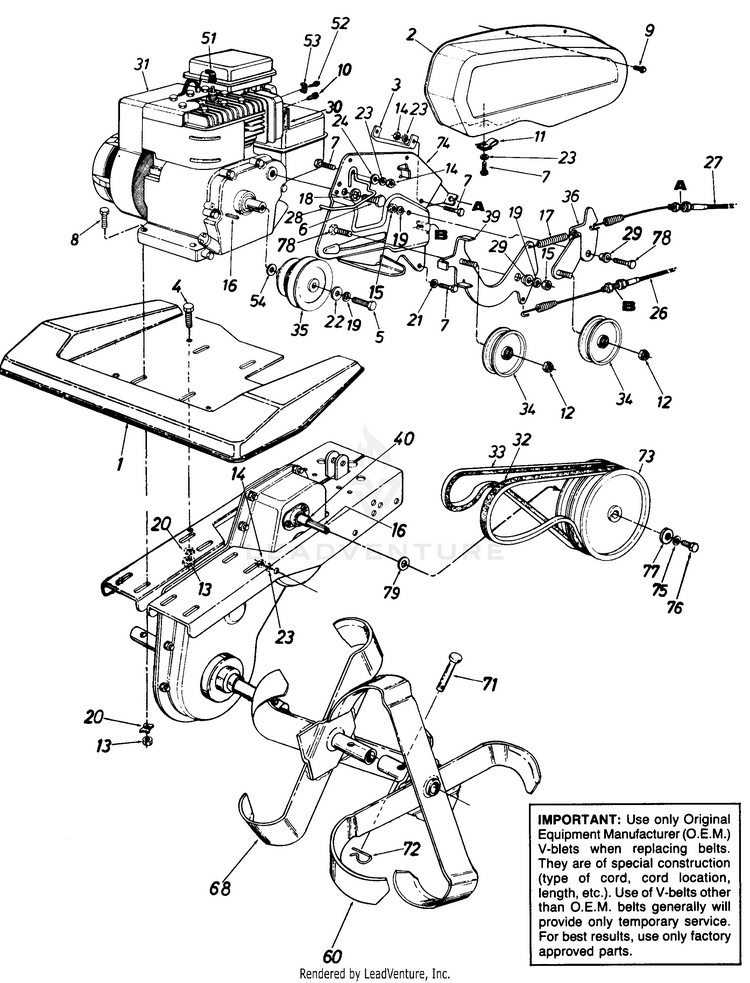

Parts

...
...
1
TINE SHIELD MTD-04598
...
2
BELT GUARD MTD-06796
...
3
Support Brkt. MTD-06801
...
4
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
5
Hex Bolt 3/8-24 x 1.25" Lg. MTD-710-0191
...
6
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
7
Hex Bolt 1/4-20 x .75" Lg. MTD-710-3015
...
8
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
9
Hex Wash. Hd. Tap Scr. 1/420 x .5" Lg. MTD-710-0599
...
10
HEX SCREW WASH HD 10-32X.38 MTD-710-0783
...
11
SPEED NUT 1/4-20 MTD-712-0185
...
12
Hex L-Nut 3/8-24 Thd. MTD-712-0262
...
13
HEX NUT 5/16-18 MTD-712-3010
...
14
HEX NUT 1/4-20 MTD-912-0287
...
15
Hex L-Nut 3/8-16 Thd. MTD-712-0375
...
16
Sq. Key 3/16 x 1.5" Lg. MTD-714-0133
...
17
Spring MTD-932-0209
...
18
Lock Wash. 5/16" I.D. MTD-936-0119
...
19
L-Wash. 3/8" I.D. MTD-736-0169
...
20
SPECIAL WASHER MTD-736-0170
...
21
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
22
Fl-Wash. 3/8" I.D. x 1" O.D. x 1.27" MTD-736-0258
...
23
L-Wash. 1/4" I.D. MTD-936-0329
...
24
Fl-Wash. .25 I.D. x .62 O.D. MTD-736-0463
...
26
CLUTCH CABLE CONTROL (Reverse) MTD-746-0622B
...
27
CLUTCH CABLE (Forward) MTD-946-0621B
...
28
Belt Guard Rod MTD-747-0181
...
29
Shoulder Spacer, .380 ID MTD-738-0372B
...
30
MUFFLER DEFLECTOR MTD-BS-796956
...
31
Engine MTD-NA
...
32
V-BELT 1/2 x 37 SPECIAL (Forward) (Belts listed by part number are of special construction and should be used when replacement is necessary) MTD-954-0154
...
33
V-BELT 1/2 x 41 (Reverse) (Belts listed by part number are of special construction and should be used when replacement is necessary) MTD-954-0201
...
34
FLAT IDLER PULLEY W/FLANGES MTD-756-0225
...
35
Engine Pulley MTD-756-0261
...
36
BRACKET ASSY-IDLER MTD-784-0267
...
39
IDLER BRACKET ASSEMBLY MTD-784-0251
...
40
SPACER .635 ID X.88 OD x 1.030 MTD-750-0229
...
51
INSULATOR-SPARK PLUG (Optional) MTD-735-0639
...
52
Hex Sems Scr. #10-32 x .62" Lg. MTD-710-0899A
...
53
Casing Clamp MTD-751B221535
...
54
Fl-Wash. .75" I.D. x 1.5 O.D. x .12n MTD-736-0315
...
60
TINE ASSEMBLY-OUTER (LH)POWDER MTD-784-0093
...
xx
TINE ASSEMBLY-OUTER (RH) (Not Shown) MTD-784-0094
...
68
TINE ASSEMBLY-INNER (LH) MTD-784-0091
...
xx
TINE ASSEMBLY-INNER (RH) (Not Shown) MTD-784-0092
...
71
Clevis Pin .375" Dia. x 1.88" MTD-711-0679A
...
72
Intern. Cotter Pin MTD-714-0149B
...
73
Transmission Pulley 6" Dia. MTD-756-0262
...
74
PLATE-CLUTCH MTG MTD-784-0269
...
75
Lock Wash. 5/16" I.D. MTD-936-0119
...
76
Patch Bolt 5/16-18 x 1" Lg. MTD-710-0643
...
77
Fl-Wash. 5/16" I.D. MTD-736-0231
...
78
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
79
Fl-Wash. .635" I.D. x 1.25" O.D. MTD-736-0187

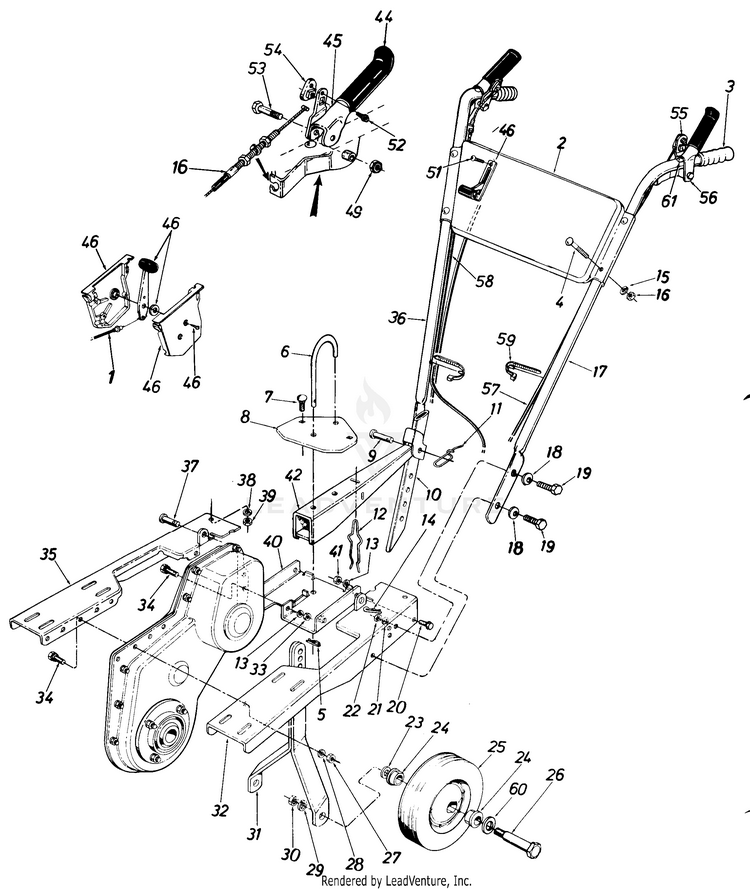

Parts

...
...
1
35" THROTTLE CABLE MTD-946-0503
...
2
HANDLE PANEL MTD-784-0036A
...
3
Grip MTD-720-04083
...
4
CARRIAGE BOLT 5/16-18 x 1.75 MTD-710-0458
...
5
Internal Cotter Pin MTD-714-0149B
...
6
CLEVIS PIN MTD-04602
...
7
Carriage Bolt 5/16-18 x .75" MTD-710-0451
...
8
"U"-Channel Plate MTD-04586
...
9
CLEVIS PIN .500 x 1.875 MTD-711-0231A
...
10
BAR-DEPTH MTD-04668
...
11
Spring Pin MTD-732-0194
...
12
SPRING-DEPTH BAR MTD-732-0290
...
13
Lock Wash. 5/16" I.D. MTD-936-0119
...
14
Internal Cotter Pin MTD-714-0149B
...
15
Lock Wash. 5/16" I.D. MTD-936-0119
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
HANDLE L.H. MTD-784-0259A
...
18
Belleville Wash. 3/8" I.D. MTD-736-0105
...
19
Hex Bolt 3/8-16 x 1" Lg. MTD-710-0514
...
20
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
21
L-Wash. 3/8" I.D.* MTD-736-0169
...
22
Hex Nut 3/8-16 Thd. MTD-712-0798
...
23
Belleville Wash. .505 I.D. x 1.00" O.D. MTD-736-0253
...
24
FLANGE BEARING MTD-741-0116
...
25
WHEEL KIT REPLACEM'T MTD-753-04874
...
26
SCREW-SHLD MTD-738-0318
...
27
HEX NUT 5/16-18 MTD-712-3010
...
28
Lock Wash. 5/16" I.D. MTD-936-0119
...
29
L-Wash. 1/2" I.D. MTD-736-0921
...
30
Hex Ins. L-Nut 1/2-20 Thd. MTD-712-0200A
...
31
BRACKET AS MTD-06813
...
32
Engine"U"-Channel Ass'y. L.H. MTD-06792
...
33
HEX NUT 5/16-18 MTD-712-3010
...
34
HEX BOLT 5/16-18 x 1 LG.* MTD-710-0322
...
35
CHANNEL-EN MTD-06794
...
36
Handle R.H. MTD-784-0258A
...
37
Clevis Pin .375" Dia. x 1.88" MTD-711-0679A
...
38
Lock Wash. 5/16" I.D. MTD-936-0119
...
39
HEX NUT 5/16-18 MTD-712-3010
...
40
"U"-Channel Bracket Ass'y. MTD-06816
...
41
HEX NUT 5/16-18 MTD-712-3010
...
42
TAIL PIECE MTD-04589
...
44
Clutch Vinyl Grip MTD-731-0869
...
45
GRIP ASSEMBLY-CLUTCH (RH) MTD-784-0255B
...
46
Throttle Control Box Ass'y. MTD-831-0823A
...
49
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
51
Self-Tap Scr. #10 x 1/2" Lg. MTD-710-0779A
...
52
Self-Tap Scr. #10 x 44n Lg. MTD-710-0919
...
53
Hex Bolt 3/8-24 x 2.0" Lg. MTD-710-0151
...
54
HOLD DOWN-BARREL (RH) MTD-746-0606
...
55
Barrel Cable Hold Down MTD-946-0605
...
56
CLUTCH LEVER ASSEMBLY (POWDER BLACK) MTD-684-04399A-0637
...
57
CLUTCH CABLE (Forward) MTD-946-0621B
...
58
CLUTCH CABLE CONTROL (Reverse) MTD-746-0622B
...
59
Cable Tie MTD-725-0157
...
60
Fl-Wash. .640 I.D. x 1.24n MTD-736-0187
...
61
Bumper, Rubber MTD-735-0199A
