MTD 190-799-000 (1987) Lawn Tractor

Model: 190-799-000 (1987)

Back To Assemblies

Save Part Not Listed?
product name

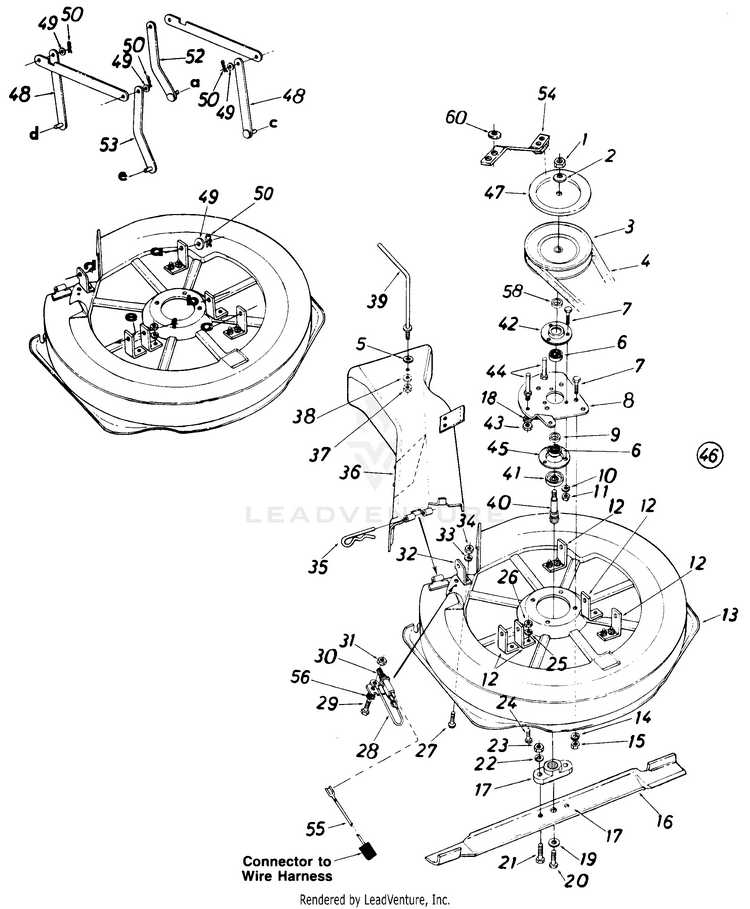

30" Rear Discharge Mowing Deck

...
...
1
HEX JAM NUT 5/8-18 MTD-712-0318
...
2
Bell-Wash. .630" I.D. x 1.25" MTD-736-0317
...
3
PULLEY MTD-756-0444-0637
...
4
V-BELT .656 x 48.90 MTD-954-0328
...
5
Fl-Wash. .344" I.D. x 1.12" O.D. MTD-736-0231
...
6
BALL BEARING MTD-741P0919B
...
7
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
8
Spindle Mtg. Plate MTD-15919
...
9
Spacer MTD-750-0456
...
10
Lock Wash. 5/16" I.D. MTD-936-0119
...
11
HEX NUT 5/16-18 MTD-712-3010
...
12
HANGER BRACKET MTD-15917
...
13
DECK ASSEMBLY-30IN RD MTD-15906
...
14
Lock Wash. 5/16" I.D. MTD-936-0119
...
15
HEX NUT 5/16-18 MTD-712-3010
...
16
30 HIGH LIFT BLADE MTD-742-0280
...
17
Blade Adapter MTD-748-0300
...
18
L-Wash. 3/8" I.D. MTD-736-0169
...
19
BELL WASHER MTD-936-0356
...
20
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
21
Hex Bolt 5/16-24 x 1.00" Lg. (Special) MTD-710-0888
...
22
Lock Wash. 5/16" I.D. MTD-936-0119
...
23
Hex Nut 5/16-24 Thd. MTD-912-3057
...
24
HEX SCREW SEMS 5/16-18 x .62 MTD-710-0259
...
25
Lock Wash. 5/16" I.D. MTD-936-0119
...
26
HEX NUT 5/16-18 MTD-712-3010
...
27
Truss Mach. Scr. 5/16-18 x .75" Lg. MTD-710-0323
...
28
WIRE-REV LOCKOUT MTD-725-0765
...
29
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
30
SAFETY SWITCH (RED) MTD-725-0269
...
31
HEX NUT 1/4-20 MTD-912-0287
...
32
Angle Hanger Brkt. MTD-15918
...
33
Lock Wash. 5/16" I.D. MTD-936-0119
...
34
HEX NUT 5/16-18 MTD-712-3010
...
35
COTTER PIN MTD-714-0174
...
36
CHUTE DEFLECTOR MTD-96094A
...
37
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
38
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
39
ROD MTD-747-0474
...
40
BLADE SPINDLE MTD-738-0577
...
41
SHIELD-BRG MTD-13703
...
42
Open Brg. Housing 1.85 I.D. MTD-15296A
...
43
Jam Nut, 3/8-16 MTD-912-3008
...
44
STUD-3/8-16 x 3.0 LG MTD-711-0780
...
45
Bearing Housing MTD-08253B
...
46
30" R.D. Deck Ass'y. Comp. (Service) MTD-15901
...
47
BRAKE DISC MTD-16101
...
48
DECK HANGER LINK ASS'Y. (Not Part of Transmission Complete) MTD-14804
...
49
Fl-Wash. .53" I.D. x .93" O.D. (Not Part of Transmission Complete) MTD-736-0160
...
50
Inter. Cotter Pin .50" Dia (Not Part of Transmission Complete) MTD-714-0101
...
52
DECK HANGER LINK ASS'Y. (Dog Leg) (Not Part of Transmission Complete) MTD-15925
...
53
HANGER-DECK L (Dog Leg) (Not Part of Transmission Complete) MTD-14800
...
54
BLADE BRAKE ASSEMBLY (Not Part of Transmission Complete) MTD-761-0192
...
55
Wire Lead MTD-725-1000
...
56
L-Wash. 1/4" I.D. MTD-936-0329
...
58
UNKNOWN MTD-NA
...
60
UNKNOWN MTD-NA
