MTD 181-424D046 Push Walk Behind Mower

Model: 181-424D046

Save Part Not Listed?
product name

Popular Parts

Popular Parts

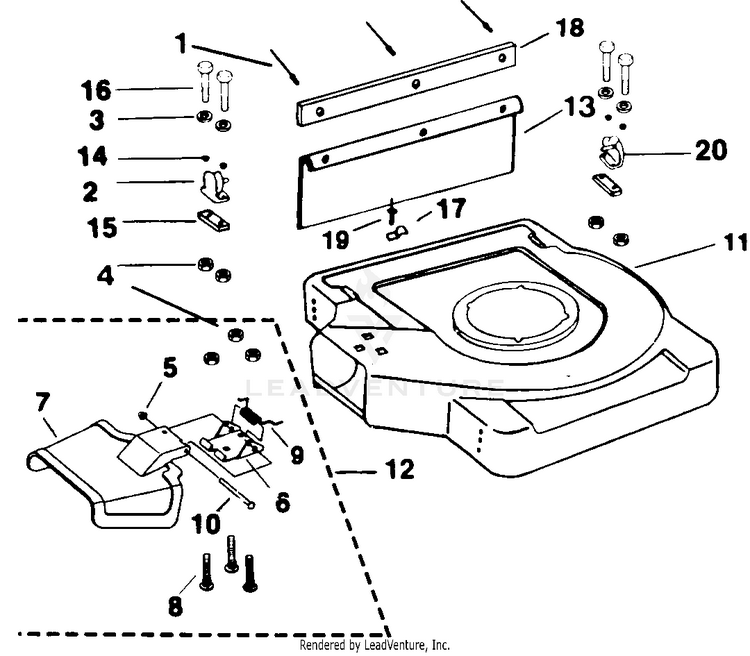

Base Assembly

...
...
1
POP RIVET MTD-928-0180
...
2
HANDLE BRACKET ASSEMBLY MTD-682-3010
...
3
1/4" Flat Washer MTD-736-3090
...
4
1/4" - 20 Locknut MTD-712-0324
...
5
PUSH NUT MTD-726-0111
...
6
CHUTE BRACKET HINGE-BLACK MTD-782-7002
...
7
Guard - Chute (Plastic) MTD-731-1238
...
8
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
9
TORSION SPRING (PLASTIC CHUTE (For Plastic Chute) MTD-732-0662
...
10
Hinge Pin MTD-711-0863
...
11
19" Deck (3-Hole Chute) MTD-682-0100
...
12
CHUTE ASSEMBLY MTD-631-0001
...
13
TRAILSHIELD 4219 MTD-720-0248
...
14
LUG INSULATOR MTD-731-1219
...
15
INSULATOR-STRIP MTD-721-0278
...
16
1/4" - 20 x 7/8" HHCS MTD-710-0206
...
17
Clamp MTD-726-0308
...
18
TRAIL SHIELD STRAP MTD-782-7513
...
19
Pop Rivet .188 Dia. MTD-928-0123
...
xx
Owner's Guide (Not Shown) MTD-770-7394F
...
20
HANDLE BRACKET ASSEMBLY MTD-682-3009

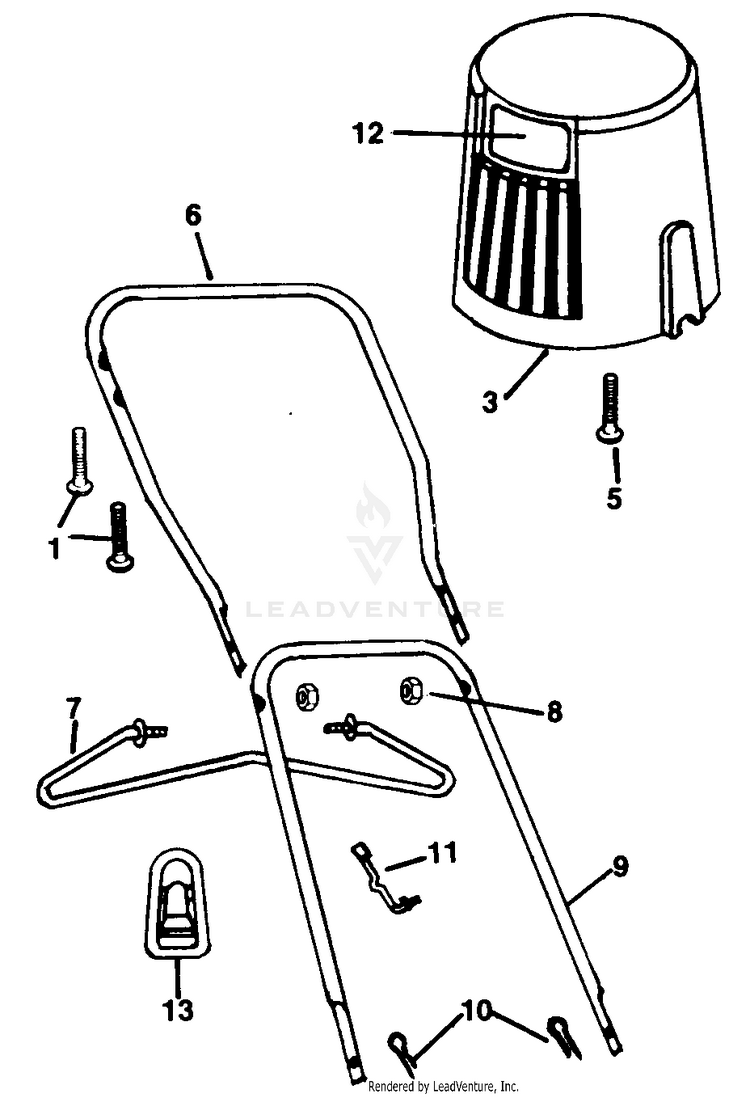

Handle Bar Assembly

...
...
1
SCREW #7-19 C 1.0 MTD-710-1150
...
3
COVER-MOTOR MTD-731-1239
...
5
SCREW #10-16 x .750 MTD-710-1128
...
6
UPPER HANDLE MTD-749-0838
...
7
ROD-CORD CONTROL MTD-747-0789
...
8
HEX NUT MTD-712-0441
...
9
LOWER HANDLE 7/8IN MTD-749-0839
...
10
COTTER PIN .093X.500 MTD-714-0225
...
11
TIE-PLASTIC MTD-726-0303
...
12
CAUTION & DATA LABEL MTD-777-9381
...
13
CORD MINDER MTD-725-1590

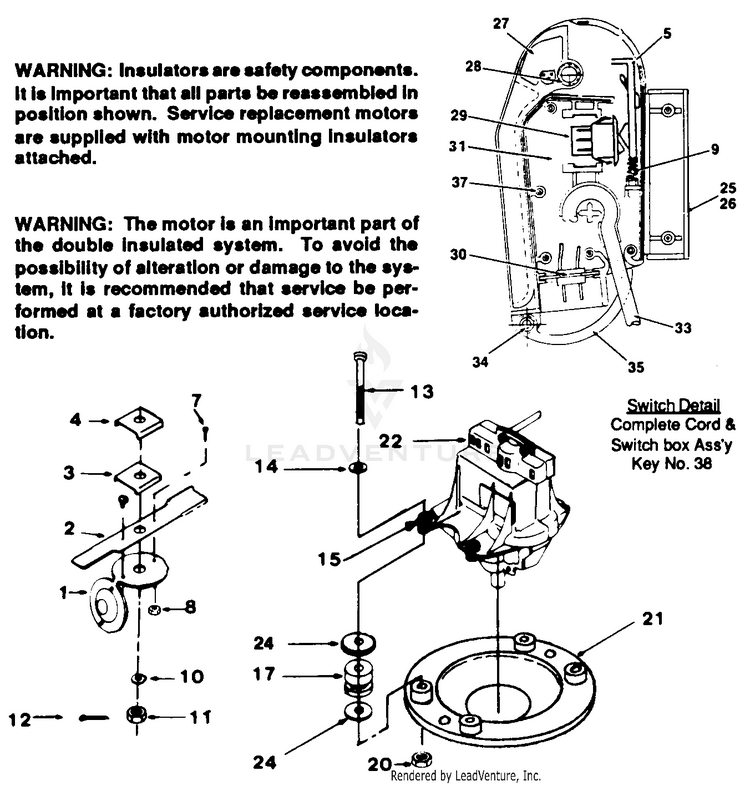

Motor & Blade Assembly

...
...
1
BLADE INSULATOR MTD-731-1217
...
2
Blade 19" MTD-742-0564
...
3
INSULATOR-ADAPTOR MTD-731-1218
...
4
BLADE ADAPTER MTD-748-0343
...
5
LATCH-SWITCH BOX MTD-731-1198
...
7
Bolt - Carriaoe 5/16-18 x 3/4 MTD-710-0451
...
8
HEX NUT MTD-712-0437
...
9
SPRING-LATCH (SW-B MTD-732-0681
...
10
WASHER MTD-736-0462
...
11
Nut (Special) MTD-712-0401
...
12
COTTER PIN .093X1.000 MTD-714-0228
...
13
Saew (Special) MTD-710-1122
...
14
Washer MTD-736-3090
...
15
INSULATOR MTD-731-1216
...
17
GROMMET MTD-721-0277
...
20
Locknut 1/4" - 20 MTD-712-0324
...
21
Motor Shield MTD-724-0188
...
22
Motor & Switch Ass'y Complete MTD-718-60100
...
24
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
25
HOUSING-UPPER SWIT MTD-731-1208
...
26
HOUSING-LOWER SWIT (Not Shown) MTD-731-1209
...
27
HANDLE-SWITCH BOX MTD-731-1210
...
28
SPRING MTD-732-0679
...
29
SWITCH MTD-725-1565
...
30
2 PRONG PLUG (POLARIZED) MTD-929-0304
...
31
Jumper Wire (Not Shown) MTD-818-60002
...
33
CORD ASS'Y. (Includes #30) MTD-818-60001
...
34
SPRING LEVER MTD-732-0580
...
35
RETAINER-PLUG BLACK MTD-731-1211
...
37
SCREW (Not Shown) MTD-710-1147
...
xx
LABEL-SWITCH BOX (Not Shown) MTD-777-9380
...
xx
CORD & SWITCH BOX (COMPLETE) MTD-818-60000

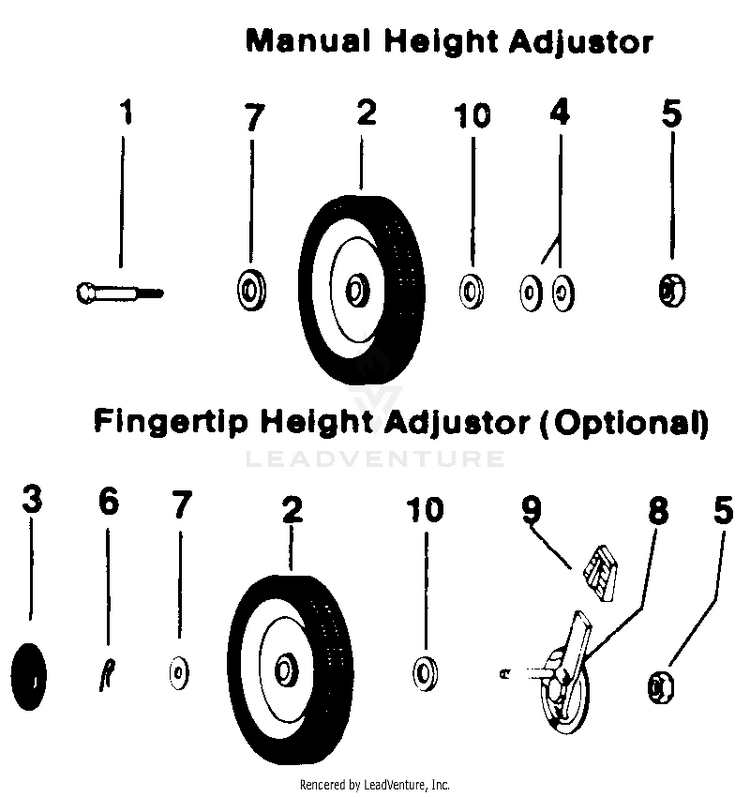

Wheel Assembly

...
...
1
BOLT-SHLD 3/8-16X2 MTD-738-0856
...
2
WHEEL ASSEMBLY W/TIRE (Value Marlex) MTD-734-1170
...
xx
6" Plastic Wheel (Blow Mold Optional) MTD-734-1695
...
xx
7" PLASTIC WHEEL (Std. Marlex Optional) MTD-634-0004
...
3
HUB CAP-BLACK PLAS (Opt.-Std. Marlex Wheel Only) MTD-720-0251
...
4
Washer - 3/8" MTD-736-3050
...
5
HEX NUT MTD-712-0438
...
6
Cotter Pin MTD-714-0507
...
7
Washer- 1/2" MTD-736-0192
...
8
HEIGHT ADJ. ASM. (RF/LR) MTD-682-0009
...
xx
HEIGHT ADJ. ASM. (LF/RR) MTD-682-0010
...
9
KNOB MTD-720-0239
...
10
SPACER (For Std. Marlex Only) MTD-750-0796
