MTD 17AC2ACS058 (2012) MZ2142 (2012) RZT-42 17AC2ACS058 (2012)

Model: 17AC2ACS058 (2012), MZ2142

Back To Assemblies

Save Part Not Listed?
product name

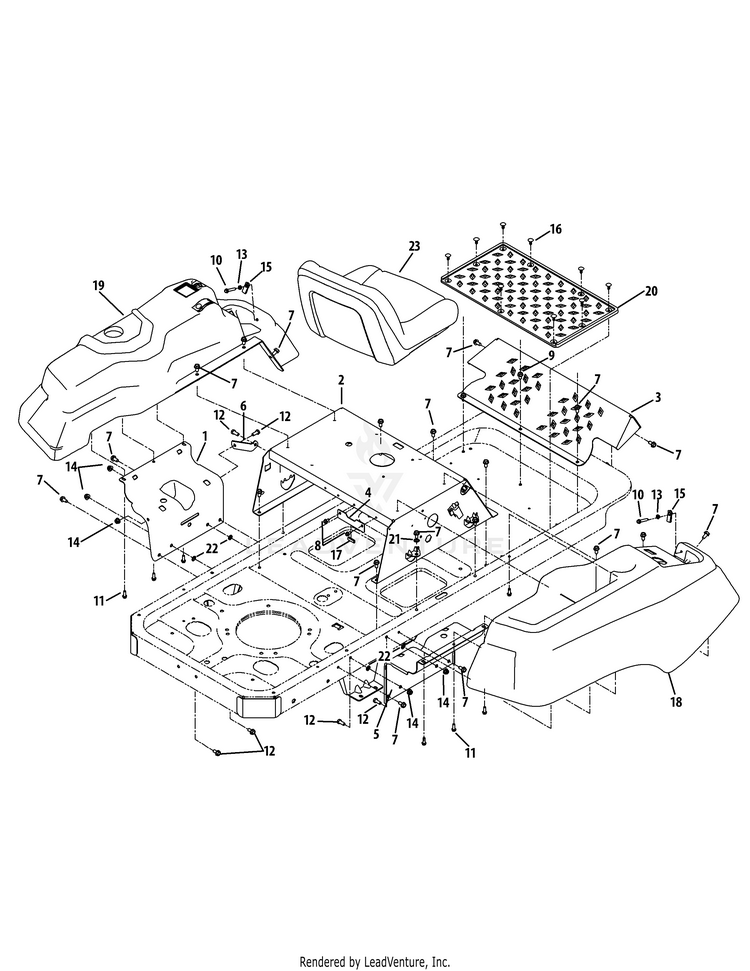

Operator's Platform

...
...
1
CONSOLE BRACKET (LH) (BLACK JACK) MTD-603-04564-0691
...
1
CONSOLE BRACKET (LH) (UNIVERSAL RED) MTD-603-04564-4066
...
2
SEAT FRAME ASSEMBLY (BLACK JACK) MTD-603-04946-0691
...
2
SEAT FRAME ASSEMBLY (UNIVERSAL RED) MTD-603-04946-4066
...
3
FOOT REST BRACKET (BLACK JACK) MTD-703-05373B-0691
...
3
FOOT REST BRACKET (UNIVERSAL RED) MTD-703-05373B-4066
...
4
Battery Hold-Down Bracket MTD-703-05894-0637
...
5
CONSOLE BRACKET (RH) (BLACK JACK) MTD-703-06451-0691
...
5
CONSOLE BRACKET (RH) (UNIVERSAL RED) MTD-703-06451-4066
...
6
SUPPORT BRACKET MTD-703-06623-0637
...
7
SCREW 5/16-18 x .750 MTD-710-04484
...
8
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
9
Hex Washer Screw, 5/16-18 x .625 MTD-710-0604A
...
10
Hex Washer Screw, 1/4-20 x 1.500 MTD-710-0778
...
11
Hex Washer Screw, 1/4-15 x .750 MTD-710-0895
...
12
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
13
Jam Nut, 1/4-20 MTD-912-0298
...
14
Flange Lock Nut, 5/16-18 MTD-712-04063
...
15
Speed Nut, 1/4-20 MTD-712-04092
...
16
Ratchet Clip MTD-726-3046
...
17
Trim Strip MTD-731-0511
...
18
CONSOLE (RH) (Black) MTD-731-06233
...
18
CONSOLE (RH) (Oyster Gray) MTD-731-06478
...
19
CONSOLE (LH) (Black) MTD-731-06263B
...
19
CONSOLE (LH) GRAY (Oyster Gray) MTD-731-06479A
...
20
Foot Pad MTD-735-04082C
...
21
Lock Washer, 3/8 MTD-736-0148
...
22
Speed Nut, .3125 MTD-726-0201
...
23
HI BACK SEAT, BLACK (ARM/OPT) MTD-757-05231
...
23
High Back Seat 54" Model Only MTD-757-04090
