MTD 15585S (1985) Push Walk Behind Mower

Model: 15585S (1985)

Save Part Not Listed?
product name

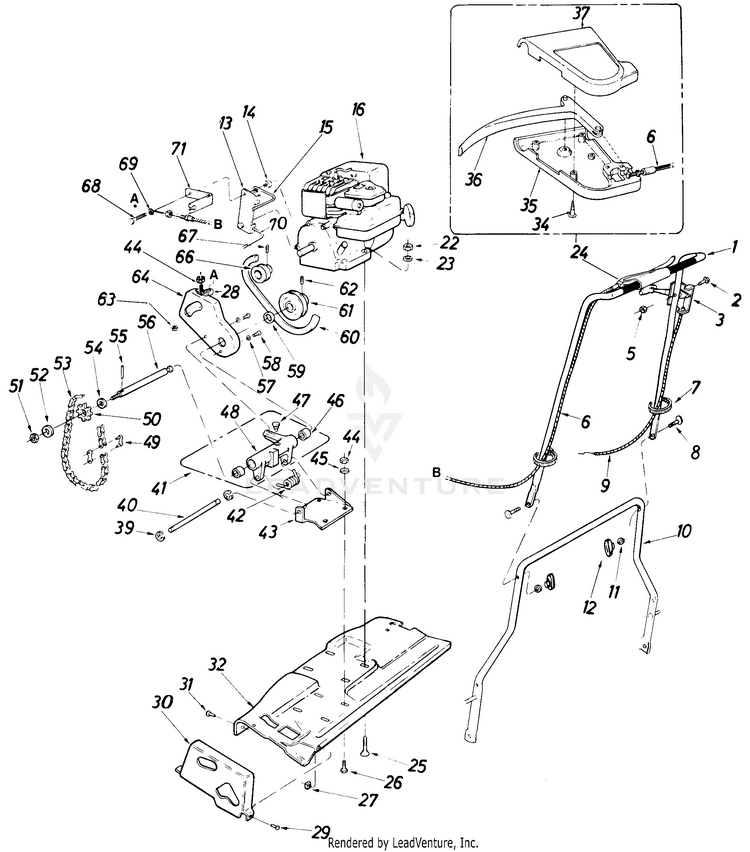

Power (Part 1)

...
...
1
Upper Handle Ass'y. MTD-749-0323
...
2
SCREW-TRUSS 1/4-20 MTD-710-0744
...
3
THROTTLE CONTROL MTD-746-0323
...
xx
Control Panel (Now Shown) MTD-731-0433
...
5
CAP NUT WASH L 1/4-20 MTD-712-0300
...
6
Clutch Control Cable MTD-746-0307
...
7
CLAMP-CABLE 7/8 MTD-726-0188
...
8
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
9
THROTTLE CABLE MTD-0171-033
...
10
LOWER HANDLE (15585) MTD-749-0321
...
xx
LOWER HANDLE (15590) MTD-749-0322
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
Handle Knob MTD-720-0195
...
13
Belt Keeper Brk't. MTD-1606-048
...
14
Spacer MTD-1624-069
...
15
Belt Keeper Upper (15585) MTD-1724-007
...
xx
BeIt Keeper Upper (15590) MTD-1724-008
...
16
Engine B&S 80202-1081-01 MTD-NA
...
22
HEX NUT 5/16-18 MTD-712-3010
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
CONTROL AS MTD-13628
...
25
Carriage Bolt 5/16-18 x 1.375" Lg. MTD-1529-011
...
26
Carriage Bolt 1/4-20 x .62" MTD-710-0134
...
27
HEX L-NUT 10-32 THD. MTD-1534-008
...
28
FITTING-CLEVIS LANYARD MTD-746-0260
...
29
Ph. Hd. Scr. 10-32 x .375" Lg.* MTD-0117-000
...
30
Chain Guard MTD-3639-032
...
31
Hex Sems Scr. 5/16-24 x .50 Lg. MTD-1513-008
...
32
18" Deck (15585) MTD-5690-009
...
xx
21 Deck (15590) MTD-5690-010
...
xx
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
34
Counter Sunk Tap Screw #10 x .75" MTD-710-0841
...
35
COVER-CONT MTD-731-0408
...
36
Lever Ciutch Control MTD-731-0406
...
37
COVER-CONTROL-FR MTD-731-0407
...
39
RETAINING RING MTD-1650-010
...
40
Pin MTD-1547-003
...
41
Jack Shaft Hsg. and Brg. Ass'y. MTD-3102-192
...
42
Spring MTD-1642-030
...
43
Bracket MTD-14039
...
44
Hex Lock Nut MTD-712-0324
...
45
L-Wash. 1/4" I.D. MTD-936-0329
...
46
BEARING MTD-1652-001
...
47
Oiler MTD-1691-002
...
48
HOUSING-JA MTD-3601-064
...
49
CONNECTOR LINK MTD-1113-013
...
50
SPROCKET MTD-1638-016
...
51
Hex Patch L-Nut 7/16-20 Thd. MTD-712-3067
...
52
FLAT WASHER .510 x .995 MTD-736-0272
...
53
#45 CHAIN-1/2 PITCH, 43 LINKS MTD-1654-002
...
54
Wash. 5/8 x 15/16 MTD-736-0116
...
55
Pin MTD-1546-002
...
56
JACK SHAFT MTD-1632-026
...
57
FLAT WASHER MTD-1540-055
...
58
Ph. Hd. Scr. 10-32 x .50" Lg. MTD-1511-009
...
59
Wash. 5/8 x 15/16 MTD-736-0116
...
60
BELT MTD-1651-020
...
61
PULLEY ASSEMBLY MTD-2120-034
...
62
Roll Pin MTD-1548-011
...
63
HEX NUT 1/4-20 MTD-912-0287
...
64
Belt Guard Ass'y. MTD-13641
...
66
Pulley MTD-1626-039
...
67
Set Scr. 5/16-24 x 7132" Lg.* MTD-1508-013
...
68
Screw Hex 1/4-20 X 1.75 MTD-710-0136
...
69
L-Wash. 1/4" I.D. MTD-936-0329
...
70
Belt Keeper Lower (15585) MTD-1724-009
...
xx
Belt Keeper Lower (15590) MTD-1724-010
...
71
Clutch Cable Bracket MTD-13853

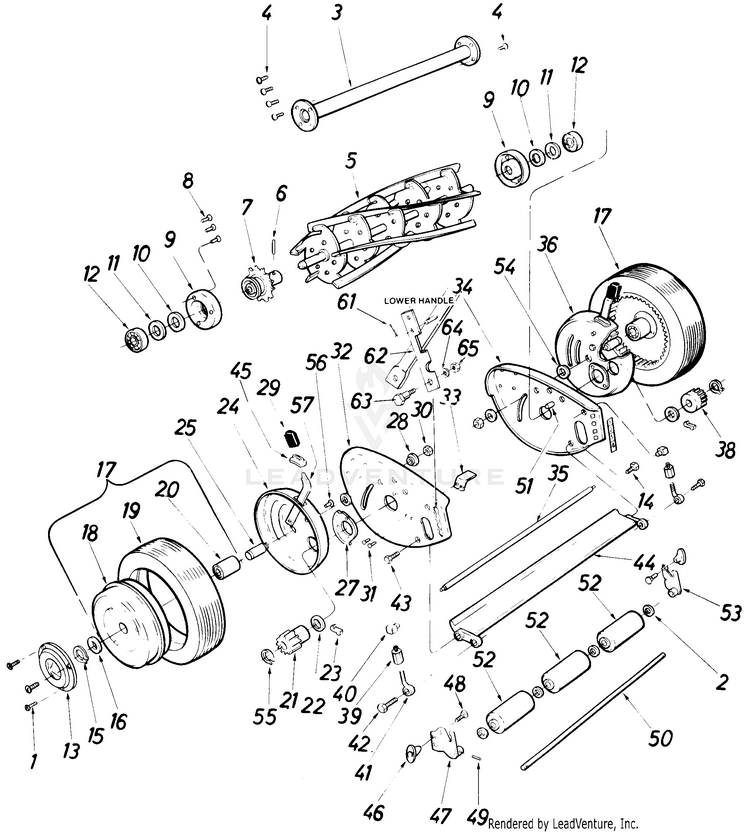

Power (Part 2)

...
...
1
Ph. Hd. Scr. 10-32 x .62" Lg. MTD-1511-018
...
2
FLAT WASHER MTD-1540-059
...
3
18" Spacer Tube Ass'y. (15585) MTD-1112-018
...
xx
21" Spacer Tube Ass'y. (15590) MTD-1112-019
...
4
Rivet 3/16 x 3/8" MTD-1530-006
...
5
18" Reel Ass'y. (15585) MTD-2135-022
...
xx
REEL ASSEMBLY (15590) MTD-2135-021
...
6
Roll Pin MTD-1548-005
...
7
SPROCKET & CUP MTD-2121-002
...
8
RIVET MTD-728-0131
...
9
Retainer MTD-1629-028
...
10
Felt Washer MTD-0104-000
...
11
Felt Retainer MTD-0106-000
...
12
BEARING-RE MTD-0003-000
...
13
HUB CAP (15585) MTD-2674-033
...
xx
Hub Cap (15590) MTD-2674-026
...
14
Scr. Cutter Bar L.H. Thd. MTD-1509-086
...
15
E-RING FOR .500 MTD-916-0104
...
16
FLAT WASHER MTD-1540-118
...
17
WHEEL ASSEMBLY (15585) MTD-1108-080
...
xx
WHEEL ASSEMBLY (15590) MTD-1108-095
...
18
WHEEL ASSEMBLY (15585) MTD-1110-027
...
xx
WHEEL ASSEMBLY (15590) MTD-1110-030
...
19
TIRE-9 x 1 (15585) MTD-2619-025
...
xx
TIRE-10.25 (15590) MTD-2619-034
...
20
BEARING MTD-1652-052
...
21
PINION (RH) MTD-0425-000
...
22
Felt Washer MTD-0109-000
...
23
PAWL MTD-0323-000
...
24
HOUSING AS MTD-2118-081
...
25
Axle-wheel MTD-1631-051
...
27
RETAINER MTD-1629-074
...
28
Bushing MTD-1657-019
...
29
KNOB-WHEEL ADJ. MTD-1643-060
...
30
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
31
Hex Sems Scr. 10-32 x .375" Lg.* MTD-1117-000
...
32
End Plate w/Trunnions (L.H.) MTD-3111-133
...
33
Scraper MTD-1723-001
...
34
End Plate w/Trunnions (R.H.) MTD-3111-132
...
35
End Plate Spacer (15585) MTD-2624-113
...
xx
End Plate Spacer (15590) MTD-2624-112
...
36
Gear Housing (R.H.) MTD-2118-082
...
38
PINION (LH) (L.H.) MTD-0428-000
...
39
NUT-TURNBU MTD-1539-091
...
40
TRUNNION MTD-1645-054
...
41
BOLT MTD-1513-040
...
42
SC REW REAR MTD-0453-000
...
43
SCR. CUTTER BAR R.H. THD. MTD-0455-000
...
44
18" Cutter Bar Ass'y. (15585) MTD-2134-011
...
xx
21" Cutter Bar Ass'y. (15590) MTD-3134-023
...
45
DUST COVER MTD-1622-050
...
46
KNOB-ROLLER ADJ MTD-1643-023
...
47
Roller Brk't. Ass'y. L.H. (15585) MTD-2132-012
...
xx
BRACKET AS (15590) MTD-2132-044
...
48
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
49
Roll Pin MTD-1548-007
...
50
Roller Shaft (15585) MTD-1632-057
...
xx
Roller Shaft (15590) MTD-1632-058
...
51
TRUNNION-H MTD-0010-000
...
52
Roller (15585) MTD-1658-006
...
xx
ROLLER-GRA (15590) MTD-2658-013
...
53
Roller Brk't. Ass'y. R.H. (15585) MTD-2132-011
...
xx
BRACKET AS (15590) MTD-2132-045
...
54
FLAT WASHER .344 ID x .88 OD x .040 Special MTD-736-0195
...
55
RETAINING RING .59 MTD-AF-1650-21
...
56
Hex Scr. #10-32 x .375" Lg. MTD-1509-038
...
57
SPRING ASSEMBLY (Not Shown) MTD-1155-047
...
xx
End Plate Spacer (Not Shown) MTD-2624-112
...
61
Internal Cotter Pin MTD-714-0145
...
62
Handle Brace MTD-13852
...
63
Shld. Bolt 5/16-18 Thd. MTD-738-0140
...
64
Lock Wash. 5/16" I.D. MTD-936-0119
...
65
HEX NUT 5/16-18 MTD-712-3010
