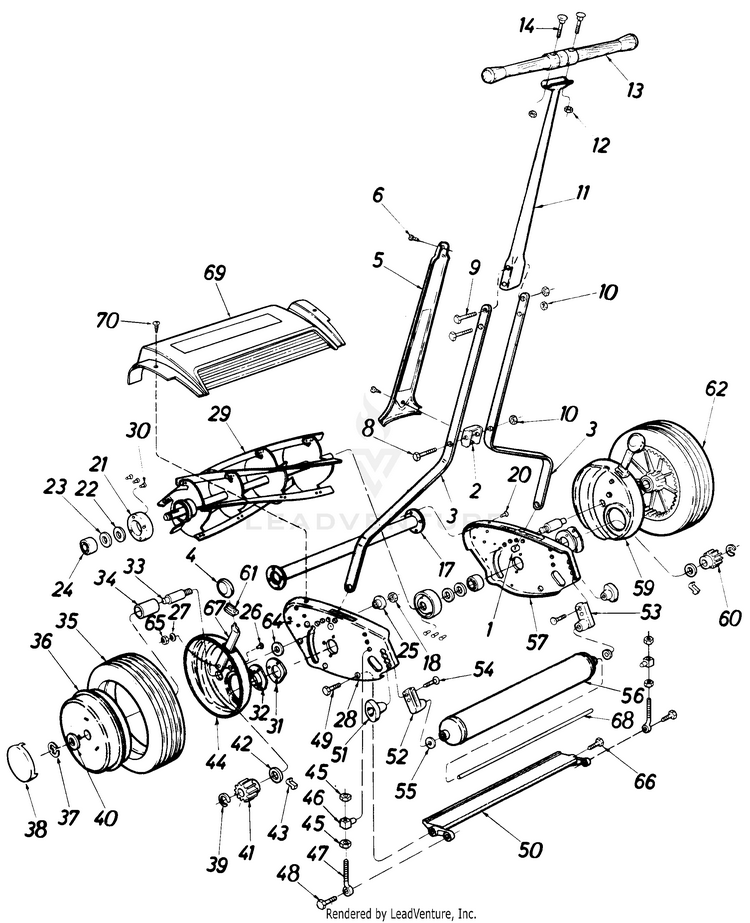

MTD 15510-7 (1987) Push Walk Behind Mower

Model: 15510-7 (1987)

Back To Assemblies

Save Part Not Listed?
product name

Hand

...
...
1
TRUNNION-H MTD-0010-000
...
2
SPACER-HAN MTD-2624-018
...
3
Handle Brace 16" (15510) MTD-3603-055
...
xx
HANDLE BRACE (15515) MTD-3603-043
...
4
KNOB WHEEL ADJUST. MTD-2643-060
...
5
HANDLE PANEL MTD-0500-299
...
6
Ph. Hd. Scr. #10 x .38 Lg. MTD-1523-003
...
8
Hex Scr. 5/16-18 x 2.50" Lg. MTD-710-0378
...
9
Hex Bolt 5/16-18 x 2.25" Lg. MTD-710-0395
...
10
HEX NUT 5/16-18 MTD-712-3010
...
11
SHAFT ASSEMBLY MTD-2117-015
...
12
Hex Lock Nut MTD-712-0324
...
13
Cross Handle MTD-1664-007
...
14
Carriage Bolt 1/4-20 x 1.75"Lg. MTD-0165-000
...
17
Spacer Tube Ass'y. (15515) MTD-1112-014
...
xx
Spacer Tube Ass'y. (15510) MTD-1112-028
...
18
Hex Cent. L-Nut 5/16-24 Thd. MTD-712-0237
...
20
Rivet 3/16 Dia. x 3/8" Lg. MTD-1530-006
...
21
Retainer MTD-1629-028
...
22
Felt Washer MTD-0104-000
...
23
Felt Retainer MTD-0106-000
...
24
BEARING-RE MTD-0003-000
...
25
Bushing MTD-1657-019
...
26
Hex Scr. #10-32 x 3/8" Lg. MTD-1509-038
...
27
FLAT WASHER MTD-1540-055
...
28
End Plate Ass'y. L.H. MTD-3111-131
...
29
18" Reel Ass'y. (15515) MTD-2135-046
...
xx
16" Reel Ass'y. (15510) MTD-2135-025
...
30
RIVET MTD-728-0131
...
31
RETAINER MTD-1629-074
...
32
Pinion Housing MTD-1629-041
...
33
Axle-wheel MTD-1631-051
...
34
BEARING MTD-1652-052
...
35
TIRE-9 x 1 MTD-2619-025
...
36
WHEEL ASSEMBLY MTD-1110-027
...
37
E-RING FOR .500 MTD-916-0104
...
38
HUB CAP MTD-2674-033
...
39
RETAINING RING .59 MTD-AF-1650-21
...
40
WASHER MTD-0141-000
...
41
PINION (LH) MTD-0428-000
...
42
Felt Washer MTD-0109-000
...
43
PAWL MTD-0323-000
...
44
HOUSING AS MTD-2118-081
...
45
Hex Nut 3/8-24 Thd. MTD-712-0241
...
46
TRUNNION-C MTD-0011-000
...
47
BOLT-CUTTE MTD-0451-000
...
48
SC REW REAR MTD-0453-000
...
49
SCR. CUTTER BAR R.H. THD. (R.H. Thd.) MTD-0455-000
...
50
Cutter Bar (15515) MTD-2134-014
...
xx
Cutter Bar 15510) MTD-2134-015
...
51
KNOB-ROLLER ADJ MTD-1643-023
...
52
BRACKET-ROLLER (LH) MTD-1609-707
...
53
BRACKET-ROLLER (RH) MOLDED PL MTD-1609-708
...
54
BOLT MTD-1529-045
...
55
FLAT WASHER MTD-0757-000
...
56
ROLLER-18 (15515) MTD-2658-024
...
xx
ROLLER-GRA (15510) MTD-2658-023
...
57
End Plate Ass'y. R.H. MTD-3111-130
...
59
Gear Housing Ass'y. R.H. MTD-2118-082
...
60
PINION (RH) MTD-0425-000
...
61
DUST COVER MTD-1622-050
...
62
WHEEL ASSEMBLY MTD-1108-080
...
64
FLAT WASHER .344 ID x .88 OD x .040 MTD-736-0195
...
65
HEX L-NUT 10-32 THD. MTD-1534-008
...
66
Screw Cutter Bar (L.H. Thd.) MTD-1509-086
...
67
SPRING ASSEMBLY MTD-1155-047
...
68
Roller Shaft (15515) MTD-1632-144
...
xx
SHAFT-ROLLER STEEL (15510) MTD-1632-143
...
69
Plastic Cover (15510) MTD-731-0569
...
xx
Plastic Cover (15515) MTD-731-0570
...
70
Self-Tapping Scr. #10 x 1/2" Lg. MTD-710-0351
...
xx
18" Chassis Ass'y. Comp. (15515) MTD-0138-091
...
xx
16" Chassis Ass'y. Comp. (15510) MTD-1138-097
...
xx
Grass Catcher (Optional) MTD-19009
