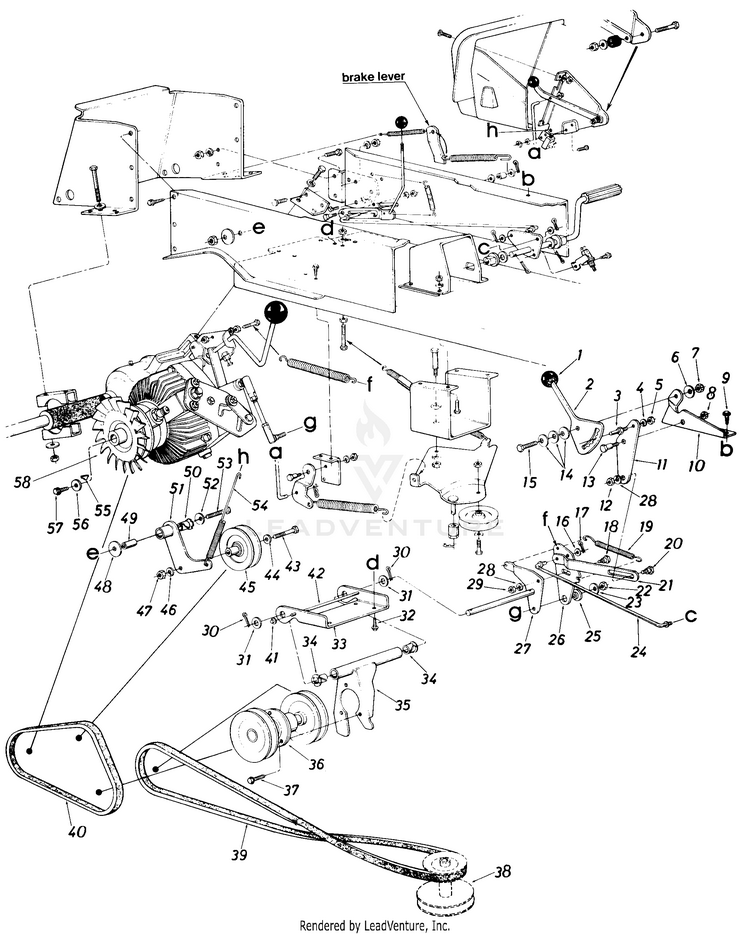

MTD 14843S (1985) Garden Tractor

Model: 14843S (1985)

Back To Assemblies

Save Part Not Listed?
product name

Garden

...
...
1
Knob MTD-720-0210A
...
2
Speed Selector Cam MTD-16154
...
3
STUD-HEX-.250 x .62 MTD-711-0778
...
4
L-Wash. 1/4" I.D. MTD-936-0329
...
5
HEX NUT 1/4-20 MTD-912-0287
...
6
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
7
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
8
Hex Top L-Nut 3/8-16 Thd. MTD-712-0181
...
9
Hex Wash. Hd. S-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
10
Speed Selector Mtg. Brk't. MTD-16155
...
11
Speed Selector Transfer Brk't. MTD-16156
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
SHOULDER SCREW .500 DIA x .170 MTD-738-0147
...
14
Bell-Wash. .39" I.D. x 1.13" O.D. MTD-736-0331
...
15
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1039
...
16
FLAT WASHER .38X.88 MTD-736-0267
...
17
Cotter Pin 3132" Dia. x .75" Lg. MTD-714-0507
...
18
Shld. Bolt .437" Dia. x .180 MTD-738-0140
...
19
TENSION SPRING MTD-732-0433
...
20
Shld. Bolt .437" Dia. x .180 MTD-738-0140
...
21
Speed Selector Link MTD-16166
...
22
Hex Top L-Nut 3/8-24 Thd. MTD-712-0347
...
23
Bell-Wash. .39" I.D. x 1.13" O.D. MTD-736-0331
...
24
SPEED CONTROL ROD MTD-747-0504
...
25
Shld. Spacer .625" I.D. MTD-938-0347
...
26
Speed Cont. Transfer Swivel Brk't. MTD-16163
...
27
TRANSFER A MTD-16161
...
28
Lock Wash. 5/16" I.D. MTD-936-0119
...
29
HEX NUT 5/16-18 MTD-712-3010
...
30
Cotter Pin 118" Dia. x 1.00" Lg. MTD-714-0115
...
31
Fl-Wash. .69" I.D> x 1.24" O.D. MTD-736-0187
...
32
Hex Wash S-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
33
BRACKET-ID MTD-13822
...
34
Flanged Brg. 5/8" I.D. MTD-741-0591
...
35
BRACKET AS MTD-16174
...
36
JACK SHAFT MTD-756-0324
...
37
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
38
ENGINE PULLEY MTD-756-0328
...
39
V-BELT 1/2 x 59 MTD-954-0245
...
40
V-BELT 1/2 MTD-754-0177
...
41
PUSH NUT MTD-726-0111
...
42
Rod 3/16" Dia. x 7.12" Lg. MTD-747-0655
...
43
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
44
FLAT WASHER .38X.88 MTD-736-0267
...
45
Idler Pulley MTD-756-0487
...
46
L-Wash. 3/8 I.D. MTD-736-0169
...
47
Hex Nut 3/8-24 Thd. MTD-712-0241
...
48
Bell-Wash. .40" I.D. x .87" O.D. MTD-736-0105
...
49
SPACER MTD-748-0303
...
50
NYLINER-FLANGED MTD-741-0257
...
51
Idler Pivot Brk't. Ass'y. MTD-16171
...
52
FLAT WASHER .38X.88 MTD-736-0267
...
53
Hex Bolt 3/8-24 x 2.00" Lg. MTD-710-0151
...
54
TENSION SPRING MTD-732-0185
...
55
#9 Hi-Pro Key .316" x .75" MTD-714-0126
...
56
Fl-Wash. .25" I.D. x .938" O.D. MTD-736-0176
...
57
Hex Wash. Hd. TT-Tap Scr. 1/4 x .75" Lg. MTD-710-0642
...
58
Trans. Pulley and Fan Assy. MTD-756-0455
