MTD 140-849H023 Lawn Tractor

Model: 140-849H023

Back To Assemblies

Save Part Not Listed?
product name

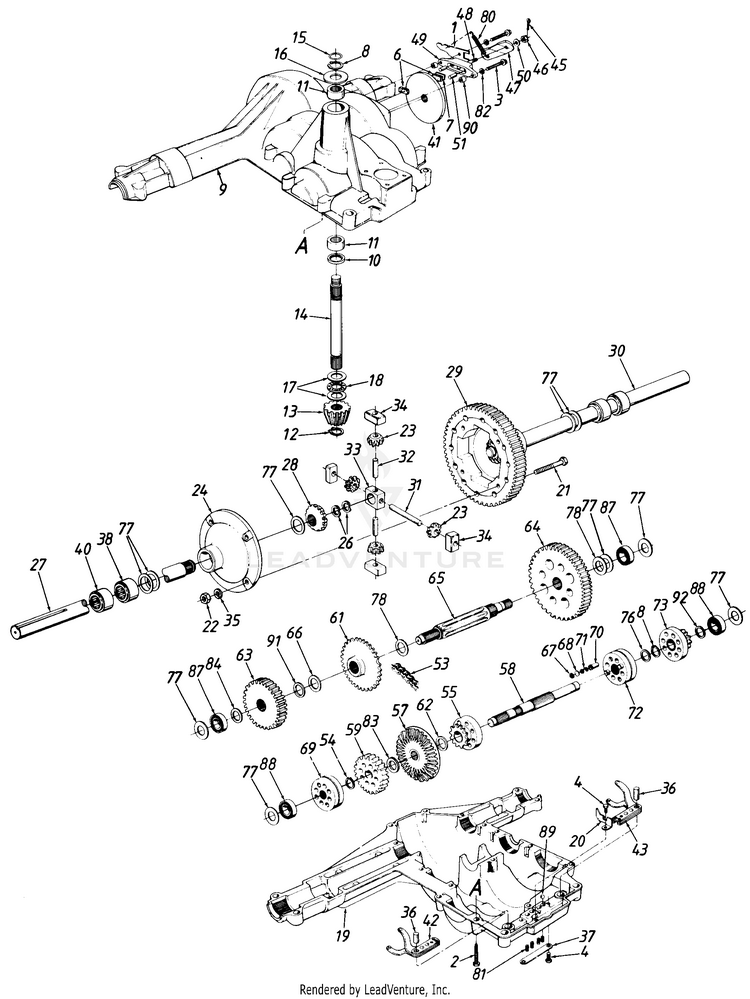

Transaxle

...
...
1
BRAKE RETURN BRACKET MTD-17434
...
2
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0809
...
3
HEX SCREW 1/4-20X1 MTD-910-0886
...
4
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
6
BRAKE PUCK MTD-917-0678
...
7
PUCK PLATE MTD-917-0682
...
8
Retainer Ring MTD-916-0171
...
9
UPPER HOUSING MTD-717-1164
...
10
OIL SEAL MTD-721-0253
...
11
Needle Brg. 5/8" I.D. x 7/8" O.D. MTD-941-0525
...
12
Snap Ring .56" Dia. MTD-916-0114
...
13
PINION MTD-717-1133
...
14
INPUT SHAFT MTD-717-1134
...
15
Wire Ring MTD-732-0614
...
16
THRUST WASHER MTD-936-0335
...
17
THRUST WASHER-.630 x 1.125 MTD-936-0419
...
18
THRUST BEARING MTD-741-0469
...
19
LOWER HOUSING MTD-717-1161
...
20
GUIDE-SHIFT MTD-717-1166
...
21
Hex Bolt 3/8-24 x 2.0" Lg. MTD-710-0151
...
22
Hex L-Nut 3/8-24 Thd. (Grade 5) MTD-712-3054
...
23
Differential Gear 1OT MTD-717-1120
...
24
COVER-DIFFERENTIAL MTD-717-1147
...
26
Retainer Ring MTD-916-0172
...
27
AXLE (RH) MTD-717-1112
...
28
Differential Gear 14T MTD-717-1119
...
29
DIFFERENTIAL GEAR MTD-717-1159
...
30
AXLE (LH) MTD-717-1111
...
31
Cross Shaft MTD-717-1173
...
32
Cross Shaft Special MTD-717-1178
...
33
Differential Pinion Block MTD-717-1180
...
34
BLOCK-THRUST-DIFF MTD-717-1190
...
35
Spr. Wash. .39" I.D. x .62" O.D. MTD-736-0413
...
36
PIN-SHIFT MTD-717-1138
...
37
PLATE-SPRING MTD-717-1139
...
38
AXLE BEARING ASSEMBLY MTD-917-1143
...
40
AXLE BEARING ASSEMBLY MTD-717-1144
...
41
Brake Disc MTD-717-1177A
...
42
SHIFT ARM ASSEMBLY (RH) MTD-717-1185
...
43
SHIFT ARM ASSEMBLY (LH) MTD-717-1186
...
45
Cotter Pin 3/32" Dia. MTD-714-0507
...
46
NUT MTD-912-0273
...
47
Actuating Arm MTD-717-0700
...
48
BOLT MTD-717-0796
...
49
BRAKE YOKE MTD-717-1179
...
50
Fl-Wash. 11/32" I.D. x 7/8" O.D. MTD-736-0371
...
51
Actuating Pin 5/16" Dia. MTD-741-0343
...
53
#420 CHAIN 1/2 P MTD-713-0326
...
54
RETAINING RING MTD-716-0149
...
55
REVERSE SPROCKET ASS'Y MTD-717-1141
...
57
BEVEL GEAR-47T MTD-917-1157
...
58
DRIVE SHAFT MTD-711-0860
...
59
SPUR GEAR ASSEMBLY MTD-917-1174
...
61
SPROCKET-22T MTD-717-1182
...
62
FL-WASH. .81" I.D. x 1.18" O.D. MTD-736-0421
...
63
SPUR GEAR 31T MTD-717-1155
...
64
SPUR GEAR 45T MTD-717-1156
...
65
OUTPUT SHAFT 9T MTD-717-1158
...
66
SPACER-1.010 x 1.25 x .393 MTD-717-1172
...
67
RETAINING RING MTD-716-0170
...
68
PLUG MTD-717-1137
...
69
COLLAR-FWD SHIFT MTD-717-1167
...
70
PIN-DRIVE MTD-717-1175
...
71
DRIVE SPRING MTD-732-0590A
...
72
SHIFT COLLAR ASSEMBLY MTD-717-1168
...
73
CREEPER COLLAR PLATE ASS'Y. MTD-717-1193
...
76
FLAT WASHER .644 x .970 x .031 MTD-736-0353
...
77
Fl-Wash. MTD-NA
...
xx
FLAT WASHER 1.010 x 1.560 x .010 MTD-736-0423
...
xx
FLAT WASHER 1.010X1.56X.01 MTD-936-0431
...
xx
Fl-Wash. 1" I.D. x 1.56" O.D. x .020" Thk. MTD-936-0424
...
xx
FLAT WASHER 1.006X1.56X.040 MTD-936-0420
...
78
Fl-Wash. 1" I.D. x 1.56" O.D. x .020" Thk. MTD-936-0424
...
80
EXTENSION SPRING MTD-732-0545
...
81
DETENT SPRING MTD-732-0598
...
82
L-Wash. 1/4" I.D. MTD-936-0329
...
83
FLAT WASHER MTD-936-0349
...
84
FLAT WASHER .680 x 1.125 x .020 MTD-736-0422
...
87
BALL BEARING MTD-941-0600
...
88
Ball Brg. .625" I.D. x 1.574" O.D. x .47" MTD-941-0524A
...
89
DETENT BALL .250 MTD-741-0862
...
90
SPACER MTD-750-0555
...
91
FLAT WASHER .687 x 1.060 x .032 MTD-736-0333
...
92
Fl-Wash. MTD-NA
...
xx
FLAT WASHER MTD-936-0349
...
xx
FLAT WASHER MTD-936-0336
...
xx
Fl-Wash. 5/8" I.D. x 1.0" O.D. x .040" Thk. MTD-736-0337
