MTD 13DC26JD058 (2020) Lawn Tractor

Model: 13DC26JD058 (2020)

Back To Assemblies

Save Part Not Listed?
product name

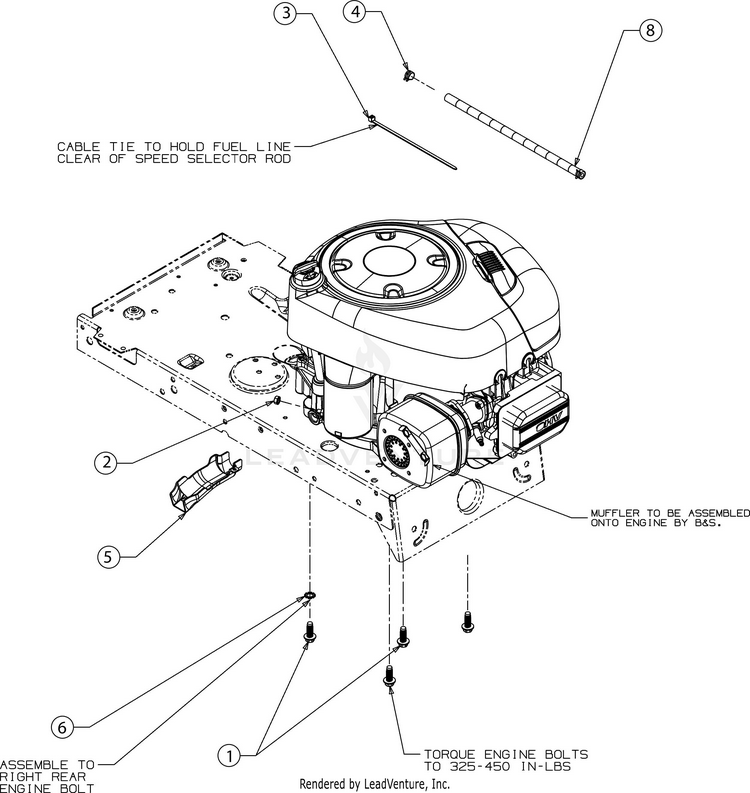

Engine Accessories

...
...
1
SCREW 3/8-16 X 1 MTD-710-04683C
...
2
SEMS NUT 1/4-20 MTD-712-0271
...
3
CABLE TIE 7" MTD-725-0157
...
4
HOSE CLAMP 1/20 MTD-726-0205
...
5
OIL DRAIN SLEEVE MTD-731-05628
...
6
LOCK WASHER 3/8 MTD-736-0148
...
8
FUEL HOSE LOW PERMEATION MTD-751-10349-13
Schematic Image Zoomed
