MTD 13BC26JD058 (2017) Lawn Tractors

Model: 13BC26JD058 (2017)

Back To Assemblies

Save Part Not Listed?
product name

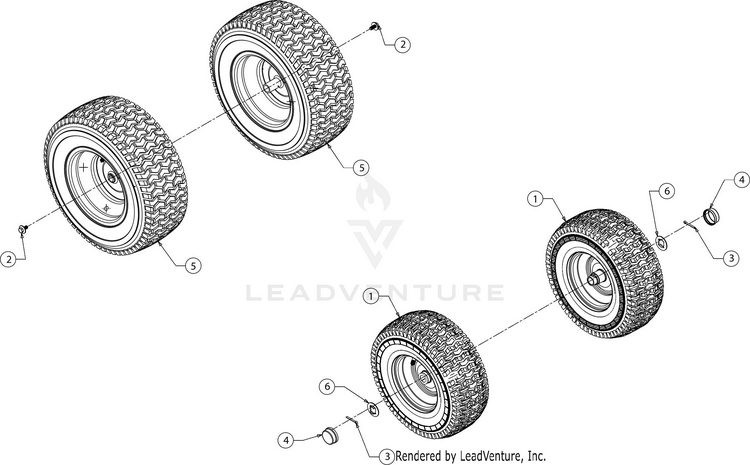

Wheels

...
...
1
WHEEL ASSEMBLY (13 x 5 x 6) MTD-634-04732
...
1
TUBELESS TIRE-13 x 5.0-6 (Not Shown) MTD-734-0298-0901
...
1
FLANGE BEARING (Not Shown) MTD-741-0516B
...
1
FLANGE BEARING W/ZERK FITTING (Not Shown) MTD-741-0990B
...
2
SCREW 5/16-24 x .750 GR5 MTD-710-05339A
...
3
COTTER PIN-5/32 DIA MTD-714-0162
...
4
HUB CAP-BLACK MTD-931-0484A
...
5
WHEEL ASSEMBLY MTD-634-0139-0911
...
5
RIM ASSEMBLY (8.0X5.38) W/VALVE (Not Shown) MTD-634-04174-0662
...
5
TUBELESS VALVE (Not Shown) MTD-934-0255
...
5
TIRE-16.0 x 6.50 x 8.00 SQ SH DELI (Not Shown) MTD-734-04641
...
6
FLAT WASHER .781 ID x1.590 OD MTD-736-04228B
