MTD 13AM77LS058 (2012) M15542 (2012) Lawn Tractors

Model: 13AM77LS058 (2012) M15542 (2012)

Back To Assemblies

Save Part Not Listed?
product name

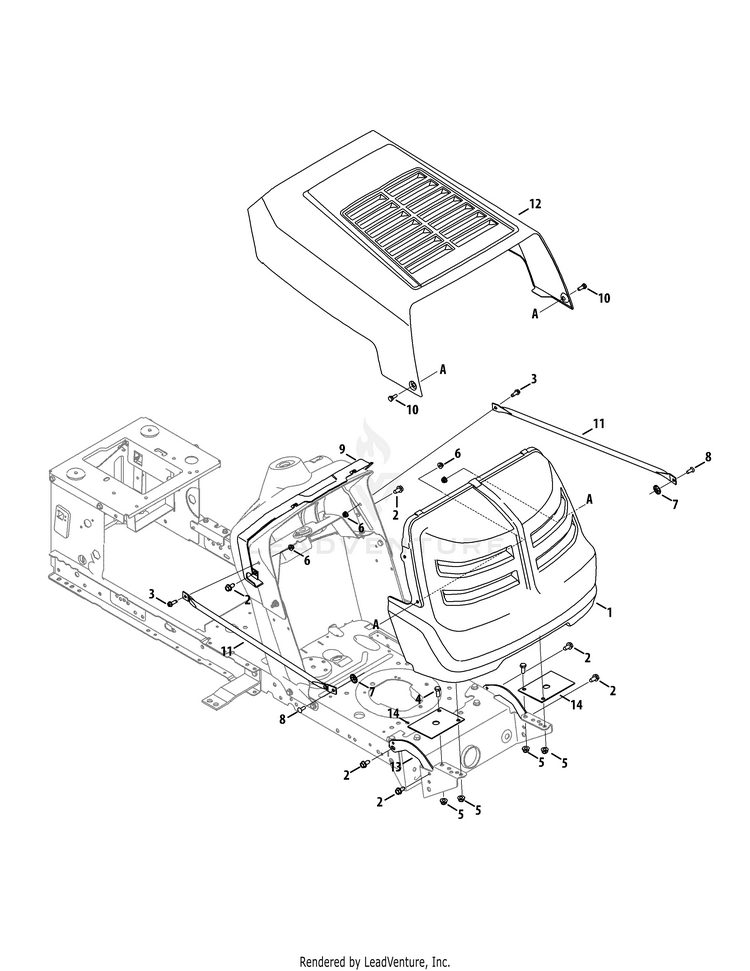

Hood Style 0

...
...
1
GRILL ASSEMBLY-L STYLE MTD-931-05028
...
2
SCREW 5/16-18 x .750 MTD-710-04484
...
3
Screw, Tap, 1/4-20x 0.750 MTD-710-0642
...
4
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
5
Flange Lock Nut, 5/16-18 MTD-712-04063
...
6
Flange Lock Nut, 1/4-20 MTD-712-04064
...
7
Nut, Push-on, .25 Dia. MTD-726-04012
...
8
Rivet, flat Head 1/4" MTD-728-0162
...
9
Collar, dash MTD-731-05012B
...
10
Bolt, Shoulder, .375 X .125 MTD-938-0952A
...
11
Grill Support Rod MTD-749-04220-0637
...
12
Hood MTD-783-04608-4066
...
13
Front Pivot Support Bracket MTD-783-05027-0637
...
14
SUPPORT BRACKET MTD-783-06682-0637
