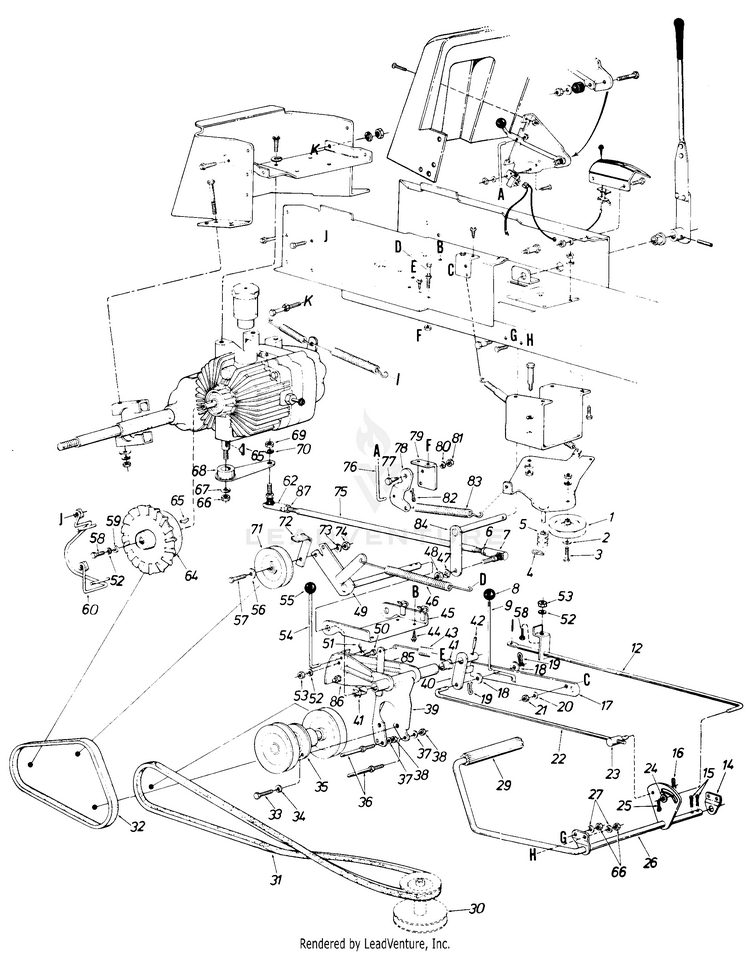

MTD 13785S (1985) Lawn Tractor

Model: 13785S (1985)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
Idler Pulley MTD-756-0487
...
2
Fl-Wash. 3/8" I.D. MTD-736-0300
...
3
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
4
Intern. Cotter Pin 5/16" Dia. MTD-714-0104
...
5
Spacer MTD-948-0278
...
6
Hex Jam L-Nut 3/8-24 Thd. MTD-712-0711
...
7
Ball Joint MTD-923-0156
...
8
THROTTLE KNOB MTD-720-0166
...
9
Parking Brake Link MTD-747-0300
...
xx
Brake Rod Hanger MTD-14027
...
12
BRAKE ROD MTD-747-0400
...
14
BRACKET MTD-13859
...
15
Cotter Pin 1/8" Dia. x 1.00" Lg.* MTD-714-0115
...
16
Hairpin Cotter 1/2" Dia. MTD-714-0145
...
17
CAM-PARKIN MTD-13832
...
18
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101
...
19
Hairpin Cotter 1/2" Dia. MTD-714-0145
...
20
FLAT WASHER MTD-736-0275
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
BRAKE ROD CAM MTD-747-0306
...
23
Ferrule MTD-911-0198
...
24
FLAT WASHER MTD-736-0275
...
25
Cotter Pin 1/8" Dia. x 1.00" Lg. MTD-714-0115
...
26
Clutch Brake Pedal Ass'y. MTD-13856
...
27
L-Wash. 3/8" I.D.* MTD-736-0169
...
29
FOOT PAD MTD-735-0239A
...
30
ENGINE PULLEY MTD-756-0328
...
31
V-BELT 1/2 x 59 MTD-954-0245
...
32
V-BELT 1/2 x 37 MTD-954-0255
...
33
HEX SCREW SEMS 5/16-18 x .75 MTD-910-0198
...
34
Lock Wash. 5/16" I.D. MTD-936-0119
...
35
JACK SHAFT MTD-756-0324
...
36
Stud 3/8-16 x 3.62" Lg. MTD-711-0696
...
37
L-Wash. 3/8" I.D.* MTD-736-0169
...
38
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
39
JACK SHAFT MTG. BRACKET. ASS'Y. MTD-13823
...
40
HORN ASSEMBLY- MTD-13871
...
41
Flanged Brg. 5/8" I.D. MTD-741-0591
...
42
Spring Pin Spiral 1/4" Dia. x 1.5" Lg. MTD-715-0114
...
43
SPRING-.75 (Jack Shaft) MTD-732-0153
...
44
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
45
BRACKET-ID MTD-13822
...
46
EXTENSION SPRING (Drive Idler) MTD-932-0384
...
47
L-Wash. 3/8" I.D. MTD-736-0169
...
48
Hex Nut 3/8-24 Thd. MTD-712-0241
...
49
Clutch Brk't. Ass'y. MTD-13815
...
50
Hex Bolt 1/4-20 x .50" Lg. MTD-910-0289
...
51
Internal Cotter Pin 5/16" Dia. Rod MTD-714-0104
...
52
L-Wash. 1/4" I.D. MTD-936-0329
...
53
HEX NUT 1/4-20 MTD-912-0287
...
54
Relief Valve Lockout Rod MTD-747-0312
...
55
Ball Knob MTD-720-0187
...
56
Fl-Wash. 3/8" I.D. MTD-736-0300
...
57
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
58
Hex Bolt 1/4-20 x .62" Lg.* MTD-710-0258
...
59
Fl-Washer MTD-736-0176
...
60
GUARD ASSEMBLY MTD-14016
...
62
JOINT ASSEMBLY-BALL (LH) THREAD MTD-923-0351
...
64
Transaxle Pulley w/Fan MTD-756-0364
...
65
KEY-HI-PRO-1/8X1/2 MTD-714-0156
...
66
Hex Nut 3/8-16 Thd. MTD-712-0798
...
67
L-Wash. 3/8 I.D. MTD-736-0169
...
68
Pintle Arm Ass'y. MTD-14022
...
69
Hex Nut 3/8-24 Thd.* MTD-712-0241
...
70
L-Wash. 3/8 I.D. MTD-736-0169
...
71
Idler Pulley MTD-756-0487
...
72
BEL GUARD (Clutch Idler) MTD-13819
...
73
L-Wash. 3/8 I.D. MTD-736-0169
...
74
Hex Nut 3/8-16 Thd. MTD-712-0798
...
75
CONTROL ROD-SPEED MTD-747-0321
...
76
DECK CONTROL ROD MTD-747-0307
...
77
Shoulder Bolt MTD-938-0155
...
78
BRACKET-DECK CONTROL MTD-13887A
...
79
PARKING BRAKE CAM MTG. BRKT. MTD-13833
...
80
Lock Wash. 5/16" I.D. MTD-936-0119
...
81
HEX NUT 5/16-18 MTD-712-3010
...
82
Internal Cotter Pin 5/16" Roc MTD-714-0104
...
83
EXTENSION SPRING MTD-932-0384
...
84
SHAFT ASSEMBLY MTD-14034
...
85
Relief Valve Cam L.H. MTD-14025
...
86
Relief Valve Cam R.H. MTD-14026
...
87
HEX NUT 3/8 MTD-712-0312A
