MTD 13785-8 (1988) Lawn Tractor

Model: 13785-8 (1988)

Back To Assemblies

Save Part Not Listed?
product name

Lawn

...
...
1
HITCH PIATE MTD-13813
...
2
Hex Bolt 3/8-16 x .75" Lg. MTD-710-0216
...
3
Rear Axle Support Brkt. MTD-13835
...
4
Truss Mach. Scr. 1/4-20 x .50" Lg. MTD-710-0286
...
5
DASH PANEL ASS'Y. MTD-16427
...
6
Knob MTD-720-0210A
...
8
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
9
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
10
Fl-Wash. .28" I.D. x .74" O.D. x .063 MTD-736-0173
...
11
RUBBER WASHER MTD-735-0126A
...
13
DECK CLTCH CONT. BRKT. MTD-13950
...
14
Hex Bolt 1/4-20 x 1.251' Lg. MTD-710-0106
...
15
GRIP MTD-720-0143
...
16
Control Arm Ass'y. MTD-14038
...
17
BLADE CLUTCH LEVER MTD-747-0513
...
18
PUSH NUT MTD-726-0106
...
19
DECK CONTROL ROD MTD-747-0307
...
21
Hex Nut #10-24 Thd. MTD-712-0121
...
22
Safety Switch MTD-925-0465A
...
23
Lock Wash. 5/16" I.D. MTD-936-0119
...
24
Truss Mach. Scr. #10-24 x .50" Lg. MTD-710-0473
...
25
SPEED CONTROL BRACKET MTD-14020
...
26
SCREW 5/16-18 x .625 GR5 MTD-710-0759
...
27
Spring Pin Spiral 1/4" Dia. x 1.5" Lg. MTD-715-0114
...
28
FLANGE BEARING MTD-941-0225
...
29
HEX NUT 5/16-18 MTD-712-3010
...
30
Lock Wash. 5/16" I.D. MTD-936-0119
...
31
Speed Control Shaft Brkt. MTD-14035
...
32
Shoulder Bolt MTD-938-0155
...
33
Hex Bolt 5/16-18 x 1.00" Lg. MTD-710-0376
...
34
BRACKET-ID MTD-13826
...
35
Idler Brkt. Ass'y. MTD-13893
...
36
Hex L-Nut 3/8-16 Thd. MTD-712-0181
...
38
HEX NUT 5/16-18 MTD-712-3010
...
39
Lock Wash. 5/16" I.D. MTD-936-0119
...
40
CONVOLUTED CONDUIT MTD-731-0757-4
...
41
Spring, Extension, .50 Dia. x 6.37 MTD-732-0308A
...
42
HEX SCREW 3/8-16 x .625 GR5 MTD-710-0201
...
43
Shld. Scr. .50" Dia. x .395" Lg. (3/8-16) MTD-738-0234
...
44
PARKING BRAKE CAM MTG. BRKT. MTD-13833
...
45
HEX NUT 5/16-18 MTD-712-3010
...
46
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158
...
48
Ext. Spring .59n O.D. x 7 08" MTD-932-0413
...
49
Ext. Spring Brake Return MTD-732-0157
...
51
Hex Nut 3/8-16 Thd. MTD-712-0798
...
52
L-Wash. 3/8" I.D. MTD-736-0169
...
53
Fl-Wash. .390" I.D. x 1.00" O.D. x .125" Thk. MTD-736-0258
...
54
BRACKET-AX MTD-13892
...
55
Transaxle (See Breakdown) MTD-NA
...
56
Hex Bolt 1/4-20 x 2" Lg. MTD-710-0501
...
57
HEX NUT 1/4-20 MTD-912-0287
...
58
L-Wash. 1/4" I.D. MTD-936-0329
...
59
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
60
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
63
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
64
Shoulder Bolt MTD-938-0155
...
65
HEX NUT 5/16-18 MTD-712-3010
...
66
Hex Wash. Hd. Scr. 3/8-16 x .50" Lg. MTD-710-0773
...
67
Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .75" Lg. MTD-710-0726
...
75
HYDROSTATIC PUMP COMP. MTD-717-0426
...
76
HEX SCREW 3/8-16 x 3.50 G22 MTD-710-0316
...
77
Hex AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
78
Side Panel Upper Frame R.H. MTD-13849
...
79
Side Panel Upper Frame L.H. MTD-16445
...
80
CAP MTD-731-0493
...
81
SCREW 3/8-16 x 2.75 MTD-710-0492
...
82
Hex Wash. Hd. Scr. #8 x .50" Lg. MTD-710-0227
...
83
Insulatop Nut Plate MTD-926-0320
...
84
SAFETY SWITCH KIT MTD-725-0759
...
88
Spr. Wash. 7/16" I.D. MTD-936-0141

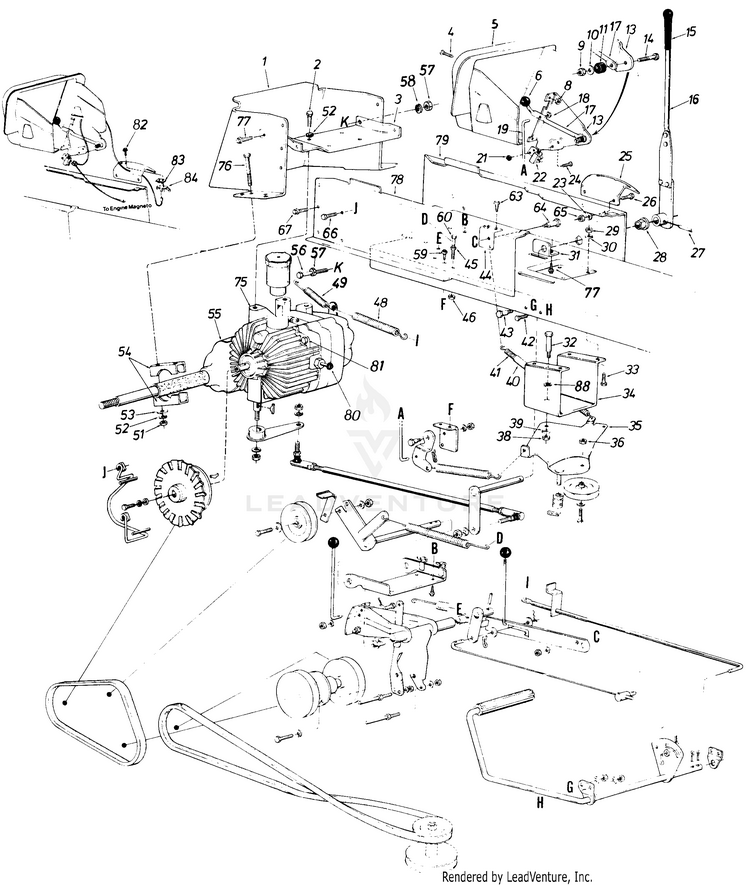

Schematic Image Zoomed
